Step-by-Step Guide to Designing an Irrigation System Wiring Plan

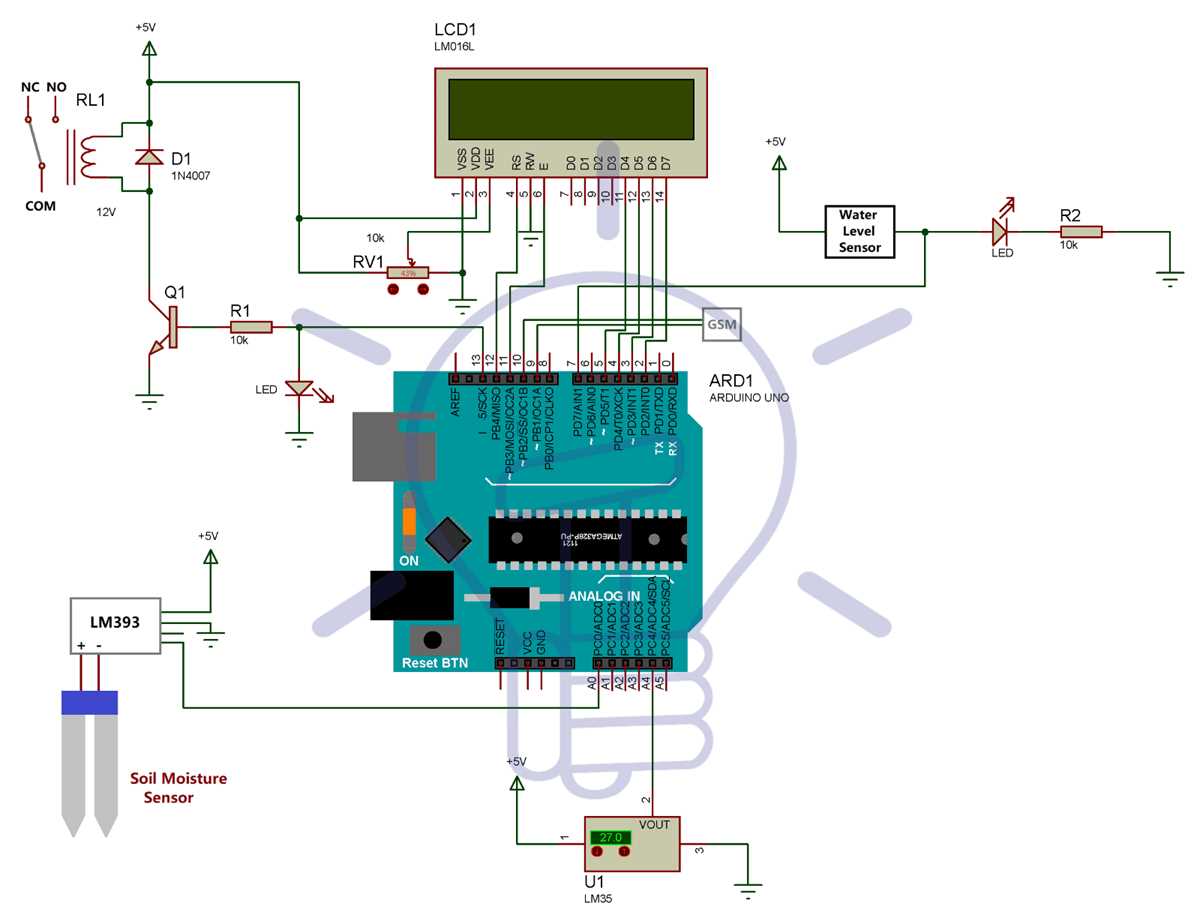

Begin by mapping supply routes with 13mm polyethylene tubing as the primary conduit. Branch lines should terminate in 4mm micro-tubing no longer than 30cm to maintain consistent pressure. Position drip emitters at 30cm intervals along high-value plant rows, using 2L/h output rates for sand-based soils and 4L/h for clay-heavy substrates. Include a backflow preventer rated to AS/NZS 3500.1 within 15cm of the main valve box.

Route all tubing through 90-degree elbow connectors at elevation changes exceeding 60cm to prevent airlocks. Place Y-filter assemblies immediately after the pressure regulator, selecting mesh sizes based on sediment load–140 micron for groundwater sources, 250 micron for surface water. Install manual flush valves at the lowest points of each sub-circuit, sized at twice the diameter of the connecting pipe for effective sediment removal.

Use adjustable spray stakes with 180-degree coverage patterns for ground covers, spacing them 45cm apart to eliminate dry zones. For container gardens, incorporate anti-leak devices with a 3-second shutoff delay between cycles. Label each zone with UV-resistant aluminium tags engraved with flow rate and connection specifications. Position smart controller units within 3m of power and Wi-Fi sources, ensuring firmware supports local weather station integration.

Calculate lateral line friction loss using the Hazen-Williams equation with C-values of 140 for polyethylene tubing. Cap all dead-end branches with vented caps to prevent vacuum formation. Include a secondary pump circuit for slopes exceeding 5% grade, using check valves with cracking pressures of 0.1 bar to prevent post-shutdown drainage. Verify electrical compliance with IP68 ratings for all outdoor connections.

Designing a Water Distribution Network Blueprint

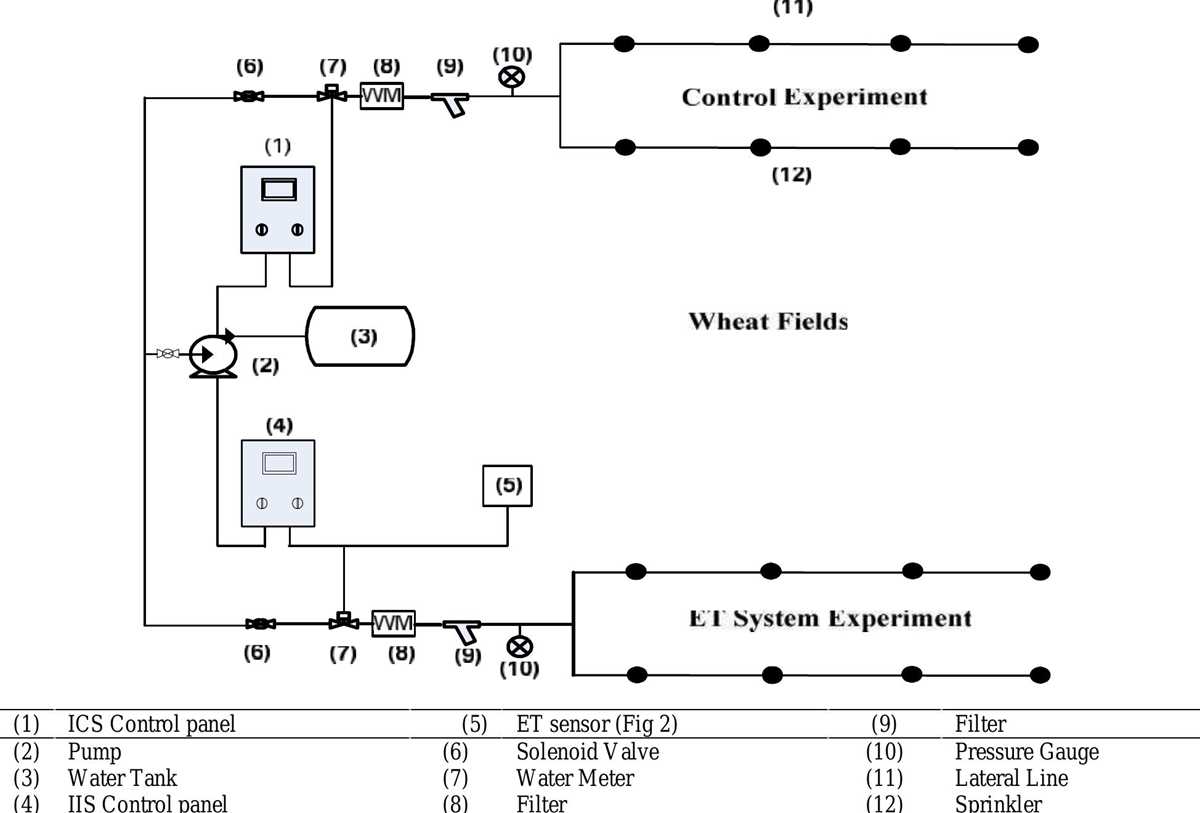

Begin with a main control valve sized for 1.5 times the total flow rate of all zones combined to prevent pressure drops during simultaneous zone activation. Place it near the water source, whether municipal supply, well, or reservoir, ensuring a direct, unobstructed path with minimal bends to reduce friction losses.

Divide the layout into zones based on plant water requirements and soil types:

• Sandy soil: zones of 6–8 emitters per 3/4″ lateral line, spaced 12–18″ apart.
• Loamy soil: zones of 8–12 emitters per 3/4″ lateral, spaced 18–24″ apart.
• Clay soil: zones of 12–15 emitters per 3/4″ lateral, spaced 24–36″ apart.

Each zone should operate independently with its own solenoid valve to avoid compromising flow rates.

For drip lines, use poly tubing with an internal diameter of 0.600″ for laterals and 0.700″ for submains. Calculate required head pressure at the farthest emitter (minimum 10 PSI) and adjust submain diameters accordingly:

1. ≤ 100′ submains: 1/2″ tubing.
2. 101–300′ submains: 3/4″ tubing.
3. > 300′ submains: 1″ tubing or split into multiple submains.

Install pressure regulators at the start of each zone to maintain consistent emitter output.

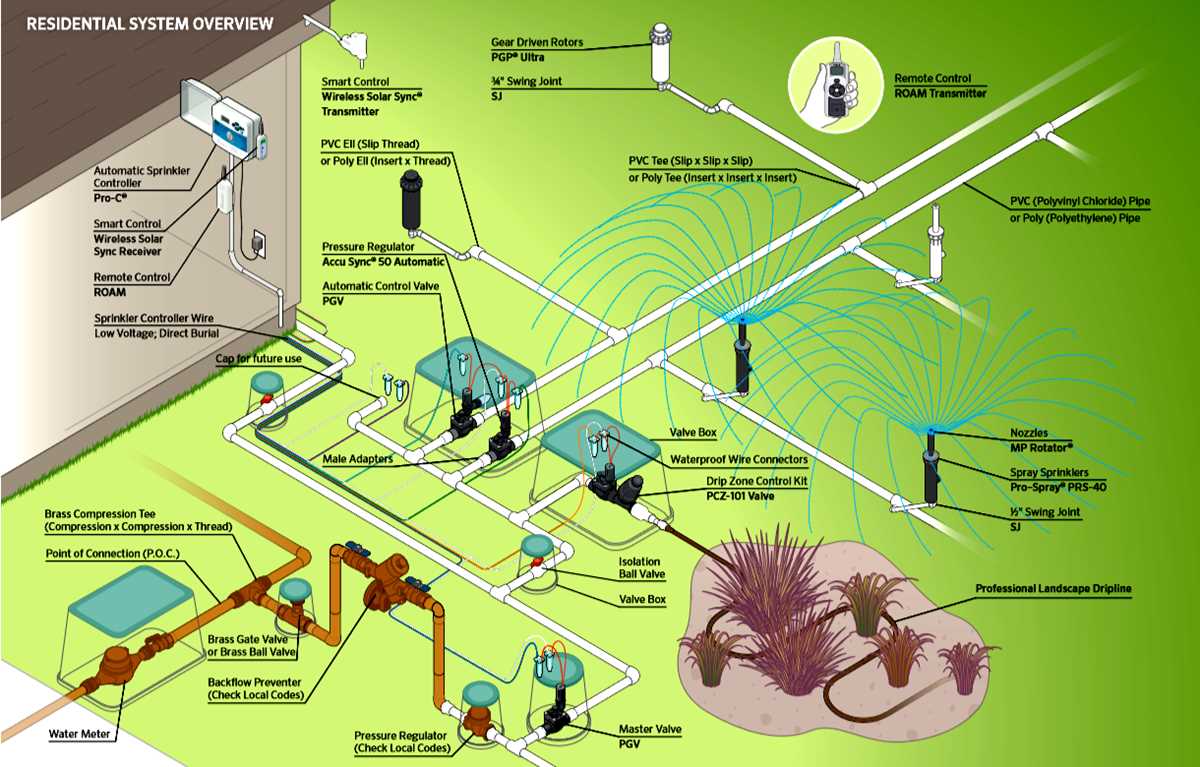

Incorporate a backflow preventer between the source and main valve–choose either an anti-siphon valve (for above-ground installations) or a reduced-pressure zone device (for buried lines). Position it at least 12″ above the highest downstream outlet to prevent contamination during backflow events.

For sprinkler layouts, match nozzle types to coverage patterns:

• Fixed spray heads: 4–15′ radius, 0.5–2.0 GPM, use in small, irregular areas.
• Rotor heads: 15–50′ radius, 0.6–8.0 GPM, use in large turf zones.
• MP rotators: 8–35′ radius, 0.4–3.0 GPM, ideal for sloped or wind-prone sites.

Space heads to achieve 30–50% overlap; place rotor heads no farther apart than 50% of their throw radius to ensure uniform precipitation rates.

Include a filtration unit upstream of the main valve if using surface water or wells:

• Screen filter (120–250 mesh): for municipal or low-sediment sources.
• Disc filter: for moderate sediment loads (3–50 ppm).
• Media filter (sand/anthracite): for high sediment (>50 ppm) or organic debris.

Size the filter for 20% higher flow than the network’s peak demand to reduce clogging frequency.

Label every component on the drawing with:

• Pipe/tubing ID, length, and material (e.g., “PEX 1/2″ x 120′”).
• Emitter type, flow rate, and spacing (e.g., “1.0 GPH dripper @ 18″”).
• Valve model and solenoid voltage (24VAC standard).
• Sensor types (rain, soil moisture, freeze) and mounting elevations.

Color-code laterals by zone and use dashed lines for low-voltage wiring to distinguish from water lines.

Validate the design by calculating total dynamic head (TDH) for the farthest zone:

Break down friction loss by section:

• Main line: use Hazen-Williams formula (C=150 for PVC).
• Laterals: add 20% safety margin for fittings.
• Sample calculation: 200′ of 3/4″ PVC at 12 GPM = 2.5 PSI friction loss.

Compare TDH with pump/pressure tank capacity; adjust pipe diameters or split zones if TDH exceeds available pressure.

Core Elements for Designing a Dependable Water Distribution Plan

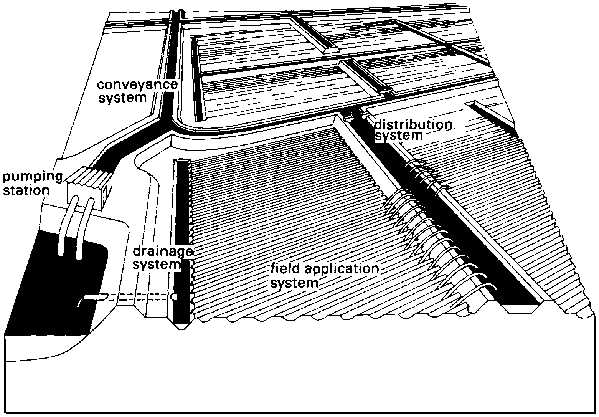

Begin with a precise land survey using LIDAR or GPS to capture elevation changes within 0.1% accuracy. Slopes steeper than 5% require terraced zones or pressure regulators to prevent runoff. Flat terrains (0–2% grade) allow uniform coverage with standard emitters, while undulating areas demand variable flow control valves placed at 30-meter intervals. Include soil percolation tests–sandy loam absorbs 25–50 mm/hour, while clay retains less than 5 mm/hour, dictating emitter spacing and frequency.

Map critical infrastructure: mains should be buried 60 cm deep to avoid frost damage, laterals at 30 cm. Use Schedule 40 PVC for mains (burst pressure 5,000 kPa) and polyethylene tubing for laterals (1,600 kPa). Install air vents at high points to eliminate vacuum collapse risks during shutdown. For areas above 1 hectare, incorporate a filtration unit–screen filters for particle sizes 150+ microns, disc filters for 75–120 microns, and sand separators for organic debris.

Select emitters based on crop water demand. Drip tapes last 3–5 seasons with wall thicknesses of 0.2–0.4 mm, while micro-sprayers cover 3–5 m diameter but require 20% more water. Match emitter flow rates to soil intake–sandy soils need 1.5–2 L/hour, clay soils 0.5–1 L/hour. Position valves to segment zones by pressure requirements: low-volume zones (100–200 kPa) for delicates like strawberries, high-volume (300–500 kPa) for orchards. Test all connections with a 1.5× working pressure hydrostatic test before backfilling.

Pressure Regulation and Zoning Requirements

Terrain Type	Slope Range (%)	Recommended Pressure (kPa)	Emitter Spacing (cm)
Flat	0–2	100–200	40–60
Moderate	2–5	200–350	30–50
Steep	5–12	350–500	20–40

Install pressure-compensating emitters on slopes exceeding 7% to maintain uniform discharge despite elevation changes. Use flange connections for risers in high-traffic areas to simplify maintenance. Each zone should cover no more than 2,500 m² to ensure consistent pressure; larger areas require booster pumps. Bury control cables in PVC conduit alongside mains to protect from rodents–14 AWG wire suffices for runs under 200 m, 12 AWG for longer distances.

Maintenance Access Points

Position flush valves at every 50 m along laterals, with manual drain valves at low points for winterization. Include sediment traps upstream of filters to capture grit before it reaches emitters. For automated setups, integrate moisture sensors at three depths: 15 cm for surface roots, 45 cm for mid-level uptake, and 90 cm for deep percolation. Set controllers to run cycles at dawn (4–6 AM) to minimize evaporation losses–daily ET rates in arid climates reach 8–12 mm, requiring 2–4 cycles per week. Store spare parts on-site: 10% of total emitters, 5% of tubing length, and 2 replacement valves per zone.

Step-by-Step Guide to Mapping Pipe Networks and Drip Point Layouts

Start by marking the main supply line’s path from the water source to the farthest distribution point. Use a minimum slope of 0.5% to ensure consistent flow; steeper gradients risk air pockets at high points. For 1-inch polyethylene tubing, maintain a maximum run length of 200 meters to prevent pressure loss exceeding 20% from friction. At each 30-meter interval, install an inline valve to allow sectional isolation during maintenance.

Divide the network into zones based on plant water requirements–group high-demand crops (e.g., tomatoes, squash) separately from low-demand varieties (e.g., sage, thyme). For drip points, space emitters at 30 cm for sandy soils and 50 cm for clay, adjusting for 2 L/h output at 1.5 bar pressure. Avoid clustering more than 10 emitters per 13 mm lateral line to maintain uniform distribution; split into parallel laterals if exceeded.

Calculate total dynamic head by summing vertical lift, pipe friction (use Hazen-Williams formula: h_f = 10.67 × L × (Q/C)^1.852 / D^4.87), and emitter elevation differences. For slopes above 5%, offset pressure-compensating emitters downward by 1 meter for every 3 meters of elevation gain to counteract gravitational effects. Bury supply lines at 30-50 cm depth to prevent UV degradation and thermal expansion damage; use 20 mm tubing for sub-mains to reduce head loss by 30% compared to 16 mm.

Incorporate a filter (120-150 mesh) immediately downstream of the pump to trap particles larger than 100 microns–clogged emitters reduce flow by up to 40%. Place manual flush valves at the end of each lateral to purge sediment after installation and every 6 months thereafter. For wind-prone areas, secure laterals with U-shaped stakes every 2 meters to prevent shifting from soil erosion or animal activity.

Test the layout before full implementation: pressurize to 2.5 bar and check for leaks (audible hissing or visible drips indicate joint failure). Verify emitter output by collecting water in a graduated cylinder for 30 seconds–deviation above 10% requires emitter replacement. Document the finalized routes with GPS coordinates or grid references to simplify future repairs.
