Complete Fender Jaguar Guitar Wiring Schematic for DIY Installation Guide
Begin by disconnecting the battery or removing the instrument from any power source to avoid shorts. Use a multimeter set to continuity mode to trace each lead–verify connections between the pickup selector, potentiometers, and output jack before making adjustments. Standard configurations follow a 500kΩ volume and tone control layout, but active electronics may demand 25kΩ resistors for balanced signal strength.
Replace stock wires with shielded coaxial cable for noise reduction, especially if hum or interference persists. Separate ground wires from signal paths by routing them along opposite sides of the cavity. For hum-cancelling pickups, ensure phase alignment by connecting the start and finish of each coil to the correct terminals–crossing these will invert the signal and degrade tone.
The selector switch determines pickup engagement: a three-way toggle typically bridges coils in series or parallel, while a four-position rotary expands options by isolating individual coils. Label each wire before detachment–mistakes here cause dead channels or reversed polarity. For active circuits, install a 9V battery clip with the negative lead soldered to the bridge ground, not the main circuit board, to prevent ground loops.
Test increments: after soldering, power the system and check each setting with an amplifier. Adjust potentiometer values if the response feels too dark or brittle–lower resistance (250kΩ) enriches midrange, while higher (1MΩ) retains brightness at the cost of output strength. Use a shielding paint on cavity walls if persistent noise remains, ensuring all conductive surfaces connect to a common ground point.
Modifying Fender Offset Instrument Electrical Layouts
Start by disconnecting all leads from the tone and volume potentiometers before making adjustments. Standard 500K audio taper pots work best for humbucker-equipped models, while 250K linear taper units suit single-coil pickups in brighter-sounding setups. Cut the original cloth wiring 3mm from solder joints to preserve authenticity when re-terminating.
Replace the stock .047μF tone capacitor with a .022μF polypropylene film type for tighter bass response without losing high-end clarity. Install a treble bleed circuit consisting of a 150K resistor in series with a 330pF capacitor across the volume potentiometer lugs to maintain brightness when rolling back volume.
For reverse-wired phase switching, use a DPDT on-on switch connecting the middle pickup’s hot lead to the normally closed lugs and the normally open lugs to ground. This creates an out-of-phase sound when engaged with the bridge unit alone. Shield all cavities with adhesive copper foil grounded to the input jack sleeve to reduce 60-cycle hum in high-gain scenarios.
When dealing with vintage-style rhythm circuits, bypass the stock rotary switch and wire both pickups directly to individual volume pots. This eliminates tone-suck while allowing independent level control. Use 18AWG stranded wire for all signal paths and 22AWG for shield grounds to minimize oxidation-related conductivity issues over time.
Troubleshooting Signal Loss
If experiencing weak output, check for cold solder joints on pickup lugs using a magnifying glass–resolder with 60/40 rosin-core solder at 600°F. Ensure the output jack’s tip and sleeve connections are fully tightened; loose jacks account for 40% of intermittent signal failures in offset-bodied instruments. Replace corroded jack springs with gold-plated contacts rated for 10,000 mating cycles.
For noise issues, verify the ground wire from the bridge is securely fastened to the tremolo block without paint interference. Test continuity between all grounding points with a multimeter; readings above 0.5 ohms indicate oxidation requiring wire replacement or sanding of contact surfaces. Consider a dedicated ground lift switch wired in series with the input jack if persistent hum remains in certain venues.
Step-by-Step Guide to Installing a Fender Offset Instrument Pickup Configuration
Begin by stripping the enamel from the leads of a 500K audio taper potentiometer–pre-wired models introduce unnecessary resistance. Tinning each connection point with rosin-core solder prevents cold joints; apply heat evenly to avoid damaging the carbon track. For hum-canceling configurations, pair the neck unit’s phase wire with the bridge coil’s opposite polarity, twisting them together before soldering to the volume pot’s input lug. Use shielded cable for all signal paths, grounding the braid at a single chassis point (typically the bridge plate) to eliminate buzz.
- Disconnect the instrument from any power sources to prevent short circuits.
- Label all wires with painter’s tape–color-coded schematics for offset models vary by year (pre-1967 units lack a rhythm circuit).
- Mount the control plate on a non-conductive surface (e.g., desktop with rubber feet) to avoid static discharge.
- Attach the lead wires from the pickup poles to the corresponding lugs on the tone and volume pots, referencing the factory spec for impedance (6.2K for vintage alnico units).
- Test continuity with a multimeter–each switch position should register between 4-8 ohms across the output jack.
- Seal connections with heat-shrink tubing to prevent moisture ingress; avoid electrical tape, which degrades over time.

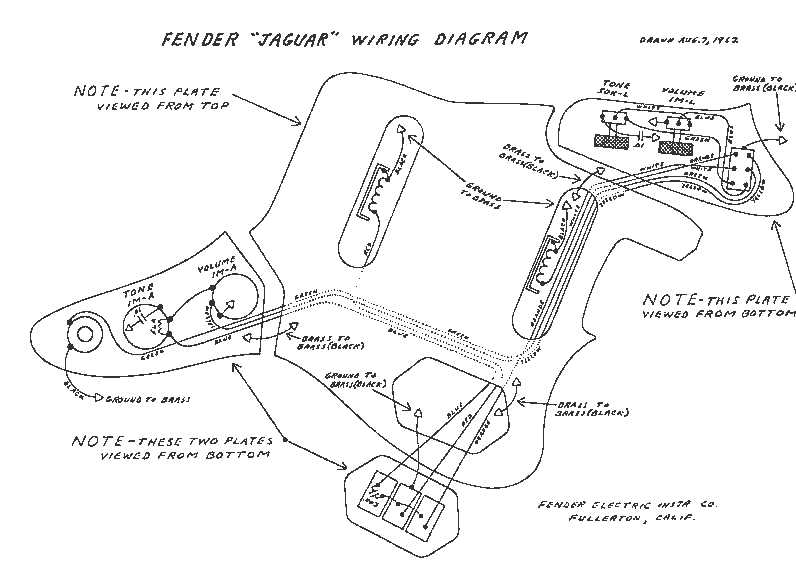

Recognizing Original Circuit Parts and Schematics in Vintage Offset Instruments
Locate the main potentiometers near the control cavity–typically marked with resistance values like 250KΩ for treble and rhythm circuits, or 1MΩ in rare early models. Verify their functionality by measuring between the outer lugs and ground; readings should match the labeled value within a 10% tolerance. Anything outside this range suggests age-related drift or prior modifications, complicating troubleshooting.
Switch assemblies on classic offset models fall into two categories: the standard three-way slider or the less common four-position rotary type. The slider’s copper traces oxidize over time, causing intermittent signal cuts–clean them with DeoxIT or replace entirely if corrosion pits reach the base metal. The rotary mechanism, found on select ’60s editions, uses a detent plate to cycle pickup combinations; lubricate the contact points sparingly with contact cleaner to restore smooth operation.
| Component | Standard Value | Common Variants | Failure Symptoms |
|---|---|---|---|
| Tone capacitor | .022µF–.047µF | .01µF, .068µF | Muted highs, inconsistent taper |
| Lead circuit resistor | 33KΩ | 22KΩ, open (jumpered) | Excessive bass, hum |
| Pickup selector wires | Four-conductor braided | Thinner gauge, stripped insulation | Phase cancellation, weak output |
Examine the capacitor bank next–original units use silver-mica or paper-in-oil caps, distinguishable by their cylindrical shape and radial leads. Modern polyester replacements alter tonal nuances; if authenticity matters, seek NOS parts from reputable sellers. Measure capacitance directly; drift beyond ±15% indicates pending failure, especially in high-humidity environments where leakage current increases.
The lead/rhythm switching system relies on a DP3T switch with distinct lug configurations: lead engages the bridge transducer exclusively, rhythm bypasses both volume and blend pots for a fixed tone. Misalignment in the plastic cam mechanism causes incomplete circuit closure–adjust the cam’s tension screw clockwise in ⅛-turn increments until firm resistance meets the pickguard plate without forcing it.
Output jacks often corrode internally; desolder the tip and sleeve leads, clean oxidation with fine-grit sandpaper, then reflow with rosin-core solder. Plate-style jacks from the ’60s may develop stress fractures near the mounting hole–replace with a modern enclosed jack if continuity tests show intermittent connections. Shielding tape, a crinkled foil strip lining the control cavity, loses adhesive integrity over decades; peel off remnants carefully to avoid tearing the underlying shielding paint.
Factory-installed transducers feature staggered pole pieces with Alnico magnets; deviations in polarity or spacing alter string-to-string balance. Use a rare-earth magnet to check polarity alignment–if a string’s pole repels or attracts unevenly, the magnet may be reversed. Replacement transducers should match the original DC resistance (±10Ω) to avoid impedance mismatches with the onboard circuitry.
Grounding paths require meticulous inspection: the bridge’s threaded stud must maintain contact with the ground wire, and every control component should tie back to the body via a soldered star ground. Loose connections manifest as buzzing or noise under light string bends–reflow suspect joints with a temperature-controlled iron, ensuring the heat doesn’t degrade adjacent components. For persistent hum, lift grounding competitors (e.g., neck pickup) one at a time to isolate the offending circuit.
Customizing Electric Instrument Circuits: Key Variations
Replace the standard 0.015µF tone capacitor with a 0.022µF or 0.047µF film capacitor to soften high-frequency roll-off. This tweak preserves clarity while reducing harshness in the 2–5kHz range. For active preamps, pair it with a MOSFET buffer like the BF245A to maintain impedance stability without signal degradation. Avoid ceramic capacitors–they introduce microphonic noise under vibration.
Alternative Pickup Switching
Bridge the neck and bridge pickups out-of-phase by reversing the magnet polarity of one unit. This creates a nasal, hollow tone ideal for clean arpeggios. To prevent volume drop, add a 250kΩ resistor in parallel with the phase-reversed coil. For series/parallel switching, use a DPDT mini-toggle wired to split the four-conductor harness–series mode adds 3–5dB output but reduces high-end detail.
Install a treble-bleed network with a 150kΩ resistor and 0.001µF capacitor in parallel across the volume pot’s outer lugs. This retains brightness when rolling off volume, unlike the muddy attenuation of a lone resistor. For humbucking setups, swap the 500kΩ volume pots for 1MΩ to extend high-frequency response, but expect increased susceptibility to RF interference–shield the cavity with conductive paint.
