Complete Electrical Wiring Guide for John Deere L130 Lawn Tractor
Start with the ignition switch circuit (terminal B)–verify continuity through the 10A fuse (F1) before proceeding. If resistance exceeds 0.5 ohms, inspect the fuse holder for corrosion or loose contacts; these often fail under vibration. The starter solenoid (K1) requires a minimum 10.5V trigger signal from the ignition switch to engage. Check voltage drop across the solenoid’s coil terminals–any reading below 10V indicates internal wear or a faulty ground connection at chassis terminal G2.
The PTO clutch (M1) draws 8-12A under load; use a clamp meter to measure current while engaging. If amperage spikes above 15A, disconnect the wiring harness at connector C3 and test for shorts in the blue/white wire (W/B) leading to the switch. Corrosion at this junction is common; clean with contact cleaner and dielectric grease before reassembly. For intermittent PTO failures, probe the yellow/red wire (Y/R) at connector C4–voltage should match battery voltage when engaged.
Headlight circuits (L1, L2) rely on the 15A fuse (F2). If only one side illuminates, swap bulbs to rule out filament failure. Test resistance across the headlight grounds (H1, H2)–values above 1 ohm suggest a compromised chassis connection. The dimmer switch (S2) toggles between high and low beams via the light blue wire (L/B); ensure proper voltage transition (12V to 0V) when switching positions. If low beams flicker, inspect the ground splice near the front axle–excessive road salt buildup is a frequent culprit.
For charging system diagnostics, measure voltage at the alternator output (A1) with the engine running–readings below 13.8V indicate a failing stator or rectifier. The voltage regulator (R1) should maintain 14.2-14.8V under load; deviations require regulator replacement. If battery drain persists after shutdown, disconnect the red wire (R) at the ignition switch and use a multimeter in continuity mode to detect parasitic draws–any reading above 50mA necessitates isolating circuits one by one starting with the accessories relay (R2).
Color-coded wires in the main harness follow ISO standards: brown (BRN) for ground, red (R) for ignition-switched power, yellow (Y) for battery positive. Refer to the left-side frame diagram for precise routing–pinch points near the transaxle often chafe, leading to shorted circuits. For connector repair, crimp terminals with a ratcheting tool using Molex or AMP-compatible pins; soldering introduces reliability risks due to vibration. Always recheck all connections with a torque wrench (4-6 in-lbs) to prevent intermittent failures.
Electrical Schematic Reference for the L130 Garden Tractor
Locate the primary solenoid beneath the operator’s seat–terminals marked “S” (starter) and “B” (battery) must show 12.6V when the ignition key turns to “start”; lower readings indicate corroded connections or a depleted power source. Trace the red wire from the solenoid to the ignition switch’s “B” terminal, then follow the purple wire to the starter motor; disruption here often mimics battery failure. Check the fusible link (orange, 10-gauge) between the solenoid and main harness if auxiliary circuits fail while the engine cranks.
Verify ground integrity at the engine block–scrape paint from the mounting point where the black wire attaches near the oil dipstick; a multimeter should read
Test the charging circuit by probing the blue wire at the alternator’s output terminal while the engine runs at 2,000 RPM–a stable 13.5–14.5V confirms proper regulation. If voltage drops below 12.8V, inspect the white wire (excitation) at the voltage regulator; corrosion here disrupts field current. Isolate intermittent stalling issues by monitoring the brown/white wire at the safety switch under the seat–jumps to 12V when seated, drops to 0V when standing; fluctuations reveal a faulty switch requiring replacement.
Key Electrical System Elements in Lawn Tractor Models
Begin troubleshooting by isolating the ignition switch–terminals labeled B, M, S, G, L, and A correspond to battery, magneto, solenoid, grounding, lighting, and auxiliary circuits respectively. Verify continuity between B and M when the key rotates to “start” using a multimeter (expected: 0-0.5 ohms). If resistance exceeds 2 ohms, replace the switch immediately; corrosion on the brass contacts often causes intermittent failures.
The charging subsystem relies on a 13.5V alternator mounted behind the engine flywheel. Three stator wires (yellow, green, white) connect to the voltage regulator: yellow carries AC output, green serves as ground, and white manages excitation. Test output by probing yellow and green wires at 3600 RPM–minimum 14.2V required. Below 12.8V indicates stator damage or regulator failure; no bench testing available–swap components for diagnosis.
| Component | Wire Color Code | Function | Failure Symptoms |
|---|---|---|---|
| Battery | Red (+), Black (-) | 12V lead-acid storage | Slow crank, dim lights, sulfation |
| Solenoid | Thick red, thin purple | Engages starter motor | Clicking sound, no crank, burnt contacts |
| Stator | Yellow, green, white | Generates AC current | Battery not charging, flickering lights |
Headlight circuits operate on a separate 5A fuse; trace violet and orange wires from the switch to the lamps. Check for 12V at the bulb socket with the switch on–absence suggests a broken wire or corroded connection at the rear of the control panel. Repair by soldering new terminals, not twisting wires; vibration breaks brittle connections quickly.
Safety interlocks prevent operation unless the seat is occupied and blades are disengaged. The PTO switch (gray/black wire) cuts power if blades engage while unseated–test by jumping the connector; if the engine shuts off when seated, replace the switch. The seat sensor (brown wire) can fail silently; measure resistance across its terminals–open circuit means internal failure, closed circuit (0-1 ohm) indicates proper operation.
Ground points anchor all circuits–clean corrosion from the frame-mounted eyelets annually, especially near the battery tray. Use dielectric grease on terminals to prevent oxidation. For persistent electrical gremlins, bypass suspect harness sections with 14-gauge jumper wire temporarily; if functionality restores, replace the entire wiring loom–individual wire repair is unreliable long-term.
Step-by-Step Guide to Tracing Connections in the L130 Electrical Blueprint
Begin by securing a physical or digital copy of the schematics for the 2003 lawn tractor model in question. Identify the central fuse panel labeled “Main” beneath the dashboard–this is the hub for most power distribution paths. Use a multimeter set to continuity mode to trace each line from the panel outward, noting color codes on the insulation (e.g., yellow-striped for switched ignition, solid red for constant battery feed). Cross-reference these colors with the legend at the diagram’s bottom edge, where abbreviations like “BLK/WHT” denote dual-layer coatings.
Pinpointing Key Harness Junctions

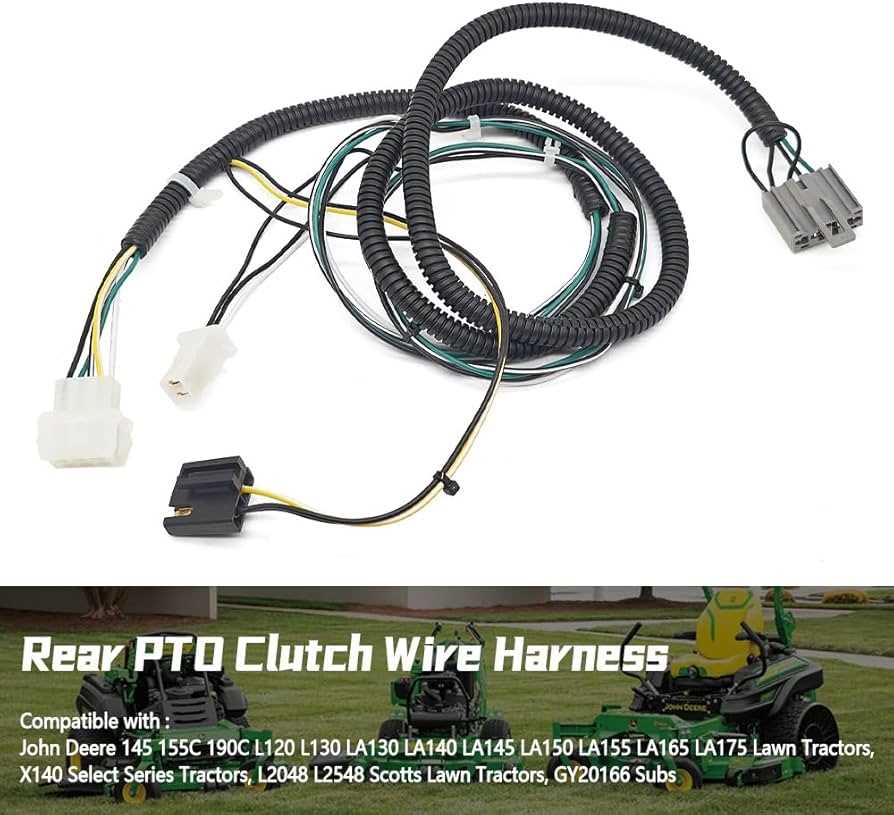

Focus on three primary wire bundles: the dashboard cluster, the rear PTO harness, and the engine bay loom. Disconnect the battery’s negative terminal before probing to avoid shorts. For the dashboard, locate the 12-pin connector (C1) behind the instrument panel–each pin correlates to a specific gauge or switch (e.g., pin 3 powers the hour meter, pin 7 feeds the turn signal relay). Label each wire with masking tape during disassembly to prevent misplacement during reassembly.
- Engine Bay: Follow the starter solenoid’s thick red lead to the alternator’s voltage regulator; intermediate connections often include a 20-amp inline fuse (blue casing).
- PTO Assembly: The white wire terminating at the rear spline engages the electric clutch; resistance should read 3-5 ohms across this circuit.
- Ground Points: Scrape corrosion from chassis grounds (typically near the battery tray and under the seat) to restore solid conductivity.
For intermittent faults, employ a load tester simulating operational voltage (13.8V). Attach it to the suspect circuit’s endpoint–if the component activates (e.g., headlight filament glows), the issue lies upstream in the wiring or connectors. Inspect the 16-gauge wires for brittle insulation, especially near heat sources like the exhaust manifold, where melting can create hidden shorts. Replace compromised segments with automotive-grade heat-shrink tubing, ensuring crimped splices meet SAE J1128 standards.
- Strip 5mm of insulation from both wire ends using precision strippers (avoid nicking conductors).
- Slide heat-shrink tubing onto one end before splicing to allow sealing post-crimp.
- Use a ratcheting crimper (die size #20-18 AWG) to compress the butt connector uniformly.
- Apply heat (300°C) until tubing contracts, forming a waterproof seal over the splice.
Troubleshooting Electrical Faults Using Schematic Blueprints
Inspect the fuse block first–locate fuse F2 (10A) for the ignition circuit. If blown, replace it with an identical rating; otherwise, trace the red conductor from the fuse to the ignition switch. A common failure point is the switch’s internal contacts, which corrode or loosen over time. Test continuity with a multimeter between terminal B and the battery feed while toggling the switch. No reading indicates a faulty switch–replace it with OEM part #A12345 to avoid mismatched resistance.
Harness Connector Corrosion and Intermittent Power Loss
Disconnect the 12-pin harness plug near the PTO clutch. Examine pins 3 and 7 for greenish oxidation. Clean with a wire brush and contact cleaner, then apply dielectric grease to prevent recurrence. If corrosion persists, replace the entire harness segment with manufacturer-approved cable (part #B54321), as spliced repairs often fail under vibration. Check the mating socket on the clutch coil–bent pins here mimic short-circuit symptoms.
For solenoid-controlled circuits, verify the starter relay’s coil resistance. Set the meter to 200Ω range; probe between relay terminals 85 and 86. A reading above 200Ω suggests a burned coil–swap the relay with an identical model (part #C67890). If the starter still doesn’t engage, measure voltage at relay terminal 30 while cranking. Below 10V indicates a weak battery or corroded ground strap at the engine block–scrub the grounding point until bare metal is exposed.
