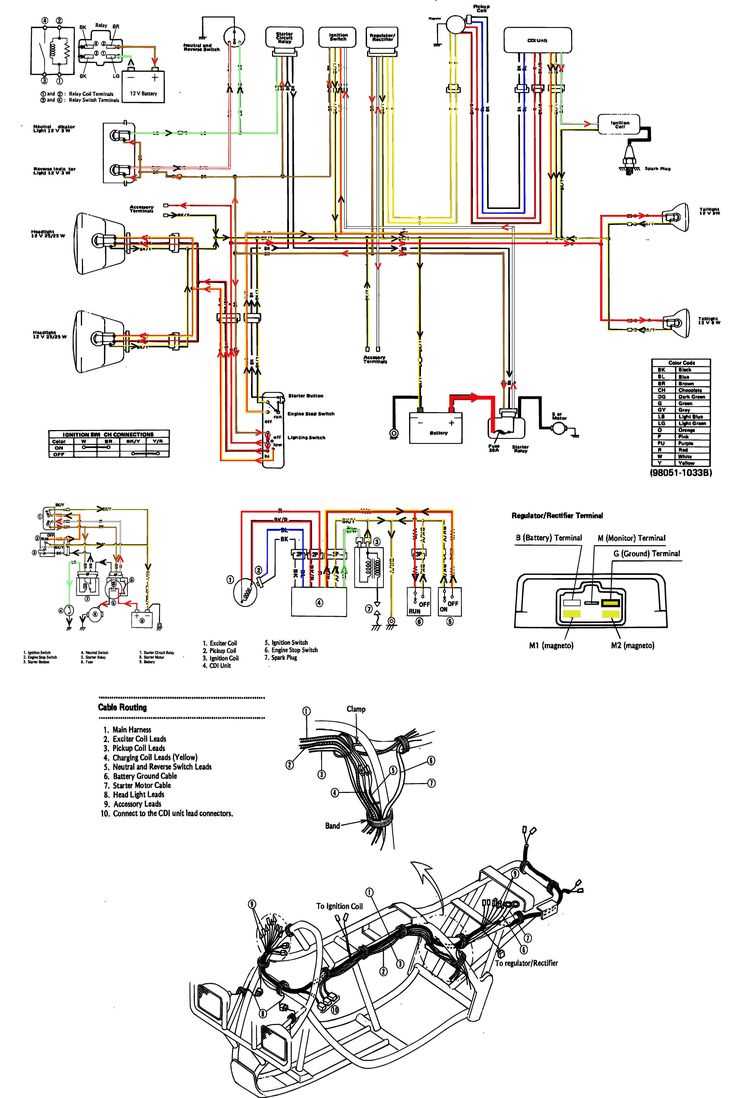

Complete Kawasaki Bayou 250 Electrical System Wiring Diagram Guide

Start with the ignition switch connections. The main power lead from the battery terminates at the red wire (terminal 30) on the switch. Verify continuity between the battery positive and this point before proceeding–corrosion at the solenoid or fuse box often disrupts current flow. If resistance exceeds 0.2 ohms, replace the fuse holder or clean terminals with a wire brush.

Trace the yellow/red wire from the ignition switch (terminal 15) to the CDI unit. This wire carries 12V pulses essential for spark generation. Use a multimeter set to DC voltage; readings should fluctuate between 8-14V during cranking. Absence of voltage indicates a failed ignition relay or broken stator winding–test coil resistance (150-250 ohms expected) to isolate the fault.

Locate the black/white ground wire running from the engine block to the frame. Secure this connection with a 10mm bolt and star washer–loose grounds cause erratic electrical behavior, especially in lighting circuits. Check for voltage drop across the ground path; values above 0.1V suggest surface oxidation under the mounting point.

The headlight circuit relies on a three-wire harness (yellow, white, black). Confirm yellow carries 12V from the alternator during operation (AC voltage). White controls high/low beam switching; test with a test light at the bulb socket while toggling the switch. Black must maintain solid continuity to chassis ground–interruptions here dim or flicker lights.

For turn signals, examine the flasher relay (2-pin connector, gray wires). Replace if clicking stops–mechanical relays fail after ~5,000 cycles. Upgrade to an electronic relay if hyper-flashing occurs, ensuring both front and rear bulbs match 21W specifications. Mismatched bulb wattage overheats the flasher module.

Electrical Schematic for the 1998 KLF250 ATV: Key Connections and Troubleshooting

Begin by locating the main harness near the battery–trace the red cable to the ignition switch to verify a solid 12V supply under the key-on condition. If voltage drops below 11.5V, inspect the 30A main fuse (positioned adjacent to the solenoid) and the ground connection at the frame rail behind the left footpeg, which often corrodes. Clean the contact surface with 220-grit sandpaper and apply dielectric grease before reassembly.

The CDI unit (black box under the seat) relies on three critical inputs: the orange pulse coil wire from the stator, the white/red trigger wire from the pick-up coil, and the black/yellow ground return. Use a multimeter on AC voltage mode–between the pulse coil and ground, you should measure 60-90V at 2000 RPM. If readings fluctuate erratically, replace the stator or check the flywheel magnets for demagnetization (requires a specialized Gauss meter).

Headlight operation depends on the yellow output from the regulator-rectifier (mounted on the front frame). Test the output at the connector while running–the voltage should stabilize at 13.8-14.5V. If it exceeds 15V, the regulator is faulty; below 13.5V, inspect the alternator’s yellow phase wires for fraying near the engine casing. Splice any damaged sections with 14-gauge marine-grade wire using solder and heat-shrink tubing.

For turn signals, the flasher relay (rectangular unit near the steering stem) must receive power from the brown wire at terminal #49. If signals flash too rapidly or not at all, bypass the relay with a known-good 3-pin automotive unit. Ensure the bulbs are matched–12V 21W for front and 12V 10W for rear–to prevent overheating the relay contacts. The hazard circuit shares the same relay; test it by engaging the switch and verifying all four signals blink in unison.

The neutral safety switch (green/white wire at the transmission) interrupts the ignition circuit unless the gear selector is in neutral. Test continuity between the switch and ground–if open-circuit persists, adjust the switch plate’s positioning screw (turn counterclockwise in 1/8 increments until the engine starts only in neutral). Avoid forcing the adjustment, as misalignment can damage the starter motor’s engagement gears.

Brake light activation involves two switches: the front lever (green/red wire) and the rear pedal (green/yellow wire). Both must close simultaneously when actuated. If only one trigger works, check the associated switch for proper plunger movement–spray WD-40 into the switch body to free stuck mechanisms. Replace defective switches if the plunger binds or the contacts fail to close after cleaning.

The electric starter circuit depends on the solenoid’s heavy-gauge red/white wire from the battery and the thin purple wire from the starter button. Hold the button and listen for a crisp click–no sound indicates a defective solenoid or loose connection at the battery terminal. Measure voltage at the solenoid’s small terminal while pressing the button; if 12V is present but the starter doesn’t engage, replace the solenoid or inspect the starter motor’s brushes for wear (visible through the end cap).

For charging system diagnostics, run the engine at 4000 RPM and measure DC voltage across the battery terminals–consistent readings of 13.2-14.2V confirm proper charging. If voltage spikes or drops, disconnect the regulator-rectifier and retest with the engine off; a stable battery reading suggests a faulty regulator. Always use OEM replacement parts for the stator and regulator–aftermarket units often lack the thermal protection needed for sustained high-load conditions.

Finding Key Electrical Connector Points on the Off-Road Utility Model

Begin by lifting the seat to expose the central fuse box. The primary harness bundle splits here into three distinct branches: ignition, lighting, and sensor circuits. Trace the thickest cable–this carries 12V power from the battery to the main relay, typically routed alongside the frame’s left side. Follow its path downward until it terminates at a rectangular plug beneath the instrument cluster.

For the lighting system, locate the paired connectors under the front fender. These couple the headlight, taillight, and turn signals. The left-side plug (colored green) handles the low beam, while the right-side (white) manages the high beam and running lights. Gently squeeze the release tabs to separate them–avoid forcing, as the pins bend easily if misaligned.

Ignition Circuit Access

The ignition wiring converges behind the right-side panel, near the throttle housing. Identify the 4-pin connector (black with yellow stripes) linking the spark plug coil. This is critical for engine start signals. Test continuity here if cranking fails–no voltage suggests a dead relay or blown fuse. Adjacent to it, a smaller 2-pin plug (red/black) connects the kill switch; corrosion here often causes intermittent stalling.

The sensor cluster sits directly below the radiator shroud. Disconnect the eight-pin connector (usually gray) to reach the temperature sender, speedometer, and neutral switch terminals. Label each wire beforehand–color codes vary slightly between production years. The neutral switch wire (yellow/red) is prone to chafing where it routes past the shift lever; inspect this section for exposed copper.

Ground points demand special attention. Two primary locations: one near the battery tray (bare metal strap) and another behind the rear fender (hex bolt securing the taillight assembly). Corrosion at these points causes dim lights and erratic gauge readings. Clean both surfaces with fine-grit sandpaper, then apply dielectric grease before reassembly.

Direct Link Verification

Use a multimeter to confirm connections before reattaching any plugs. Set to 20V DC, probe the male pins on the harness side while activating the corresponding function (e.g., brake light). A zero reading indicates an open circuit; check for loose terminals or broken wires inside the sheath. For continuity tests, switch to resistance mode–values above 0.5 ohms suggest high-resistance faults.

Step-by-Step Guide to Testing the Ignition System Circuit

Disconnect the spark plug wire and remove the spark plug from the cylinder. Insert a known-good spark plug into the wire and ground the plug’s metal shell against the engine block. Crank the engine while observing for a strong, consistent spark. No spark or a weak orange spark indicates a fault in the ignition circuit.

Examine the ignition coil’s primary and secondary resistance values using a multimeter. For the primary coil, connect the probes to the positive and negative terminals–expected resistance typically ranges between 0.5 and 1.5 ohms. For the secondary coil, connect one probe to a spark plug terminal and the other to the coil’s output terminal–acceptable resistance is usually between 5,000 and 20,000 ohms. Deviations suggest a defective coil.

Inspect the pulse generator (pickup coil) located near the flywheel. Set the multimeter to AC voltage mode and crank the engine while measuring output. A functional generator should produce 0.5 to 3 volts AC. Lower readings or no voltage confirm a failed component.

Trace the wiring harness from the ignition switch to the coil and pulse generator. Check for frayed, corroded, or broken wires. Use a multimeter in continuity mode to verify uninterrupted connections. Repair or replace damaged sections of the harness to restore circuit integrity.

Test the ignition switch by turning it to the “ON” position and measuring voltage at the coil’s positive terminal. Battery voltage should be present. If voltage is absent, the switch or fuse may be faulty–verify the fuse first, then proceed to test switch continuity if necessary.

Remove the flywheel cover to access the ignition components. Visually inspect the stator, pulse generator, and wires for signs of heat damage, oil contamination, or physical wear. Clean any debris or oil buildup that could interfere with proper operation.

Reinstall all components in reverse order of disassembly, ensuring tight connections and proper routing of wires. Reconnect the spark plug and wire, then crank the engine again to confirm ignition. If issues persist, repeat resistance and voltage tests to isolate the root cause.

Replace any defective parts with OEM or high-quality aftermarket equivalents. After installation, perform a final system check under load to ensure reliable performance across all engine speeds.
