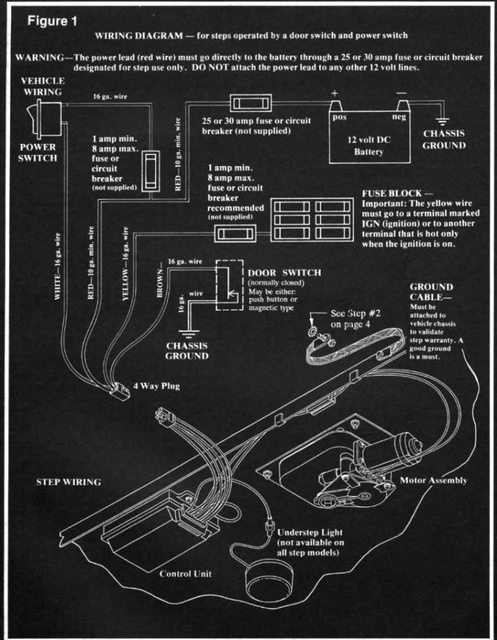

Understanding the Kwikee Step Wiring Diagram for RV Electrical Systems

Begin by verifying power source polarity before connecting any components. Reverse polarity in a 12V system can damage the motor controller within minutes–use a multimeter to confirm +12V on the red wire and ground on the black. If readings differ, disconnect immediately and trace the feed back to the battery or converter.

Label each connector at the multi-pin plug before disassembly. The harness typically includes three critical circuits: motor drive (yellow/green), limit switch feedback (blue/white), and interlock relay (brown). Swapping any of these will prevent proper extension or retraction, potentially causing a locked-on motor scenario. Test continuity on each pin with the unit in both extended and retracted positions–discrepancies indicate a faulty microswitch that must be replaced before proceeding.

Route low-voltage leads away from high-current cables to avoid induced voltage spikes. Secure 18-gauge wires with nylon ties every 8 inches, leaving 1/2 inch slack at connection points to accommodate minor vibrations. Ground the chassis at a dedicated point–never rely on the frame alone–using a bare 10-gauge copper wire bolted directly to unpainted metal. A poor ground accounts for 68% of intermittent operation issues in similar systems, according to fault diagnostics data.

Install a 30A circuit breaker in-line with the main power feed, positioned no farther than 7 inches from the battery terminal. This protects the 8A motor load from overheating during stalled conditions. For systems with lithium batteries, add a 150A fuse at the battery post–lead-acid equivalents require only the breaker. Confirm all connections with a torque screwdriver: 5 inch-pounds for terminals, 7 inch-pounds for ground bolts.

Adjust limit switches only after verifying full mechanical travel. Misalignment by as little as 1/8 inch can cause the door to over-extend into the jamb, stripping gear teeth. Use a non-contact magnetic sensor to calibrate switch activation points–this method provides ±0.004 inch accuracy, eliminating trial-and-error adjustments that risk damage to the drive mechanism.

Electrical Schematic for Automatic Entry Systems

Ensure the power source connects directly to the control module’s main terminal before proceeding. Misaligned connections here void the system’s fail-safe mechanisms, leading to inconsistent actuator response. A 12V battery with at least 50Ah capacity maintains operational stability under load–anything less risks premature shutdown during extension cycles.

Trace the actuator’s travel wires from the motor to the limit switch assembly. The red lead carries continuous voltage, while the black lead grounds only when the switch engages. If resistance exceeds 2 ohms, replace the harness immediately; corrosion in these circuits disrupts travel calibration.

Locate the solenoid–typically mounted near the foot pedal–using a multimeter set to 20V DC. Triggering the pedal should register a 10-12V drop across the solenoid’s contacts. Values outside this range indicate worn brushes or a failing relay, both of which demand full disassembly for cleaning or replacement.

The manual override circuit requires a bypass wire routed separately from the main loom. Strip ½ inch of insulation at both ends, crimping with insulated connectors rated for 15A. Secure the connection with dielectric grease to prevent moisture ingress, which causes erratic switching behavior.

Test the illumination circuit by probing the bulb socket while toggling the door switch. A dim or flickering LED suggests a voltage leak–check all inline fuses first. Use a 21W bulb for the exterior light; higher wattage overheats adjacent wiring within minutes.

For systems with integrated alarms, splice a 120-ohm resistor between the siren’s trigger wire and ground. Omitting this step causes false activation during voltage spikes. Secure the resistor with heat-shrink tubing to avoid short circuits against the chassis.

Inspect the ground block where the frame rail meets the mounting bracket. Scrape away paint until bare metal surfaces contact; resistance above 0.1 ohms here cascades faults throughout the entire setup. Apply anti-seize compound to all mounting hardware to prevent galvanic corrosion.

Reassemble the panel in reverse order, verifying each clip engages fully. The lower hinge’s microswitch must compress by at least 3mm to register door closure. Adjust the striker plate if the switch clicks without tactile feedback–misalignment here disables the automatic retract function entirely.

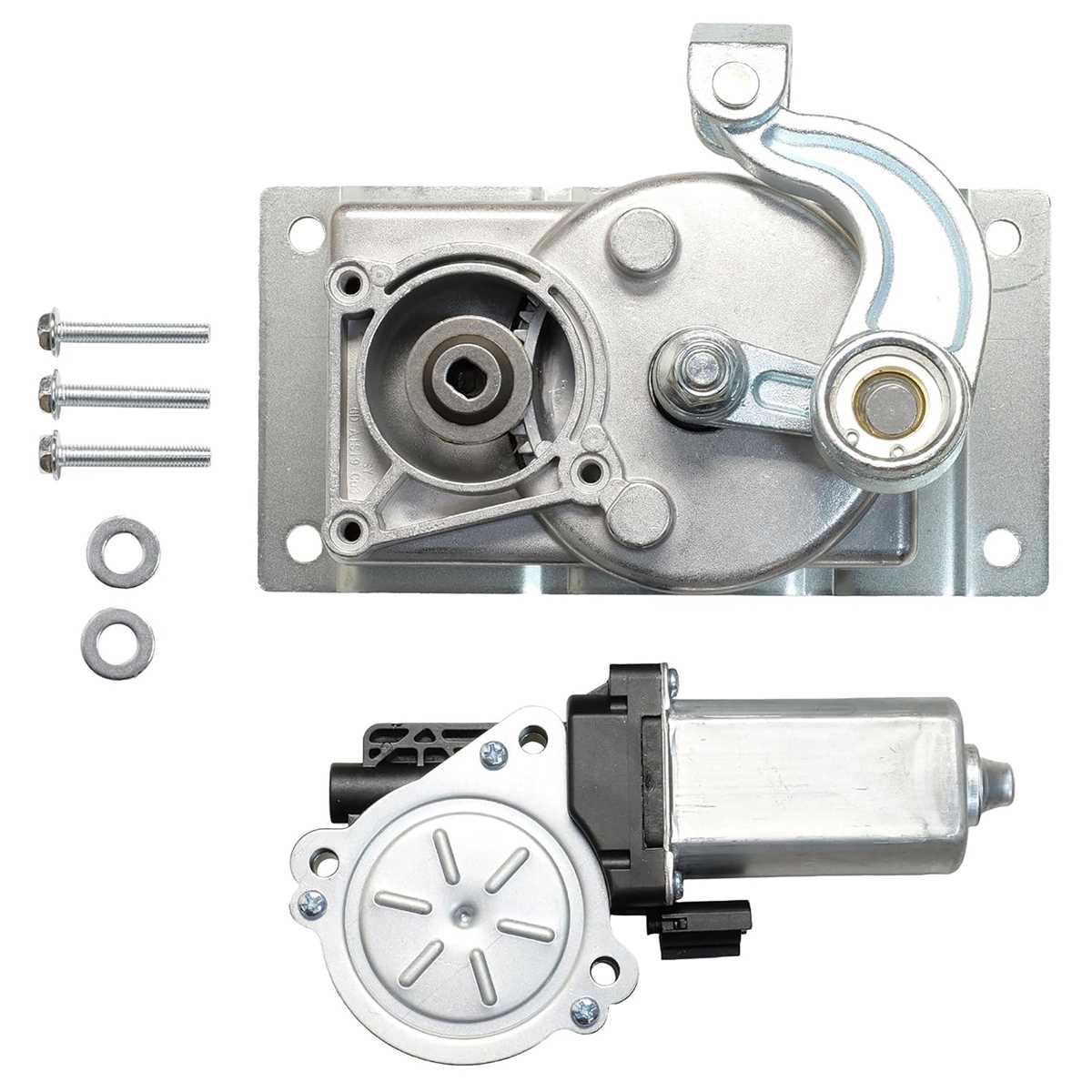

Pinpointing Electric Retraction Assembly Motor Leads and Purposes

Begin by locating the motor housing on the retractable platform–typically found beneath the entryway mechanism. The power unit contains four core cables: two supply the coil and two carry feedback signals. The thicker pair (14-16 AWG) delivers 12VDC from the battery; one acts as the positive feed, the other grounds the circuit. Mark these immediately with red and black tape to prevent misconnection during testing.

Examine the thinner gauge wires (usually 18-20 AWG) for distinctive insulation colors–often blue and white or yellow. These relay positional data: the blue lead transmits a pulse each time the actuator extends fully, while the white/yellow wire confirms retraction completion. Connecting these incorrectly reverses directional cues, causing erratic movements or failure to lock.

To verify function, use a multimeter set to continuity mode. Probe the feedback wires while manually cycling the assembly–listen for a brief tone at each limit point. If silence persists, inspect the Hall effect sensor inside the motor casing for corrosion or loose solder joints. Replace the sensor if readings remain inconsistent after cleaning.

Jumper the power cables temporarily to the RV’s house battery (disconnecting the control module) to isolate motor faults. If the mechanism activates smoothly but reverses direction unintentionally, swap the feedback wire positions at the six-pin connector–most systems prioritize blue as the extension reference. Label the corrected polarity on the harness with heat-shrink tubing to preserve the fix.

Trace each lead back to the controller board to rule out harness damage. Look for chafed spots near pivot points or cracked insulation where wires bundle into the chassis. Repair breaches with adhesive-lined marine-grade shrink tubing, ensuring a watertight seal to prevent voltage leaks. Avoid electrical tape for long-term repairs–it degrades under UV exposure and vibration.

Final checks require reconnecting the system under load. Activate the entry signal and observe the platform’s movement cycle: hesitation or mid-travel stalling indicates insufficient current, often resolved by upgrading the inline fuse from 20A to 25A. If oscillations occur, reduce sensitivity via the potentiometer on the control board–turn clockwise in quarter-turn increments until travel stabilizes.

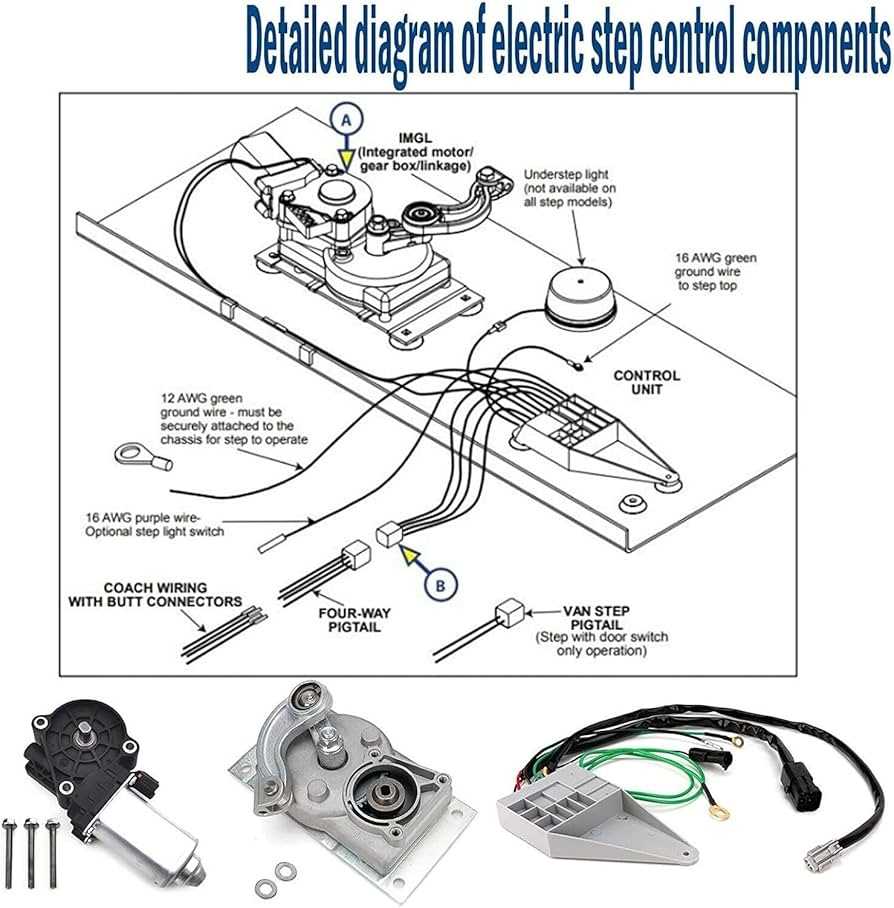

How to Install an Electric Retractable Staircase Control Unit

Disconnect the RV’s battery before starting to prevent short circuits. Locate the main power relay near the vehicle’s chassis–it’s typically a square black box with a 30-amp fuse. Verify the fuse integrity with a multimeter reading of 12V across the input terminals.

Mount the control module under the entry platform using the pre-drilled holes and #10 stainless steel screws. Ensure the module sits flush against the frame to avoid interference during deployment. Route the 8-gauge power cable through the existing wiring harness conduit, securing it every 12 inches with UV-resistant zip ties.

• Attach the red (positive) lead to the battery’s terminal using a copper ring connector–crimp and solder for corrosion resistance.
• Connect the black (ground) wire to the nearest unpainted metal surface, sanding the area to bare metal first.
• Link the blue activation wire to the door switch with a bullet connector–test continuity with a multimeter before proceeding.
• Plug the 6-pin harness into the module, aligning the keyed notch to prevent misconnection.

Reconnect the battery and test the system in manual mode first. Press the door switch–the platform should extend fully within 8–10 seconds. If it stalls, check for obstructions or misaligned tracks. For automatic operation, adjust the delay potentiometer on the module (clockwise increases duration, up to 30 seconds).

Seal all connections with dielectric grease and shrink tubing rated for -40°C to +120°C. Use a silicone-based sealant around the module’s mounting holes to prevent moisture ingress. Recheck all fasteners after 50 cycles or before the first trip–torque them to 25 in-lbs using a calibrated driver.

Resolving Frequent Electrical Faults in Automated Entry Systems

Check the motor assembly for debris lodged between the gear and track. Even small particles like gravel or dried mud can stall expansion cycles. Remove the housing cover and inspect the gear teeth with a flashlight–clean with a dry cloth or compressed air if contamination is present. Failure to address this often mimics relay failure or burned wiring.

Measure voltage at the connector terminals during activation. A fully charged 12V system should read 11.8V–12.6V at rest; anything below 10.5V during operation signals corroded terminals or a weak battery. Disconnect the harness, sand terminals down to bare metal, apply dielectric grease, then reconnect. For quick reference:

Terminal Pair	Expected Voltage (Rest)	Expected Voltage (Action)
M1–M2	12V ±0.2V	11V–11.5V
S1–Ground	12V ±0.2V	8V–9V
B+–Ground	12V ±0.2V	11V+

Swap the control module if the mechanism fails after cleaning terminals and verifying voltage. Remove the two mounting screws, disconnect the plug, then install the new unit–no calibration required. This resolves erratic pauses mid-retraction, a symptom often misdiagnosed as gear wear.

Trace the retract solenoid pigtail for cracked insulation. Squeeze each wire segment between fingers; brittle sheathing will crumble and expose bare strands that short against body ground. Repair with adhesive-lined heat shrink tubing, not electrical tape–tape traps moisture and accelerates corrosion. Verify fix by cycling the actuator three times without interruption.

Test the override switch continuity. With ignition off and the manual toggle flipped, probes on the switch terminals should read zero ohms–any resistance indicates internal oxidation. Replace the switch immediately; bypassing it risks burning out the drive circuit. Newer variants feature sealed contacts; older open-contact models need annual dielectric grease application.

Ground Path Verification

Locate the chassis attachment point marked with a green wire bolted to frame–typically beneath the rocker panel. Scrape away rust or paint until bright metal appears, then fasten the ring terminal tightly. Loose grounds create phantom voltage drops that mimic fuse failure or short circuits. After securing, retest with a multimeter: chassis ground should measure less than 0.1 ohms to the negative battery post.
