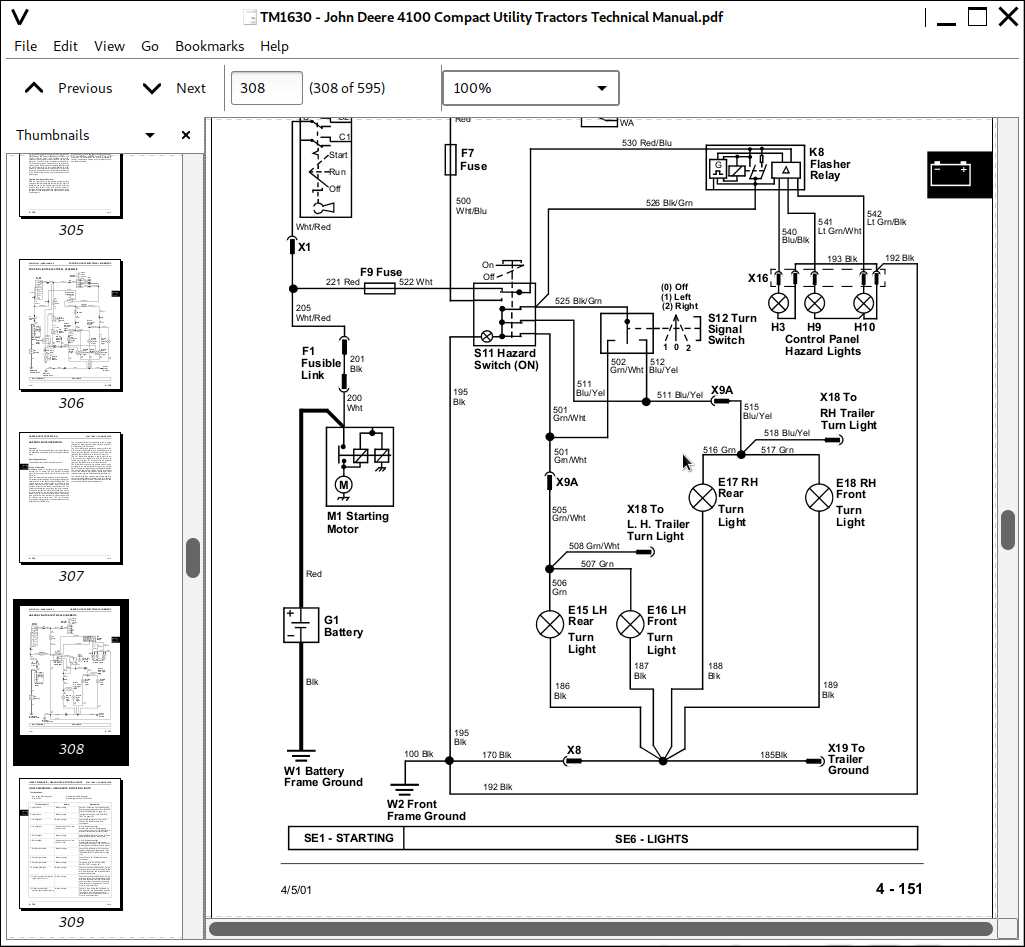

John Deere 100 Series Electrical Schematic and Wiring Diagram Guide
Locate the main harness connector near the fuse block–pin 3 controls the ignition relay, while pin 8 feeds power to the headlight circuit. Verify continuity between these points with a multimeter set to 200 ohms; readings above 5Ω indicate corrosion or a loose terminal. Replace terminals exhibiting green oxidation rather than attempting to clean them, as degraded contact surfaces will fail under load.
For the PTO clutch assembly, trace the purple wire from the switch to the solenoid. Measure voltage at the solenoid input with the PTO engaged–expect 12.6V; drops below 11.8V suggest a weak battery or undersized alternator output. The alternator’s stator windings should test between 0.2Ω and 0.5Ω; readings outside this range confirm internal failure.
Inspect the instrument cluster’s brown wire (ground) for secure attachment to the frame. Loose grounding causes intermittent gauge failures and starter motor hesitation. Tighten with a 10mm socket, then apply dielectric grease to prevent moisture ingress.
When diagnosing charging system issues, check the voltage regulator’s yellow and white wires–these must maintain 14.2V–14.8V with the engine at 2500 RPM. Fluctuations point to regulator faults or weak stator outputs. Bypass the regulator temporarily by jumpering the yellow wire directly to battery positive; if voltage stabilizes, replace the regulator.
For blower motor resistors, examine the resistor pack mounted behind the dash. Use a test light to probe each terminal while cycling the fan switch–dead outputs on specific settings isolate failed resistor elements. Swap the entire pack rather than individual resistors, as heat damage often compromises multiple coils.
Safety interlocks rely on the seat switch (gray wire) and brake switch (red/white wire). Bypassing these temporarily can confirm switch failures, but re-enable them immediately–disabled interlocks allow engine starts in gear. Test switches with the engine off; continuity should break when the pedal is depressed or the seat is vacated.
Understanding the Circuit Layout for Compact Tractors: Key Connections
Begin troubleshooting by locating the ignition switch terminal cluster. The B (battery) terminal delivers constant 12V–verify this with a multimeter before proceeding. If voltage drops below 11.8V, inspect the starter solenoid or battery ground strap, which often corrodes near the frame rail mounting point. Replace the strap if resistance exceeds 0.2 ohms.
Trace the PTO engagement circuit: solenoid → hour meter → safety switches. A common failure point is the seat switch–test continuity while pressing the padded sensor. Clean contacts with electrical cleaner if intermittent; bypassing causes unintended engagement, violating safety standards. The hour meter acts as a fuse-equivalent; if blown, check alternator output (should maintain 13.8–14.4V at 2000 RPM).
Primary Wire Harness Pinout Reference
| Connector ID | Pin | Function | Wire Gauge (AWG) | Color Code |
|---|---|---|---|---|
| X1 | 1 | Main power feed | 10 | Red w/ stripe |
| X2 | 4 | Ground return | 8 | Black |
| X3 | 2 | Headlight circuit | 14 | Yellow |
| X4 | 5 | PTO solenoid trigger | 16 | Blue w/ tracer |
Replace any wire showing insulation cracks–especially near the steering column flex joint. Use heat-shrink terminals rated for 35A minimum; crimp twice with a ratcheting tool. The lighting harness shares grounding with the frame; corrosion here dims bulbs unevenly. Scrape paint off mounting points before reattaching; clean with emery cloth and apply dielectric grease.
For charging system diagnostics, connect an ammeter in series with the battery positive lead. At idle, current draw should not exceed 5A with all accessories off. If higher, disable individual circuits sequentially (horn, lights, etc.) to isolate parasitic draws. The voltage regulator is embedded in the alternator–test by bridging the field terminal to battery positive; output should spike to 16V briefly before stabilizing.
Identifying Primary Fuse Assembly and Overcurrent Safeguards in Compact Tractor Blueprints
Trace the central fuse panel along the lower left quadrant of the power distribution chart–designated F1–situated adjacent to the battery positive terminal linkage. This block consolidates all principal circuit safeguards, including the 30A main fuse governing starter solenoid operation and the trio of 15A auxiliary fuses protecting lighting, instrumentation, and PTO engagement paths. Annotated color codes (red for primary feeds, yellow for switched outputs) simplify cross-referencing against physical harness branches during diagnostics.
Pinpointing Sub-Circuit Guard Locations
Secondary protection points scatter across three functional zones: beneath the instrument cluster (5A glow plug relay fuse labeled F2), near the right-hand rear implement connection (10A work light fuse F4), and alongside the engine control module (20A ignition switch fuse F3). Each location corresponds to a distinct branch in the layout–verify continuity by matching the fuse rating stamped on the diagram’s callout bubbles to the color-coded wire gauge adjacent to each symbol. Mismatches here indicate either corroded contacts or undocumented aftermarket modifications.
Locate the inline sacrificial element–distinct from panel-mounted fuses–positioned mid-run on the red/white-striped conductor feeding the fuel shutoff solenoid (S3). This 7.5A fuse, represented by an oval symbol with internal diagonal hash marks, serves as a fail-safe against solenoid coil burnout; its omission in replacement harnesses remains a common oversight. For precision testing, disconnect the solenoid connector first to isolate parallel loads on shared circuits.
Examine the distribution harness’s junction splice (J7) where the primary feed bifurcates into three parallel branches: two entering the cab (instrumentation and accessory outlets) and one routing to the rear PTO engagement solenoid. Each branch incorporates a 10A fusible link–embedded within the harness jacket–evident in the layout as staggered, rectangular nodes without external housing labels. Probe these segments with a calibrated multimeter set to ohms; resistance exceeding 0.2Ω warrants immediate replacement.
Ground Return Mapping
Ground references aggregate at a single star point (GND-1) beneath the driver’s seat riser, depicted as a triangular earth symbol linked to thick black conductors. Corrosion at this connection manifests as intermittent power-loss symptoms across all downstream circuits; clean mating surfaces with 220-grit abrasive and apply dielectric grease before reassembly. Ancillary ground paths (GND-2, GND-3) branch to the frame near the hydraulic reservoir–ensure continuity from GND-1 to chassis, as disrupted returns can trigger false load-shedding events in voltage-sensitive relays.
Validate all safeguard positions by cross-checking the diagram’s marginalia against physical tags on the tractor’s fuse panel door. Each panel-mounted fuse compartment bears a numerical identifier matching the blueprint’s callout (e.g., F1-30A aligns with the starter solenoid fuse slot). Overriding any safeguard without verifying downstream load ratings risks irreversible damage to solenoids, ignition modules, or onboard controllers–components for which replacement exceeds USD 350 each.
Locating and Testing the Ignition Pathway in Compact Tractors
Begin at the battery’s positive terminal–follow the heavy-gauge cable marked “B+” directly to the solenoid’s input post. This connection handles the full cranking current and will feel warm under normal operation. If the terminal shows corrosion beneath the nut, remove the cable, clean both surfaces with a wire brush, and re-tighten to 12 Nm.
- Check the solenoid’s engagement coil feed wire (typically 12-14 AWG, color-coded red or yellow). Trace it backward to the ignition switch–any breaks or chafing here will prevent solenoid activation even with a fully charged battery.
- Verify the ground return path: the solenoid’s housing mounts to the engine block; a single 8 mm bolt secures it. If rust exists, scrape the mating surfaces until bare metal appears–resistance above 0.2 ohms confirms poor grounding.
Jump the solenoid’s two large posts with a screwdriver to isolate starter motor faults. If the motor spins freely, focus on the solenoid’s internal contacts–burned discs create voltage drop exceeding 0.5 V. Replace the solenoid assembly if pitting is visible.
Measure voltage at the ignition switch “ST” terminal during cranking: expected reading is 9.5-11.5 V. Lower values signal excessive resistance in upstream wiring, notably at the fuse block where terminal oxidation frequently occurs. Remove the fuse, inspect clip tension, and apply dielectric grease before reinserting.
The safety interlock coil–activated by the PTO switch or neutral-start relay–ties into the solenoid’s smaller “S” terminal via a purple or orange wire. Disconnect this lead temporarily; if the engine cranks, test the interlock circuit continuity with a multimeter–open paths here block starter engagement entirely.
- Strip back 1 cm of insulation on the battery-to-solenoid cable if voltage drop exceeds 0.2 V; crimp a new 3/8″ ring terminal.
- Inspect the flywheel ring gear: missing teeth or glazing necessitate starter motor removal–ensure correct 0.5 mm air gap when reinstalling.
- Replace the ignition switch if the “ST” feed measures 12 V but solenoid fails to pull in; intermittent connections here often mimic starter failure.
After reassembly, monitor solenoid temperature during consecutive starts–exceeding 60 °C indicates impending contact failure, warranting preemptive replacement.
