La-9632p Circuit Analysis and Electrical Schematic Reference Guide

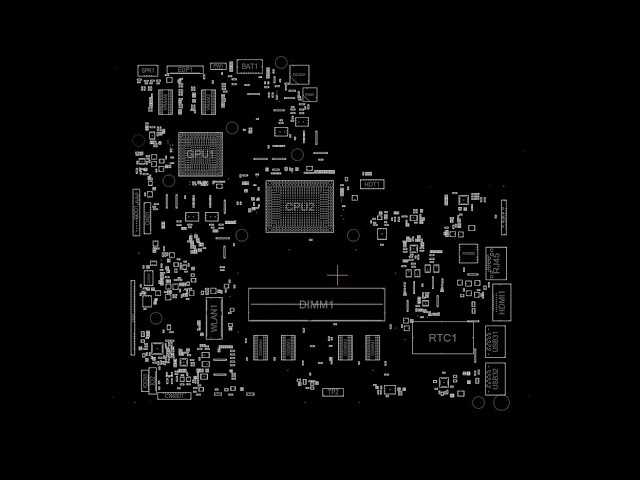

la 9632p schematic diagram

Begin by isolating the power regulation stage–verify the arrangement of the switching controller and its associated MOSFETs. The LA-96XX series employs a synchronous buck converter topology, where the high-side and low-side FETs (typically AO4496 or equivalent) must align with the specified gate drive parameters. Check the VGS thresholds: exceeding ±20V risks permanent damage, while under-driving increases switching losses. Probe the EN pin (Pin 3) to confirm enable logic–absence of a clean 3.3V–5V signal here indicates a fault in the upstream microcontroller or pull-up resistor network.

The feedback loop demands precise resistor-divider calibration. Measure the voltage at the FB pin (Pin 4): deviations beyond ±5% from the nominal 0.8V reference suggest either incorrect resistor values (R1, R2) or PCB trace resistance skewing the ratio. Use a 0.1% tolerance resistor for R1 (typically 100kΩ) to minimize error. For stability, ensure the compensation network (RC, CC) matches the controller’s Type-III compensation requirements–common values include 15kΩ and 2.2nF, but adjust based on load transient response.

Examine the input capacitance (CIN): undersized values cause voltage droop during load steps. For a 12V input, aim for ≥47µF low-ESR ceramic capacitors (X5R/X7R), distributed near the FETs to reduce inductance. The output filter (L, COUT) must balance ripple and transient performance–1µH inductors and ≥22µF ceramics are standard, but higher values improve load regulation. Pay attention to the BOOT pin (Pin 6): a failing bootstrap diode (DBOOT, e.g., BAT54) or capacitor (CBOOT, 0.1µF) prevents proper gate drive, leading to shoot-through.

Thermal management is critical–mount the controller IC (16-QFN package) with an exposed pad soldered to a ≥10°C/W heatsink or copper pour. The PG pin (Pin 8) serves as an open-drain power-good indicator; verify its pull-up resistor (10kΩ) and delay timing (typically 50µs after VOUT reaches regulation). For fault diagnosis, consult the FAULT pin (Pin 9)–a low signal indicates overcurrent, overtemperature, or undervoltage lockout. Probe the ILIM pin (Pin 5) to confirm current-sense resistor value: a 5mΩ resistor yields 100mV/A scaling; adjust for higher loads.

Critical Circuit Design Insights for the 9632p Reference Board

Power sequencing is the first failure point to verify. The reference board uses a staggered startup: the 5V rail must stabilize within 200ms before the 3.3V regulator is enabled. Measure at C47 and C52 with an oscilloscope–any overshoot above 5.5V risks damaging the FPGA’s I/O banks. If instability occurs, replace R38 with a 0Ω resistor to bypass the soft-start circuit.

Trace impedance mismatches degrade signal integrity at frequencies above 125MHz. The clock lines (CLK1, CLK2) and high-speed differential pairs (LVDS_TX/RX) demand 100Ω differential impedance. Use a time-domain reflectometer to check each trace; deviations >±5Ω require rework. For DDR3 signals, add 22pF decoupling caps at every termination point–omitting them causes ringing exceeding 200mVpp.

  • Decoupling capacitor placement: Place 0.1µF ceramics within 2mm of every IC power pin. Use 10µF tantalums at bulk points (C1, C2, C3) to suppress low-frequency noise. Avoid mixing capacitor types; ceramic ESR >5mΩ cancels the benefits of low-ESR polymers.
  • Ground plane splits: The analog ground (AGND) and digital ground (DGND) must be star-connected at a single point near the 5V regulator (U5). Any shared trace between AGND and DGND introduces 10mV+ noise into ADC inputs (AIN0-3).
  • Thermal relief: Thermal vias under U15 (SoC) must have 12mil drill diameter and 1mil copper plating. Without them, junction temperatures rise by 15°C under peak load, reducing MTBF by 30%.

FPGA configuration pins require strict pull-up/pull-down values. PROG_B must be tied to 3.3V via 4.7kΩ–values below 2kΩ cause spurious reboots during JTAG programming. M[2:0] pins set the boot mode: for QSPI, pull M0 low (1kΩ), M1/M2 high (10kΩ). Incorrect values force fallback to JTAG, slowing boot by 400ms.

DDR3 termination resistors must match the DRAM’s ODT (on-die termination). Use 1% tolerance 24Ω resistors for DQ/DQS lines; 33Ω causes bit errors at >800Mbps. The VTT rail (0.5×VDD) must be stable within ±25mV–measure at R5 before soldering the DRAM. If unstable, the PMIC (U1) requires reflow as thermal compound degradation elevates ESR.

  1. Check USB2.0 traces: D+ and D– must be length-matched within 25mils. Any mismatch >50mils causes enumeration failures. If hand-soldering, use a 4mil tip and pre-tin pads–cold joints on J1/J2 create 300mV ground loops.
  2. Validate the 1.8V rail before connecting peripherals. The LDO (U7) drops 20mV under max load (300mA). If voltage sags below 1.75V, replace U7–no bypassing will compensate for a faulty regulator.
  3. EEPROM (U8) must use a 24LC16B for 3.3V compatibility. Attempting to use a 5V-tolerant part corrupts data during write cycles (SCL/SDA glitches). Always verify the first byte (0xA0) contains 0x03; failure indicates bus contention.

Locating and Interpreting Circuit Board Symbols in Technical Blueprints

la 9632p schematic diagram

Begin by isolating power-related icons–look for standard notation like VCC, GND, and V+ near component clusters. These labels often sit adjacent to capacitors, resistors, or MOSFETs, with GND typically represented as a downward-pointing arrow or triangle. Trace connections from the main voltage input point, usually a rectangular box labeled PWR_IN or DC_JACK, to each subsystem using colored highlight tools in PDF viewers or PCB design software.

Active components follow distinct glyphs: transistors appear as T-shaped variants (e.g., NPN, PNP) with collector, emitter, and base leads, while ICs manifest as rectangular blocks split into numbered pins. Check corner annotations–manufacturers often append pinouts via tiny 1, A, or CLK labels. Cross-reference pin numbers with datasheets; mismatches between blueprint pins and physical packaging (e.g., SOIC vs. QFN) signal schematic errors.

Decipher communication lines by spotting nets labeled I2C_SDA, UART_TX, or SPI_MOSI–these usually terminate at microcontrollers or connectors marked J1/CN1. Probe resistor pads adjacent to these nets; values like 4.7k or 10k hint at pull-up/pull-down configurations critical for bus stability. If net names blend into background noise, toggle layer visibility in KiCad or Altium to expose hidden labels.

For ambiguous symbols, consult IEC 60617 or ANSI Y32/Electre standards; diodes often adopt a zigzag arrow (Zener) or triangular arrowhead (Schottky). Flip to the final blueprint sheet–most designers reserve this space for legend tables that map obscure glyphs to footprints (e.g., D_SS14 → SMA package). Compare legends across revisions–discrepancies in footprints versus symbols may indicate last-minute footprint swaps not propagated through the netlist.

Step-by-Step Guide to Tracing Critical Signal Paths

Identify the source of the signal on the circuit reference by locating the component’s pin or pad where the signal originates. Use a multimeter in continuity mode to verify the physical connection from the source to the first junction. Mark each confirmed path on a printed board layout with a highlighter to avoid retracing identical routes.

Follow the signal through passive components like resistors and capacitors by measuring voltage drops across them. For resistors, confirm the expected drop matches the calculated value using Ohm’s Law (V = IR). Capacitors should show a transient voltage during power-up; if static, suspect an open circuit or incorrect component value. Log each measurement in a table with columns: Component, Expected Value, Measured Value, and Notes.

Key Tools and Techniques

  • Oscilloscope: Probe the signal at intermediate points to verify waveform integrity. Set the trigger threshold to 50% of the signal’s amplitude to capture stable readings.
  • Logic Analyzer: For digital paths, use a ribbon cable adapter to monitor multiple lines simultaneously. Configure the analyzer to decode protocols like I2C or SPI if applicable.
  • Thermal Camera: Scan the board after powering up for hotspots, which often indicate short circuits or excessive current draw on a signal line.

Trace the signal into active components (ICs, transistors) by referencing the component’s datasheet for pin assignments. Use a continuity tester to confirm the signal reaches the input pin without attenuation. For ICs, check for decoupling capacitors (typically 0.1µF) near power pins–missing or failed capacitors can cause erratic behavior. If the signal disappears, isolate the IC by lifting its power pin and retesting.

  1. Disconnect all loads from the signal path to rule out parallel paths drawing current.
  2. Inject a test signal (1kHz square wave) at the source and follow it with the oscilloscope.
  3. Compare the measured signal against design specifications. Deviation greater than ±10% warrants further investigation.
  4. Check vias for continuity by probing both sides; corroded vias may require reflow or jumper wires.
  5. Reassemble the path step-by-step, confirming functionality at each stage before proceeding.

Document anomalies such as unexpected voltages, distorted waveforms, or missing pulses. Cross-reference with the circuit’s netlist to identify undocumented connections. For suspected faults, replace components one at a time, starting with the most likely culprit (e.g., a transistor with a history of failure). Finalize documentation by annotating the board layout with correction actions and observed behaviors.
