Understanding Ladder Logic Diagrams in Industrial Automation Circuits
Start by structuring your schematic as a vertical stack of rungs, where each rung represents a distinct logic operation. Use standardized symbols: horizontal lines for power rails, vertical lines for control paths, and distinct graphical elements for relays, timers, and counters. Place normally open contacts on the left side of each rung and coil symbols on the right. This layout ensures intuitive left-to-right signal flow, reducing misinterpretation during implementation or troubleshooting.
Assign clear, concise labels to every component. Prefix relay coils with “CR” (Control Relay) and timers with “TMR,” followed by numerical identifiers. For example, CR1 or TMR3. Include descriptive suffixes where necessary–TMR3_DELAY–to indicate functional distinctions. Avoid generic labels like “Relay A,” which offer no contextual value and complicate debugging.
Prioritize rung organization based on execution sequence. Place critical safety operations at the top, followed by primary control logic, then ancillary functions. Group related operations on adjacent rungs to enhance readability and simplify modifications. For instance, interlocking conditions for a motor starter should occupy consecutive rungs, not scattering across the schematic.
Implement power rail isolation for each logic segment. Use separate sections for high-voltage control and low-voltage monitoring to prevent interference. Label power sources distinctly–L1, L2 for mains, +24V, 0V for auxiliary circuits–to avoid accidental shorts or miswiring. Verify voltage compatibility for all connected components before finalizing the design.

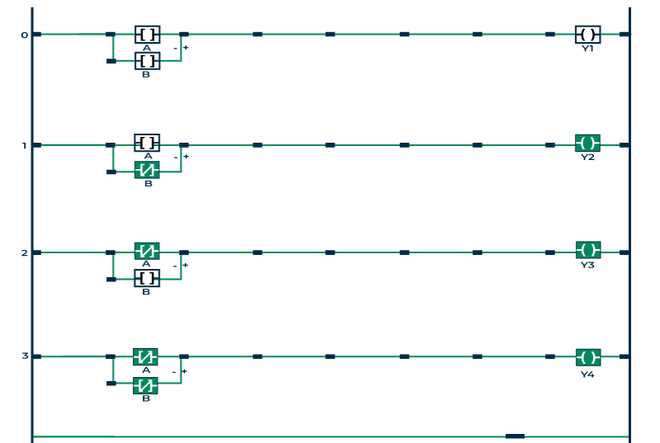

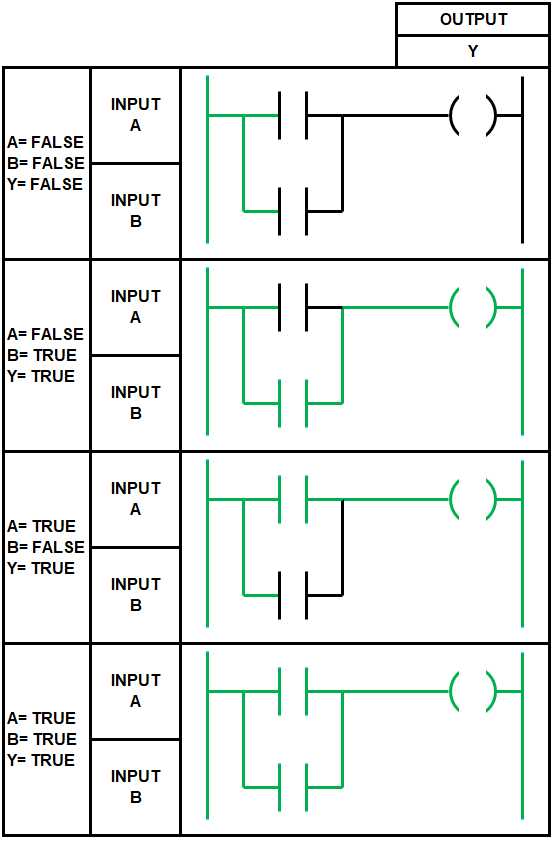

Leverage parallel and series contact arrangements to enforce logic dependencies. A series configuration (AND logic) requires all contacts to close for coil activation, while parallel contacts (OR logic) need only one. Combine both for complex conditions–START_PB || (AUTO_MODE && !EMERGENCY_STOP)–ensuring fail-safe operation. Test each path individually using simulation tools or a test bench before deployment.
Document every assumption and constraint directly on the schematic. Include voltage ratings, current limits, and timing specifications in concise annotations near relevant components. For timers, specify preset values and time bases–TMR3: 5s (0.1s base). For counters, define preset counts and reset conditions. Omit this data, and you risk costly errors during commissioning or future upgrades.
Adopt modular design principles. Break down monolithic schematics into smaller, reusable blocks. For example, separate motor control logic from alarm handling. Reuse proven blocks across projects to reduce development time and minimize inconsistencies. Store these modules in a version-controlled repository with clear revision notes for traceability.
Practical Implementation of Schematic Logic Networks
Start by labeling every rung with a unique identifier–use alphanumeric tags like R1-A, R2-B, etc.–to trace errors during debugging. Connect input devices (switches, sensors) to the left rail and outputs (coils, relays) to the right; this enforces logical flow and prevents unintended power loops. For industrial control systems, use only 24V DC or 120V AC coils to match PLC compatibility–mixing voltages risks hardware damage or unpredictable behavior. Replace generic SPST switches with maintained-contact pushbuttons for operations requiring latch functionality, as they hold state after release, unlike momentary alternatives.
Follow these rules to optimize performance and safety:
- Avoid branching more than two parallel paths per rung–complexity slows scan cycles and obscures troubleshooting.
- Use N.O. (normally open) contacts for safety circuits; N.C. (normally closed) contacts can mask faults during power loss.
- Test each rung individually in simulation mode before deployment–most PLC software includes tools like “Force On/Off” to validate logic.
- Ground all conductive enclosures separately from signal grounds to prevent noise interference in sensitive applications (e.g., servo motor drives).
- Limit coil repetition across rungs to three instances to reduce wear on output modules; higher counts degrade lifespan.
Fault Detection in Sequential Logic
Equip each output device with a status LED–preferably dual-color (red/green)–to provide immediate visual feedback of active states. For critical fail-safe conditions, wire a secondary relay in series with the primary output; if the PLC fails, the backup immediately cuts power. Store a backup of the schematic in both PDF and editable formats (e.g., .LAD, .FBD) for rapid adjustments during unplanned downtime. Replace electrolytic capacitors in power supplies every 5 years; degraded capacitors cause intermittent faults resembling software errors. When implementing timers, ensure delay values are written in milliseconds (e.g., 3000 for 3 seconds)–PLCs default to ms, and miscalculations lead to incorrect sequencing.
How to Interpret Relay-Based Logic Schematics for PLC Novices

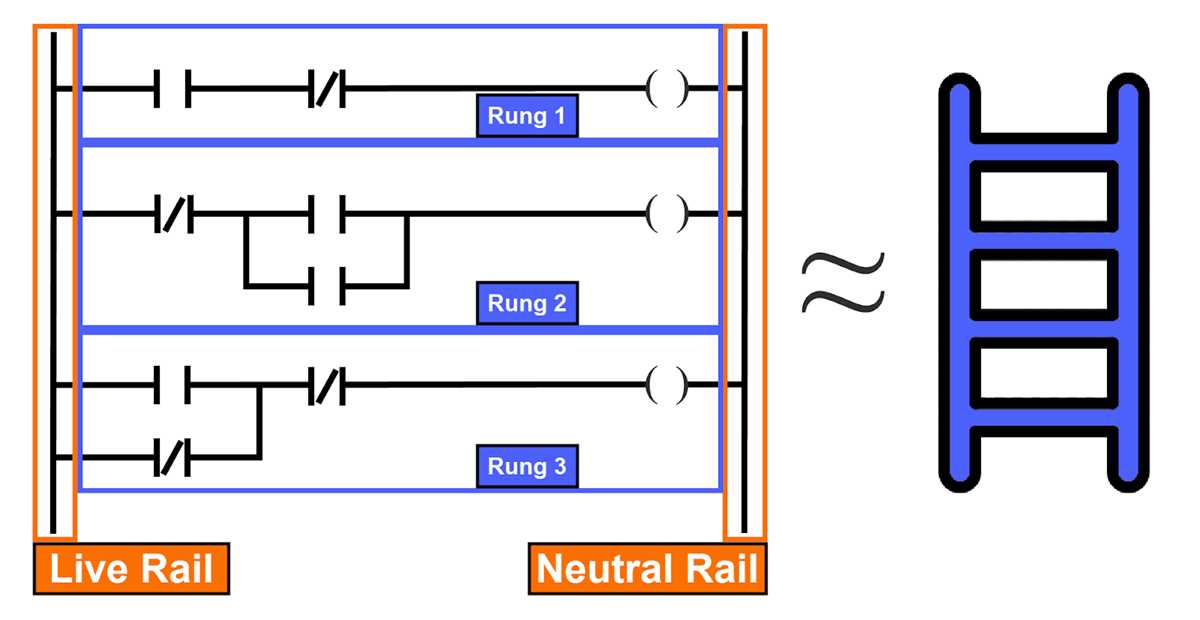

Scan the schematic from left to right, treating each horizontal line as a single instruction. The left rail delivers power, while the right rail marks the end of the condition set. Contacts placed in series represent AND logic; contacts in parallel signify OR logic. Begin interpretation with the first rung–count rows vertically if numbering isn’t provided–to avoid skipping critical paths.
Identify all symbols immediately. A normally open contact (denoted by two parallel lines) closes when its coil activates, whereas a normally closed contact (marked with a diagonal slash) opens under the same condition. Timers, counters, and comparators use distinct rectangular blocks; their parameters appear inside the block. Use this table as a quick reference:
| Symbol | Function | Typical Label |
|---|---|---|
| ═══ | Normally open pushbutton | PB_X |
| ─╱─ | Normally closed limit switch | LS_X_NC |
| ( ) | Output coil | CR_X |
| [TON] | Timer on-delay | TIMER_X |
| [CTU] | Up-counter | COUNTER_X |
Trace each coil’s dependencies before writing code. A coil marked K1 drives multiple contacts labeled K1_NO or K1_NC across different rows–track every occurrence to prevent missed outputs. Group related coils and contacts into logical clusters; color-code clusters using PLC software highlighting or colored pens on printed sheets to reduce visual clutter.
Validate interpretations by simulating the schematic with actual inputs. Toggle pushbuttons and sensors while monitoring output indicators; unexpected behavior often stems from overlooking nested series-parallel branches. Document each rung’s purpose directly above it–keep descriptions concise, using active verbs like “latch,” “reset,” or “count” for clarity.
Core Elements of Industrial Relay Logic Schematics and Their Operational Roles
Start by identifying relay coils as the primary activation units in any automated sequence. These components translate control signals into mechanical action, closing or opening contacts to initiate subsequent operations. Use coils with voltage ratings matching the control system (e.g., 24V DC for PLCs, 120V AC for industrial motor starters) to prevent premature failure. For high-cycle applications, specify coils with encapsulated windings to resist moisture and vibration–common in conveyor or packaging systems.
Contact Configurations: The Building Blocks of Logic Pathways
Select normally open (NO) contacts for momentary activation tasks, such as pushbutton start signals, where temporary closure suffices. Conversely, deploy normally closed (NC) contacts for safety-critical functions like emergency stops–these break the current path when triggered, ensuring fail-safe operation. For complex branching, combine multiple contacts in series/parallel: series contacts enforce AND logic (all must close), while parallel contacts create OR logic (any can close). Avoid exceeding 4–6 contact pairs per rung to maintain readable documentation and reliable performance.
Integrate timers for delayed actions where precise sequencing is required. Utilize on-delay timers (TON) to defer output activation after input detection–ideal for motor startup delays or cooling fan operation. Off-delay timers (TOF) hold outputs active briefly after input removal, useful for debouncing or temporary holding circuits. Specify timer ranges compatible with the process: 0.1–10 seconds for rapid machinery (e.g., stamping presses), 1–60 minutes for batch processes (e.g., mixing tanks). Always pair timers with auxiliary relay contacts to expand available delay stages when standard PLC modules lack sufficient channels.
Prioritize master control relays (MCRs) for isolating sections of a schematic during faults or maintenance. Wire MCRs to instantly drop all downstream outputs when de-energized, creating a hardwired safety layer independent of software logic. In large systems, segment operations into zones with individual MCRs (e.g., one per production line) to minimize downtime during troubleshooting. For high-power equipment, combine MCRs with contactors rated for the full load current to avoid overheating–standard relays often handle only 10A, while contactors manage 100A+ loads.
Step-by-Step Guide to Drafting a Schematic for Motor Control
Start by labeling the left vertical rail as the live supply line and the right as the neutral or ground. Mark every rung with sequential numbers at the left margin for clarity during troubleshooting. Use standard IEC symbols for components–avoid custom sketches that complicate interpretation.
Place the stop switch (normally closed) on the first rung, directly in series with the start switch (normally open). Ensure the stop switch precedes the start switch to enforce immediate interruption when pressed, complying with safety regulations. Check switch ratings against motor voltage and current to prevent arcing or failure.
Add the motor starter coil on the same rung, immediately after the start switch. Select a coil voltage matching the control circuit supply–24V, 110V, or 230V–to avoid damage or inefficiency. Include a sealing contact parallel to the start switch to maintain the circuit once activated, eliminating the need to hold the start button.
Insert a thermal overload relay in series with the motor starter coil. Set the relay trip class based on motor startup characteristics: Class 10 for standard duty, Class 20 for heavy-start loads. Wire the relay’s normally closed contact into the stop circuit to break power during overload, protecting both the motor and wiring.
Add auxiliary contacts for feedback or interlocks if needed. Use a normally open contact from the starter coil to signal running status to external systems, like indicator lamps or PLC inputs. For multi-motor setups, interlock opposing starter coils using normally closed contacts to prevent simultaneous operation.
Testing and Validation
Simulate the schematic using an online logic simulator or a physical test panel before finalizing. Power the control circuit and verify the stop switch halts operation instantly. Press the start switch and confirm the motor starter coil energizes and latches, remaining active until the stop switch is pressed or an overload trips.
Check voltage drop across critical points with a multimeter–rungs should show near-zero voltage when closed and full supply voltage when open. Measure current through the starter coil and overload relay to ensure they align with manufacturer specs. Excessive current may indicate incorrect coil selection or wiring errors.
Document each rung’s purpose in a legend adjacent to the schematic. Include component ratings, wire gauge, and color codes for future maintenance. Store digital backups in multiple locations, and print a laminated copy for the control panel door. Review the design with an electrician or engineer if unfamiliar with local electrical codes.
