Understanding Laptop Internal Circuitry Schematics and Repair Basics

Obtain service manuals directly from manufacturers first–official documentation contains annotated system layouts with component positioning, voltage rails, and signal paths. Brands like Dell, HP, and Lenovo provide downloadable PDFs for authorized technicians, typically under support sections labeled “technical reference” or “repair guides.” Avoid third-party aggregators: unofficial sources often omit revised pinouts or introduce errors in trace routing. For models released after 2020, prioritize board-view software (e.g., OpenBoardView) over static images–interactive schematics let you isolate power planes and data buses layer-by-layer.

Trace power delivery networks at the solder points: the main 12V input capacitor, charge IC, and DC jack exhibit thermal stress patterns detectable with a 10x loupe. Mark high-current paths (2+ amps) using 18AWG wire gauge equivalents–they demand 2 oz copper layers, while low-current traces (

Isolate ground loops before applying probes: laptops ground through chassis screws, M.2 slots, and LCD brackets–apply a 1kHz tone across suspected loops and monitor AC ripple on a scope. Suspect power rail dropouts if the CPU core voltage (VCC_CORE) dips below 0.8V under load–common failure points include corroded vias near the GPU VRM or cracked inductors in the battery charging circuit. Replace MOSFETs pair-wise: synchronous buck converters (e.g., On Semi NCP81252) require matched RDS(on) tolerances (±5%) to prevent shoot-through current surges.

When reverse-engineering undocumented boards, photograph both sides with a macro lens at 1:1 magnification–store raw *.CR2 files for non-destructive editing. Use diode-check mode on a DMM to map signal continuity: differentiate data lanes from power rails by measuring capacitance–LVDS traces typically show ~3-5pF, while USB 3.0 lanes exceed 15pF. Label test points with unique IDs: e.g., “TP_USB1_D+” instead of generic “P1″–this prevents ambiguity when cross-referencing with BIOS strings dumped via SPI programmer.

Understanding Portable Computing Device Schematics: A Hands-On Approach

Begin by locating the power delivery subsystem in the board layout. Identify the charging IC–typically labeled as “BQ24770” or similar–near the DC input connector. Measure voltage at the input filter capacitors (usually 22µF, X5R/X7R) using a multimeter set to DC mode; expect 19V ±0.5V if the adapter supplies nominal power. If values deviate, inspect the fuse (often a 5A PPTC) or the MOSFET (AO4406A common) for thermal damage. Replace components with exact part numbers to prevent instability.

Trace the memory interface from the CPU to the RAM modules. Use an oscilloscope to verify command signals (CAS, RAS, WE) at the DRAM pins during boot. Signals should show clean transitions between 0V and 1.2V (DDR4) with no ringing. If waveforms appear distorted, reflow solder joints on the BGA-packaged CPU–focus on the inner ball grid, as outer rows rarely fail. For dual-channel systems, confirm address lines (A0–A15) match between slots; mismatches cause spontaneous reboots.

Component	Typical Part Number	Key Testing Point	Expected Value
Graphics VRM Inductor	74437510	Gate of low-side MOSFET	PWM signal, 200kHz
EC Controller	ITE IT8587	Keyboard matrix scan line	3.3V pulses at keypress
PCIe Switch	ASM1480	Reference clock output	100MHz sine, ~1V pp

Examine the embedded controller’s firmware backup circuit. The EC typically contains a 128KB SPI flash (Winbond 25Q128) storing keyboard mappings and battery profiles. Use a CH341A programmer to back up the firmware before attempting repairs; partial corruption leads to erratic trackpad behavior or fan failures. Clip the programmer directly to the chip–avoid desoldering risks. Validate the backup by comparing SHA-256 hashes with known-good files from identical board revisions.

Debug display output issues by probing the eDP interface. Attach a 4-lane eDP breakout board to the motherboard connector (30-pin FPC). Check lane voltages at 1.2V nominal; discrepancies suggest a failed voltage regulator (APL5913 common near the panel connector). If lanes function but no image appears, force the system into recovery mode using the power button sequence (varies by OEM–e.g., hold power + Fn + F2 for 10 seconds). This bypasses GPU initialization, confirming graphics subsystem failure.

Calibrate the battery fuel gauge after replacing cells. The gauge IC (usually TI BQ34Z100) estimates state-of-charge using Columb counting but drifts without recalibration. Drain the battery to 3.0V per cell, then charge at 0.5C until the gauge reports 100%. Repeat this cycle twice; persistent inaccuracies indicate a defective thermistor or gauge IC. For models with soldered batteries, isolate the gauge circuit before desoldering–use a precision soldering station set to 300°C with a 0.5mm conical tip.

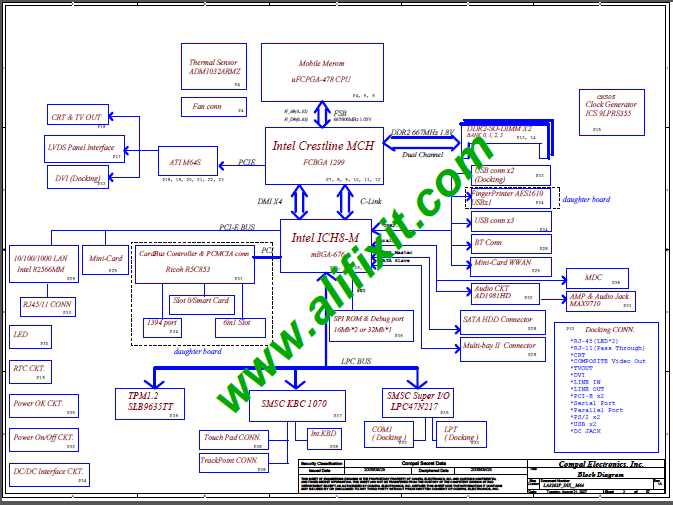

Mapping Core Elements in a Portable Computer Mainboard Blueprint

Start by isolating the power delivery network at the top-left corner of the schematic–look for the DC jack connector, often labeled J_DC or PWR_IN, leading to the voltage regulator modules (VRMs) marked as U_PWR_IC. These will split into multiple lines feeding the CPU (usually a large QFN package with labels like U_CPU or MPU), GPU (U_GFX or VGA), and memory (U_DDR). Trace each line to its corresponding MOSFET pair–typically labeled Q_PMOS and Q_NMOS–alongside inductors (L_CHOKE) and capacitors (C_DECOUPLE), which smooth transient spikes. A missing or corroded MOSFET can mimic power-on failures even if the charger delivers full voltage.

Next, focus on the clock generator circuitry, usually clustered near the central PCB area. Identify the crystal oscillator (Y_OSC, often 14.318 MHz) and its associated IC (U_CLK_GEN), which distributes timing signals to the chipset via signal lines like CLK_REQ or PCICLK. Missing clock pulses will cause silent startups–no POST, no display–while still drawing current. Use an oscilloscope to verify square waves at critical test points: the CPU/GPU clock inputs and the memory clock lanes (DDR_CLK). Absence of signal here confirms a dead clock chip, requiring replacement before deeper diagnostics.

Verifying Peripheral Interface Pathways

Check the southbridge (U_SB, often Intel ICH/PCH) for peripheral connectivity traces. USB ports (J_USB), SATA (J_SATA), and Wi-Fi (U_WLAN) all route through this hub. Look for series resistors (R_ESD) and decoupling capacitors (C_BYPASS) along data lines (USB_D+, USB_D-); absent or damaged components here result in hardware not being detected. For storage interfaces, confirm the presence of pull-up resistors (4.7kΩ) on SATA_RESET# and PCIE_WAKE# lines–missing resistors cause drives to disappear from BIOS.

Finally, inspect the firmware memory IC (U_BIOS or SPI_FLASH), usually an 8-pin SOIC near the battery connector. Trace its chip select line (CS#), clock (SCLK), and data lanes (SI/SO) back to the southbridge. A corrupted or improperly seated flash will trigger three beeps or Q-code errors on debug LEDs. If reflashing via external programmer fails, check continuity between the flash chip and southbridge–broken traces or cold solder joints here manifest as intermittent boot failures or BIOS corruption after sleep cycles.

How to Trace Power Delivery Paths in Schematic Layouts

Identify the power input connector–usually marked as DC_IN, AC_ADAPTER, or VBAT–and note its voltage rating. Trace the immediate downstream components like fuses, filter capacitors, and EMI chokes before the power reaches the first switching regulator. Check for current-sense resistors or hall-effect sensors near the input path; these often signal protection circuits or power monitoring ICs.

Locate the first buck converter or linear regulator in the path by searching for inductors, MOSFETs, or ICs labeled as PWM controllers. Cross-reference the component designations with datasheets to confirm their role in stepping down voltage. Look for feedback lines–typically thin traces connecting to resistors and capacitors–leading back to the regulator’s feedback pin. These define the output voltage via a voltage divider.

Track the output of the first regulator to the next stage, which could be another converter, a load switch, or a power rail distribution IC. Measure trace widths: high-current paths often use wider copper (e.g., 50+ mils) compared to signal lines. If the layout usesvias, confirm they’re sized for current carrying capacity–standard signal vias (e.g., 0.3mm) may fail under 3A+ loads, requiring filled or larger vias.

Common Pitfalls and Debugging Tips

Check for cracked solder joints or cold solder balls on power MOSFETs and inductors; these components handle thermal cycling poorly and are prone to intermittent faults. Use a thermal camera or touch test (carefully) to spot overheating parts. If a regulator’s output is unstable, measure the input capacitor’s ESR–aged or low-quality caps cause voltage droop under load.

Isolate ground loops by verifying star grounding: power rails should share a single low-impedance ground reference, not daisy-chain through multiple components. Probe the enable pins of load switches and regulators; floating enables or incorrect pull-up resistors prevent power-on. For multi-rail systems, confirm sequencing by checking if higher-voltage rails stabilize before downstream rails are enabled.

Monitor for parasitic resistances in connectors and cables–even 50mΩ resistance in a 5A path causes 250mV drop, enough to trigger undervoltage lockout. Use a milli-ohmmeter to test crimps, headers, and board-to-board connectors. Replace oxidized or loose connectors; they introduce noise and voltage spikes during transient loads.

For reverse-engineering unknown sections, inject a low voltage (e.g., 1V) at suspected power pins and observe current draw. If a rail sinks 100mA suggests a power delivery path. Correlate findings with boardview files if available, as they label hidden nets like “VCC_CORE” or “PP3V3_G3H.” Always cross-check against known-good reference designs–deviations often indicate design flaws or failed components.
