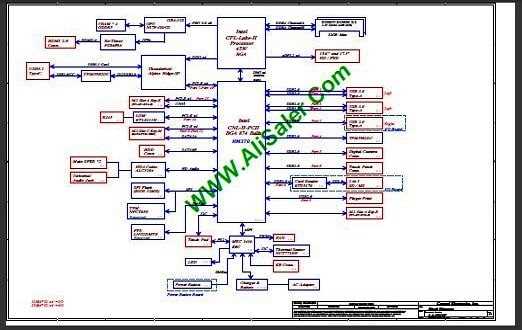

Understanding Laptop Motherboard Circuit Layouts and Electrical Designs

Start by locating the power delivery network on the circuit layout. The primary voltage regulator modules (VRMs) are typically grouped near the CPU socket–look for clusters of inductors, capacitors, and MOSFETs labeled with identifiers like U501 or Q7. Trace the input rails from the DC jack (often marked J1 or CON1) to these components. Verify the voltage levels using a multimeter; most notebook systems operate at 19V or 20V, but deviations indicate faulty components or incorrect schematics.

Focus on signal integrity paths next. High-speed interfaces–HDMI, USB 3.0, or PCIe–require precise impedance matching, usually 50Ω or 90Ω. Check for termination resistors (commonly 22Ω or 33Ω) and series capacitors (0.1µF) near the connector pads. Signal traces should avoid 90° angles; 45° bends or curved routings reduce crosstalk. For DDR memory lanes, locate the series resistors (often 10Ω–33Ω) and trace the clock signals back to the chipset or memory controller.

Identify the EC (embedded controller) and BIOS flash IC early. The EC coordinates power sequencing, keyboard input, and fan control–typically marked U1 or PU1 with part numbers like IT8587E or KB9012QF. BIOS chips (usually Winbond or Macronix) are 8-pin SOIC or WSON packages labeled U3 or FLASH1. Probe the SPI lines (CLK, MOSI, MISO, CS#) with a logic analyzer to confirm communication integrity. Corrupted firmware often manifests as boot failures or peripheral malfunctions.

Examine the thermal management subsystem. The temperature sensor (e.g., NCT75 or ADT7473) connects to the CPU via a one-wire bus (DTS) or I2C. Trace the fan header (often marked FAN1) to the EC or dedicated fan controller. PWM signals should toggle between 20kHz and 50kHz; deviations suggest a faulty driver IC or corrupted EC firmware. For active cooling, verify the gate driver (e.g., AON7408) and MOSFET pair controlling the fan voltage.

Lastly, audit the protection circuits. Overcurrent and overvoltage safeguards are embedded in the power path–look for polyfuses (resettable PTCs), TVS diodes (e.g., SMAJ18A), and current-sense resistors (typically 0.01Ω–0.05Ω). Test the shutdown mechanism by applying a 5% overvoltage to the DC input; the system should cut power within 100ms. For missing or damaged components, cross-reference the BOM (bill of materials) with the PCB silkscreen to identify exact replacements.

Understanding Portable PC Mainboard Electrical Blueprints

Begin by locating the power delivery section near the DC input jack–this area typically includes the charging IC, MOSFETs, and input capacitors. Verify that the enable signals (e.g., ACIN, ACOK) align with the datasheet for the specific controller model (common variants: BQ24780S, ISL9241). A multimeter in diode mode should show 0.3–0.7V drops between ground and key test points like the gate drivers; values outside this range often indicate shorted components or blown fuses.

Trace the standby power rails (3V, 5V) back to the embedded controller (EC). Check for power sequencing violations: the EC must initialize before the PCH sends S0 signals, while the CPU VRM (VCCORE) remains disabled until all secondary rails stabilize. Use an oscilloscope to confirm the enable pulses (EC_SMI#, PWRBTN#, SYSON) rise cleanly, without ringing. Noise exceeding 50mV on these lines frequently points to damaged decoupling caps or corroded vias.

Key Signal Flow Verification

Isolate the SMBus between the EC, PCH, and RAM slots–corrupted transactions here will cripple boot attempts. Monitor the CLK/SDA lines at 100 kHz standard mode; any stuck-low state suggests a failed pull-up resistor or bridged trace. For Intel-based boards, confirm the FCH (formerly Southbridge) sends valid PCIe clock signals to the M.2 slot–weak or missing clocks will prevent SSD detection. Use a logic analyzer to check that the PCH correctly routes USB 2.0/3.x differential pairs to ports; impedance mismatches >10Ω cause intermittent disconnects.

Locating Critical Parts in Portable Computing Baseplate Blueprints

Begin by isolating the central processing unit (CPU) section. Look for a square or rectangular footprint annotated with signals like VCORE, VDD, or CPU_PWR. This area typically clusters power delivery components–MOSFETs, inductors, and capacitors–forming the voltage regulator module (VRM). Trace the power rails back to their source pins, often labeled PVCC or VCCIN, to verify correct identification.

Identify the platform controller hub (PCH) by locating its distinctive ball-grid array (BGA) pad layout. The PCH connects to peripheral interfaces through dedicated buses like SPI, LPC, or eSPI. Check for capacitor banks surrounding this component–modern designs place decoupling capacitors within millimeters to stabilize high-speed signaling. Cross-reference pin assignments with datasheets to confirm label accuracy (e.g., LPC_CLK, PCIe_TX).

Power Delivery Network Analysis

Map the power tree starting from the battery connector or DC input. Typical sequences include:

• Input protection (fuses, transient voltage suppression diodes)
• Synchronous buck converters (paired high/low-side MOSFETs)
• Output filter networks (inductors + bulk capacitors)
• Point-of-load regulators (LDOs, buck converters for auxiliary rails)

Label each stage with input/output voltages (12V_IN, 5V_SYS, 3.3V_SB) to avoid confusion during troubleshooting. Note ESR ratings of capacitors–lower values near the CPU enhance transient response.

Memory and Expansion Interface Tracing

RAM slots appear as elongated pin arrays with differential pairs (DQS, DM) and address/command lines (ADDR, CKE). Key signals:

1. DDR_CLK: Symmetrical traces routed as matched pairs
2. VREF: Reference voltage, often ½ VDDQ, with nearby decoupling
3. RESET#: Pulled high with a 1kΩ resistor

For M.2 slots, locate PCIe_TX/RX pairs and SATA_* signals. Verify trace lengths–PCIe Gen3/4 requires

Examine BIOS chips adjacent to the PCH. These SPI NOR flash devices (W25Q128, GD25LQ256) use standard bus widths (1/2/4-bit) with dedicated HOLD# and WP# lines. Note voltage rails (1.8V_VCC); incorrect flash voltage bricks the system permanently during writes.

Connectors demand precise pinout verification. HDMI/DisplayPort transmitters (DP_TX) pair with power rails (5V_HDMI) and ground shields. USB ports show VBUS (fused), D+/D- pairs, and ID pins for OTG detection. Internal headers often reverse signal order–compare against the board silkscreen to avoid short circuits during repairs.

Thermal management zones appear as thermistor networks (THRM, NTC) and fan headers (FAN_PWM, TACH). Locate EC (embedded controller) traces handling keyboard input (KBC_DATA) and charging (ACOK, CHG_EN). Omit generic GND islands during initial review; focus on signal paths first, then return to ground pours for return path analysis.

Step-by-Step Guide to Interpreting Voltage Rails and Signal Paths on Circuit Blueprints

Locate the power delivery network first. Identify main rails (e.g., 3.3V, 5V, 12V) near their origin–typically a voltage regulator or power IC–then trace thick solid lines outward. These represent high-current paths. Thin dotted or dashed lines indicate lower-current signals or control traces. Label each rail immediately using manufacturer notation (e.g., VCC_CORE, VDD_IO) to avoid later confusion.

• Examine color-coding: red (power), blue (ground), green (clock), yellow (data). If absent, rely on net names printed beside each line.
• Cross-reference rails with datasheets of key ICs (CPU, chipset, PMIC); pin numbers next to net names confirm direct connections.
• Check for series resistors, ferrite beads, or capacitors–these often mark transitions between high-power and sensitive areas.

Decode signal paths after power rails. Start from an input connector (e.g., SATA, PCIe) or sensor, following lines toward the main controller. Look for standardized net names like TX/RX, CLK, INT#, or I2C_SDA/SCL; these reveal protocol and direction. Ignore via labels unless they bridge layers–then note their size (arger vias handle more current). If a path splits, prioritize thicker traces; thinner branches carry ancillary signals or feedback loops.

Common Symbols and Their Meanings in PCB Blueprints

Begin interpretation of electronic layouts by memorizing core component icons. A rectangle with vertical lines inside denotes capacitors–electrolytic types show polarity with a “+” mark, ceramic/variable variants lack this. Inductors appear as coiled lines; ferrite beads add a solid core symbol. Transistors use a three-pronged shape: NPN/PNP types differ by arrow direction on the emitter leg. Resistors are straight lines or zigzag patterns; precision/surface-mount versions may include numeric codes (e.g., “4R7” = 4.7Ω). Always cross-reference symbols with adjacent reference designators (e.g., “C123,” “L45”) to trace signal paths efficiently.

Critical IC and Connector Representations

Symbol	Component Type	Key Features
Square with pin dots	Microcontroller/DSP	Pins labeled VCC/GND; PLL/die temp pads often grouped separately
Trapezoid with curved side	Crystal oscillator	Two-terminal base; may show load capacitance values (e.g., “8pF”)
Parallel lines with gaps	Memory module (DDRx)	Staggered pinouts; VREF and DQS pairs highlighted in bold
Bar with vertical slits	BGA connector	Ball pitch specified (e.g., “0.8mm”); via patterns critical for rework

Decode power rails first. Thick solid lines indicate main voltage rails (3.3V, 5V, 12V); dashed lines show secondary/switched rails (VCORE, 1.8V_AUX). Look for thermistors near heat-generating ICs–typically marked as “NTC” with resistance values (e.g., “10kΩ @ 25°C”). MOSFETs appear as two intersecting lines with a diagonal gate symbol; note drain-source-current direction for switching circuits. Fuses use a waved line or “X” inside a circle; self-resetting PPTC types include “Poly” in designators.

Verify signal integrity symbols. Differential pairs (USB, PCIe) are outlined in matched colors with length tuning markers. Termination resistors (“TERM”) near high-speed lanes show impedance values (e.g., “50Ω ±10%”). ESD protection diodes use a triangle pointing to a line; bidirectional types add a second triangle. Decoupling capacitors (“DECAP”) cluster near IC power pins–target 0.1µF X7R ceramic types for noise suppression. For multilayer boards, through-holes (“TH”) and vias (“VIA”) appear as concentric circles; buried/blind vias include depth codes (e.g., “L1-L4”). Always confirm schematic symbols against IPC-2221 standards for PCB fabrication tolerances.
