Arduino LCD Interface Schematic and Step-by-Step Circuit Assembly Guide
Begin by connecting a 16×2 character screen to an ATmega328-based board using a 4-bit parallel mode. This reduces pin usage while maintaining full functionality–pins D4 to D7 handle data, while RS, EN, and an optional R/W can share ground for read-only setups. Power the display with 5V from the board’s VCC, but add a 220Ω resistor in series to limit backlight current without dimming visibility.
Schematic layout: Route data lines directly to the microcontroller’s digital pins (e.g., 4-7), RS to pin 8, and EN to pin 9. Skip VEE if contrast adjustment isn’t critical–tie it to ground for maximum readability. For backlight control, connect the LED anode to VCC via the resistor and the cathode to ground. Verify connections with a multimeter for shorts before powering up.
Use the LiquidCrystal library with begin(16, 2) to initialize the screen. Test functionality immediately with print("Ready") to confirm wiring. If characters appear garbled, recheck the data bus order and ensure EN pulses trigger on the falling edge. For troubleshooting, disconnect R/W–unnecessary delays often stem from read operations.
Avoid powering the display from the USB port during prolonged use–its 500mA limit may cause flickering. Instead, use a dedicated 7-12V supply through the barrel jack, regulated to 5V by the onboard converter. For contrast adjustments, replace the ground tie on VEE with a 10kΩ potentiometer to fine-tune visibility under varying lighting.
Minimize code overhead by predefining custom symbols (e.g., degrees Celsius) with createChar(). Store frequently used messages in PROGMEM to free RAM. For dynamic data, use setCursor() sparsely–excessive position changes slow rendering. If latency persists, switch to 8-bit mode or reduce baud rates in serial-output applications.
Connecting a Character Display to Your Microcontroller Board
Start with a standard 16×2 or 20×4 HD44780-compatible module – these require only six I/O pins when using the 4-bit interface mode. Ground the RW pin directly to save a control line, leaving VSS, VDD, VO (contrast), RS, E, and four data lines (D4–D7). For reliable contrast, use a 10 kΩ potentiometer between VO and ground; adjust until the top row displays solid blocks while the bottom stays blank.
Power and Signal Routing
Supply 5 V to VDD from the microcontroller’s regulated output; avoid raw Vin as it may carry noise. Route RS and E to any free GPIO (D8 and D9 are typical choices), then connect D4–D7 to consecutive pins (D4–D7 again, or D5–D8) to keep wiring tidy. Add 0.1 µF decoupling capacitors between VDD and VSS, placed as close to the display pins as possible to suppress transient voltage drops during screen updates.
Avoid common pitfalls: never leave data pins floating during initialisation – pull them low with weak (100 kΩ) resistors if necessary. If characters appear garbled, double-check the data pin sequence and ensure the sketch sets the 4-bit rather than 8-bit mode flag. Some clones require a deliberate 50 µs delay after sending the reset command; insert a delayMicroseconds(50) call if the screen remains blank on startup.
For backlight control connect the anode via a 220 Ω resistor to 5 V and the cathode to ground or a PWM-capable pin for dimming. Prefer the LiquidCrystal library bundled with the IDE; it abstracts timings and handles initialization without manual register tweaking. A minimal working sketch sends begin(16, 2), then print(“text”) – anything beyond that is user logic.
Selecting the Optimal Display Unit for Microcontroller Applications
Begin with a 16×2 character model if your project requires basic text output. These units, like the HD44780-compatible variants, offer 32 characters across two lines, sufficient for most embedded system interfaces. They typically operate on a 5V power supply and interface via 4 or 8 parallel pins, plus three control lines. For contrast adjustment, include a 10kΩ potentiometer between VDD, VEE, and VSS. Common manufacturers include Winstar, Newhaven, and SunFounder–opt for models with built-in controllers to reduce firmware complexity.
For projects demanding graphical capabilities, a 128×64 pixel monochrome panel provides flexibility without excessive power draw. These modules, such as the ST7920-based units, support both ASCII text and custom bitmap rendering, consuming ~5-10mA at full brightness. They often feature an SPI interface, minimizing pin usage compared to parallel alternatives. When selecting, verify the controller’s command set compatibility with your development environment; some require proprietary libraries. The table below compares key specifications:
| Specification | 16×2 Character Unit | 128×64 Graphic Panel |
|---|---|---|
| Interface | Parallel (4/8-bit) | SPI/I²C |
| Current Draw | 1.5–2.5mA | 5–10mA |
| Controller | HD44780/ST7066 | ST7920/SSD1306 |
| Backlight | LED (3.3–5V) | OLED (No backlight) |
| Viewing Angle | 120–140° | 160–170° |
Prioritize modules with I²C or SPI protocols for projects constrained by limited GPIO availability. A 0.96″ OLED screen, for instance, uses only two pins (SDA/SCL) and delivers sharp, high-contrast output with a 128×64 resolution. These units typically incorporate SSD1306 controllers and operate efficiently at 3.3V, making them suitable for battery-powered setups. However, their organic light-emitting diode technology degrades over time–expect a lifespan of ~10,000 hours at 50% brightness. Verify the module’s refresh rate; some low-cost variants exhibit visible flicker at
For high-visibility applications, consider transflective TFT panels measuring 1.8″–3.5″. These combine transmissive and reflective properties, ensuring readability in direct sunlight while supporting full-color output. Models like the ILI9341-based units offer 320×240 resolution and integrate resistive or capacitive touch overlays. They demand more power (~30-60mA) and a 4-wire SPI interface but enable advanced UI elements. When sourcing, confirm the panel’s physical dimensions align with your enclosure constraints–many manufacturers offer identical specifications in varying footprints.

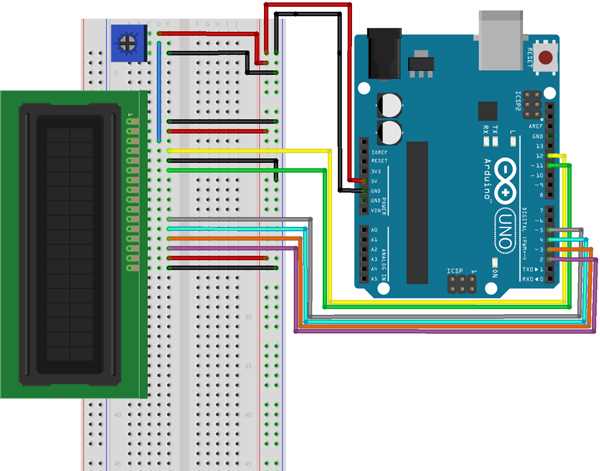

Step-by-Step Wiring Guide for 16×2 Character Display with the Microcontroller Board
Connect the power rails first: attach the display’s VSS pin to the board’s GND and VDD to the 5V output. Skip capacitors unless noise is detected–then add a 0.1µF ceramic between power pins. Backlight anode (A) and cathode (K) require a 220Ω resistor in series if using 5V; omit for 3.3V systems.
Data Line Connections
- RS (Register Select): Link to digital pin 12. Determines if data is a command (LOW) or text (HIGH).
- E (Enable): Wire to pin 11. Pulsing this pin writes data to the screen.
- Data Pins (D4-D7): Use 4-bit mode for simplicity: connect D4-D7 to pins 5-2 respectively. Leave D0-D3 unconnected.
- R/W (Read/Write): Ground this pin permanently to enable write-only operation, saving one I/O pin.
Verify connections before powering on. A reversed data line (D4 swapped with D7) scrambles text; R/W floating causes erratic behavior. For troubleshooting, disconnect all wires, then reconnect one at a time starting with GND and VDD. Test with minimal code:
- Initialize the library:
#include <LiquidCrystal.h> - Declare pins:
LiquidCrystal lcd(12, 11, 5, 4, 3, 2); - In
setup():lcd.begin(16, 2); - Print static text:
lcd.print("Hello");

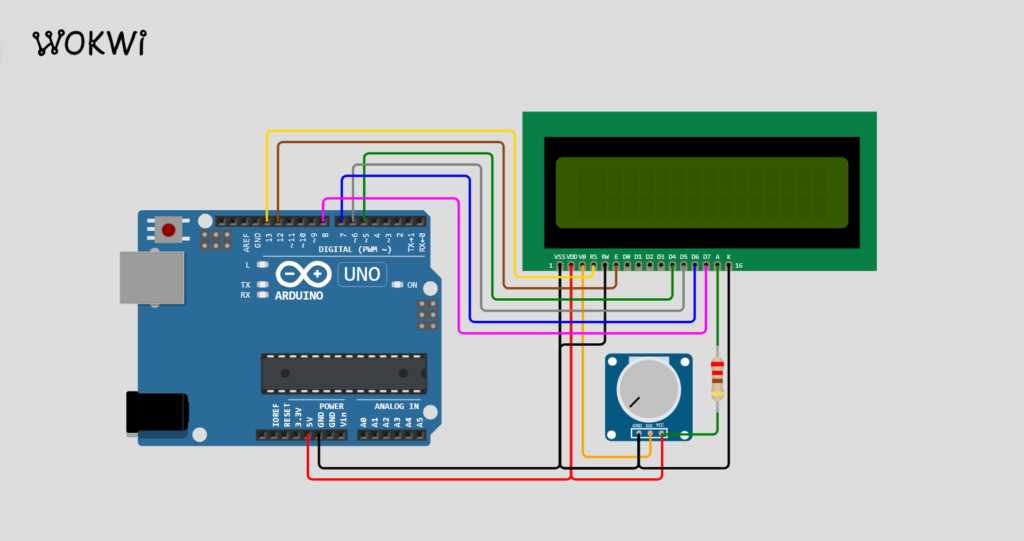

If the screen remains blank, measure voltage at VDD–it should read 4.5-5.0V. Dim or missing characters often indicate insufficient current; add a 1µF decoupling capacitor across VDD and VSS. For contrast adjustment, connect a 10kΩ potentiometer between 5V and GND, with the wiper to VO (contrast pin). Rotate slowly; optimal setting shows faint boxes in the second row.
For advanced use, solder a 16-pin header to the display’s pads–this avoids loose wires. Use male-to-female jumper cables for modularity. Avoid breadboard power rails if current exceeds 200mA; route directly from the board’s 5V pin instead. For backlight dimming, replace the fixed resistor with a 1kΩ potentiometer or PWM-controlled transistor.
Frequent Errors in Display-Host Integration and Solutions
Connecting the wrong pins to power rails tops the list of avoidable blunders. Many novice builders misalign the VSS, VDD, and VO terminals–confusing the ground, logic voltage, and contrast inputs. A 1KΩ-10KΩ potentiometer tied to VO rarely exceeds ±0.5V, yet some apply 5V directly, risking permanent pixel burn-in. Verify alignment with the module’s datasheet; common 16-pin variants typically assign VSS to pin 1, VDD to pin 2, and VO to pin 3. Reverse these, and the screen stays dark despite correct code uploads.
- Skipping pull-up resistors on I2C lines guarantees intermittent failures; 4.7KΩ between SDA/SCL and 3.3V or 5V is mandatory.
- Swapping TX/RX during serial communication scrambles data; cross-check device baud rate (commonly 9600) and Arduino’s UART assignments.
- Omitting decoupling capacitors–100nF ceramic between logic voltage and ground within 10mm of the display–introduces noise visible as flickering rows.
- Assuming every 16×2 panel shares identical pinouts; clone manufacturers shuffle R/S, E, D4-D7 assignments. Always trace traces or probe continuity pre-soldering.
Over-tightening mounting screws cracks the glass substrate; three evenly torqued M3 spacers prevent stress fractures. Static discharge also damages unprotected controller ICs–discharge residual voltage by touching a grounded metal surface before handling sensitive segments. Lastly, ensure the host’s firmware timer matches the display’s refresh rate; mismatched I2C/TWI clock speeds below 100kHz frequently stall the bus, requiring a hard reset.
