How to Create a Simple LED Switch Circuit for Beginners

Start by sourcing a low-voltage semiconductor emitter–standard 3mm or 5mm packages rated at 20mA draw 2.1V for red variants, 3.2V for blue or white. Select a power source that exceeds the forward voltage by at least 0.5V to prevent dimming under load. A 3V coin cell or 5V USB block works reliably for single-element configurations.

Insert a resistive component between the power rail and the emitter to limit current; for a 5V supply driving a 2.1V emitter, a 150Ω unit keeps the amperage within tolerance (19mA). Polarity matters–align the cathode (marked flat) to ground. If reverse voltage exceeds 5V, the emitter risks permanent damage; bypass diodes prevent this in sensitive builds.

Mechanical or solid-state control points belong in series: slide toggles handle up to 200mA, tactile push-buttons suffice for 50mA. Momentary switches reset automatically; latching types retain state. For PWM dimming, swap the switch for an N-channel MOSFET (2N7000) and microcontroller pin–PWM frequencies above 100Hz avoid visible flicker.

Test connectivity with a multimeter before energizing–continuity between input and output confirms switch function; infinite resistance indicates an open path. Verify voltage drop across the emitter matches datasheet specs (e.g., 2.0–2.2V for red). If brightness falls short, reduce resistance incrementally, monitoring current draw; never exceed 25mA continuous.

Building a Controlled Light Emitting Setup

Choose a current-limiting resistor based on the forward voltage and desired current of your illumination component. A 220Ω resistor works well for standard 5mm indicators running at 20mA with a 5V supply–use Ohm’s Law to adjust for different voltages. For 12V systems, increase resistance to 470Ω or higher to prevent overheating and premature failure.

Position the control mechanism in series before the resistor to ensure full break in the flow. A simple single-pole single-throw (SPST) mechanical activator is sufficient for basic on-off functionality. For low-power applications, consider a micro push-type activator to save space, but verify its current rating matches or exceeds your component’s draw.

Voltage Source	Recommended Resistor	Current Draw	Component Lifespan Estimate
3.3V	100Ω – 150Ω	10mA – 15mA	~50,000 hours
5V	180Ω – 270Ω	15mA – 25mA	~30,000 hours
9V	390Ω – 560Ω	15mA – 20mA	~25,000 hours
12V	470Ω – 680Ω	18mA – 25mA	~20,000 hours

Wire the return path from the illumination element directly back to the power source’s negative terminal. Avoid ground loops by keeping all returns separated from other high-current paths, especially in mixed-signal assemblies. For prototyping, a breadboard simplifies testing–ensure jumpers are rated for at least 1A to handle transient spikes during switching.

Add a smoothing capacitor parallel to the component if flickering occurs under variable loads. A 100µF electrolytic capacitor placed near the element stabilizes brightness fluctuations when other loads share the same power rail. Polarity matters–connect the positive lead to the supply side and the negative to the common return.

Test the assembly under full load before finalizing connections. Use a multimeter to verify voltage across the element matches expected forward drop–typically 1.8V to 3.3V depending on color and type. If brightness is inconsistent, check for loose connections or incorrect resistor calculations. For outdoor use, seal all exposed contacts with silicone or heat-shrink tubing to prevent corrosion.

Alternate Activation Methods

Replace the mechanical activator with a transistor for remote or automated control. An NPN BJT like the 2N3904 or a logic-level MOSFET (e.g., IRLZ44N) allows microcontroller interfacing. Ensure the transistor’s maximum current rating exceeds the component’s draw by at least 30%–use a base resistor of 1kΩ for the BJT or a 10kΩ pull-down for the MOSFET to prevent false triggers.

Key Elements for Building a Simple Glow Device Control Setup

Begin by selecting a low-voltage light source requiring 2V to 3.5V forward voltage, typically a standard diode emitting visible wavelengths. Pair this component with a current-limiting resistor sized between 220Ω and 1kΩ, calculated using Ohm’s law to prevent burnout while ensuring optimal brightness. The resistor value depends on supply voltage and diode specifications, so verify parameters before assembly.

Choose a mechanical toggle or momentary push actuator to interrupt or complete the current flow path. Single-pole single-throw variants are simplest, allowing basic on-off function. For multi-state control, consider rotary selectors or multi-pole actuators, though these increase complexity. Ensure contact material supports microampere currents without oxidation-related failures over time.

A direct current source between 3V and 12V meets most small illumination needs without additional regulation. Alkaline cells, lithium coin cells, or bench supplies work equally well when voltage aligns with diode requirements. Avoid exceeding maximum ratings to prevent thermal damage to the emitter or resistor. Current draw rarely exceeds 20mA per diode in standard configurations.

Copper-clad boards, breadboards, or soldered protoboards provide stable mounting surfaces. For permanent installations, etched circuit boards offer reliability, while clip-and-plug arrays allow rapid prototyping. Keep conductive paths short to minimize voltage drop, especially with battery-powered designs where efficiency matters. Twisted pair or stranded jumper wires simplify connections when space constraints exist.

Integrate a fuse or polyfuse rated slightly above expected current for overcurrent protection if the power source lacks safeguards. Small signal diodes across the emitter can prevent reverse polarity damage during accidental miswiring. For pulsed operation, include an electrolytic capacitor (10µF–100µF) near the power input to smooth transient responses and extend device life.

Comprehensive Assembly Instructions for a Basic Luminary Control Setup

Select a 20mA forward current luminary rated for 2–3.5 V to prevent premature failure; a 5 mm clear red bulb operating at 1.8 V is ideal for most projects.

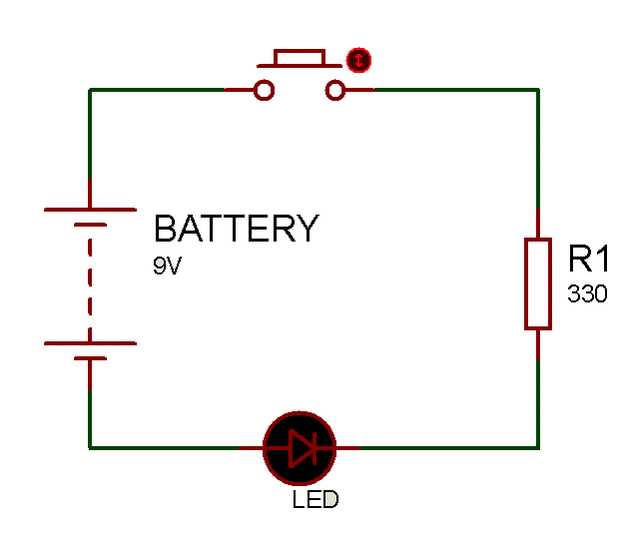

Gather these components precisely: one resistor (calculate using Ohm’s law: (source voltage – bulb voltage) / 0.02), a small SPST rocker, a 9 V battery clip, and 22-gauge solid core wire cut to 12 cm lengths.

Strip exactly 8 mm of insulation from each wire end; tin the exposed copper immediately with 60/40 rosin-core solder to prevent fraying and ensure reliable connections.

1. Attach the resistor lead to the bulb’s anode–hold the bulb with needle-nose pliers, heat the lead for 2 seconds, then apply solder until a smooth meniscus forms.
2. Connect the resistor’s opposite end to one rocker terminal; verify the joint is shiny, void-free, and measures less than 0.1 Ω with a multimeter.
3. Link the bulb’s cathode directly to the battery’s negative terminal–use a pre-cut wire, solder quickly to avoid overheating the bulb’s epoxy.
4. Complete the path by joining the rocker’s remaining terminal to the battery’s positive pole–ensure twist direction matches current flow to improve mechanical strength.

Wrap each joint with 1 mm diameter heat-shrink tubing; apply hot air at 120 °C for 5 seconds–tubing should constrict uniformly without melting adjacent insulation.

Test by toggling the rocker multiple times; the bulb must illuminate instantly without flicker–if it dims or delays, recheck joint resistance and verify all solder connections are void-free.

Mount the assembly in an enclosure with a 3 mm rear vent hole positioned directly behind the bulb to prevent thermal buildup; secure the rocker with M2 screws and spacers to avoid flexing connections.

Label the rocker’s ON/OFF positions with permanent ink–use symbols “I” and “O” in 4 mm Arial bold for immediate visibility under low light conditions.

Selecting an Optimal Resistor for Your Light Emitting Component and Voltage Supply

For a standard 5mm indicator emitting 20 mA at 2.1V forward voltage, pair it with a 330Ω resistor when powered by a 5V source. Subtract the component’s voltage drop from the supply voltage (5V – 2.1V = 2.9V), then divide by the desired current (20 mA = 0.02A) to yield 145Ω. Round up to the nearest standard value–330Ω ensures margin against minor supply variations, preventing thermal runaway in 25°C ambient conditions. Verify with an ohmmeter if using salvaged parts, as tolerances above ±10% degrade reliability, especially in pulse-width applications.

High-brightness emitters drawing 350 mA at 3.3V require precise calculations: (12V – 3.3V) / 0.35A = 24.86Ω, selecting a 27Ω 1W resistor to dissipate (0.35A)² × 27Ω = 3.3W heat. Use a heatsink if ambient exceeds 50°C; derate resistor power by 50% above 70°C. For variable supplies, prefer 1% tolerance metal film resistors to limit current fluctuation within ±2%, extending lifespan beyond 50,000 hours. Avoid carbon composites–drift exceeds 5% at 1000 hours, risking premature failure under transient loads.

Critical Errors in Wiring Semiconductor Lamps via Control Buttons

Skipping current-limiting resistors guarantees instant burnout. A single 3mm or 5mm emitter demands 150–330 ohms at 5V, 470–1K ohms at 12V. Verify forward voltage from datasheets–typical 1.8–3.3V ranges mean direct 9V battery connection fries the chip within milliseconds. Always calculate resistor value: (Source Voltage – Forward Voltage) / Desired Current. Multimeters confirm calculations before soldering.

Reversed Polarity Consequences

Anode-to-cathode mix-ups destroy the PN junction permanently. Flat edges, shorter legs, and inside notches denote the cathode side–align these with the negative rail. Battery holders often reverse positive and ground; test continuity with a voltmeter before assembly. Surface-mount variants lack leg indicators–check microscopic arrows or dimples etched on the package.

Overlooking switch contact bounce creates false triggers. Mechanical toggles generate 5–20ms spikes detectable only on oscilloscopes; low-pass RC filters (0.1µF cap + 1K resistor) suppress transients. Microprocessors interpret spikes as multiple presses–add software debounce or opt for solid-state relays instead. Compare on-resistance specs; poor-quality switches exhibit >1Ω leading to voltage drops and flickering.
