Building a 4x4x4 LED Cube with Arduino Step-by-Step Wiring Guide
Build a compact tricolor visualization array using 64 discrete illumination elements arranged in four layers. Assemble the layers vertically with 16 emitters each, spaced at 18mm intervals horizontally and 25mm vertically for uniform light distribution. Use 3mm high-intensity diodes with forward voltages of 2.0V–3.2V and currents under 20mA to ensure longevity and stable operation.
Wire the emitters in parallel columns grouped by cathodes, connecting each cathode cluster to an isolated transistor switch (2N2222 or equivalent). Assign eight digital output pins from your microcontroller: four for layer selection and four for column multiplexing. This configuration reduces pin usage while maintaining full addressability. Opt for common-cathode arrangement to minimize voltage drop across the structure.
Implement shift registers (74HC595) if microcontroller ports are limited. Cascade two register pairs–one managing layers and another controlling emitter rows–to expand control signals with minimal wiring. Clock the shift registers at 1MHz or higher to eliminate visible flicker during animation sequences. Ground the unused register outputs to prevent floating states.
Add decoupling capacitors (0.1μF) between power rails at each layer junction to suppress voltage spikes during rapid state changes. Route power through a shared 5V rail with a maximum current draw of 320mA. Verify voltage levels at every node during assembly to identify weak connections before finalizing solder joints.
Program the microcontroller with a strict timing loop alternating layer activation and row updates every 2ms. Use binary patterns to address individual emitters: 0b0001 for the lowest layer’s front-left corner, 0b1111 for activating an entire plane simultaneously. Precompute animation frames in an array for smooth transitions and predictable performance.
Constructing a Three-Dimensional Visual Matrix with Microcontroller Integration
Begin by sourcing 64 diodes (3mm or 5mm, diffused) with matching forward voltage (2.0–3.3V) and current ratings (20mA max). Arrange components in vertical layers: each tier requires four 220-ohm resistors (one per column) and N-channel MOSFETs (e.g., IRLZ44N) for sinking current. Avoid multiplexing all cathodes through the microcontroller’s pins–distribute via shift registers (74HC595) to prevent overloading.
| Component | Quantity | Notes |
|---|---|---|
| Diffused emitters (3mm) | 64 | Test brightness uniformity |
| N-channel switches (IRLZ44N) | 16 | Gate threshold ≤2V |
| Current-limiting resistors | 16 | Value calculated per Vf |
| Serial-in/parallel-out registers (74HC595) | 4 | Daisy-chain for layer control |
Wire anodes to shift register outputs; connect cathodes to MOSFET drains. Use 10k-ohm pull-down resistors on MOSFET gates. For layer selection, dedicate three microcontroller pins (SPI: SCK, MOSI, SS) to cascade shift registers–this reduces firmware complexity. Power the matrix via a regulated 5V supply (2A minimum); bypass capacitors (0.1µF) at each layer prevent flicker. Validate connections with a simple animation sequence: shift a ‘1’ through registers while toggling layers via interrupts. Adjust multiplexing speed (5-10ms/layer) to balance brightness and ghosting.
Bill of Materials and Technical Requirements for a Three-Dimensional 64-Pixel Display
Select 64 clear-lumen diodes rated for a forward current of 20 mA and a forward voltage between 1.8 V and 3.3 V. Prefer models with a narrow viewing angle (20–30 degrees) to reduce cross-layer illumination. Through-hole variants simplify alignment during soldering; surface-mount types require precision jigs.
Procure 1 kΩ carbon-film resistors, ¼ W, 5 % tolerance, for current-limiting each anode path. Eight resistors suffice if multiplexing layers, sixteen if driving anode rows individually. Verify calculated resistance using diode datasheet Vf(max) to prevent thermal runaway at maximum brightness.
A microcontroller board based on the ATmega328P clocked at 16 MHz handles real-time multiplexing without perceptible flicker. Ensure sufficient GPIO pins: sixteen for cathode columns, four for anode layers, two for SPI flash if storing patterns. Avoid clones with suboptimal voltage regulators; onboard 5 V/3.3 V rails must sustain 300 mA peak.
Sixteen NPN transistors, specifically 2N3904 or 2N2222, rated at 200 mA collector current and 40 Vceo, switch cathode columns. Emitter resistors of 100 Ω improve thermal stability during prolonged illumination cycles. Verify hFE min ≥ 100 under 10 mA collector current to ensure full cathode grounding.
Four P-channel MOSFETs, IRLML6401 or equivalent, handle anode layer switching. Gate threshold must not exceed 2.5 V to remain compatible with microcontroller logic levels. Include flyback Schottky diodes across each MOSFET drain-source to clamp inductive spikes when switching off anode currents up to 100 mA.
A perf-board measuring 10 × 15 cm accommodates the microcontroller, transistors, and current-limiting resistors. Copper tracks must handle 2 A transient current; reinforce high-current traces with solder bridging or 1 mm wire jumpers. Solder mask stencils improve reliability by minimizing short circuits between adjacent traces.
Female pin headers with 2.54 mm pitch connect the diode matrix to the control board. Insulated 0.3 mm tinned copper wires route signals between layers; color-code red for anodes, black for cathodes, and blue for ground to streamline troubleshooting. Ferrite beads on power rails suppress high-frequency noise generated by rapid multiplexing.
Optional: A DS3231 RTC module maintains accurate timing for animated sequences. Non-volatile SPI flash chips expand pattern storage beyond microcontroller EEPROM limits. Enclosure fans or heat sinks prevent excessive heating during prolonged full-brightness operation.

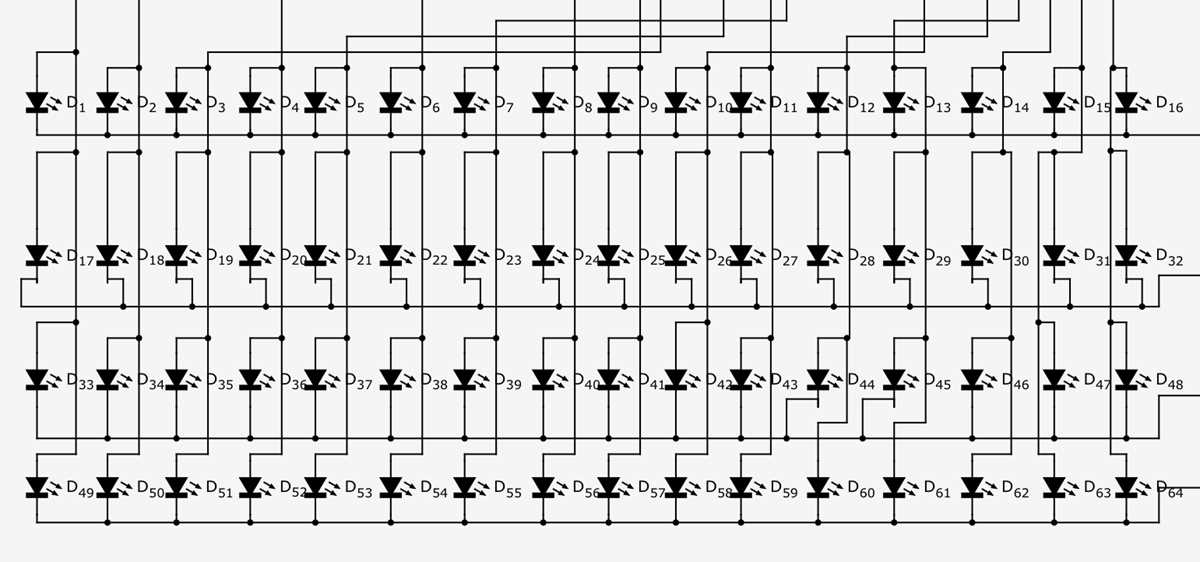

Step-by-Step Wiring Guide for Layer and Column Connections
Begin by identifying the positive leads of each vertical segment–these are your columns. Use 22-gauge solid-core wire for stability, stripping 5mm of insulation from each end. Connect all four columns in a single row to a current-limiting resistor (330Ω) before soldering to a common output pin on the microcontroller. Label each wire with masking tape to avoid cross-connections during assembly; miswiring at this stage delays testing indefinitely.
For the horizontal planes, assign a dedicated transistor (2N2222) to each of the four levels. Wire the emitter to ground, the base through a 1kΩ resistor to a distinct I/O pin, and the collector directly to the plane’s shared anode network. Verify transistor polarity with a multimeter–reverse connections will fry components. Isolate planes with electrical tape to prevent short circuits when stacking, as copper tape alternatives may peel under heat.
Sequence connections methodically: start from the bottom plane upward. Crimp connectors onto each plane’s four column wires, then route them through a 16-pin IDC socket for clean signal distribution. Secure wires with zip ties every 30mm to reduce mechanical stress–vibration from nearby motors or cooling fans dislodges loose joints over time. Test continuity after each layer with a 5V probe; a flickering result indicates a cold solder joint.

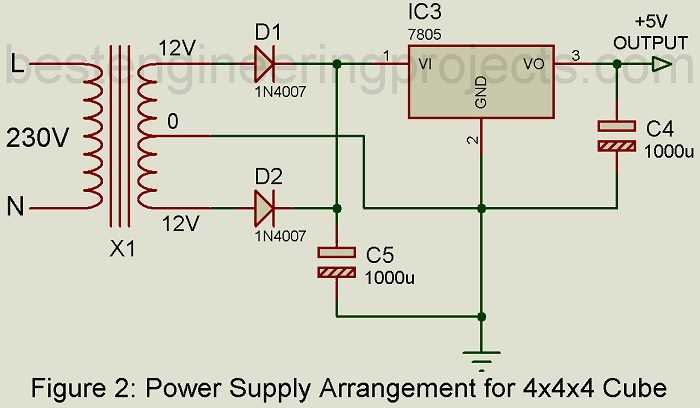

Power delivery requires a 5V regulated source–use an L7805 if input exceeds 7V. Bypass capacitors (0.1µF) soldered near the controller stabilize voltage spikes during animations. Group ground wires from all resistors, transistors, and plane returns into a single bus bar; split grounds cause erratic brightness shifts. Avoid shared return paths with other high-current loads, as cross-talk introduces ghost activation.
Signal Integrity Checks
Upload a test sketch cycling one plane at full intensity while others remain off. Measure column voltage drop with an oscilloscope–expect ≤0.2V variance. If flicker persists, replace the 330Ω column resistors with 270Ω units, ensuring compliance with LED forward voltage specs. Exceeding 20mA per channel risks thermal runaway.
For final validation, run a simultaneous plane/column scan. Activate each quadrant in rapid succession; watch for consistent luminosity. De-solder any joints where brightness dips >10%–oxidized solder or thin gauge wire (
Microcontroller Port Mapping and Layered Signal Routing
Assign each anode layer to sequential output pins starting from PORTD (pins 0–7) or PORTB (pins 8–13) for minimal latency. Reserve PORTC (analog pins A0–A5) for cathode columns to exploit internal pull-down resistors when sourcing current. Verify pin assignments align with timer-capable registers if using PWM fading–pins 3, 5, 6, 9, 10, and 11 support hardware-based dimming on Atmega328P.
Implement a 3-tier cascading scheme: PORTD handles the four anode planes, PORTB drives the first eight cathode lines, and PORTC manages the remaining eight. Avoid splitting single planes across ports–inter-port toggling introduces 1–3 clock-cycle delays measurable in multiplex loops. Use direct port manipulation macros for simultaneous bit flips:
PORTD = B11110000– activates the top two layersPORTC = 0xFF - cathodePattern– inverts column selection
Cycle through each plane at 200–250 Hz refresh rate using a non-blocking timer interrupt. Pre-calculate cathode patterns in an array and retrieve them with pgm_read_byte() for flash memory efficiency. Keep interrupt service routines under 60 µs to prevent visible flicker; exceeding 80 µs risks perceivable brightness drop across layers.
Adopt a common-cathode topology to prevent ghosting: energize one plane at a time while simultaneously sinking current through specific columns. Use high-current N-channel MOSFETs (IRLML6401) for cathodes; gate resistors of 220 Ω suffice for 1 kHz switching. Anode drivers require only 1 kΩ resistors–current-limiting per plane is unnecessary since layers share the same forward voltage.
Sequence plane activation in descending order–start with the highest layer–for consistent illumination. Optimize cathode patterns by grouping adjacent columns into 16-bit words; left-shift each pattern to avoid recalculations. Store only 32 distinct patterns (16 vertical columns × 2 rotation states) in PROGMEM to preserve dynamic memory.
Validate timing with an oscilloscope: measure pulse width on anode layers–30–40 µs per layer delivers uniform 25–30 mA peak current per segment. Prolonged pulses (>50 µs) saturate emitters, reducing dynamic contrast. Shorten inactive periods between plane switches to ≤5 µs; this masks transient gaps without perceptible artifacts.
Route ground traces directly to the microcontroller’s common ground plane–star topology eliminates return-path voltage drops. Bypass each MOSFET with 10 µF tantalum capacitors to dampen inductive spikes from 30 mA surges. Limit total sink current to ≤70% of absolute maximum ratings to extend MOSFET lifespan beyond 10,000 operational hours.
