Step-by-Step Wiring Guide for Dimmable LED Driver Installation
Begin by identifying the power source voltage–most constant-current modules accept 12V, 24V, or 36V DC. Verify the output rating matches the lamp’s requirements; disregard generic labels–measure the forward voltage and current with a multimeter under load.
Route high-voltage input through a compatible mains filter–lineload type X2 capacitor rated ≥250 Vac–before feeding the switching regulator. Short traces between the rectifier and smoothing capacitor reduce ripple; position the bulk capacitor within 2 cm of the bridge output.
Use a dedicated dimming interface: PWM at 500 Hz–2 kHz for smooth transitions or 0–10V analog for legacy controls. Isolate the dimming line with an optocoupler (PC817) where the mains reference differs from the controller ground.
Include three protection components:
1. Transient-voltage suppressor rated at 1.5× the nominal input voltage.
2. Thermal fuse in series with the primary windings (10–15 A, 85 °C trip).
3. Fast-acting fuse on the output rail (rated at 110 % of maximum load current).
Terminate all adjustable-current modules with twisted-pair cable–18–20 AWG–to minimize interference. Ground the return path directly to the PSU chassis; avoid sharing ground planes with switching regulators.
Test configurations under varying temperatures–operational range -20 °C to +60 °C–using a calibrated thermal chamber. Monitor junction temperature via built-in NTC thermistor; derate output current if readings exceed 85 % of the thermal shutdown threshold.
For installations exceeding 10 meters, add a shielded extension–braided copper sleeve over the entire length–terminated at both ends to prevent capacitive coupling. Validate connections with an insulation tester at 500 Vdc before energizing.
Connecting Variable Brightness Power Supply: Key Installation Steps
Begin by confirming the input voltage range of your power regulator matches the local mains supply. Most compact transformers accept 100–240 V AC, but verify the label–some low-voltage units require a fixed 12 V or 24 V DC input from an intermediary converter. Mismatched voltages risk overheating or component failure.
Identify the live (L), neutral (N), and ground (⏚) terminals on both the supply side and the adjustable regulator. Use a multimeter to verify circuit continuity before connecting; stray currents can degrade performance even if the fixture illuminates. Ground connections must terminate at a dedicated earth point, never shared with neutral.
| Component | Terminal Type | Wire Gauge (AWG) | Max Current (A) |
|---|---|---|---|
| Mains Input | Stranded Copper | 18 | 10 |
| Fixture Output | Solid Core | 16 | 8 |
| Dimmer Interface | Stranded Tinned | 14 | 15 |
For pulse-width modulated (PWM) intensity controls, the signal lead must connect directly to the regulator’s designated dimming port, not the output channel. Most modular designs use a 0–10 V DC protocol, while a few legacy systems rely on resistive potentiometers–check the technical sheet to avoid polarity errors. Reverse connections void calibration.
Insulate all joints with heat-shrink tubing or crimp connectors; electrical tape degrades under thermal cycling. Secure cables with strain relief clamps where they exit enclosures–loose wiring causes intermittent flickering. If integrating multiple fixtures, use a star topology; daisy-chaining risks uneven brightness across the array.
Test the assembly with a load bank before mounting permanent fixtures. Attach a nominal 50% resistor (e.g., 2 Ω at 10 W for a 12 V system) and verify smooth intensity transitions. Sudden jumps indicate incorrect impedance matching or incompatible control signals.

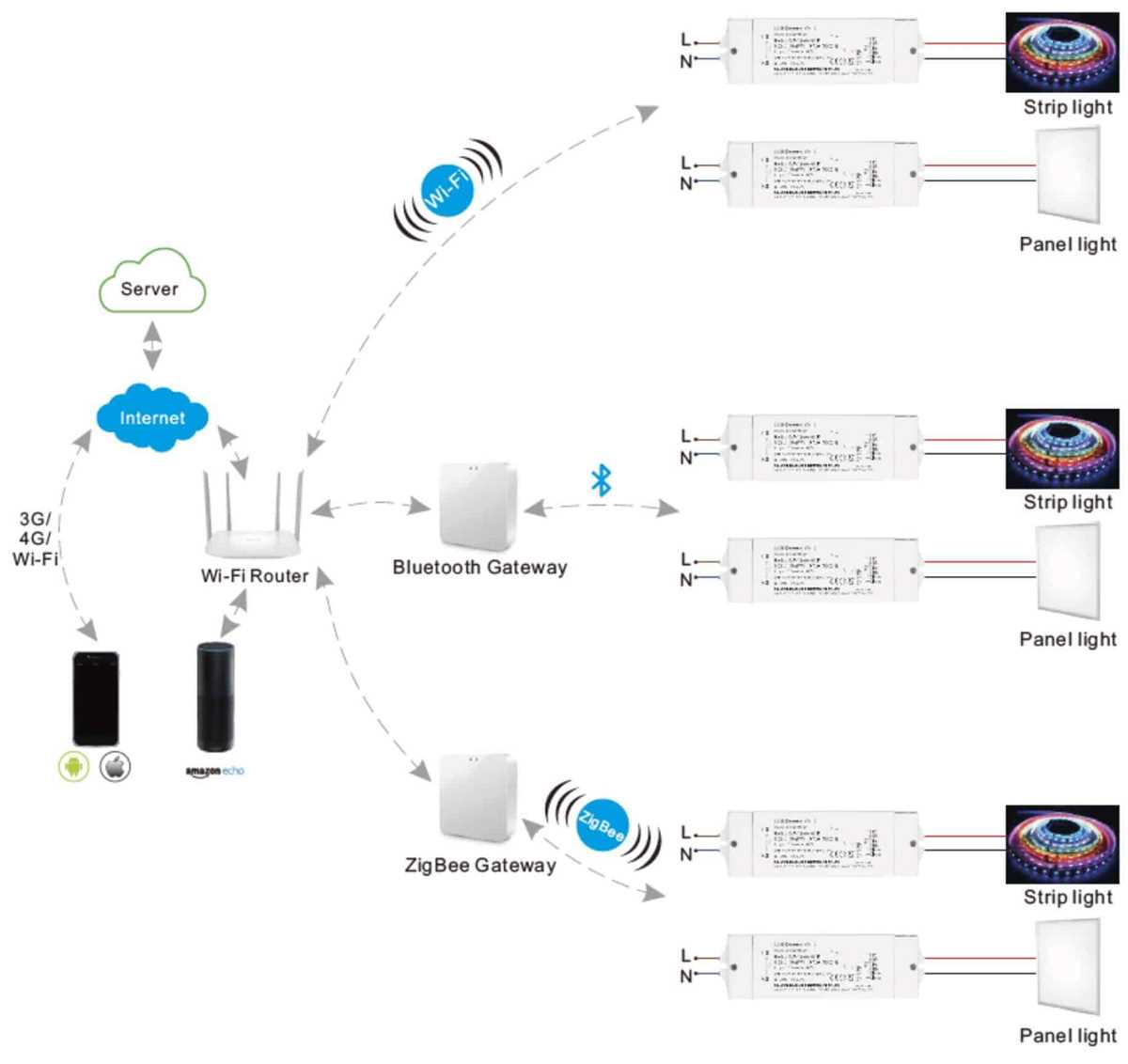

For DALI or DMX controlled setups, assign unique short addresses via configuration software before wiring. Cross-wiring data lines to power outputs bricks the controller–double-check pin assignments against the protocol specification. Keep data cables at least 10 cm from high-current conductors to minimize interference.
Finalize by securing all enclosures with tamper-proof fasteners and labeling each cable run. Include a current rating and signal type (e.g., “+10 V DIM”) to simplify future maintenance. Retain a digital backup of the schematic with component part numbers for troubleshooting.

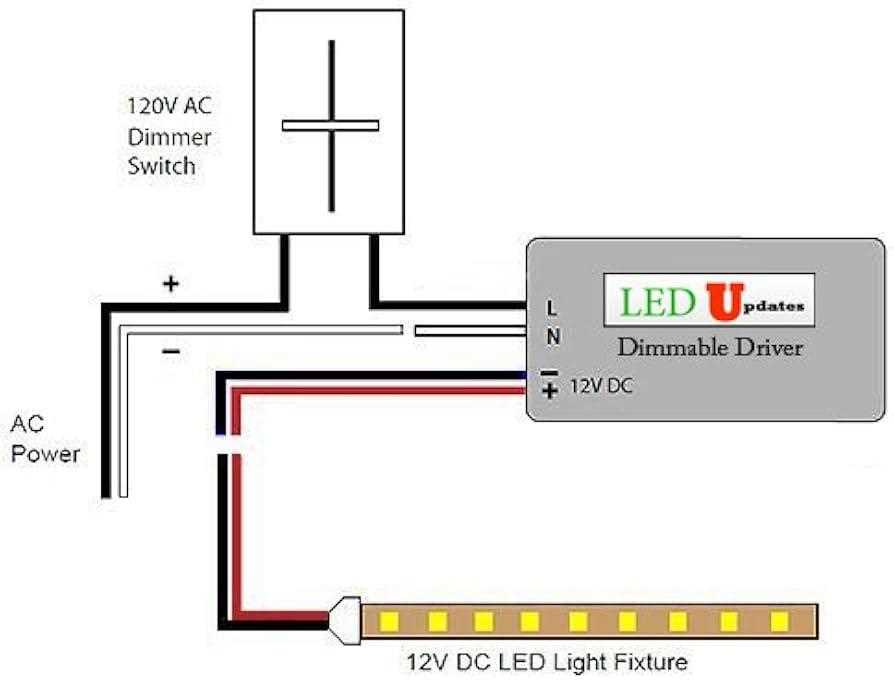

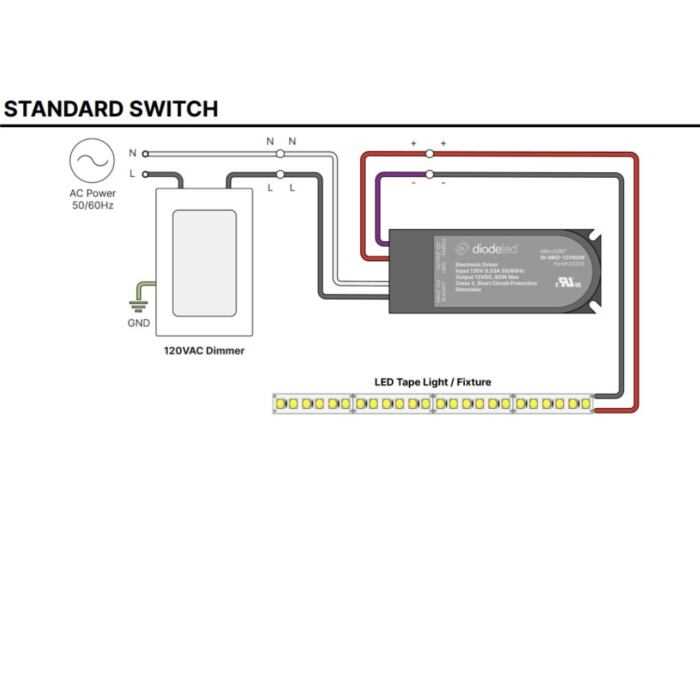

Integrating a Variable Control Switch with an Illumination Regulator: Practical Steps
Verify the compatibility of the phase control module with the power supply unit before proceeding. Most modern adapters require a trailing-edge (reverse-phase) dimmer for stable operation, while older designs may need leading-edge (forward-phase) types. Check the technical specifications – typically printed on the housing – to confirm voltage range (e.g., 12V, 24V, or 220V–240V) and wattage limits. Exceeding these parameters risks overheating or erratic flickering.
Disconnect the circuit breaker to prevent accidental activation. Strip the insulation from the input cables of the converter – usually a pair of live (brown/black) and neutral (blue) wires – and the output cables feeding the light source, often color-coded red/yellow for positive and black/green for negative. Connect the phase control input to the live wire of the mains, ensuring secure fastening with twist-on wire nuts or terminal blocks rated for the current load. Ground the system if applicable by attaching the green/yellow wire to the designated grounding point.
Test the configuration by restoring power and adjusting the knob or slider. If the luminosity responds inconsistently, re-examine connections for loose strands or mismatched polarity. Some controllers require minimum load thresholds – typically 5W–10W – to function properly; adding a dummy resistor may resolve issues if the connected load is too low.
Frequent Errors in Adjustable Power Supply Connections and Prevention Methods
Mismatching the load capacity of the controller with the connected fixtures is a critical error. Installing a 100-watt unit to handle multiple 20-watt luminaires without derating causes premature failure. Refer to the manufacturer’s specifications for maximum wattage per channel and apply a 20% safety margin. For example, if the maximum rated load is 80 watts, limit usage to 64 watts. Ignoring this adjustment stresses internal components, shortening service life and increasing replacement costs.
Incorrect polarity during installation remains a persistent issue. Reversing the positive and negative terminals renders modulation ineffective or damages the internal circuitry. Mark the power lines before cutting or stripping wires and double-check against the terminal labels. Most modules include color-coded wiring–typically red for live and black for neutral–or embossed symbols next to connection points. Use a multimeter in continuity mode if markings are unclear to identify the correct orientation.
Overlooking voltage drop on extended runs introduces flicker or inconsistent brightness. Each meter of cable beyond the recommended length incurs resistance, reducing the voltage reaching the light source. Select thicker gauge cables–18 AWG or lower–and limit total run length to five meters. If longer distances are unavoidable, install a secondary regulated adapter near the light source to stabilize the input voltage. Avoid connecting additional joints along the run, as each connection point compounds potential resistance issues.
Selecting Optimal Conductors and Junctions for Adjustable Lighting Systems
Use stranded copper cables with a minimum cross-section of 0.75 mm² for low-voltage circuits under 24V, or 1.5 mm² for 120-240V mains connections–solid conductors risk fatigue fractures under frequent switching cycles. AWG 18 (0.82 mm²) suits short runs under 3 meters; AWG 16 (1.31 mm²) compensates for voltage drop in lengths exceeding 5 meters, especially when paired with PWM-based control signals. Avoid aluminum conductors entirely–oxide layers disrupt reliable contact in high-frequency applications, leading to hotspots and premature failure.
Critical Connector Specifications
- Screw terminals: Only use captive screws rated for ≥6A; ensure they accept both solid and stranded wire without requiring ferrules under 10A loads. Tin-plated variants resist corrosion better than bare copper in humid environments.
- Push-in connectors: Select models with transparent housings for visual validation of wire insertion depth–recessed contacts must be fully engaged to prevent arcing. Verify VDE/UL 817 certification for flame retardance, critical in enclosed fixtures.
- Crimp terminals: Use insulated fork or ring types with a 3:1 barrel-to-wire ratio for mechanical integrity; barrel crimps should be repeated twice (once near the conductor, once on the insulation) to prevent pull-out under thermal cycling. Ratchet crimpers outperform plier-style tools, ensuring consistent deformation.
- Modular plugs: For IP-rated installations, IP67-rated connectors with silicone seals and axial cable glands prevent ingress–avoid twist-lock designs unless keyed to prevent reverse polarity misconnections.
For high-current paths (>5A), parallel two conductors–this reduces thermal load and improves signal fidelity in layered brightness control systems. Always twist paired wires to minimize inductive pickup, particularly near switching regulators. Heat-shrink tubing with adhesive lining outperforms tape for moisture exclusion; apply a 2:1 shrink ratio (e.g., 6mm → 3mm) to ensure a watertight seal.
Verifying Power Parameters in Adjustable Solid-State Lighting Circuits
Measure DC output with a multimeter in voltmeter mode across the load terminals before connecting fixtures. For 12–24V constant-voltage models, expect ±0.5V deviation under full load; wider swings signal instability or incorrect load matching. Precisely positioned probes prevent false readings from contact resistance–clip leads securely to output pads, avoiding transient fluctuations during dimming cycles.
Use a clamp meter with milliamp resolution to assess current draw under varying intensity levels. At 10% brightness, 350mA drivers should pull 28–35mA per channel; exceeding 40mA suggests inefficiency or parasitic losses. For 700mA variants, verify split-core accuracy by comparing with a shunt resistor (
Troubleshooting Anomalies
If voltage sags under load but recovers at standby, inspect output capacitance–bulging electrolytics or undersized ceramics cause transient drops. Check for oscilloscope-probed ripple at 100Hz (full-wave rectified) or 120Hz (half-wave); amplitudes over 200mVpp degrade filament lifespan. For PWM-driven units, confirm switching frequency matches datasheet specs (±2kHz)–deviation above 5% increases electromagnetic interference and dimming inconsistency.
