LED-Based Fuel Level Indicator Circuit Design with Schematics

For optimal accuracy in liquid measurement displays, apply a voltage divider network with 1% tolerance resistors. A 10-segment configuration demands precise scaling–map 0.5V to empty and 4.5V to full capacity. Use a 330Ω current-limiting component for each segment to prevent thermal drift. Bypass capacitors (0.1µF) at the voltage reference pin stabilize readings during transient spikes.

Select a microcontroller with built-in analog-to-digital conversion–ATmega328P handles 10-bit resolution effectively. Calibrate by measuring actual resistance across the sensing element at known volumes. Store offset values in EEPROM to compensate for manufacturing variances in the float mechanism. A hysteresis loop (5% of span) eliminates flickering near transition points.

Power the circuit with a regulated 5V supply–linear regulators outperform switched-mode for noise-sensitive applications. Ground the sensing element directly to the microcontroller’s analog ground to minimize interference. For extended temperature ranges, replace standard conductors with low-temperature coefficient wirewound units. Test cross-talk between adjacent segments during rapid level changes by simulating 20% swings in 100ms intervals.

To enhance visibility, drive indicators with constant-current sources (20mA) instead of voltage-based methods. Multiplex segments only if refresh rates exceed 100Hz to avoid perceptible flicker. For corrosive environments, encapsulate exposed traces in conformal coating–polyurethane outperforms acrylic in chemical resistance. Validate accuracy against a certified measuring cylinder at 25%, 50%, and 75% capacity.

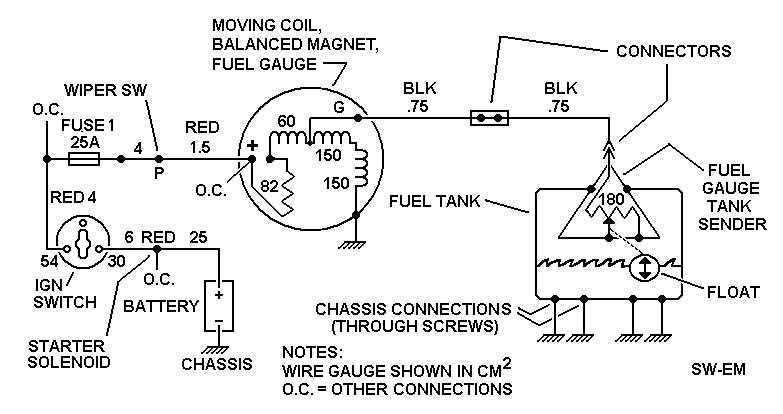

Circuit Design for Visual Tank Level Indicator

Use a precision resistor network with 1% tolerance components (e.g., 470Ω, 1kΩ, 2.2kΩ) to segment voltage drops across the sender unit’s variable resistance (typically 0–90Ω for automotive applications). Connect the wiper output to a comparator array (LM339) configured with hysteresis, setting trigger points at 10%, 25%, 50%, 75%, and 90% capacity. Each comparator should drive a current-limiting resistor (330Ω) feeding a high-efficiency visual element (VF=2.1V, 20mA), wired in common-anode configuration for consistent brightness. Include a 10nF decoupling capacitor across the supply rails near the IC to suppress transients.

Calibration and Noise Mitigation

Implement a dual-point calibration procedure: first, simulate empty tank resistance (e.g., 90Ω) and adjust trimmer pots (20kΩ multi-turn) until only the lowest segment illuminates. Then, simulate full tank (0Ω) and verify all segments activate sequentially. Add a low-pass RC filter (R=10kΩ, C=4.7µF) at the sender input to reject harmonic noise from pumps or ignition systems, ensuring stable readings during transient loads. For vehicles with non-linear sender curves, substitute fixed resistors in the network with programmable potentiometers (10kΩ digital) interfaced via SPI for OEM-specific profile matching.

Core Elements for Constructing an Operational Indicator Display System

Select a shunt resistor with precision values between 0.01 and 0.1 ohms to measure current draw accurately without introducing excessive voltage drop. A 1% tolerance metal film resistor ensures stability across temperature fluctuations, preventing false readings during prolonged operation. Avoid carbon composition types–their resistance drifts under thermal stress, corrupting baseline measurements.

Incorporate a bipolar junction transistor (BJT) or metal-oxide-semiconductor field-effect transistor (MOSFET) as a switching element for each visual output. For low-power designs, opt for 2N3904 BJTs; their gain consistency simplifies calibration. Use IRFZ44N MOSFETs for higher-current applications–handle 49A with an on-resistance of 17.5 milliohms. Gate resistors of 220-470 ohms prevent ringing in rapid on-off cycles, extending component lifespan.

Utilize a voltage divider network of 10k and 1k resistors to scale the input signal to a microcontroller’s analog range. For 5V reference systems, this pair yields a 0.455V output per volt of input, matching 10-bit ADC resolution. Place a 0.1µF ceramic capacitor across the lower resistor to filter high-frequency noise–transient spikes from inductive loads otherwise distort readings by up to 12%.

Implement a comparator such as LM393 or TLC3702 to trigger visual segments at predefined thresholds. Configure hysteresis via a 100k feedback resistor to eliminate flicker–without it, ambient electrical noise causes false toggling at the transition point. Set reference voltages using a precision voltage regulator like LM4040; its 0.1% tolerance ensures consistent segment activation across temperature ranges from -40°C to 125°C.

Choose visual status elements with forward voltages aligning to the supply rail. For 12V systems, use Kingbright APA3010F3C/RC–3mm red types with 1.9V forward drop–daisy-chained in series-parallel clusters. Calculate series count by dividing rail voltage minus total forward drop; for 12V, eight elements in series yield approximately 1.5V margin for resistor drops. Include a current-limiting resistor of 470-1k ohms per cluster to maintain 20-30mA per segment, balancing visibility against thermal dissipation.

Integrate a microcontroller with sufficient ADC resolution–Atmega328P’s 10-bit ADC resolves 4.88mV steps on a 5V scale. Employ its internal pull-up resistors for digital I/O to reduce part count. Program threshold logic in firmware rather than relying solely on hardware comparators–this allows adaptive scaling if input characteristics vary. Store calibration offsets in EEPROM to compensate for component tolerances without manual trimming.

Route critical signal traces on a PCB with star grounding to isolate high-current paths from sensitive measurement nodes. Keep analog and digital grounds separate, tying them at a single point near the power supply input. Use 1oz copper pours for traces carrying over 100mA–2mm width handles 1A with 20°C temperature rise. Avoid vias in power paths; their resistance degrades performance under transient loads.

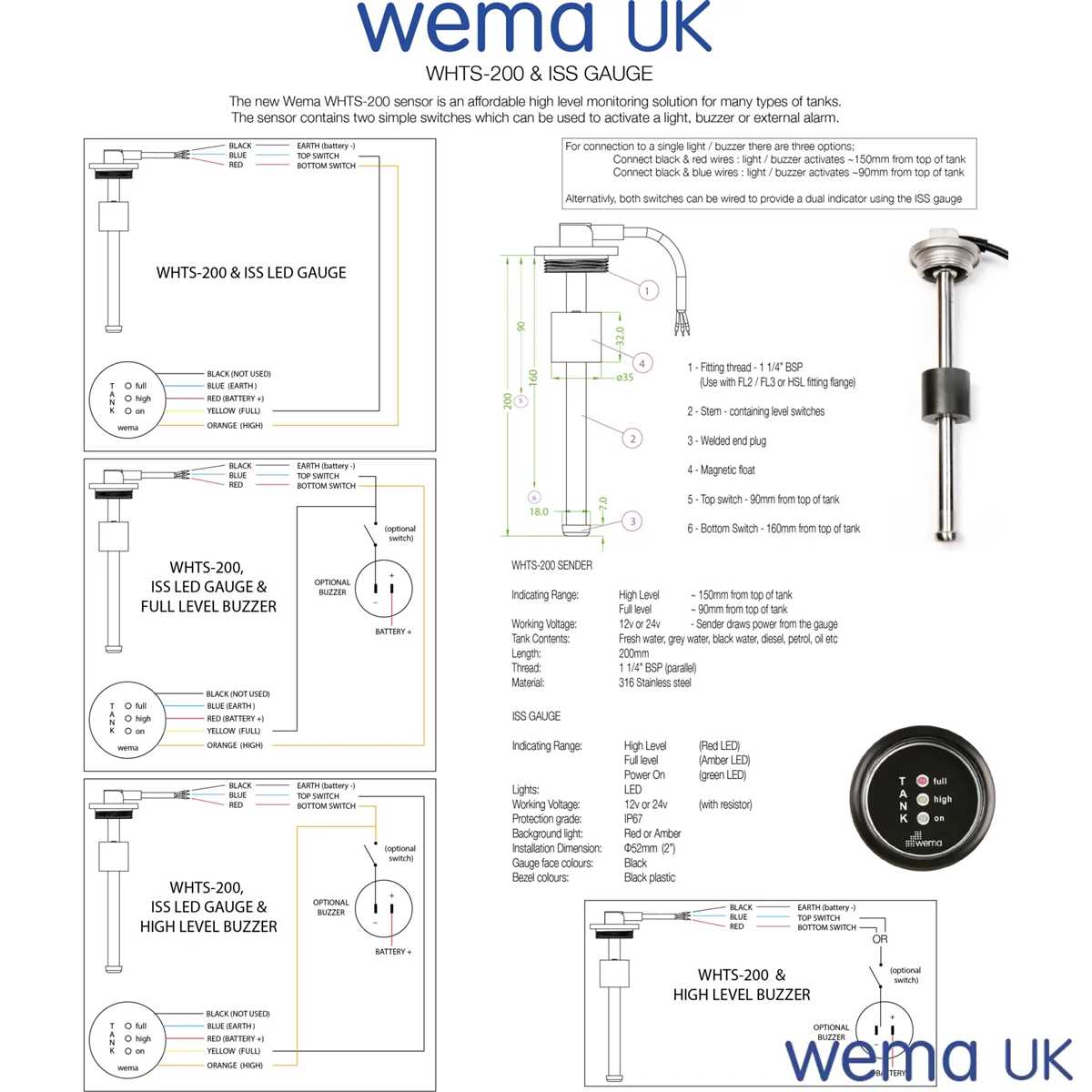

Step-by-Step Guide to Wiring Light Indicators with Resistance Arrays

Select resistors based on the forward voltage (V_f) of your chosen semiconductor emitters and the supply voltage (V_s). For a 5V source and emitters with a 2V V_f, use the formula: R = (V_s – V_f) / I, where I is the desired current (typically 15-20mA). A 220Ω resistor will suffice for standard 3mm or 5mm devices. Calculate resistance values for each branch if driving multiple circuits from a single power rail.

Assemble the Current-Limiting Network

Solder resistors in series with each emitter’s anode, connecting the cathode to the ground rail or common return. For arrays requiring uniform brightness, use identical resistance values. Group emitters by color or function–red (620-630nm) for low-states, yellow (585-595nm) for warnings, and green (520-535nm) for operational status–to simplify troubleshooting. Verify polarity before applying power: reverse voltage risks permanent damage.

Integrate a trimmer potentiometer (1kΩ) in series with the first resistor if brightness adjustability is necessary. This allows fine-tuning of current flow without replacing fixed components. For high-side switching, connect the emitter’s anode to the resistor, then to the power source, ensuring the cathode ties to the switching transistor’s collector or microcontroller pin configured as an open-drain output.

Test and Validate Circuit Integrity

Apply power incrementally, starting at 20% of V_s, while monitoring current draw with a multimeter. Observe emitter intensity and check for thermal rise in resistors–1/4W components should remain cool to the touch. If flickering occurs, confirm stable voltage at the anode; instability often indicates loose connections or inadequate decoupling (add a 0.1µF ceramic capacitor near the power entry). Document measured values for future reference, noting deviations from calculated expectations.

Calculating Voltage Divider Values for Accurate Liquid Reservoir Monitoring

Select a reference resistor (R_ref) in the 10–100 kΩ range, prioritizing 47 kΩ for most sensing applications; this balances noise immunity and current consumption. The wiper resistor (R_wiper)–typically 1–10 kΩ–should match the sender’s nominal resistance range (e.g., 240 Ω empty, 50 Ω full). Use the formula V_out = V_in × R_wiper / (R_ref + R_sender) to map sender resistance to output voltage, ensuring linearity across the span.

Sender Position	Sender Resistance (Ω)	Rref = 47 kΩ	Rref = 100 kΩ
Empty	240	4.80 V	4.94 V
Half	145	2.96 V	3.12 V
Full	50	1.06 V	1.11 V

Adjust R_ref if the output swings exceed ADC reference margins (e.g., 0–5 V); smaller values lower resolution, larger values risk exceeding thresholds.

Verify thermal drift by measuring R_sender at temperature extremes (−40°C to 125°C). Compensate by selecting resistors with ±50 ppm/°C tolerance or lower; mismatch greater than 100 ppm/°C distorts readings by >0.5% across operating ranges. For 5 V systems, a 20 mV error translates to ~1% volumetric misreading–critical in tight-tolerance designs. Log test data and use curve fitting to model actual vs. ideal output.

Connect the divider midpoint to a buffer amplifier (e.g., TL072) before ADC conversion to prevent loading errors; input impedance should exceed R_ref × 100. Filter transients with a 1 µF capacitor across R_ref and a 100 nF ceramic on V_out. Ensure ground traces between sender, divider, and ADC share a star topology to eliminate common-mode noise.
