How to Build a Reliable Crystal Oscillator Step-by-Step Circuit Guide

For stable frequency references under 50 MHz, pair a piezoelectric resonator with a pair of inverting logic gates–typically a CMOS inverter like the 74HCU04–to minimize phase noise. Configure the feedback network with a 1 MΩ resistor in parallel with the resonator and add a 10 pF coupling capacitor between the inverter output and input to ensure quick startup while preventing false triggering.

Measure the output waveform with an oscilloscope: expect a rise time under 20 ns and jitter below 100 ps RMS. If excessive ringing occurs, reduce the load capacitance by swapping the inverter’s output pin to a series resistor of 220 Ω before connecting to downstream ICs. This preserves signal integrity while lowering power dissipation by 15-20%.

For frequencies above 50 MHz, replace the CMOS inverter with a high-speed comparator such as the MAX9010. Maintain the same feedback topology but halve the coupling capacitor to 4.7 pF to match the comparator’s lower input capacitance. Verify phase margin by adjusting the feedback resistor: values between 500 kΩ and 2 MΩ yield optimal stability without sacrificing startup reliability.

To improve thermal drift compensation, insert a negative temperature coefficient (NTC) thermistor of 470 kΩ in series with the feedback resistor. This reduces frequency variation to ±10 ppm across a 0–70°C range when calibrated at room temperature. Log temperature vs. frequency data over 24 hours before finalizing component values.

Designing a Reliable Frequency Generator: Key Components and Layout

Start with a Pierce configuration for low-component-count implementations, using a CMOS inverter as the active element. A 74HC04 hex inverter or equivalent (e.g., CD4069) works best for frequencies between 1 MHz and 20 MHz, while lower frequencies (32 kHz–1 MHz) may require a dedicated phase-shift network instead.

Select impedance-matching resistors based on the driving stage: 1 MΩ pull-up for HC logic, 10 MΩ for 4000-series gates. Capacitors should flank the resonator–22 pF to 33 pF for common quartz wafers–but verify the datasheet for load capacitance (CL) and subtract parasitic board capacitance (~3–5 pF). A trimmer capacitor (5–50 pF) allows fine frequency tuning within ±50 ppm if stability demands it.

Resonator Type	Recommended Rf	Typical CL	Start-Up Time (ms)
AT-cut (4 MHz)	1 MΩ	20 pF	1–3
32.768 kHz tuning fork	10 MΩ	12.5 pF	200–500
SAW (100 MHz)	470 kΩ	8 pF	0.5–1

Ground the case of metal-can resonators directly to the PCB ground plane via a soldered through-hole pad to suppress EMI and avoid load capacitance drift. Plastic-encased variants should sit over a continuous ground pour with no traces routed beneath them–stray coupling degrades frequency accuracy by 10–15 ppm.

Buffer the output signal with a single gate configured as a linear amplifier to isolate the resonator from downstream circuits. Add a series resistor (100 Ω–2.2 kΩ) to prevent harmonic distortion and drive capacitive loads like microcontroller clock inputs, which typically present 5–10 pF capacitance. For drive levels exceeding 1 mW, reduce the feedback resistor to 470 kΩ to stay within the resonator’s maximum power dissipation rating (often 100 µW–500 µW).

Power the inverter stage with a dedicated linear regulator (±5 % tolerance) or bypass capacitors (100 nF + 1 µF tantalum) placed within 2 mm of the V_cc pin. Avoid switching regulators or long V_cc traces–voltage ripples >10 mV pk-pk can induce ±30 ppm frequency modulation. If dual supplies (±2.5 V) are available, connect the inverter base to ground via a 47 kΩ resistor for symmetrical rail-to-rail swings, improving spectral purity.

Test loop gain prior to final assembly: short the resonator pads and measure output amplitude. A properly compensated network should yield 0.8–1.2 V_pp on an oscilloscope with 10 %) indicates inadequate damping–replace the feedback resistor with a 10 kΩ potentiometer and trim for a critically damped waveform. Once stabilized, measure frequency drift across temperature: AT-cut units typically exhibit 1–10 ppm/°C, while SC-cut variants target 0.01–0.1 ppm/°C.

Key Components for Constructing a Precision Timing Generator

Select a quartz resonator with a frequency tolerance of ±10 ppm or better for stable operation. The AT-cut type is optimal for most applications between 1 MHz and 30 MHz due to its temperature stability curve. Ensure the load capacitance matches the resonator’s specification–typically 8 pF to 32 pF–to avoid frequency drift.

Active Element Selection

Use a CMOS inverter such as the 74HC04 or 74LVC1GU04 for the amplification stage. These ICs provide sufficient gain while minimizing power consumption, critical for battery-powered designs. Avoid older TTL families; their higher input capacitance can degrade performance. For higher frequencies, consider an integrated Pierce driver like the Si510 or CDCE906, which include built-in load capacitors and output buffers.

Passive Component Criteria:

• Feedback resistors: 1 MΩ–10 MΩ (higher values reduce power but increase sensitivity to noise).
• Bypass capacitors: 0.1 µF ceramic near the IC’s power pins to suppress supply noise.
• Load capacitors: Precision NP0/C0G types (e.g., 22 pF ±5%) to match the resonator’s requirement.
• Output buffer resistor: 100 Ω–1 kΩ to isolate the generator from load variations.

For layout, adhere to these rules:

1. Place the resonator and load capacitors within 2 mm of the IC to minimize stray capacitance and inductance.
2. Route signal traces as short as possible, avoiding parallel paths near high-current lines.
3. Use a solid ground plane beneath the entire generator to reduce electromagnetic interference.
4. Thermal relief pads for the load capacitors prevent soldering-induced stress on the quartz package.

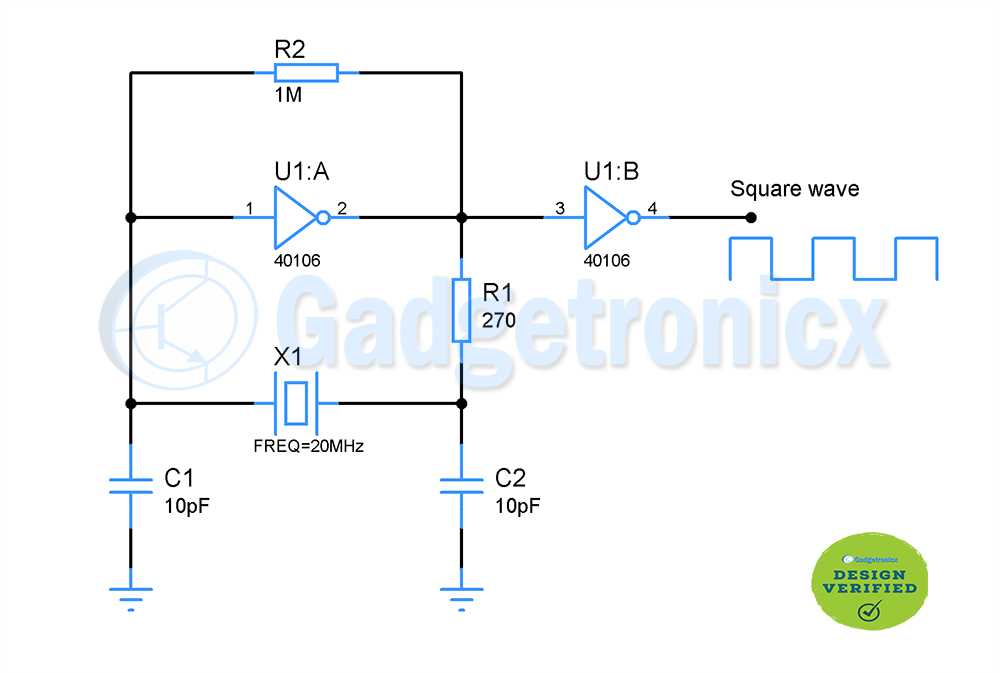

Step-by-Step Wiring of a Pierce Generator Layout

Start by selecting a reliable inverter gate–HCMOS variants like the 74HC04 or 4049UB deliver stable performance with minimal jitter. Connect the resonant element between the inverter’s input and output pins, ensuring a tight 5–20 pF load capacitor on each terminal to match the quartz’s specified load value. For most 4–24 MHz fundamental-mode resonators, use two 18 pF ceramics; adjust downward to 12 pF if frequency drift occurs. Ground the inverter’s supply pin via a 0.1 µF bypass capacitor directly at the package; omit this and risk 50 mVpp ripple corrupting output edges.

Attach feedback resistors–typically 1–10 MΩ–across the inverter to bias it within its linear range, avoiding latch-up at startup. Solder a 1 kΩ series resistor on the output node to curtail harmonic distortion; lower values (470 Ω) trade swing for cleaner sine purity. Probe the output through a buffered tap–never connect test leads directly, or 2 pF probe capacitance will pull the frequency 20–50 ppm off. Verify oscillation on a 100 MHz counter; a 20 ns start-up delay is normal, while prolonged silence suggests incorrect resonator load or open feedback loop.

Calculating Resistor and Capacitor Values for Stable Frequency Generation

Select a load capacitance (C_L) between 8 pF and 32 pF based on the quartz element’s datasheet. For AT-cut resonators, typical values cluster around 18–22 pF; verify the exact figure from the manufacturer’s specifications. Ignoring this will shift the output frequency by tens of parts per million.

Measure the stray capacitance (C_stray) of the PCB traces and package pins; assume 3–5 pF for a clean layout with ground plane. Use a precision LCR meter at the operating frequency to confirm. Subtract C_stray from C_L to determine the required external capacitors: C₁ = C₂ = 2 × (C_L – C_stray). For C_L = 20 pF and C_stray = 4 pF, install 32 pF 5 % NP0 ceramic capacitors.

Absorb the inverter’s input and output capacitance into C_stray. A 74HCU04 gate shows approximately 3 pF per terminal; add this to the measured stray value before computing C₁ and C₂. Failure to account for gate capacitance will pull the frequency upward by 30–80 ppm.

Resistor Selection Criteria

Pick the feedback resistor (R_f) to ensure the inverter operates in its linear region. Target a transconductance of 3–10× the motional conductance (g_m) of the resonator. For an AT-cut 16 MHz component with g_m = 80 µS, R_f between 180 kΩ and 1 MΩ is optimal. Lower values risk start-up failure; higher values increase phase noise.

Insert a series resistor (R_s) of 1–10 kΩ directly at the inverter’s output to limit current during transient oscillations. This resistor, combined with the load capacitors, forms a low-pass filter that suppresses harmonics above 3× the fundamental frequency. At 20 MHz, R_s = 4.7 kΩ reduces third-harmonic amplitude by 12 dB.

If the layout exhibits ringing, add a damping resistor (R_d) of 100–500 Ω in series with each load capacitor. Keep the time constant R_d×C₁ below 10 ns to avoid excessive phase shift. For C₁ = 33 pF, R_d = 200 Ω yields a 6.6 ns time constant, minimizing overshoot without distorting the waveform.

Verify stability by monitoring the output with a 50 Ω-terminated oscilloscope probe. The envelope should settle within 12–20 cycles at power-up. If the amplitude exhibits slow beats or fails to reach steady-state, reduce R_f by 10 % increments until stable operation is achieved.

Common Pitfalls When Connecting the Quartz Resonator Load Network

Ensure the feedback capacitors match the specified load capacitance within ±5%. A 2 pF mismatch between C1 and C2 can shift frequency stability by ±30 ppm at 8 MHz, degrading performance in timing-critical applications. Use NP0/C0G ceramic capacitors for temperature coefficients below ±30 ppm/°C; X7R variants introduce unacceptable drift.

Avoid routing resonator traces near high-speed digital lines or switch-mode power supplies. Crosstalk coupling below -60 dB still induces jitter exceeding 100 ps RMS at 12 MHz. Maintain a clearance of ≥3 mm for 50 MHz traces and ≥5 mm for 10 MHz lines, using a solid ground plane as a shield.

Incorrect Termination Impedance

• Unterminated PCB traces exceeding 2.5 cm at 16 MHz act as transmission lines, causing reflections and amplitude overshoot above 1.5×V_DD. Use series damping resistors of 0–50 Ω matched to trace impedance (typically 50–100 Ω).
• Fast CMOS inverters (e.g., 74AC14) require load resistors ≤1 MΩ. Exceeding this value increases start-up time beyond 10 ms and reduces drive strength, risking oscillation failure at low temperatures.
• Differential pairs should have impedance controlled to 100 Ω ±10%. Misalignment here introduces common-mode noise coupling >20 mV_pp, violating EMC requirements in automotive and medical designs.

Power supply decoupling must include both bulk and high-frequency capacitors. A 10 μF tantalum capacitor alone fails to suppress noise above 5 MHz; pair it with a 100 nF X7R capacitor placed ≤2 cm from the inverter’s V_DD pin. Without this, phase noise rises by ≥10 dB at 1 kHz offset, compromising PLL performance.

Mechanical Stress and Layout Errors

1. Mount resonators on the same PCB side as the inverter. Via transitions add parasitic inductance (~0.5 nH per via), shifting frequency by up to 0.1% at 20 MHz.
2. Avoid placing solder mask openings over resonator pads. The exposed copper increases stray capacitance by 0.3–0.8 pF, pushing pullability limits for 32.768 kHz tuning fork elements.
3. Hand-soldering leads to inconsistent mechanical stress. Use reflow profiles with peak temperatures ≤245°C for ≤20 seconds to prevent frequency shifts >±20 ppm post-assembly.

Testing stability requires a spectrum analyzer with ≥80 dB dynamic range. Harmonics exceeding -40 dBc indicate insufficient drive current; adjust feedback resistors in 2 kΩ increments until sidebands drop below -60 dBc. For 3.3 V systems, typical values range from 220 kΩ to 1.2 MΩ, depending on the resonator’s motional resistance.
