How to Wire LEDs in a Series Circuit Step-by-Step Guide

For reliable operation in a sequential diode arrangement, calculate the total forward voltage drop first. Each light-emitting component typically requires 2V to 3.5V; sum these values across all elements. If four diodes with 3V each are linked, the total becomes 12V. Ensure the power supply exceeds this combined drop–15V is the minimum practical threshold to avoid dim output.

Current consistency is non-negotiable. All diodes in a chain share identical amperage; a single resistor regulates this. Use I = (V_supply – V_total) / R to determine resistance. For 15V supply and 12V total drop at 20mA, R equals 150Ω. Standard E12 values–100Ω, 120Ω, 150Ω–let you select 150Ω. Avoid E6 series where possible, as gaps like 220Ω risk overcurrent.

Wire anode-to-cathode strictly; reversing one diode disrupts the entire chain. Test continuity with a multimeter before powering up. A break in any single link extinguishes the whole sequence. Solder joints must be clean–residue or flux can introduce resistance gradients, causing flicker or uneven brightness.

Thermal management matters: diodes dissipate ~50mW to 100mW each. On a protoboard or perfboard, space them at least 5mm apart. For high-power configurations, mount on an aluminum-backed PCB; forced convection isn’t necessary unless total load exceeds 500mW. Avoid plastic sockets–thermal expansion degrades contact integrity over time.

Voltage tolerance defines reliability. If diodes tolerate ±0.5V variance, source regulation must be tighter than ±0.3V. Linear regulators (LM7812) suffice for small setups; switch-mode (LM2596) wins for efficiency above 5W. Capacitors–10µF electrolytic at input, 1µF ceramic at output–filter ripple. Remove them only after verifying load stability under transients.

Connecting Light Emitting Diodes in Sequential Configuration

Start by selecting diodes with similar forward voltage drops–typically 1.8–3.3V depending on color–to prevent uneven brightness or premature failure. For a 12V supply, use Ohm’s law to calculate the series resistor: subtract the total diode voltage from the source (e.g., 12V – (3 × 2V) = 6V), then divide by target current (20mA). This yields 300Ω; choose the nearest standard value (330Ω).

• Avoid exceeding the maximum reverse voltage of any diode in the chain–reverse polarity will destroy the component instantly.
• Check thermal derating curves if operating near ambient limits; most small diodes dissipate ~100mW safely.
• For high-power applications, bypass the series connection with a Zener diode to clamp voltage spikes.

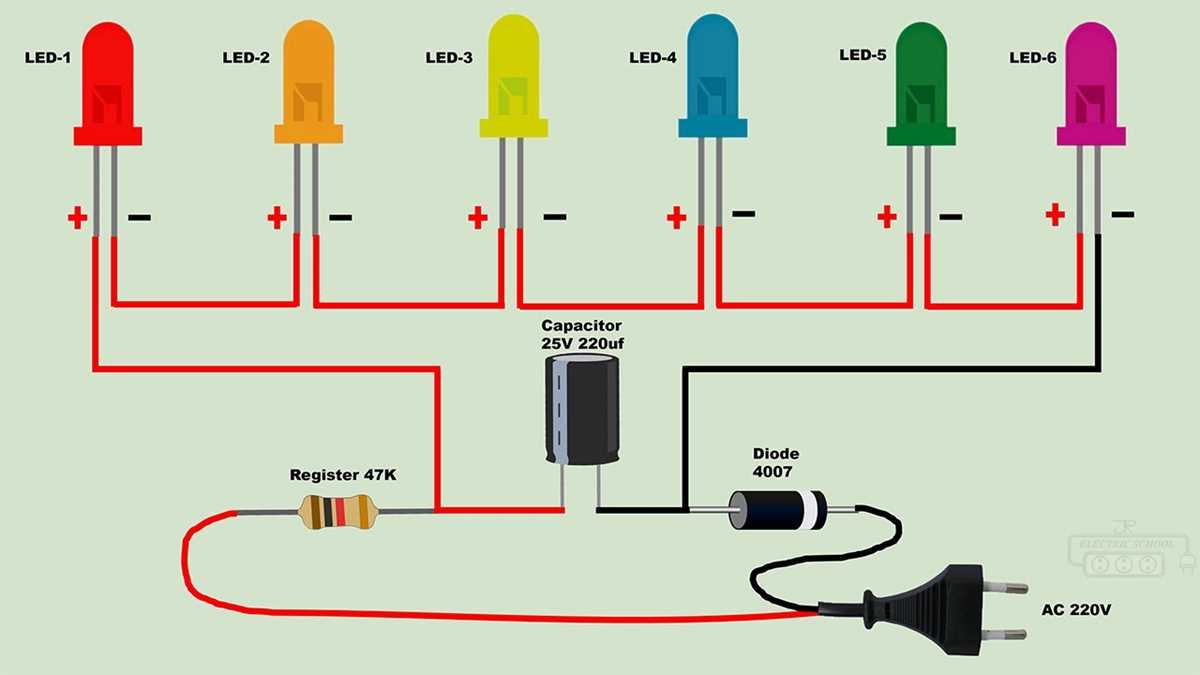

Connect the first diode’s anode to the supply’s positive terminal, then link each cathode to the next anode in sequence. Terminate the chain by attaching the final cathode to the resistor, which grounds to the negative rail. Use a multimeter to verify voltage drops across each diode before powering on–readings should match the datasheet within ±0.1V.

If one diode fails open, the entire chain extinguishes. Install a low-value resistor (1Ω) in parallel with each diode to provide a minimal current path, ensuring the remaining diodes stay lit–though dimmer. For redundancy in critical setups, split chains into shorter segments with individual resistors.

Determining Power Source Voltage for Sequential Light Emitting Components

Begin by summing the forward voltages of each semiconductor device in the chain. For instance, if three components with 2.1V drops each are connected end-to-end, the combined voltage requirement becomes 6.3V. Always verify manufacturer datasheets–tolerance variations of ±0.1V can affect calculations.

Add a safety margin to compensate for resistor voltage drop and supply fluctuations. A minimum buffer should equal 10-20% of the calculated total, but never less than 1V. For the previous example (6.3V), this suggests a target range of 7.3V to 7.6V.

Adjusting for Component Tolerances

Account for temperature effects on voltage thresholds. Semiconductors typically exhibit a decrease of 1.8mV/°C when operating above 25°C. For a 50°C environment, subtract 0.045V per component. Four devices would thus require approximately 0.18V additional headroom beyond nominal specifications.

Factor in power source stability. Linear regulators may introduce 0.3-0.5V dropout under loaded conditions, while switch-mode supplies often maintain tighter regulation (±1%). Low-dropout regulators provide advantages in space-constrained configurations where every millivolt matters.

Calculate current-limiting element dissipation for the chosen arrangement. Ohm’s law dictates R = (V_supply – V_total)/I_desired. A 20mA chain with 9V supply and 6.3V combined threshold needs R = (9 – 6.3)/0.02 = 135Ω. Verify power rating: P = I²R = (0.02)² × 135 = 0.054W–select at least 0.1W resistors to prevent overheating.

Verification and Practical Constraints

Test configurations with an adjustable bench supply. Start at the calculated sum, then incrementally increase voltage until the target current is achieved. Measure each component node to detect uneven voltage distribution–anomalies indicate faulty connections or mismatched specifications.

Consider manufacturer-recommended maximums. While some high-efficiency devices tolerate 5mA, most standard types operate optimally at 15-25mA. Exceeding absolute maximum ratings (typically 30-50mA) risks permanent degradation or catastrophic failure.

For variable-count chains, design modular busses with jumper-selectable taps. A four-position selector accommodating 1-2-3-4 devices simplifies prototyping without recalculating each variant. Use precision resistors (1% tolerance) when precise current regulation is critical, such as in photometric applications.

How to Connect Multiple Light Emitting Components in a Sequential Chain

Select a power source with a voltage rating at least 20% higher than the combined forward voltage of all components. For instance, five elements each requiring 3V need a supply exceeding 18V. This compensates for voltage drops and ensures stable operation.

Calculate the current-limiting resistor value using Ohm’s law: subtract the total forward voltage from the supply voltage, then divide by the desired current (typically 20mA for standard devices). For example: (24V – 15V) / 0.02A = 450Ω. Round up to the nearest standard resistor value (470Ω).

Solder the positive terminal of the first component to the power source’s positive output. Connect subsequent elements by linking the negative pin of one to the positive pin of the next, forming an unbroken chain. Verify polarity; reverse connections may damage components.

Secure each joint with heat-shrink tubing or electrical tape to prevent short circuits. Test the assembly with a multimeter before finalizing connections. Measure voltage across each component–it should match the rated forward voltage (±0.1V).

Use a regulated power supply for precise voltage delivery. Switched-mode supplies introduce noise, potentially causing flicker. If dimming is needed, add a PWM controller rated for the combined wattage of all elements.

For long chains (10+ elements), monitor thermal output. Excessive heat degrades performance. Install a small heatsink if the combined power exceeds 1W. Always disconnect power before making adjustments to avoid electrostatic discharge.

Selecting the Optimal Limiting Component for Sequential Light Sources

Begin by calculating the forward voltage drop across each illuminating element in your sequential arrangement. For standard white or blue indicators, this value typically ranges between 3.0V and 3.3V per unit. Red variants often require 1.8V to 2.2V. Sum these drops for all components in your chain to determine total voltage demand. Subtract this total from your supply voltage to find the voltage the current-regulating component must dissipate. For example, a 12V supply driving three white elements (3.2V each) leaves 2.4V across the regulator.

Determine the desired current through your arrangement, usually 15mA to 20mA for small indicators, though high-brightness variants may allow 5mA to 10mA. Use Ohm’s law to calculate the necessary impedance: divide the voltage across the regulator by the chosen current. For the earlier example with 2.4V to dissipate and 15mA desired flow, the calculation yields 160Ω. Always select the next higher standard resistor value, in this case 180Ω, to ensure safe operation.

Verify component power dissipation needs using the formula P = I² × R. For a 180Ω regulator handling 15mA, power demand equals (0.015A)² × 180Ω = 0.0405W. Quarter-watt regulators suffice for most scenarios, though high-power applications may require half-watt variants. Failure to respect power limits risks overheating and premature failure.

Supply Voltage	Number of Elements (3.2V each)	Recommended Limiting Value (15mA)	Required Power Rating
5V	1	120Ω	¼W
9V	2	180Ω	¼W
12V	3	180Ω	¼W
24V	7	220Ω	½W

Consider tolerance ratings when selecting components. Standard 5% tolerance resistors introduce variability in current regulation, potentially affecting brightness consistency. For applications requiring precise uniformity, opt for 1% tolerance alternatives. Temperature coefficient matters in high-temperature environments; metal film resistors offer better stability than carbon composition types.

Account for voltage fluctuations in your power source. Automotive applications frequently experience 13.8V to 14.4V ranges, while battery-powered systems may face drooping supplies. Recalculate regulator values for worst-case scenarios to ensure consistent performance throughout operational voltage ranges. For sensitive setups, implement additional stabilization components like Zener diodes in parallel with the current-limiting element.

Test your calculated values in a physical mockup before final implementation. Measure actual current flow and verify component temperatures under operational conditions. Small deviations between theoretical calculations and real-world behavior often reveal parasitic resistance in wiring or connectors, necessitating slight adjustments to regulator values. Document your observations for future reference, particularly if designing multiple similar arrangements.
