Step-by-Step LED Matrix Circuit Design and Wiring Guide
Start with a shift register like the 74HC595 to expand output pins without straining microcontroller resources. A single 8-bit chip drives eight rows or columns, while daisy-chaining two handles 16–enough for a compact 8×8 grid. Power each segment through a current-limiting resistor, typically 220Ω for standard 5mm components at 5V, to prevent overheating. Connect the shift register’s latch pin to a dedicated GPIO for stable data transfer.
For row scanning, pair each line with a ULN2003 darlington array–it sinks current efficiently when driven high by the microcontroller. Columns require NPN transistors (2N2222) as low-side switches, controlled via GPIO pins wired to their bases. This ensures rapid multiplexing: activate one row at a time while pulsing column signals in sequence, refreshing the grid at 100Hz or faster to eliminate flicker.
Ground the grid’s common cathode rows through the ULN2003’s outputs. Column anodes connect directly to the transistors’ collectors, with emitters tied to 5V via resistors. Use PWM-capable pins on the microcontroller for brightness control, mapping 0–255 values to 0–100% duty cycles. A 10µF capacitor across the power rails stabilizes voltage during abrupt current draws–critical for consistent intensity across the panel.

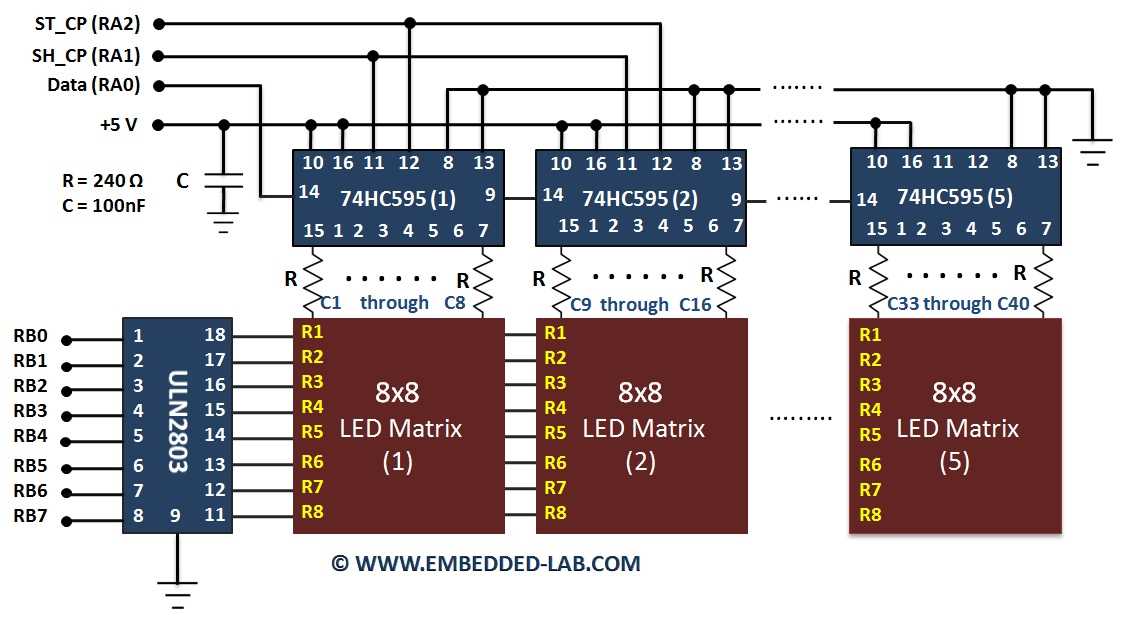

To scale beyond 8×8, add more shift registers. For 16×16 grids, two 74HC595 chains manage 16 column lines, while four ULN2003s drive rows in parallel. Clock data serially to the shift registers at 1MHz or higher to maintain refresh rates. Test each segment individually before assembly–probing with a multimeter for ~2V forward drop verifies proper operation.
Isolate high-current traces with 1oz copper pours on a PCB to reduce resistance. For breadboard prototypes, use thick jumper wires (22AWG) for rows/columns and thinner ones (28AWG) for control signals. Avoid exceeding 20mA per segment–check datasheets for absolute maxima. Debug flicker by increasing PWM frequency or adding a 100nF decoupling capacitor near each ULN2003.
Building a Compact Grid of Light Emitting Components
Select an 8×8 array for prototyping–it balances simplicity with visual impact while requiring only a single shift register like the 74HC595 for serial data input. Feed the rows through a ULN2803 Darlington array to handle current demands up to 500 mA per line, avoiding overheating individual transistors.
Arrange data lines in a common cathode configuration: connect all negative terminals to the column driver and positive terminals to the row driver. This ensures consistent illumination when multiplexing, reducing ghosting artifacts by pulsing each row at 1 kHz or higher.
For power delivery, calculate total consumption: 64 elements at 20 mA each equals 1.28 A. Use a 2 A switching regulator with minimal ripple–linear supplies generate excessive heat in tight enclosures. Add a 100 µF bulk capacitor near the regulator to stabilize transient loads.
Implement debounce logic for interactive inputs using a 74LS14 Schmitt trigger gate, filtering switch noise before it reaches the microcontroller’s interrupt pin. Avoid software delays–dedicated hardware ensures responsive user feedback without latency.
For scalable designs, substitute the 74HC595 with a TPIC6B595 if exceeding 250 mA per column. Its built-in MOSFETs eliminate the need for separate drivers, cutting board space by 30% while maintaining identical control signals.
Test scan patterns with an oscilloscope: verify drivers switch within 5 µs to prevent uneven brightness. If flicker persists, increase multiplexing frequency incrementally–2 kHz often resolves visible oscillations while staying within microcontroller timer limits.
Integrate current-limiting resistors sized for the chosen voltage: 47 Ω for 5 V systems or 82 Ω if running at 3.3 V. Measure actual forward voltage drop across sample elements–many variants differ by ±0.2 V, requiring resistor recalculation to avoid thermal runaway or dim output.
Selecting the Right Components for a Monochromatic Display Grid
Begin with pixel density matching your application: 5mm emitters suit large outdoor signs, while 2mm variants work for portable devices where resolution matters. Verify datasheets for current ratings–most standard 3mm bulbs operate at 20mA, but high-brightness models may require 30mA or more. Calculate total power consumption: a 16×16 grid of 20mA emitters draws 5.12A without multiplexing.
Choose current-limiting resistors based on forward voltage and supply level. For a 5V source and 2.1V emitters, 180Ω resistors provide 17mA per channel–close enough to nominal specs while accounting for supply tolerance. Use the formula R = (Vsupply - Vforward) / Idesired and round to standard values. Below is a quick reference for common scenarios:
| Supply (V) | Forward Drop (V) | Target Current (mA) | Resistor (Ω) | Power Rating (mW) |
|---|---|---|---|---|
| 5 | 2.0 | 20 | 150 | 60 |
| 5 | 2.2 | 15 | 180 | 45 |
| 3.3 | 1.9 | 10 | 120 | 14 |

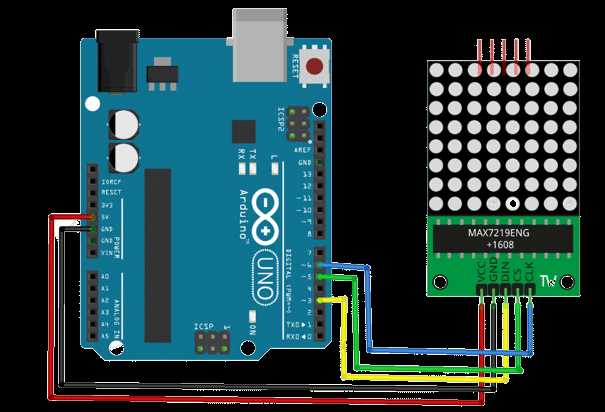

Driver IC selection splits between shift registers and dedicated chips. 74HC595 suffices for static displays under 8×8, handling 8 outputs at 35mA each. For dynamic multiplexing, MAX7219 drives 8×8 at 40mA per segment with built-in decoding, reducing firmware complexity. STM32 microcontrollers with DMA can replace ICs for custom patterns, but increase development time.
Power delivery segments depend on panel size. For a 32×32 monochromatic grid drawing 64mA per row, a 2A switching regulator prevents voltage sag. Trace widths on custom boards must exceed 1mm for current paths; 0.5oz copper handles up to 1A per millimeter, but doubling the thickness eliminates temperature rise. Heat sinks aren’t necessary under 50°C ambient, provided resistors have 125mW derating margin.
Efficiency dictates PCB material: FR-4 suffices for prototypes, but Rogers RO4350B reduces trace impedance for high-frequency scanning in professional installations. Silkscreen legends for assembly should include resistor values directly adjacent to pads–avoids misplacement during manual soldering. For car applications, verify components against ISO 16750-4 (6V-16V supply tolerance).
Test emitters in batches before full assembly–manufacturing variances exceed 10% for luminous intensity in some lots. Use a constant-current source set to 20mA and measure forward voltage; samples should cluster within 0.2V. If outliers exceed threshold, segregate or discard to maintain uniformity across the display.

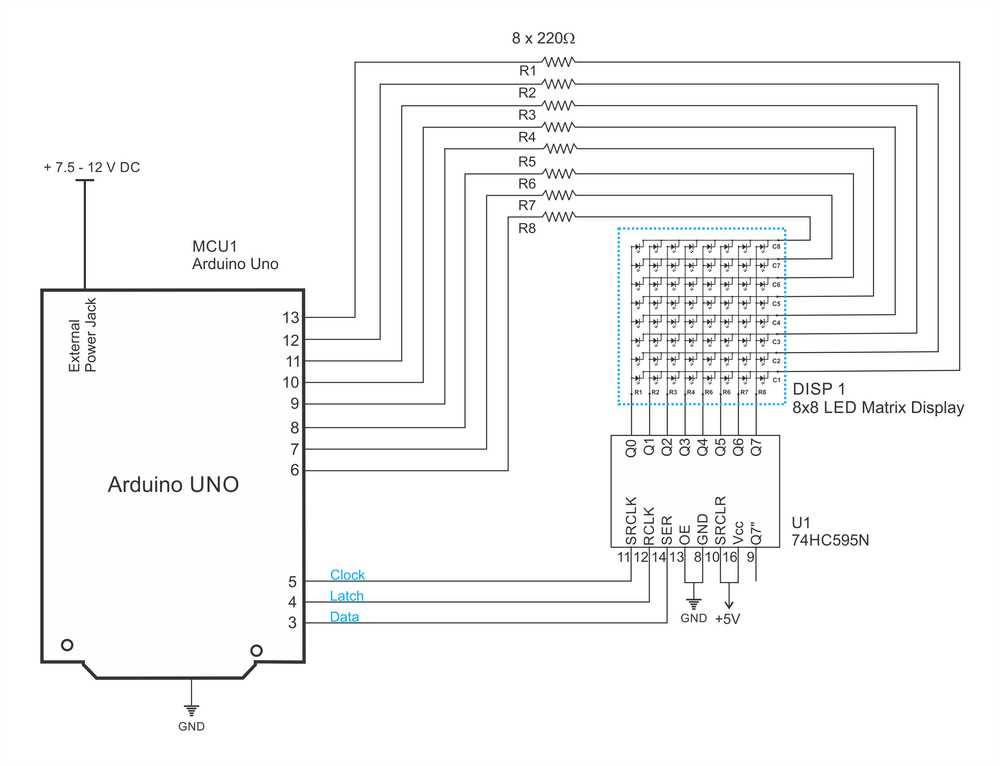

Step-by-Step Wiring Guide for an 8×8 Grid Display with Shift Chips
Begin by soldering the 64-point array to a perfboard, grouping cathodes in rows and anodes in columns. Use 0.1μF ceramic capacitors between each shift chip’s VCC and GND pins–place them no further than 10mm from the ICs to suppress noise. Verify every solder joint with a continuity tester before proceeding; cold joints on a 1K-ohm resistor can drop voltage enough to dim an entire row.
Power and Control Signal Connections
Connect the 5V supply to the shift chips–74HC595 for columns, 74HC164 for rows–using 22AWG solid-core wires. Route ground lines separately: one for the array’s common cathode bus, another for the chips and microcontroller. Daisy-chain the serial data line (DS) from the controller to the first 74HC595’s input, then link its Q7’ output to the next chip’s DS input. Clock (SHCP) and latch (STCP) lines must run in parallel to all chips; use twisted pairs to reduce crosstalk when switching at 1MHz.
- Strip 3mm insulation from each wire, crimp with silicone heat-shrink tubing.
- Tin column pins A (anode) 1–8 to individual 220-ohm resistors; row pins K ( cathode) 1–8 to a single 1K-ohm resistor tied to ground.
- Mount shift chips with sockets; orient notches upward and pin-1 markers left.
- Bridge chip grounds–pins 8 and 13– to the perfboard’s common ground plane; do not share with the array’s ground bus.
- Route all signal wires underneath the perfboard to keep the top side uncluttered.
Test each shift chip individually: load 0xFF into the column registers while toggling row registers one bit at a time. Expected output is a single illuminated row at 5mA per dot. If brightness drops across a row, reflow the 1K-ohm resistor–its current-limiting role is critical when driving eight dots simultaneously. For debugging, attach a 10-segment bargraph to the Q7’ output; it should mirror the serial input bit stream.
Microcontroller Integration
Use an ATmega328P’s hardware SPI–MOSI (D11), SCK (D13)–for data transfer; bit-bang only if SPI pins are unavailable. Cycle latch pin (D8) high for 1μs after every 8-bit transmission to update outputs. Keep the refresh rate above 100Hz–calculate timer interrupts using F_CPU/1024 prescaler–to prevent visible flicker. Store glyph patterns in PROGMEM; a 5×7 character set occupies 8 bytes per glyph, leaving 24 bytes for animations.
Choosing Between Arduino and Raspberry Pi for Controlling Display Grids
Arduino excels in real-time, low-level control of pixel arrays due to its deterministic execution and microsecond-level timing precision. Its 16 MHz clock speed and 32 KB flash memory are sufficient for rendering animations, scrolling text, or simple games on 16×16 or 32×32 panels without latency. Use Arduino when power efficiency matters–it consumes 20-50 mA in active mode, ideal for battery-operated installations. Avoid it if complex networking or graphics are required, as its 8-bit architecture lacks native support for protocols like HDMI, SPI buses above 8 MHz, or floating-point operations.
Raspberry Pi dominates projects needing high-resolution outputs, multimedia integration, or web-based interfaces. The Pi 5’s quad-core 2.4 GHz processor handles 64×64 or 128×64 grids effortlessly, streaming video or running Python scripts with libraries like Pygame or OpenCV. Its GPIO pins support PWM frequencies up to 800 Hz for brightness control, but expect higher power draw–typically 600-800 mA under load. Opt for Raspberry Pi when TCP/IP, USB peripherals, or storage (via microSD) are non-negotiable.
For installations demanding both responsiveness and data processing, pair both devices: Arduino manages the display refresh at 120 Hz while Raspberry Pi feeds it pre-rendered frames via serial/UART. This hybrid approach avoids jitter during network requests or file I/O operations. Note that Arduino’s ATmega328P lacks DMA, so memory-mapped operations must be minimized. For single-frame updates, use Raspberry Pi’s 300+ kB/s SPI throughput versus Arduino’s 50 kB/s bottleneck.
Cost considerations favor Arduino for simple setups–an Uno costs $22 and requires no extra components beyond shift registers. Raspberry Pi Zero 2W at $15 is competitive for wireless projects, but its $5 microSD card and $8 power adapter add hidden expenses. Factor in tooling: Arduino needs no OS setup, while Raspberry Pi mandates Linux configuration, SSH keys, and potential driver conflicts. For long-term reliability, Arduino’s hardware PWM eliminates software drift, whereas Raspberry Pi’s software-based dimming suffers from OS scheduler interference.
Scalability diverges sharply. Arduino reaches its limit at 256 pixels unless employing external ICs like the MAX7219, which caps at 8×8 blocks per chip. Raspberry Pi supports up to 512×256 displays using HUB75 adapters or parallel interfaces but risks overheating under sustained 100% CPU load. For industrial environments, Arduino tolerates –40°C to 85°C, while Raspberry Pi’s SoC throttles at 70°C without active cooling. Choose accordingly for outdoor signage or factory displays.
Debugging complexity differs. Arduino’s serial monitor provides instant feedback for timing-critical loops, but Raspberry Pi requires logging to files or remote desktop sessions, adding 5-10 ms latency. Libraries like NeoMatrix on Arduino handle gamma correction out-of-the-box, while Raspberry Pi demands manual adjustments using the HV513 shift register library. For DIYers, Arduino’s C++ IDE is beginner-friendly; Raspberry Pi’s command-line and Python ecosystem cater to developers comfortable with Linux.
Power management on Arduino allows shutdown via external transistors, drawing
