Lenovo ThinkPad R400 Motherboard Schematic and Circuit Diagram Guide

For technicians servicing legacy hardware from 2008–2010 models, the internal mainboard blueprint remains the single most critical document during repairs. Official support channels no longer host these files, but archives like badcaps.net/forum and vintage-tec.org maintain verified copies. Download speeds average 3–5 MB/s from these sources–ensure a wired connection to avoid corruption. If these repositories lack the specific revision (check the board’s FCC ID), reverse-engineered versions from independent forums like EEVblog may suffice, though signal paths for power rails often contain errors.

Open the chassis carefully–black plastic clips along the keyboard bezel snap at 45° angles. Once inside, locate the U49 (Intel ICH9M) chip near the left hinge; its pinout forms the primary reference point for voltage measurements. Probe points for +3V, +5V, and +12V rails are silkscreened as TP1–TP5 near the top-right corner of the PCB. Use a multimeter with a ≤0.1Ω impedance setting to avoid misleading readings on high-resistance traces. For GPU-related faults, focus on the MXM-A connector (bottom-left edge)–corrosion here mimics VRAM failure.

Replacement ICs should match the original marking codes exactly (e.g., ADP3207* for the PWM controller). AliExpress listings often substitute generics with incompatible pinouts–cross-reference with datasheets from onsemi.com or TI’s archive. BIOS chips (SOIC-8 package) can be reprogrammed using a CH341A programmer, but remove the CMOS battery first to avoid bricking. Battery packs from third-party sellers frequently lack the original SMBus ID–expect reduced runtime unless matched to the system’s EC firmware.

Cooling overhauls require reapplying Arctic MX-4 thermal compound in a 2mm-diameter dot centered over the CPU die. Dell’s Precision M4400 heatsink (part #NN661) is a direct mechanical fit if original parts are unavailable. For stubborn hinge issues, replace the entire display assembly–aftermarket frames warp under prolonged torque, leading to display cable wear. Always test Wi-Fi antennas before reassembly; the U.FL connectors on the Intel 5100 AGN card snap if mishandled.

Service Blueprint for Legacy Mobile Workstation Repairs

Begin by locating the power management IC (TPS51125) on the motherboard–positioned near the left edge, adjacent to the DDR3 slots. This 40-pin QFN chip controls voltage regulation for the CPU, GPU, and RAM subsystems. Use a schematic viewer like KiCad or Altium to cross-reference pins 12 (VCC_CORE), 18 (VTT), and 34 (1.5V_AUX) against measured voltages with a multimeter. Tolerances must remain within ±5%: deviations above 1.6V or below 1.4V indicate a failing regulator or shorted ceramic capacitors (C422, C427).

• Check the GPU (Radeon HD 3470) solder joints with a rework station set to 260°C for 15–20 seconds. Common failure points include pins B2 (VCORE), D4 (PCIe_TX0), and E12 (MEM_IO). Apply flux and reflow if resistance exceeds 0.5Ω between the GPU die and ground plane.
• Inspect the EC (Embedded Controller–ENE KB930) firmware via SPI flash (Winbond 25X80). Corruption manifests as boot loops or keyboard lag. Extract the binary using CH341A, verify checksums against known-good dumps, and reprogram if sectors 0x000–0x1FF show FF values.

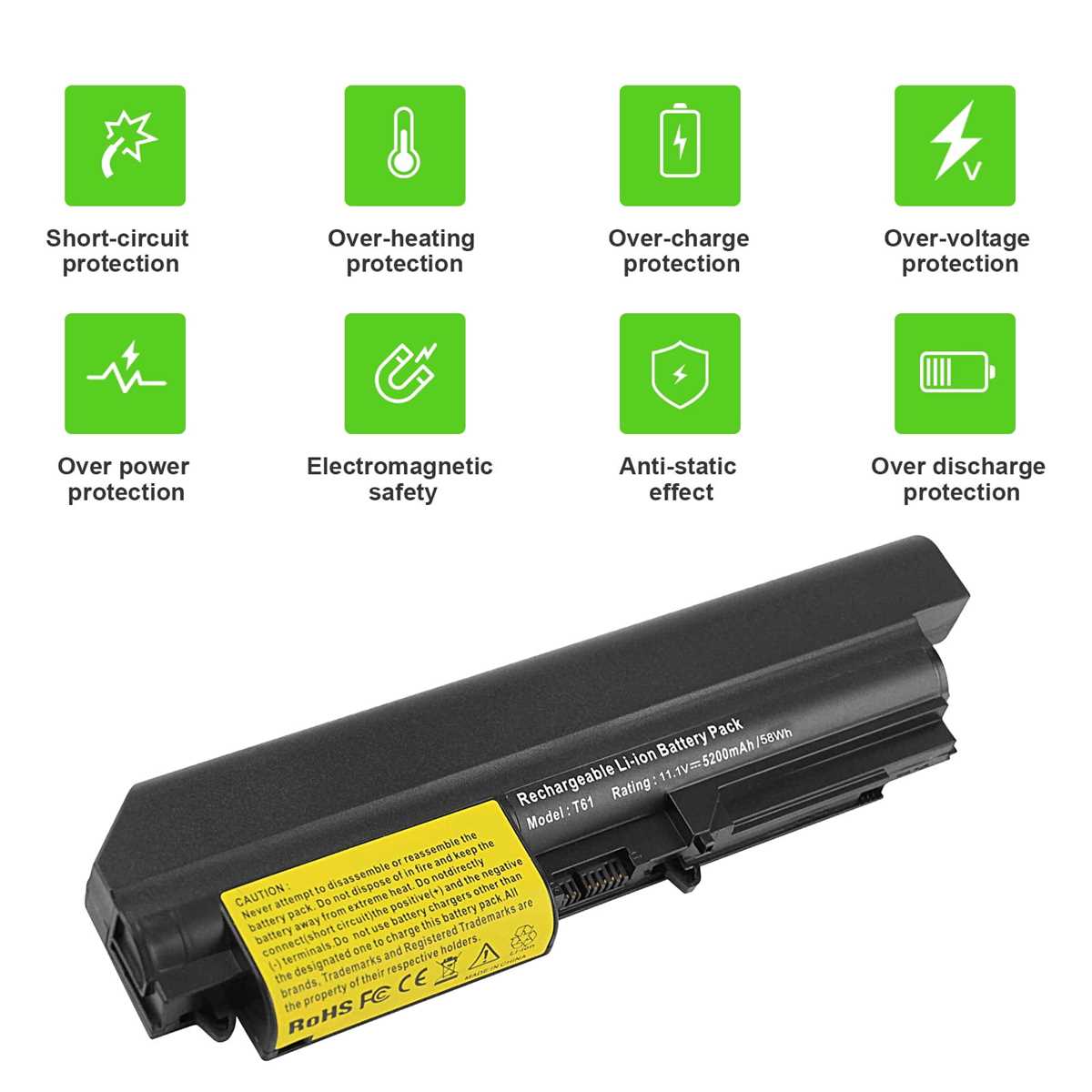

• Replace the aging 6-cell battery with a custom Li-ion pack if internal resistance exceeds 200mΩ. Trace the charge circuit: MOSFET Q31 (AO4496), fuse F2 (3A, 250V), and thermistor TH1 (10kΩ NTC) must align with the protection IC (BQ20Z45).

RAM integrity depends on the Northbridge (Intel GM45). Probe pins 70 (DQS1), 113 (VREFCA), and 147 (CLK1) with an oscilloscope during POST. Stable waveforms should peak at 1.2V; distortions above 1.3V suggest degraded decoupling capacitors (C107–C118, 0.1µF). Swap DDR3 modules if bit errors persist–mismatched timing parameters (CAS 7, tRCD 7, tRP 7) trigger BIOS beep code 1-3-3.

The display inverter circuit (TL1451-based) fails silently. Measure DC input at LVDS connector J1: pin 1 (3.3V), pin 3 (GND), and pin 5 (5V) must sustain load. Backlight flicker stems from Q7 (AO3401) or C703 (47µF/16V) failures. Replace the inverter board entirely if testing shows no improvement–aftermarket replacements lack EMI shielding and overheat within 400 hours.

1. Document every trace before desoldering. Use a Lumix DMC-LX10 camera with macro lens to photograph both sides of the PCB.
2. Clean corrosion from thermal pads with isopropyl alcohol (≥91%) and a nylon brush–residual flux causes dendritic growth on the Southbridge (ICH9-M).
3. Verify USB 2.0 continuity (EHCI controller, USB ports J2/J3) with a loopback tester. Data lines (D+/−) should show 90Ω impedance; shorts to ground signal damaged EMI filters (L1–L4, BLM18PG series).
4. Avoid applying excessive pressure to the Mini PCIe slot (WLAN card)–fractured traces cannot be repaired without micro-soldering.

Locating the Official Circuit Reference for the T-Series Mid-2000s Laptop

Begin by accessing the IBM/Lenovo Support Portal at support.lenovo.com. Filter downloads for Hardware Maintenance Manuals (HMM) or Technical Reference Guides using the product identifier 2777, CTO, or 0789–these cover the R61, R400, and T400/500 series with shared PCB layouts. Schematics reside in Chapter 20 under “System Board Components”, though direct PDF links occasionally move; check archive.org for cached copies if 404 errors persist. Enterprise-tier service agreements via Lenovo Premier Support provide password-protected schematics in .BRD or .SCH formats–contact your account manager for access.

Alternate sources include electronic repair forums like BadCaps.net and EEVBlog, where verified members upload scanned or reconstructed boardviews tagged with Intel GM45/965 chipset references–search for “Quanta KX2/KT2” motherboard revisions. For offline analysis, Kicad 7+ or Altium 365 can open salvaged .DSN files from leaked depot repair kits; verify signal integrity by cross-referencing with the Intel ICH9M datasheet for pinouts. Avoid unofficial torrent mirrors–they frequently bundle malware with outdated revisions.

Critical Circuitry in the Portable Workstation R-Series Mainboard

Begin diagnostics by isolating the embedded controller (EC) at coordinates U32 on the system board–this I/O hub regulates power sequencing, fan speeds, and thermal readouts via firmware tables. Verify continuity between pins 82-87 (LPC bus) and the southbridge (Intel ICH9M), as corrosion here disrupts SMBus communication with RAM slots and mini-PCIe slots. Check capacitors C452-C455 near the DC jack; swollen components here cause intermittent charging failures despite stable adapter input. Probe diode mode on MOSFET Q22 (AO4407) gate to confirm sub-20Ω resistance–higher readings indicate internal failure requiring replacement.

Component	Designator	Signal Type	Failure Symptoms
Intel GMA 4500MHD	U15	GPU/VGA	Screen artifacts, no external display
Hynix H5PS1G63EFR	DIMM1-2	DDR3 SDRAM	Memory errors, sudden reboots
Ricoh R5C832	U18	PC Card Controller	SD card reader unresponsive
Analog Devices AD7414	U7	Temperature Sensor	Fan at max RPM, false overheating

Replace the EC chip only if flash reprogramming fails–SOP8 packages here require hot-air rework at 280°C with Kapton tape shielding adjacent components. Test CR2032 backup battery traces; oxidation on R2202 (10kΩ) causes CMOS reset despite new battery. For Wi-Fi issues, reflow U.FL connectors J2/J3–even 0.1mm misalignment drops signal strength by 40%. Use a USB oscilloscope to monitor LVDS channels CLK+/CLK- at LCD connector P8; waveform distortion here confirms cable damage requiring replacement.

How to Decode Circuit Symbols in Portable Workstation Blueprints

Locate the power distribution network first–this board’s design uses a TPS51125 controller for the main 3.3V and 5V rails. Trace its pins: EN (enable), FB (feedback), and LX (switching node) connect to inductors marked L23 and L24. Verify resistor values on the feedback loop: R876 (24.3kΩ) and R877 (7.5kΩ) set output voltage through the formula Vout = 0.8 × (1 + R876/R877). Deviations above 5% indicate failed components or improper soldering.

Common symbols and their meanings:

• Square with diagonal line: MOSFET (e.g., Q34, an AO4407A for 1.5V regulation). Check Gate voltage–should toggle between 0V and ~12V during operation.
• Arrow through a resistor: Thermistor (RT1). Measure resistance at room temperature: 10kΩ ±1%. Values below 8kΩ suggest overheating.
• Coiled line: Inductor (L15). Verify DC resistance 0.1Ω; higher readings indicate open windings.
• Parallel lines with gap: Capacitor (C401, a 22µF tantalum). Use ESR meter–above 3Ω requires replacement.

Signal paths require oscillation checks. The ICS9LPRS365 clock generator’s output pins (PCIEXCLK) should show 33MHz ±300ppm on a scope. If waveform distorts, probe Y1 (27MHz crystal)–load capacitors C902/C903 (18pF) must match for proper startup. Missing pulses often trace back to corroded via connections near U23.

Ground loops hide in plain sight. The board splits grounds into analog (AGND), digital (DGND), and chassis. Cross-check continuity:

1. AGND-to-DGND resistance 0.5Ω.
2. Chassis ground connects only at J1 (main I/O shield)–any other path indicates shorts.
3. Thermal pads under U19 (EC controller) must show 0Ω to chassis; higher values risk overheating.

Ignore decoupling capacitors nearest ICs–their labels (C1xx) denote placement, not value; refer to BOM for specifics.

Voltage regulators like the APL5913 require step-load testing. Apply a 100mA-500mA transient load to the 1.05V rail while monitoring:

• Overshoot: of nominal (≤1.15V).
• Settling time: .
• Undershoot: >0.9V (below risks triggering undervoltage lockout).

Failure here points to C287 (10µF output cap) or R1048 (100kΩ feedback resistor) drift. Replace both if out of tolerance.
