Complete Les Paul Wiring Diagrams Guide for Custom Guitar Mods
Start with a two-humbucker configuration if your instrument uses push-pull pots–this setup delivers the most versatile signal path without permanent alterations. Position the volume and tone controls adjacent to their respective pickups: the bridge circuit routes directly to the three-way toggle’s lower lug, while the neck circuit connects to the upper lug. Avoid daisy-chaining grounds; run each pickup’s ground wire to the central grounding point near the output jack to prevent interference.
For coil-splitting, use a 0.022µF capacitor across the push-pull switch’s DPDT contacts–this preserves high-frequency response when engaging single-coil mode. Rotary switches introduce unnecessary complexity; stick to a standard 500K logarithmic potentiometer for volume and a 0.047µF capacitor for tone if clarity is the priority. Resist temptation to overcomplicate phase relationships–parallel wiring (both pickups active in the middle position) yields the most balanced output.
Replace stock wiring with 22-gauge tinned copper for durability; solder joints should be reheated briefly to eliminate cold connections. Test continuity before reassembly–an open circuit in the ground path causes grounding buzz. If persistent noise remains, shield the control cavity with adhesive copper foil, ensuring complete coverage and a connection to the central ground. Follow the exact schematic sequence: ground → output jack → toggle switch → pot casings → pickup grounds–this prevents ground loops.
For active electronics, bypass the stock wiring entirely–use a single 9V battery wired directly to a preamp circuit, keeping leads under 15mm to avoid capacitance loss. Passive setups benefit from braided shielded wire for the pickup selector switch: this reduces microphonic feedback in high-gain scenarios. Always verify pickup polarity before final assembly–misaligned coils cancel frequencies, defeating the purpose of a hum-canceling design.
Gibson-Style Guitar Circuit Configurations Explained
For humbucker-equipped instruments with push-pull pots, install a 0.022µF capacitor between the tone control’s middle lug and ground to maintain treble response when rolling off volume. This prevents the notorious “muddy” sound at lower settings while preserving high-frequency clarity. Avoid using ceramic capacitors–polypropylene or PIO (paper-in-oil) types offer superior tonal stability.
Modern variations often omit the bridge pickup’s separate tone control, but adding one requires careful tracing of the circuit path. Cut the wire connecting the bridge humbucker’s hot lead to the selector switch, then solder it to the new tone pot’s input lug. Ground the pot’s casing directly to the cavity wall, not through another wire, to reduce signal interference. Test continuity with a multimeter before reassembly.
Wire Gauge and Solder Considerations
Use 22-AWG stranded copper wire for all signal paths; solid-core wire risks breaking under tension during neck adjustments. For ground wires, 18-AWG provides lower resistance and reduces hum in high-gain setups. Silver-bearing solder (63/37 alloy) melts at a lower temperature than lead-free alternatives, minimizing heat damage to pot internals. Apply flux sparingly–excess residue attracts dust and degrades conductivity over time.
Coil-splitting modders should install an SPDT mini-toggle switch in series with the push-pull pot’s switch lugs. Connect the split coil’s tap (middle wire) to the switch’s common lug, then route the outer lugs to the humbucker’s hot and ground. Ensure the ground path remains unbroken when splitting–otherwise, the pickup will output only one coil’s signal, cutting volume by ~50%.
Active electronics (e.g., EMG or Fishman) require separate wiring: remove all passive tone/volume controls and solder the preamp’s output directly to the output jack’s hot terminal. Ground the preamp’s negative pole to the control cavity’s metal plate, not the guitar’s body ground, to avoid ground loops. Battery negative must connect to this same isolated ground point–never daisy-chain it to other grounds.
For wiring harnesses with braided shielding, strip only 3–5mm of the outer jacket to expose the shield. Twist the shield strands into a single bundle, then solder to the cavity’s ground point. Trim excess before covering with heat-shrink tubing to prevent shorts against the volume pot’s casing. This method reduces microphonics in resonating cavities.
Troubleshooting Common Errors
If volume drops dramatically when activating a coil split, check for a severed ground connection between the two coils–humbuckers rely on both coils completing the circuit. For excessive 60-cycle hum, verify the bridge ground wire connects to the tailpiece’s anchor post, not just the body. Last, phase issues (thin, weak tone) often stem from reversed pickup leads–swap the start/end wires on one humbucker to confirm proper polarity.

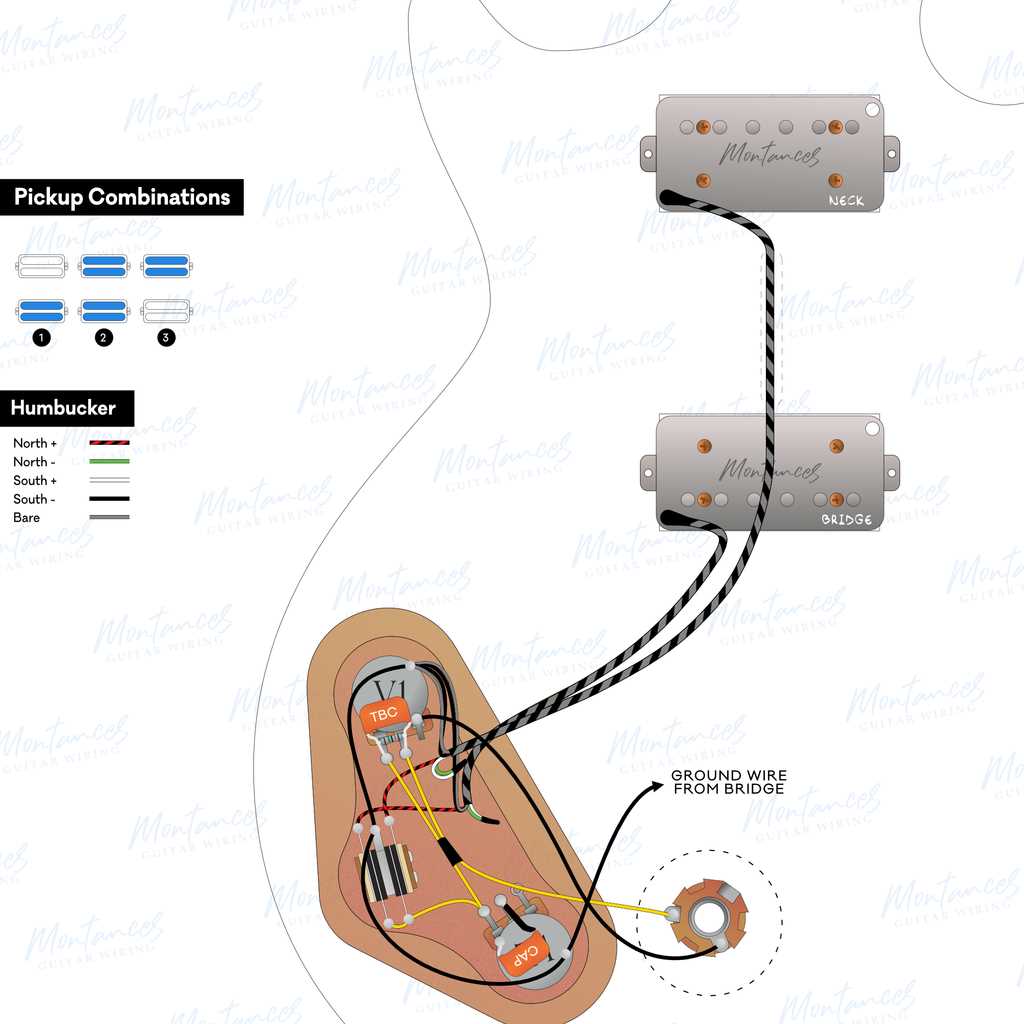

Understanding the Standard Gibson-Style Electric Guitar Circuit Layout
Begin by identifying the four core components: two humbucker pickups, a three-way toggle switch, one volume potentiometer per signal path, and a single master tone control. Each volume pot should be a 500K audio taper for optimal high-frequency retention. The tone capacitor’s value directly impacts the roll-off–use a 0.022µF polyfilm for classic midrange clarity or a 0.047µF for warmer, vintage scooped tones. Avoid linear-taper pots; they introduce unnatural volume jumps.
The toggle switch positions follow a consistent pattern: bridge pickup solo (up), both pickups in parallel (center), and neck pickup solo (down). Wire the switch lugs so the center position grounds the unused pickup’s hot lead–this eliminates parasitic capacitance and reduces noise. Use braided shielding for all signal wires; solder the shield only at the potentiometer side to prevent ground loops. Twist the hot and ground wires together before connecting to minimize interference.
Ground the bridge through the tailpiece screw rather than a separate wire. If buzz persists, connect the tailpiece to the back of the nearest potentiometer casing with a short jumper. For instruments with a stopbar tailpiece, ensure the tailpiece is in direct contact with the metal bridge base plate; non-conductive washes or paint can disrupt this path. Test continuity with a multimeter–resistance between the tailpiece and the output jack sleeve should be under 1 ohm.
| Capacitor Value | Tone Profile | Best For | Roll-Off Frequency (-3dB) |
|---|---|---|---|
| 0.015µF | Bright, articulate | Jazz, clean tones | ~5.3kHz |
| 0.022µF | Balanced, clear mids | Rock, blues | ~3.6kHz |
| 0.033µF | Softer highs, warmer | Classic rock | ~2.4kHz |
| 0.047µF | Vintage, scooped | ’50s-style tones | ~1.7kHz |
Use 22-gauge tinned copper wire for all internal connections. Strip only 2mm of insulation–excess bare wire acts as an antenna, picking up stray interference. Route wires away from pickup cavities and the toggle switch body; these act as high-impedance zones prone to noise. If phase issues arise (thin sound in the center switch position), reverse the leads on one pickup–this puts both coils in-phase when combined.
Modifications for Common Issues
For players experiencing volume drop when rolling off the tone knob, replace the master tone capacitor with individual capacitors on each volume pot. Wire the tone circuit in parallel to the volume pot’s wiper, not the input lug–this preserves high frequencies when the volume is dimed. If pop noise occurs when adjusting pots, add a 0.1µF capacitor between the pot’s casing and ground; this stabilizes the reference point.
Solder joints should be bright and concave. A dull or bulbous joint indicates cold solder, which introduces resistance and signal loss. Use 60/40 rosin-core solder; avoid acid-core or lead-free blends, as they create brittle connections. Heat the joint for 2-3 seconds–excessive heat damages potentiometers. After soldering, tug each wire gently to verify mechanical strength before closing the control cavity.
Troubleshooting Signal Paths
If one pickup cuts out or sounds weak, check the toggle switch lugs for oxidized contacts. A pencil eraser cleans oxidation; follow with contact cleaner. For intermittent signal loss, tap each component lightly with an insulated tool–vibration can reveal loose connections. Measure DC resistance across each pickup’s coils: typical values range from 7.5KΩ to 8.5KΩ for humbuckers. Values outside this range suggest shorted or open coils. If buzz persists with high-gain settings, install a 1MΩ resistor between the output jack’s hot lug and sleeve to load the circuit properly.
Modifying Potentiometer Values for Tailored Guitar Tones
Replace default 500K audio taper pots with 300K or 250K units for warmer, darker humbucker tones without loss of high-end clarity. Single-coil pickups benefit from 250K linear taper pots, reducing harshness while preserving note definition. Test 1M pots with high-output pickups–unexpectedly smooth treble response emerges, though lower midrange emphasis drops.
- 250K linear: balanced, slight midrange boost, ideal for jazz or clean archtop rhythm
- 300K audio: retains sparkle, softens highs, suited for blues overdrive
- 500K linear: aggressive high-end, use with gain staging to avoid muddiness
- 1M audio: glassy, compressed sound–requires preamp gain adjustment to compensate
Match tone capacitor values to pot resistance for predictable roll-off: 0.022µF with 500K, 0.047µF with 250K. Logarithmic pots exaggerate taper irregularities–measure resistance curves with a multimeter before soldering. Swap carbon-track pots for conductive plastic for consistent taper across decades. For hybrid setups, pair 300K pots with 0.033µF caps to blend humbucker and single-coil characteristics seamlessly.
