Understanding LG Circuit Diagrams Layouts Pin Configuration and Signal Flow
Begin by identifying the power supply section on any LG electronic device’s schematic–this area is typically marked with labels like VCC, PWR_IN, or 5V_STBY. LG’s designs often isolate standby voltages from main power rails, so locate these input lines first. Trace them to smoothing capacitors (usually 1000µF or higher) and rectifier diodes, then verify against the reference voltage stated in the service manual. Deviations exceeding ±5% indicate potential faults in the AC-DC conversion stage.
Focus on fault-prone components in LG’s signal processing pathways. Microcontrollers in their TVs and appliances frequently use TQFP-100 or BGA-256 packages–these should be checked for dry joints or overheating indicators. Thermal imaging reveals temperatures above 85°C, signalling either poor solder connections or failing voltage regulators. LG’s backlight drivers often pair RT8561 or OZ9910 chips with high-voltage MOSFETs–test these with a scope for PWM signals at 40–100kHz.
Decode communication buses within the schematic for deeper diagnostics. LG relies heavily on I²C and SPI protocols; locate the pull-up resistors (usually 4.7kΩ) and verify data lines hold steady at 3.3V or 5V logic levels. Intermittent I²C errors often stem from corroded connectors–inspect ribbon cables for oxidation. For TV mainboards, the MSD6A938 or MT8227 SoC requires stable clock signals at 12MHz–any deviation disrupts firmware execution.
Compare measured data to LG’s reference values. Their schematics include exact resistor, capacitor, and inductor specifications–tolerances tighter than ±2% demand precision components. Voltage dividers for feedback loops (e.g., 2kΩ + 1kΩ) must match exact ratios; swapping resistance values alters regulated outputs. For mobile devices, the PMIC (MAX77686 or S2MPU06) integrates multiple LDOs–confirm each output matches the silkscreen voltage, typically 1.2V, 1.8V, or 3.3V.
LG Schematic: Practical Guide for Engineers and Hobbyists
Start by identifying the power rails in any LG electronics board layout. LG uses standardized color-coding for voltages: red for 5V, yellow for 12V, orange for 3.3V, and black for ground. Trace these first to isolate the primary power distribution network before analyzing signal paths. A multimeter set to continuity mode will quickly confirm proper connections on prototype boards.
Use the following resistance values as a reference when troubleshooting LG printed boards–these are common pull-up/down resistor values found in their consumer electronics:
| Component Function | Typical Resistance | Voltage Domain |
|---|---|---|
| I²C pull-up | 4.7 kΩ | 3.3V |
| GPIO pull-down | 10 kΩ | 3.3V, 5V |
| USB data line termination | 22 Ω | 5V |
| Backlight LED current limiting | 150 Ω | 12V |
LG frequently employs dual-layer boards with dedicated ground planes. When reverse-engineering, prioritize scanning the underside for vias–these often link critical control signals to the processor. A thermal camera or sensitive touch can locate hot vias, indicating high-current paths, especially around switching regulators. Document these paths immediately to avoid overlooking power delivery nuances.
For LG display panels, note the standard connector pinouts. The LVDS interface typically follows this arrangement on 30-pin connectors: pins 1–12 carry differential pairs for RGB data, pin 13 is clock+, pin 14 clock–, pins 15–20 handle EDID/control signals, and the remaining pins supply 12V and ground. Always verify continuity between the board connector and panel flex cable–oxide buildup on these connectors causes intermittent failures.
When probing LG controller ICs, reference the internal block diagrams from their datasheets. Key test points include the feedback network of switching regulators–measure between the inductor and output capacitor; voltages should match the target rail (e.g., 1.2V for DDR memory, 1.8V for core logic). For common LG microcontrollers like the LG8F328T (used in appliances), locate pins 23 (VCC), 24 (RESET), and 44 (VSS) first–these anchor the debugging process.
LG’s backlight driver ICs often use a two-stage design: a boost converter to generate 30–50V, followed by a current-sink stage for LED strings. Check the enable pin (often labeled EN or BL_ON)–if logic-high but the panel stays dark, suspect the inductor or diode in the boost circuit. Replace the boost capacitor if it measures below 80% of its labeled capacitance; LG specifies 25V-rated X5R/X7R ceramics for this role.

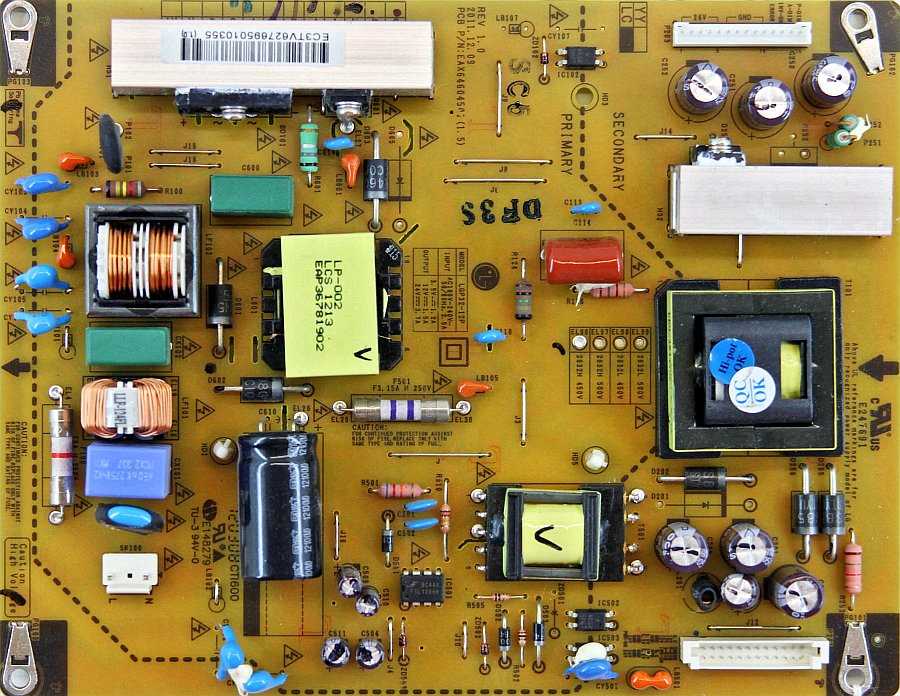

How to Read and Interpret LG TV Power Board Schematics
Locate the main switching regulator–typically a MOSFET or IGBT near the primary coil on the power delivery layout. LG models often label this component QW901 or QS801, depending on the panel series. Trace its connections: the gate links to the PWM controller (commonly ICE3Bxxx or L6599D), the drain hooks to the high-voltage DC rail (usually +380V after rectification), and the source grounds via a shunt resistor (RS1, 0.1Ω–0.5Ω). If voltage at the drain reads 0V during startup, check the bulk capacitor (CE901, 100µF–450V) for open-circuit or bulging.
Verify standby voltages first: probe CN901 (or equivalent connector) for +5V_STBY and +3.3V_STBY. Absence suggests a fault in the auxiliary winding or linear regulator (KA78R05). For secondary rails (+12V, +24V), measure across output diodes (DD902, DD903)–reverse voltage should not exceed 1.2V. If diodes conduct in both directions, replace them; common failures include SB560 or UF4007 shorts. LG’s protection circuits (e.g., STR-A6000) trigger if primary current exceeds 2.5A–check R901 (fusible resistor, 1Ω) for discoloration.
Step-by-Step Tracing of Signal Flow in LG Monitor Mainboard Schematics
Locate the power input section on the board–typically marked near the DC jack or backlight inverter connectors. Identify the primary voltage rails (e.g., 12V, 5V, 3.3V) by following thick traces from the PSU to the main IC. Use a multimeter in continuity mode to verify paths; buzz from the input capacitor’s positive terminal to the IC’s power pin. If resistance exceeds 0.5Ω, inspect for cold solder joints or corroded vias, especially around high-current components like MOSFETs or inductors.
Trace the video signal path from the LVDS connector to the timing controller (T-CON). Start at the connector’s data pins (e.g., RX0+/RX0-), then follow thin differential pairs–often grouped in sets of four per lane–across the board. Note series resistors (typically 33Ω or 100Ω) placed close to the connector; these serve as impedance matching. If image artifacts appear, measure voltage drop across these resistors–values above 0.1V suggest a failed T-CON or damaged flex cable. For eDP interfaces, check the AUX channel (pins 1-3) for stable 1.2V; deviations point to EDID corruption or faulty flash memory.
Critical Checkpoints for Troubleshooting
Isolate the backlight control line by finding the PWM pin on the main IC–search for labels like “BL_ON” or “DIM.” This line routes through a small SOT-23 transistor (e.g., MMBT3904) before reaching the inverter. Probe the transistor’s base with the monitor powered on: a 3.3V signal should toggle high when the backlight turns on. If stuck low, verify the IC’s firmware or reset circuitry (look for a nearby 10kΩ pull-up resistor). For flickering issues, swap the inverter board first–capacitors in the 220µF/25V range near the inverter connector often fail due to ESR degradation.
Common LG Motherboard Components and Their Symbols in Service Manuals
Locate the power management IC by its rectangular outline with multiple pins extending on all sides–typically marked as U801 or PU1 in LG schematics. These chips regulate voltage distribution across the board; incorrect readings here often cause sudden shutdowns. Use a multimeter set to diode mode to verify each pin’s voltage against the reference values listed in the upper-left corner of the manual’s section.
Capacitors appear as two parallel lines, either solid (electrolytic) or interrupted (ceramic). LG schematics denote them with labels like C302 or CE41, followed by their capacitance in microfarads (μF). Replace bulging or leaking capacitors immediately–failure to do so risks damaging adjacent resistors, which are shown as zigzag lines and labeled R510 or RST1.
- Resistors: Zigzag symbol, labeled R + 3-digit number
- Diodes: Triangle with a line at the tip, labeled D + number
- Transistors: Three-pronged symbol, labeled Q + number
Transistors in LG boards drive signals to larger components like MOSFETs. Identify them by their three-pronged symbol, usually labeled Q201 or QF03. Check continuity between the base, emitter, and collector pins using a transistor tester–shorts here disrupt HDMI output or backlight control.
Fuses, depicted as a rectangle with two terminals, often bear labels like F1 or PFB. LG schematics show their amperage rating directly beneath the symbol (e.g., 2A). A blown fuse typically indicates a short downstream; trace the connected traces to the next component before replacing it.
Flash memory ICs store firmware and appear as large rectangular outlines with fine-pinned edges, labeled U201 or W25Q. Corrupted data here causes boot failures–reprogramming requires an SPI programmer and the exact firmware version listed in the manual’s appendix. Never apply power during this process; even minor surges erase calibration data.
- Disconnect the main power supply before probing any IC.
- Cross-reference component symbols with the manual’s legend–LG updates these annually.
- Use a magnifying glass to inspect traces near high-current components like MOSFETs for hairline cracks.
