Basic Single-Phase Rectifier Circuit Design and Schematic Guide
To construct a functional power conversion unit, begin with a single diode paired with a smoothing capacitor. A 1N4007 diode offers 1A continuous current handling and a 1000V reverse voltage rating–sufficient for most low-power applications. Connect the diode in series with the AC input, ensuring the anode faces the source and the cathode routes to the load. This configuration blocks negative half-cycles, delivering pulsed DC output.
For improved performance, add a 1000µF electrolytic capacitor across the load terminals. This component reduces ripple voltage to approximately 1.2V under a 100mA load, assuming a 50Hz input frequency. Higher capacitance (e.g., 2200µF) further smooths fluctuations but increases inrush current–use a 1W resistor in series if the transformer output exceeds 12V to protect the capacitor during power-up.

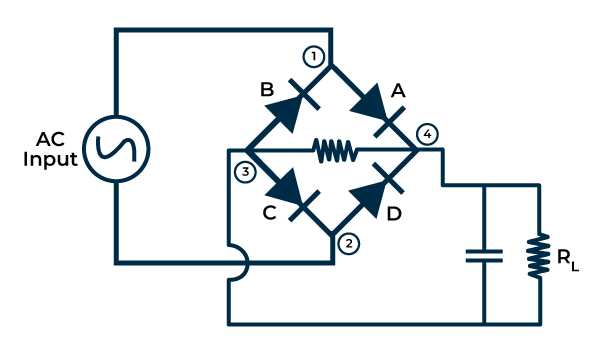

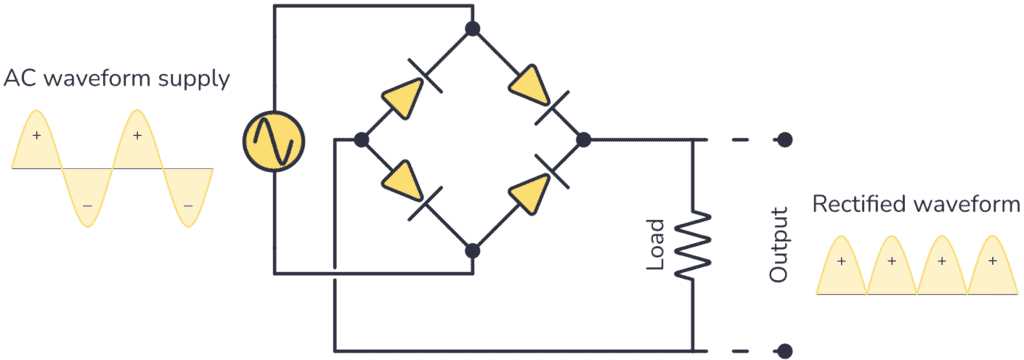

To scale up, replace the single diode with a bridge configuration using four 1N5408 diodes. This arrangement leverages both halves of the AC waveform, doubling the output current capacity to 3A while maintaining the same voltage ratings. Ensure the diodes’ current and voltage specs exceed the peak input values by at least 20% to prevent thermal failure during transient spikes.
For precision applications, add a 10kΩ bleeder resistor across the smoothing capacitor to discharge stored energy when power is removed. This eliminates residual voltage hazards and stabilizes output voltage during variable load conditions. Test the setup with an oscilloscope to verify ripple below 5% of the DC output; adjust capacitor values or add a second-stage LC filter if necessary.
Basic AC to DC Conversion Schematics

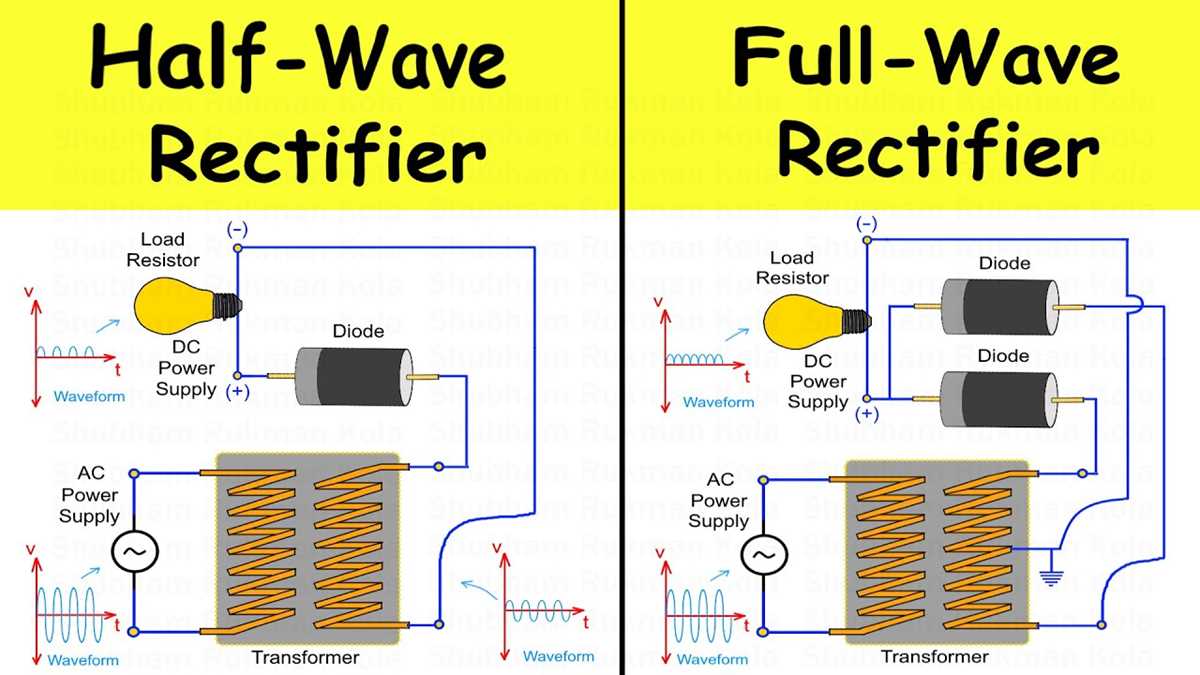

Use a single diode in a half-wave configuration to eliminate the negative half-cycles of an AC waveform. This approach typically yields a DC output with 45–65% ripple at 50–60 Hz mains frequency. For a 230 VAC source and a 1N4007 diode, expect a raw DC voltage around 100–110 V; add a 470 µF smoothing capacitor to reduce ripple to 20–30 V peak-to-peak. Keep load currents below 500 mA to prevent overheating the diode.
For full-wave conversion with a center-tapped transformer, two diodes route both halves of the AC cycle into a single DC path. A 12-0-12 V transformer (24 VCT) delivers approximately 15–16 VDC after smoothing; a 1 000 µF capacitor drops ripple below 1.2 V at 1 A load. Replace the center-tap configuration with a four-diode bridge if transformer tapping is impractical–bridge rectification cuts transformer secondary current by half compared to a center-tap setup.
| Component | Half-Wave | Full-Wave (Center-Tap) | Bridge |
|---|---|---|---|
| Diode Count | 1 | 2 | 4 |
| Peak Inverse Voltage (PIV) | Vpeak*2 | Vpeak*2 | Vpeak |
| Efficiency | ~40% | ~80% | ~80% |
| Ripple Frequency | Input frequency | 2× input frequency | 2× input frequency |
Thermal considerations require a heat sink for silicon diodes dissipating over 1 W. At 1.2 V forward drop and 1 A, each diode dissipates 1.2 W; a small finned sink keeps temperature rise below 30 °C above ambient. For higher currents, Schottky diodes (e.g., 1N5822) offer 0.5 V forward drop, halving power loss and allowing sink-free operation up to 3 A. Always fuse the transformer primary–250 mA slow-blow fuse protects against short-circuit faults without nuisance trips during capacitor inrush.
Voltage regulation follows smoothing: a 12 V linear regulator (LM7812) needs at least 14.5 VDC input to maintain regulation. Below this threshold, output drops below 12 V; ripple above 2 V peak-to-peak causes regulator instability. To extend low-voltage operation, stack two SMV12 diodes in series after the capacitor–each diode adds 0.6 V forward bias, lifting the DC rail by 1.2 V for marginal input voltages. Keep regulator input-output differential above 2 V to prevent dropout.
Noise reduction measures include a 0.1 µF ceramic capacitor across each diode’s cathode-anode terminals–this suppresses high-frequency transients generated during reverse recovery. For sensitive loads (microcontrollers, RF modules), add a PI-section filter: 470 µF → 1 mH choke → 1 000 µF. This cascade reduces ripple below 50 mV at 2 A, meeting Class B conducted emission limits for 150 kHz–30 MHz band without additional shielding.
Key Components for a Basic AC-to-DC Conversion Setup
Start with a PN junction diode rated for at least 1.5× the peak inverse voltage (PIV) of your input waveform. For mains-adapted projects (120–240VAC), a 1N4007 (1000V PIV, 1A) handles transient spikes reliably. Low-voltage applications (≤24VAC) tolerate faster recovery diodes like the 1N5819 (40V PIV, 1A) for reduced switching losses. Verify forward voltage drop (0.7V–1.1V for silicon, 0.3V–0.5V for Schottky) to minimize heat dissipation–Schottky diodes excel in efficiency but limit reverse voltage tolerance.
Supporting Elements
Add a smoothing capacitor sized at 1000µF–4700µF per ampere of output current; ESR below 0.1Ω reduces ripple. For half-wave topologies, multiply capacitance by 2× to compensate for longer discharge intervals. A 1W bleeder resistor (1kΩ–10kΩ) discharges stored energy safely, preventing shocks during maintenance. If current exceeds 500mA, heatsink the diode to maintain junction temperatures below 125°C–thermal adhesive or mica insulators improve conductivity without shorts.
Building a Half-Wave Power Converter: Precise Assembly Guide
Select a 1N4007 diode for its 1A forward current and 1000V reverse voltage ratings–ideal for low-power applications. Solder the diode’s anode to the AC input terminal, ensuring polarity matches the source waveform (positive half-cycle conduction). Connect the cathode to a 1000µF smoothing capacitor with a 25V rating, placing it parallel to the load resistor (e.g., 1kΩ). Ground the capacitor’s negative terminal and the load’s return path to complete the path for DC output. Verify connections with a multimeter set to diode mode: the diode should conduct in one direction and block in reverse.
Test the setup using a 12V AC transformer. Measure the DC voltage across the load; expect ~5V (half-wave peak minus diode drop). If ripple exceeds 1V, increase the capacitor to 2200µF or add a second 1N4007 in series to handle higher reverse voltages. Secure all joints with heat-shrink tubing to prevent shorts. For safety, enclose the assembly in a non-conductive casing, leaving a 5mm gap around high-temperature components (diode and transformer).
Full-Wave Power Converters: Center-Tapped vs Bridge Variations
For low-voltage, high-current applications under 24V, the center-tapped transformer configuration delivers superior efficiency by eliminating two diode voltage drops. A typical 12V output system suffers only 0.7V loss per conducting diode–half the 1.4V penalty of a bridge setup. This advantage becomes critical in battery chargers or LED drivers where every 100mV reduction in drop translates to measurable energy savings over time.
Bridge converters maintain a clear edge in cost-sensitive projects requiring high voltage isolation. A single secondary winding replaces the center-tapped transformer’s dual windings, cutting copper usage by 30-40%. In 110VAC systems, this simplifies PCB layout as no thick traces are needed to handle the common ground return path, reducing parasitic inductance by up to 15%.
Thermal management demands differ sharply between the two topologies. Center-tapped designs concentrate heat dissipation in two diodes rather than four, allowing 20% smaller heatsinks for the same power rating. Bridge configurations, conversely, distribute losses across twice as many junctions, making them preferable where ambient temperatures exceed 50°C; the redundancy prevents single-point failure risks that could trigger short-circuit destruction.
Peak inverse voltage specifications dictate transformer selection. Center-tapped diodes withstand twice the output voltage plus ripple–2.8 times for a 50V DC system–while bridge diodes endure only the peak input voltage. This 40% reduction in PIV rating lets designers substitute 1N4007 diodes with cheaper 1N5408 variants, shrinking bill-of-materials costs without sacrificing reliability margins.
Ripple performance favors bridge converters when input frequencies drop below 100Hz. The full-cycle conduction halves ripple frequency versus half-cycle conduction in center-tapped arrangements, allowing output capacitors to shrink by 50%. In systems powered from variable-frequency drives, this difference eliminates audible hum and reduces conducted EMI levels by 6dB.
Assembly complexity diverges at higher power levels. Center-tapped boards demand precise alignment of two primary-side traces to avoid imbalanced current splitting, forcing wider keep-out zones. Bridge layouts simplify routing as currents flow uniformly through all four device legs, enabling automated optical inspection tolerances of ±1mil–double the ±2mil requirement for center-tapped prototypes.
Component failure modes reveal distinct trade-offs. A single open diode in a bridge converter degrades performance to half-wave but maintains continuity. In contrast, a failed diode in a center-tapped setup instantly doubles the remaining device’s reverse voltage stress, risking catastrophic avalanche breakdown. Military-spec designs prioritizing fault tolerance routinely incorporate bridge configurations despite the higher part count.
Calculate diode forward currents based on RMS rather than average values. Bridge converters distribute currents equally–each diode carries half the load current at 0.5× conduction angle–while center-tapped designs split current unequally, with diodes conducting 0.5× and return path handling 1.0×. This asymmetry demands 30% derating of the return diode, even if it shares the same PN junction rating as its counterpart.
