Complete Guide to Wiring Light and Fan Switches Step by Step

Begin integration by identifying the live conductor from the mains–typically a black or red wire in modern installations. Route this directly to the common terminal of the control device (marked “COM” or “L”). For a ceiling-mounted vent circuit paired with a lighting fixture, split the live feed before reaching any override mechanism, ensuring both units operate independently when needed.

For two-way configurations–common in stairwells or multi-door layouts–use three-core-and-earth cabling between regulators. Connect the return conductors (often yellow or blue) to the “L1” and “L2” terminals on each unit. Verify voltage drop across connectors with a multimeter: readings should match mains supply (230V AC in most regions) without fluctuation exceeding 2%.

Grounding requires attention: attach the earth wire (green/yellow striped) to the metal chassis of both the vent motor housing and the luminaire canister. Use crimp ring terminals for secure attachment; avoid twisted connections that can corrode over time. For variable-speed installations, wire a capacitor (typically 1.5–3 µF) in parallel with the motor’s start winding to regulate torque at low velocities.

Avoid common pitfalls: never link the thermal cutoff in the vent assembly (usually a white wire) to the illumination control unless specified by the manufacturer. Cross-wiring here risks overheating the fan’s windings, triggering premature failure. Instead, route the cutoff back to the neutral busbar via a dedicated return path.

Test functionality in stages: first, the airflow mechanism alone, then the illumination, finally both in tandem. Listen for abnormal humming post-activation–this often signals incorrect capacitor sizing or misaligned rotor blades. If flickering occurs during vent startup, insert a 0.1 µF suppression capacitor across the lighting circuit to dampen voltage spikes.

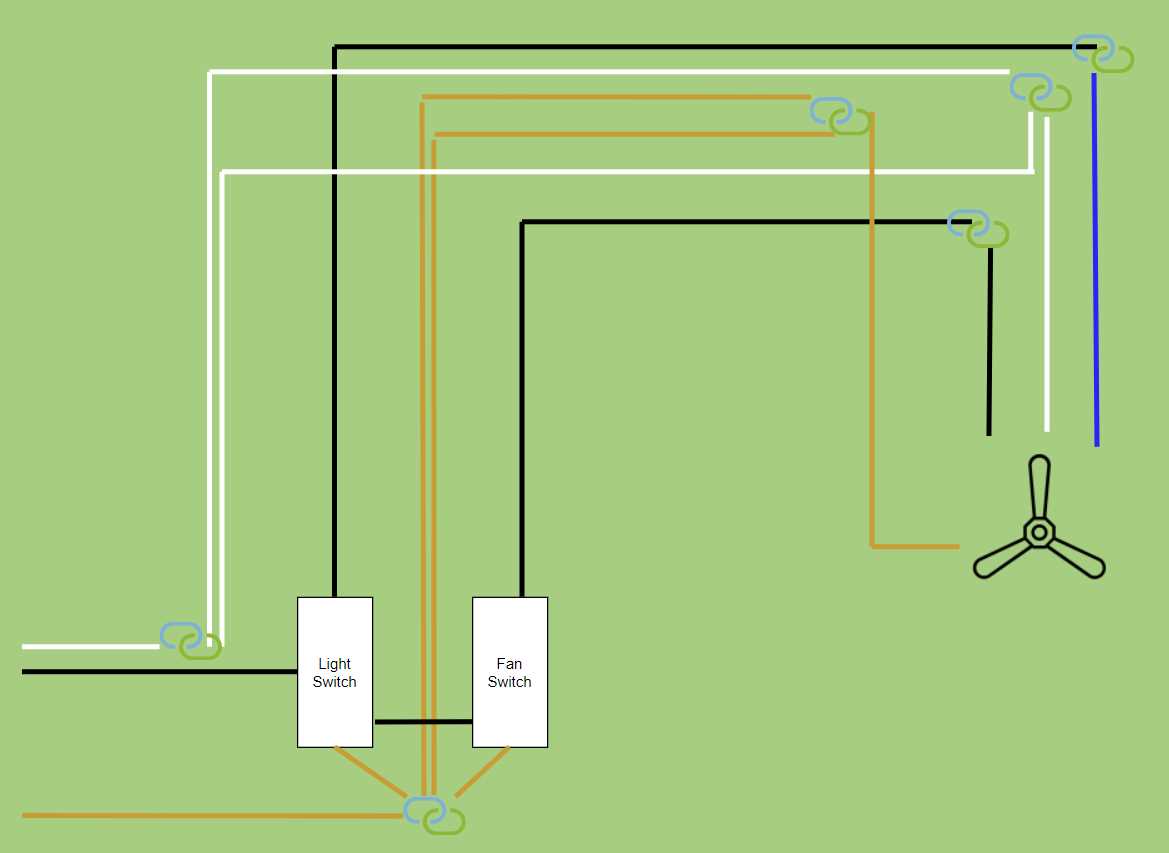

Wiring Schematics for Ceiling Fixture and Ventilation Controls

Ensure the circuit breaker is off before handling wires–use a non-contact voltage tester to confirm. For a standard installation, connect the live feed (black or red) to the common terminal of the dual regulator. Route the remaining conductors to the corresponding outputs: one pair powers the luminous fixture’s ballast (or LED driver), while the other energizes the exhaust motor. Ground wires (bare copper or green) must bond to the metal junction box and device frame.

When integrating dimming or speed adjustment, verify component compatibility. Incandescent-compatible dimmers often disrupt LED performance, causing flicker. For variable-speed ventilation, select a controller rated for inductive loads–capacitor-start motors demand specific wattage thresholds. Below are key parameters to match:

Component	Minimum Rating	Recommended Margin
Dimmer (incandescent)	40W	60W
Dimmer (LED)	15W	25W
Speed regulator (ventilation)	200W	250W

For split circuits controlling both fixtures separately, employ a three-wire cable (plus ground). The black wire feeds the primary circuit, red supplies the secondary, and white acts as neutral–tile terminal markings with colored tape for clarity. In retrofit scenarios, replace deteriorated wiring if insulation shows brittleness or cracking. Aluminum conductors require antioxidant paste at connections; copper-only splices need no additional treatment.

Secure splices with wire nuts or lever connectors rated for the gauge–14 AWG handles up to 15A, 12 AWG supports 20A. Enclose all junctions in approved electrical boxes; ceiling-mounted assemblies must support at least 50 lbs if housing a motor. Label each cable at the breaker panel to avoid future confusion.

Key Elements for Electrical Connections in Fixture Control Circuits

Begin by selecting a dual-pole breaker rated for 15–20 amps to isolate the circuit–never rely on existing wiring without verification. Use 14–12 AWG copper conductors (stranded for flexibility, solid for stability) with THHN/THWN insulation; avoid Romex in exposed or high-moisture zones where conduit (EMT or PVC) is mandatory. Install a double-gang junction box (minimum 20 cubic inches capacity) with clamp connectors to prevent wire chafing; ensure it’s secured to a stud or backing with at least 1.25″ wood screws.

• Control devices: Two SPDT toggles (or decora-style) with 120V/277V compatibility; verify amp ratings match the load (e.g., 15A for resistive, 8A for inductive like motors).
• Neutral bus: Dedicated strip in the box for bonding; never share with ground.
• Grounding: Bare or green-insulated #12 AWG pigtails crimped (yellow ring terminals) to box and device screws; torque to 12–15 in-lbs.
• Circuit protection: Include a pigtail fuse holder (2A) for low-voltage components if integrating timers or dimmers.
• Load terminals: Brass screws for hot, silver for switched output; torque to manufacturer specs (typically 18–24 in-lbs).
• Conduit fill: Calculate for heat dissipation–3 wires + ground in 1/2″ EMT requires derating to 70% ampacity.

Test continuity with a megger (500V insulation resistance) before powering; verify polarity with a non-contact voltage tester. Labels must include circuit number, breaker location, and load type (e.g., “RCP Outlet – 15A”). For mixed-voltage systems (e.g., LED drivers), use red conductors for secondary hots to avoid confusion.

How to Wire a Single Control for Illumination and Airflow Devices

Turn off the circuit breaker supplying power to the fixture before handling any conductors. Strip 1/2 inch of insulation from the ends of two Romex cables: one feeding power (hot, neutral, ground) and another leading to the appliance. Connect the bare copper grounds together with a wire nut, then attach them to the metal box’s grounding screw if present. Route the incoming hot conductor (black or red) to the brass terminal on the control, and attach the outgoing hot wire from the second cable to the opposite brass screw. Twist the neutrals (white) together–do not split them–and secure with a nut. For airflow units requiring a dedicated neutral, consult the manufacturer’s specifications to avoid overloading the circuit.

Verifying Connections Before Energizing

• Ensure no exposed conductor strands touch the box or adjacent terminals.
• Check that wire nuts are tightened firmly–no loose ends should pull free under gentle tugging.
• Confirm the brass screws clamp wires securely without cutting through insulation.
• Snap the control into the box, align it straight, then attach the faceplate with short screws.
• Restore power at the breaker; press the actuator to confirm both fixtures respond immediately.
• If either unit fails, re-examine terminals for misrouted or unterminated wires–NEVER troubleshoot while energized.

Installing Separate Controllers for Ceiling Illumination and Airflow Units

Connect the power source’s live conductor to a common terminal marked “COM” on the dual mechanism. Split the incoming current by routing individual cables from this terminal to separate actuator inputs–one assigned to the luminaire, the other to the ventilation device. Ensure each actuator’s output wire pairs with the corresponding appliance: secure the illumination’s feed to the luminaire’s hot screw, and the airflow unit’s lead to its dedicated terminal. Confirm all neutrals bundle together at the circuit’s neutral bar, while grounding wires link to the designated grounding strip.

For 120V circuits, employ twin toggle enclosures rated for 15-20 amperes; 240V installations demand heavier-gauge wire (typically 12 AWG) and dual-pole devices. Label each conductor before termination–mismatched connections risk shorting the circuit or, worse, damaging fixtures. Test continuity with a multimeter post-installation: toggle each actuator independently to verify isolation–only the intended appliance should energize. If cross-activation occurs, re-examine the wiring paths for stray contacts or misrouted strands.

Exposed box setups require cable clamps to anchor NM sheathing; internal wall mounts use armored conduits for protection. Mark junction points clearly–future maintenance hinges on unambiguous layouts. Never daisy-chain appliances from a single actuator; split-phase configurations mandate separate breaker slots to prevent overloads.

Typical Errors in Ceiling Appliance Control Installation

Failing to verify the circuit’s amperage before connecting conductors leads to overheating. Most residential breakers support 15-20A, yet undersized wires–especially 18- or 16-gauge–can’t handle sustained loads from rotary blades or illumination exceeding 60W. Cross-referencing the device’s nameplate with the wire gauge table prevents insulation melt and fire risks.

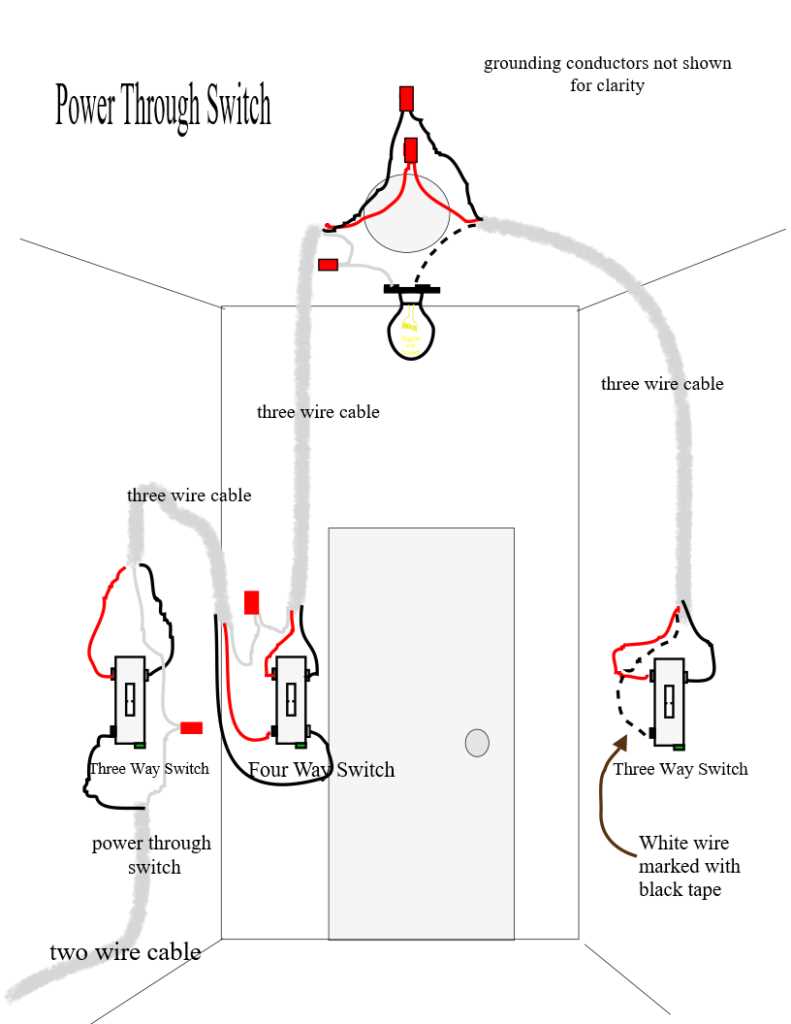

Ignoring Neutral Connections in Three-Way Configurations

Omitting the neutral in multi-location setups creates floating voltage, causing erratic operation or humming in motors. Always feed the neutral to each control point, even if the schematic shows a pass-through; modern dimmers and speed regulators require it for stable operation, unlike older mechanical toggles.
