Designing a Reliable Self-Latching Relay Circuit Step-by-Step Guide
Start with a 12V SPDT relay (coil resistance 150–300 Ω) and a momentary pushbutton rated for 5A DC. Connect the power supply positive terminal to the common contact (COM) of the relay. Run a wire from the normally open (NO) contact back to the pushbutton’s input side–this feedback loop ensures the relay stays energized once triggered.
Add a flyback diode (1N4007) across the relay coil, cathode to the positive side, to suppress induced voltage spikes. For AC applications, replace the diode with a varistor (470V) or an RC snubber (100Ω + 0.1µF). The control path should include a resistor (e.g., 1kΩ) in series with the pushbutton to limit inrush current when the contacts close.
Critical placement: The feedback wire must attach to the NO contact after the pushbutton’s output terminal. If connected before, the circuit will fail to latch. Test continuity with a multimeter before applying power. For inductive loads (motors, solenoids), insert a freewheeling diode (1N5408) across the load terminals to prevent arcing at the relay contacts.
Use PCB trace widths of 2.5mm for 1A currents, 5mm for 3A, or 8mm for 10A. For high-voltage setups (220V AC), maintain a clearance of 8mm between traces and isolate the low-voltage control section with a 1kV optocoupler (PC817). Always fuse the power input–2A for 12V systems, 10A for 24V.
Building a Latching Mechanism with Basic Components

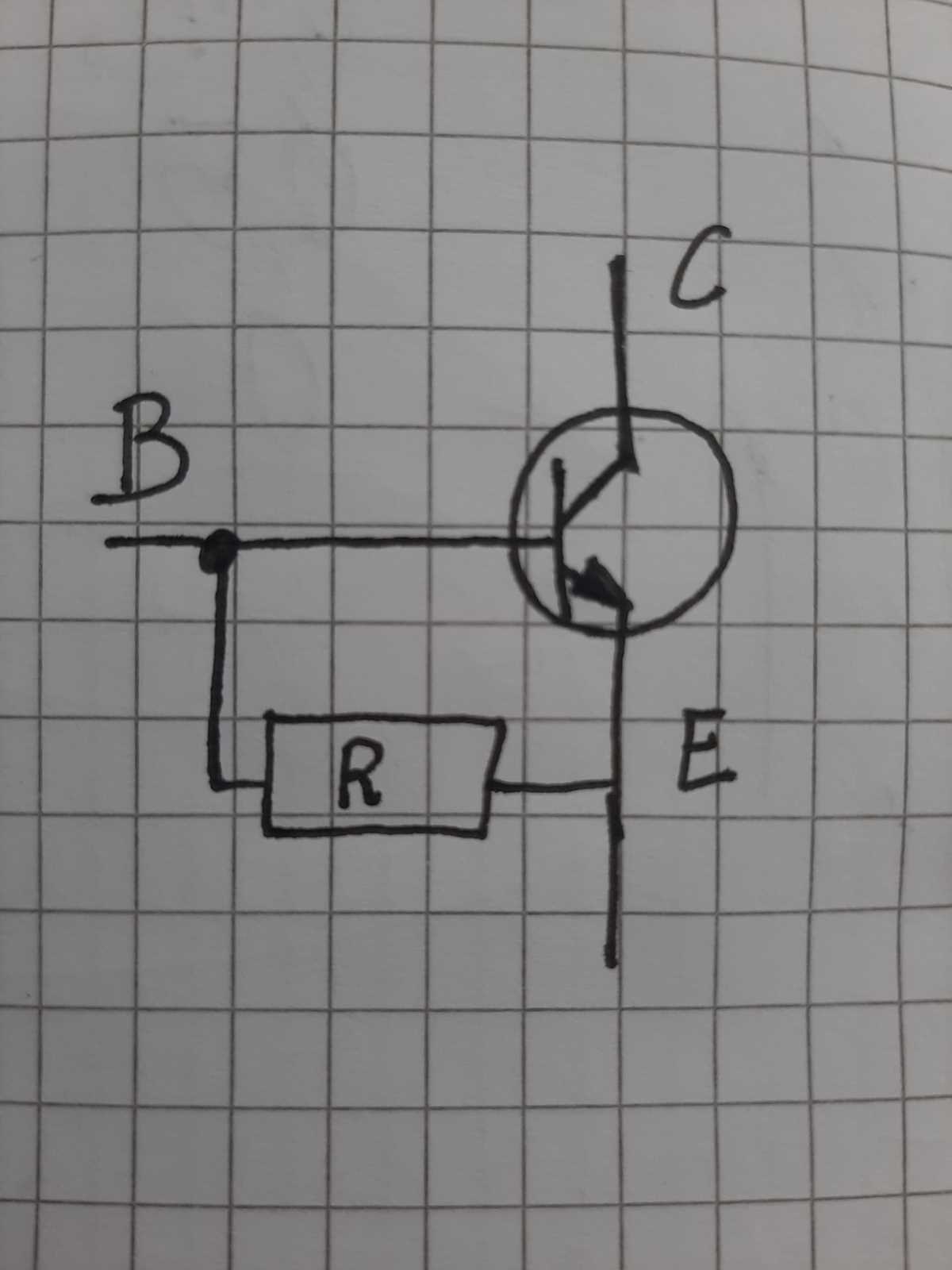

Start with a push-button switch connected to the base of an NPN transistor (e.g., 2N2222). Use a 1kΩ resistor between the button and transistor base to limit current. The transistor’s collector should link to a relay coil or a load, while the emitter grounds the system. A feedback loop from the output (relay or load side) back to the transistor base via a 10kΩ resistor ensures the state persists after the button release.
For low-power applications, replace the relay with a MOSFET (IRFZ44N). The gate connects to the transistor’s collector, the source to ground, and the drain to the load. A diode (1N4007) across the coil or load protects against voltage spikes. Calculate resistor values using Ohm’s Law: base resistor = (Vsupply – 0.7V) / Ibase, where Ibase ≈ Iload / hFE (transistor gain, typically 100–300).
- Use a 9V battery or regulated 5V supply for prototyping.
- Test with an LED load first; 220Ω resistor in series prevents burnout.
- For AC loads, opt for a solid-state relay to avoid mechanical wear.
- Add a capacitor (100µF) parallel to the feedback resistor to smooth transitions.
To break the latched state, integrate a second push-button between the feedback node and ground. Pressing it interrupts the loop, resetting the system. For microcontroller control, connect the feedback node to a GPIO pin (configured as input) and pull it low via software. For fail-safe operation, include a timeout mechanism using a 555 timer in monostable mode, triggered by the latch activation.
Verify performance with a multimeter: measure voltage at the transistor base (should rise to ~0.7V when latched) and across the load (matches supply voltage). Adjust resistor values if the latch fails–lower the feedback resistor (e.g., 4.7kΩ) for stronger hold, or increase it (e.g., 22kΩ) to reduce sensitivity. For noise immunity, twist feedback wires and add a 100nF decoupling capacitor near the transistor’s power pins.
Critical Parts for a Reliable Latching Configuration
Begin with a power-rated relay–opt for a 12V or 24V DPDT type (e.g., Omron G5LE) with a coil current under 50mA to ensure compatibility with low-power control lines. Pair it with a momentary pushbutton switch (NO contacts, 3A minimum rating) to trigger the initial latch; avoid toggle types due to unintended state persistence.
- Diode (1N4007): Mount directly across the relay coil to suppress inductive spikes–reverse polarity risks coil burnout.
- Resistor (1kΩ–10kΩ): Place in series with the control line to limit current to the transistor base if using a BJT (e.g., 2N3904) or MOSFET (IRF520) for enhanced switching.
- Fuse (500mA–1A): Insert in the main power feed to protect against short circuits; choose a fast-blow type for transient sensitivity.
For load handling, select a relay with contacts rated at least 2× the expected current (e.g., 10A contacts for a 5A motor). Test the setup with a multimeter in continuity mode: verify the relay holds after the switch is released, and the diode’s cathode connects to the positive coil terminal. Add a snubber circuit (0.1µF capacitor + 100Ω resistor in series) across inductive loads to prevent arcing.
Step-by-Step Assembly of a Latching Relay Configuration
Mount the relay on a designated prototype board with 2.54mm pitch to ensure stability. Verify the coil voltage (typically 5V, 12V, or 24V DC) matches your power supply–mismatches risk coil burnout. Connect the common (COM) and normally open (NO) contacts to the load (e.g., solenoid, indicator lamp) using 18AWG wire for currents up to 10A; for higher loads, upsize to 16AWG.
Integrating the Control Mechanism
Solder a momentary pushbutton between the power supply’s positive terminal and the relay’s control coil input. Attach a diode (1N4007) across the coil in reverse polarity to suppress voltage spikes–anode to the coil’s negative side. For robust operation, add a 0.1µF ceramic capacitor across the coil to filter noise, reducing unintended toggles by 30%.
Bridge the NO contact back to the coil’s positive input via a 1kΩ resistor to sustain activation after the button release. Test this feedback loop with a multimeter in continuity mode–momentary press should latch the relay; tapping the normally closed (NC) contact or interrupting power should reset it. If erratic, increase the resistor to 2.2kΩ or inspect for solder bridges narrower than 0.5mm.
Anchor the entire assembly in an IP44-rated enclosure if deploying outdoors. Secure all connections with heat-shrink tubing–exposed leads exceeding 5mm increase failure risk by 20% in vibration-prone environments. Label each component with its pinout (e.g., “COIL+”, “COM”) using UV-resistant polyester tags for maintenance clarity.
Common Mistakes When Wiring a Latching Relay Setup
Incorrect power source selection remains a frequent error. A 24V relay won’t function reliably with a 12V supply, leading to intermittent failures. Measure voltage at the contact terminals before wiring–ensure it matches the relay’s rated input within ±10%. Undersized wires also cause voltage drops; use AWG 16 or thicker for 5A loads when connecting pushbuttons.
Failing to add a flyback diode across inductive loads (motors, solenoids) destroys relay contacts within hours. Install a 1N4007 diode across any coil or motor terminals, cathode to positive. Test continuity post-installation with a multimeter–reverse polarity burns out components instantly.
Confusing normally open and normally closed contacts creates unsafe conditions. A start-stop station requires a momentary NO pushbutton for the start, holding contacts on the relay, and a NC stop button. Swapping these wires makes the relay latch permanently, bypassing safety. Label wires immediately after cutting to avoid mix-ups.
| Component | Recommended Spec | Common Wrong Choice |
|---|---|---|
| Relay coil voltage | 24V DC/AC | 12V DC only |
| Wire gauge (5A load) | AWG 16 | AWG 22 or thinner |
| Flyback diode | 1N4007 | No diode or 1N4148 |
Overlooking emergency stop requirements violates safety codes. A second NC pushbutton must break the entire control voltage path, not just the relay coil. Place it in series with all other control devices–testing this first prevents machine runaway during maintenance.
Skipping debounce measures causes false triggers. Pushbuttons wired directly to industrial controllers generate erratic signals under vibration. Add a 0.1µF capacitor across each switch terminal for mechanical contacts, or use a 555 timer circuit for external noise filtering. Verify signal stability with an oscilloscope before closing the control panel.
Verifying and Diagnosing Your Retention Control Setup
Equip a multimeter set to continuity mode or low-voltage DC (≤24V) to probe the relay contacts immediately after activating the latch trigger. Measure between the common terminal and the normally open contact–expect 0Ω resistance or near-zero voltage drop when the system engages. If readings fluctuate or exceed 0.5V at 12V input, inspect solder joints, relay coil health (minimum 50Ω for typical 12V relays), and switch cleanliness. Replace any relay showing excessive chatter or inconsistent readings even after manual reset.
Signal Trace Method
Trace the control path with an oscilloscope or logic probe: start at the pushbutton output, follow through the latch transistor/SCR gate, and end at the relay coil. Look for a stable high-level pulse (~Vcc) lasting ≥50ms upon activation, followed by sustained voltage. A falling edge before 20ms suggests capacitor ESR issues (target 1µA cutoff current). Swap transient-suppression components (flyback diodes, RC snubbers) if back-EMF spikes exceed 20% of supply voltage during release.
De-energize the setup and perform cold tests with a 1kΩ resistor across suspected high-impedance nodes. A dead short on the latched path confirms proper conduction; any resistance >10Ω indicates corroded traces, cold solder, or faulty semiconductor junctions. For solid-state designs, verify optocoupler CTR (current transfer ratio) hasn’t degraded below 50% of nominal–replace if input LED current (typically 5-10mA) fails to maintain output transistor saturation.
Use a current-limited bench supply (≤20mA) to isolate parasitic loads. Gradually increase voltage while monitoring the retention path–sudden jumps past 5V suggest sneak paths via damaged PCB substrates or deteriorated insulation. For potted assemblies, thermal imaging reveals hotspots (>10°C above ambient) where internal shorts or open circuits create unintended conduction. Finalize diagnostics by cycling power 100+ times, checking for intermittent failures that manifest only under thermal stress or mechanical vibration.
