How to Wire a Light Bar Complete Step-by-Step Connection Guide

Begin by identifying the power source for your auxiliary LEDs. A 40-amp relay and a 15-amp fuse are non-negotiable for 12V systems; anything less risks overheating or electrical failure. Measure the current draw of your setup–most high-output modules pull 8-12 amps at full brightness. If you’re tapping into an existing circuit, ensure it’s rated for the additional load. The vehicle’s battery or alternator can handle it, but weaker sources like cabin lights will not.

Run the positive wire directly from the relay to the illumination module using 10-gauge copper wire. Avoid cheaper alternatives like aluminum or CCA (copper-clad aluminum)–voltage drop over distance will diminish performance, especially in longer runs exceeding 10 feet. Ground the negative wire to the chassis near the mounting point; avoid daisy-chaining grounds, as this introduces resistance and potential flickering. Use crimp connectors with heat shrink tubing or solder joints for all connections–exposed wires corrode quickly in off-road or marine environments.

Install a rocker switch with an LED indicator between the relay and the fuse. A momentary switch works for temporary use, but a latching switch is better for constant illumination. If integrating with other systems (winches, air compressors), isolate each circuit with its own relay to prevent voltage spikes. For dual-channel setups, split the power feed after the fuse but before the relay to ensure balanced load distribution. Test continuity with a multimeter before finalizing connections–crossed wires can fry the entire setup in seconds.

Mount the relay and fuse holder in a dry, accessible location, preferably within 18 inches of the battery. Use adhesive-lined heat shrink or dielectric grease on all terminals to prevent corrosion. For underwater or high-vibration applications, secure wires with zip ties every 6-8 inches and apply silicone sealant at connection points. Avoid routing wires near hot components (exhaust manifolds, turbochargers) or sharp edges (sheet metal, frame rails). If using a dimmer, wire it inline with the switch, not the power feed–this prevents unnecessary strain on the system when not in use.

How to Connect Auxiliary LED Strips Safely

Begin by selecting a relay with a 40-amp capacity–this ensures stable current delivery without overheating under prolonged use. Match the fuse rating to your setup: a 30-amp fuse protects a 240-watt system at 12 volts, while a 20-amp fuse suits 180-watt loads. Avoid cheap relays with thin copper contacts; opt for units with silver-alloy terminals for reduced resistance.

Run power directly from the battery’s positive terminal to the relay’s input, using 8-gauge wire for setups under 200 watts and 6-gauge for higher outputs. Ground the relay’s frame securely to the chassis, not the negative battery post–this minimizes voltage drops during high-current draw. Test continuity between the relay’s ground and battery negative with a multimeter; readings should match battery voltage.

Switch and Control Circuit Configuration

Wire the switch in series with a 15-amp fuse between the battery positive and relay’s trigger terminal (usually marked 85 or 86). Use a rocker switch with a built-in LED indicator–this confirms power flow without additional wiring. For dual-mode setups (e.g., high/low beams), add a second relay and switch, splitting the input wire before the first relay.

Twist signal wires (trigger leads) around a ground wire for noise suppression, especially in vehicles with alternators producing over 100 amps. Apply dielectric grease to connectors to prevent corrosion, particularly in off-road or marine applications. For waterproofing, use heat-shrink tubing with adhesive lining over splices, ensuring no moisture ingress at joint edges.

Mount the fuse holder within 7 inches of the battery terminal to meet SAE J1128 standards. For modular setups, use Anderson connectors rated for at least 50 amps; their genderless design simplifies maintenance. Verify all connections with a load test–attach a 10-watt resistor to the output and measure voltage drop; anything above 0.2 volts indicates poor contact.

Common Pitfalls and Rectifications

Avoid daisy-chaining multiple strips to a single relay; each should have its own fused circuit. If flickering occurs, check for loose grounds first–then inspect the relay’s diode, which should suppress back-EMF but can fail under 30% of rated load. Replace relays exhibiting coil chatter; this signals internal degradation.

For CAN-bus compatible vehicles, use a load resistor (10-ohm, 25-watt) in parallel with the accessory circuit to prevent hyperflash warnings from the BCM. In snow plows or emergency setups, add a second battery isolated via a 100-amp solenoid to prevent voltage sag below 9.6 volts under heavy accessory load.

Selecting the Optimal Cable Thickness for Auxiliary Illumination Systems

For most 12V LED strips under 50W, a 16 AWG conductor ensures minimal voltage drop over 3-meter runs. Heavier setups–100W and above–demand 12 AWG or thicker to prevent performance loss. Always measure actual current draw; nominal wattage ratings often overstate real-world demand.

Calculate required cross-section using the formula: I = P/V, where I is amperage, P is power in watts, and V is nominal system voltage (typically 12V or 24V). Multiply the result by 1.25 for continuous-duty safety margin. Example: a 180W panel at 12V pulls ~15A; factoring in safety, 12 AWG is the bare minimum.

• 18 AWG: ≤ 20W (≤ 1.7A)
• 16 AWG: 20–50W (1.7–4.2A)
• 14 AWG: 50–100W (4.2–8.3A)
• 12 AWG: 100–180W (8.3–15A)
• 10 AWG: 180–300W (15–25A)

Copper-clad aluminum cables reduce cost but increase resistance–substitute with pure copper if runs exceed 5 meters. For 24V systems, halve the required amperage and adjust gauge accordingly. Outdoor installations in temperatures above 30°C require one size thicker to compensate for heat-induced resistance.

Pre-made harness bundles often skimp on conductor thickness; verify the printed AWG label against physical diameter using calipers. A 16 AWG wire should measure ≥ 1.29mm, while 12 AWG must be ≥ 2.05mm. Discrepancies indicate inferior quality or mislabeling.

Relay-based control circuits need only 18–20 AWG for signal paths, but power feed lines to the relay coil should match the main conductor gauge. Fuses must be sized to the wire’s ampacity, not device rating–use a 15A fuse for 14 AWG, 20A for 12 AWG, and so on. Position fuses within 15cm of the battery terminal.

Corrosion-resistant terminals (tin-plated brass or nickel) prevent voltage loss at connection points. Crimp connectors with adhesive-lined heat shrink tubing outperform solder-only joints in vibration-prone environments. For modular setups, Anderson SB connectors accommodate up to 50A with minimal resistance.

Voltage drop over distance follows Vd = I × L × R, where Vd is drop, I is current, L is length in feet, and R is resistance per 1,000 feet (data from NEC Chapter 9 Table 8). Limit total drop to ≤ 3% for optimal brightness retention. Example: 12 AWG copper has 1.98 ohms per 1,000 feet; a 10A load over 10 feet yields 0.2V drop (1.1% loss).

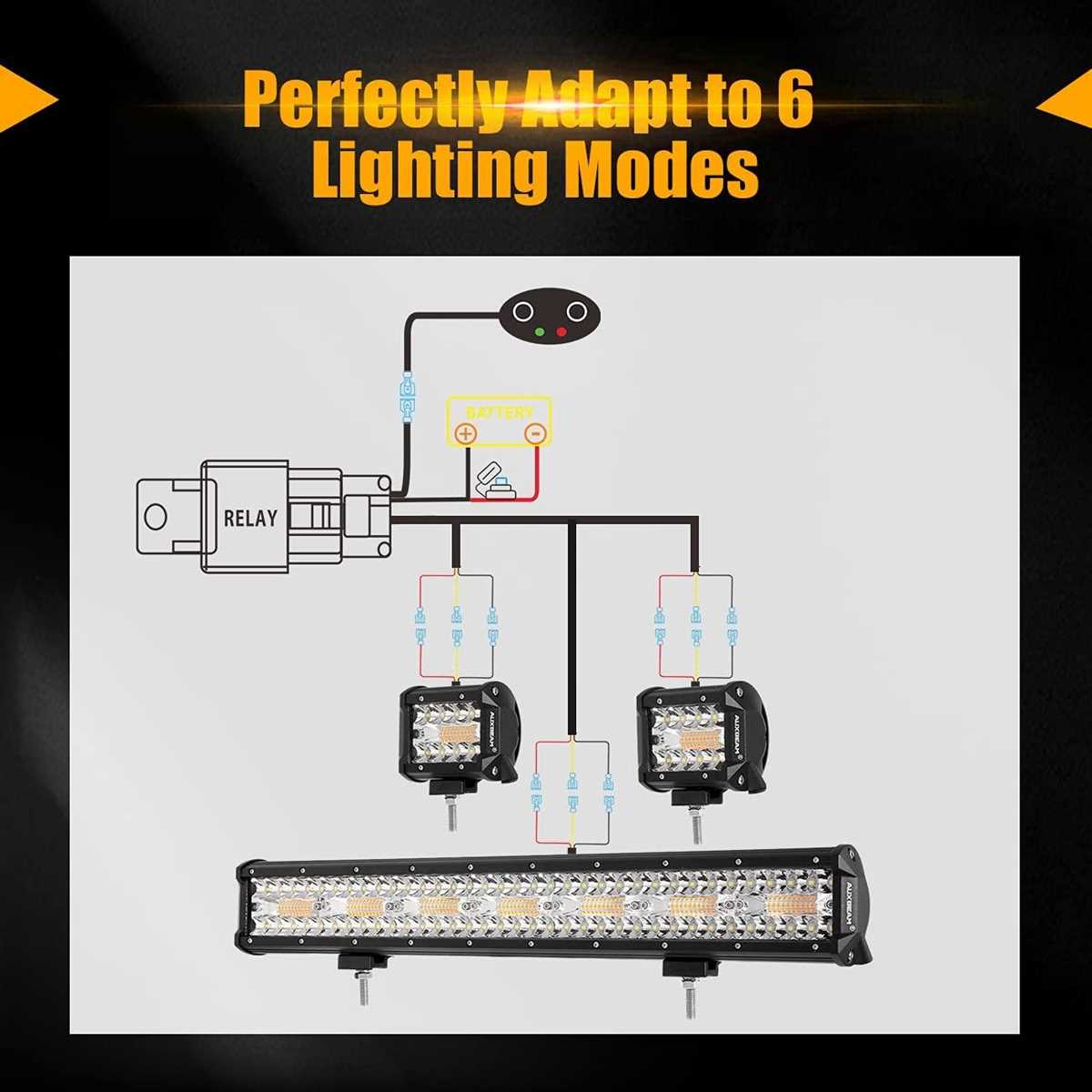

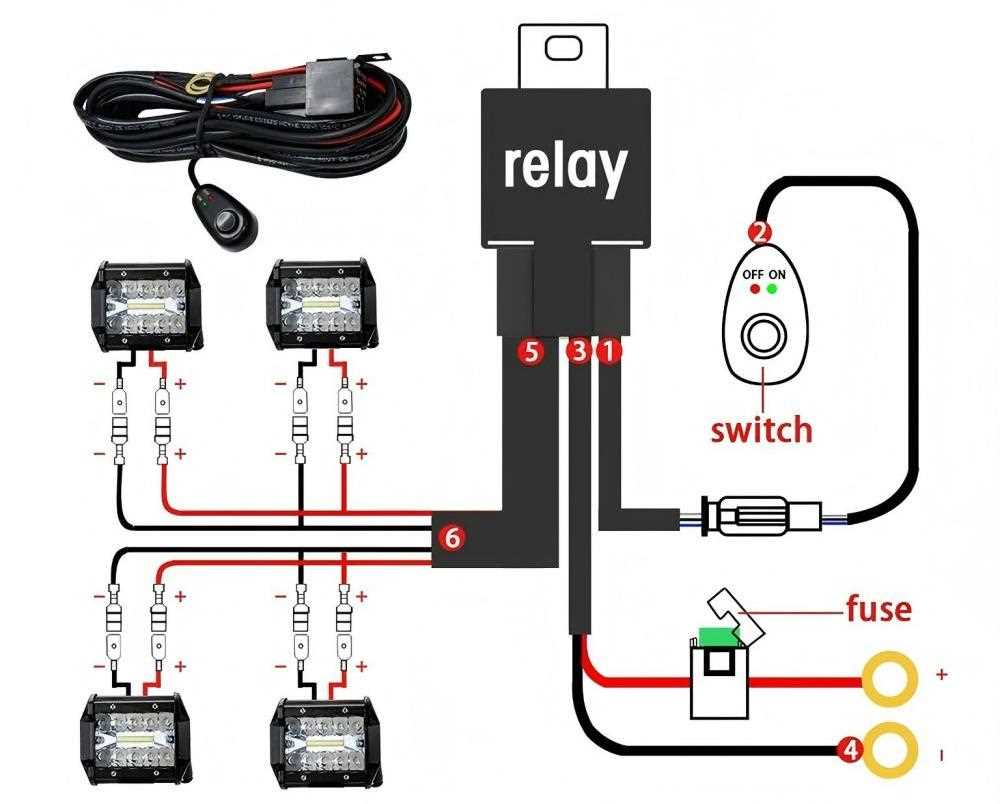

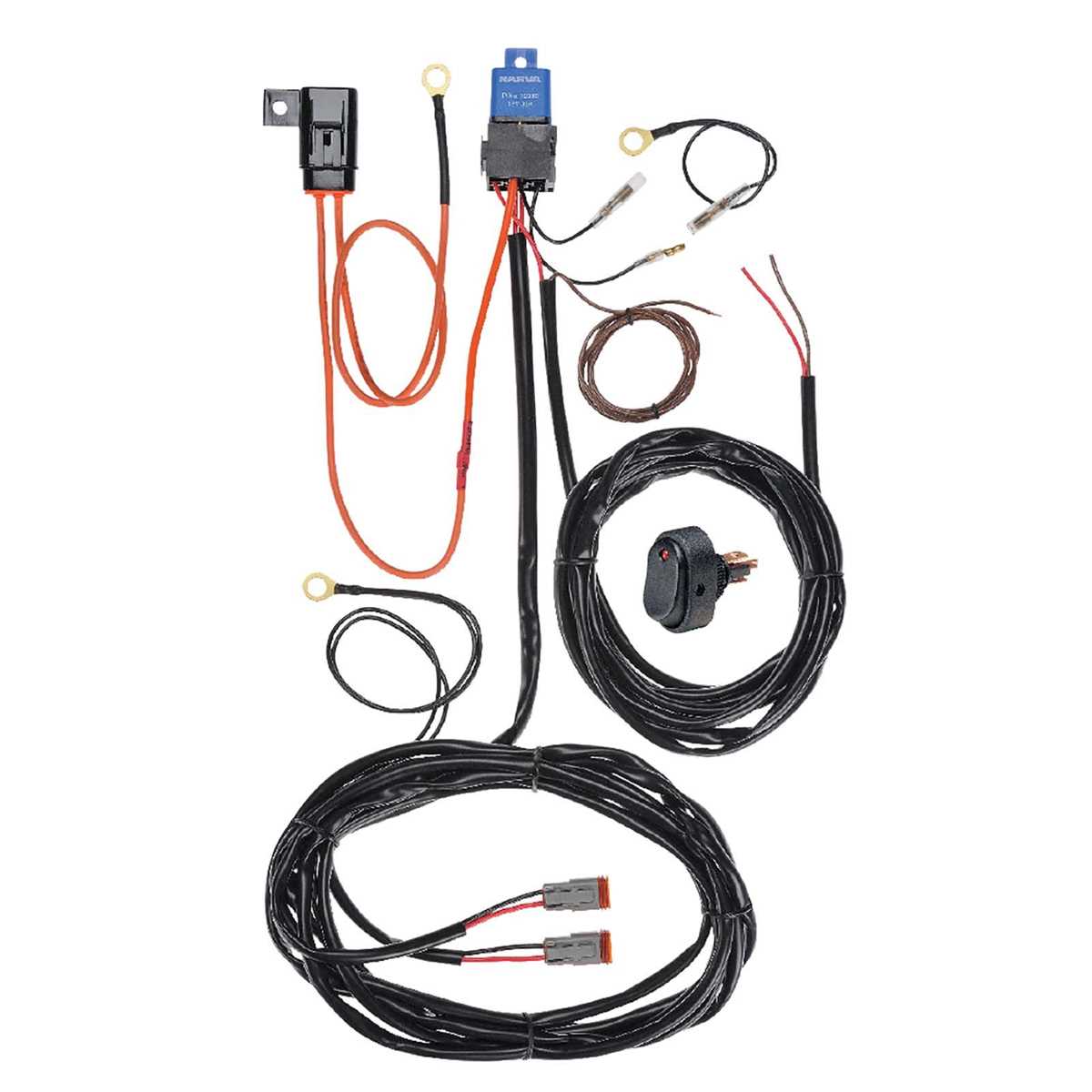

How to Wire Auxiliary Illumination Using a Switching Module

Select a 30/40-amp relay with a weatherproof housing–preferably one with gold-plated contacts to prevent oxidation during prolonged off-road conditions. Verify compatibility between the relay’s voltage rating and the vehicle’s electrical system; most standard setups require a 12V unit capable of handling at least 20% more than the maximum current draw of your accessory beam.

Identify a fused power source rated at least 5A above the auxiliary beam’s peak consumption. Trace the battery’s positive terminal or an existing fused distribution block, ensuring the chosen feed line is protected by a circuit breaker positioned no farther than six inches from the power origin. Use 10-gauge copper wire for runs under 10 feet; upsize to 8-gauge for longer distances to minimize voltage drop.

Mount the relay within twelve inches of the accessory beam’s wiring harness to reduce resistive losses. Route the relay’s 85-pin to a clean ground point–bare metal chassis surface free of paint, undercoating, or corrosion–using an 8-gauge cable terminated with a crimped ring terminal secured by a stainless-steel bolt torqued to 10–12 ft-lbs. Avoid relying on the vehicle’s factory ground straps whenever possible.

Connect the relay’s 86-terminal to a switched power source that energizes only when the ignition is active or through a dedicated dashboard toggle. Ensure the trigger circuit draws less than 200 mA to prevent overloading delicate control modules; use a 1A inline fuse for this segment. Verify trigger voltage matches the relay’s coil rating–most automotive relays activate between 7V and 16V, but some heavy-duty variants tolerate 24V systems.

Install the 30-pin on the relay to the fused power source using a splice-free connection, preferably via a dual-crimp, heat-shrink butt connector. Seal each joint with adhesive-lined shrink tubing or liquid electrical tape to prevent moisture ingress–critical if mounting near wheel wells or undercarriage areas exposed to mud and road spray. Confirm splice integrity by pulling each connection with 15 lbs of force before securing the harness.

Attach the accessory beam’s positive lead to the relay’s 87-output, again using weather-sealed connectors. Route this cable away from moving parts, sharp edges, and heat sources; secure it every eighteen inches with nylon zip ties or split-loom tubing to prevent chafing. Calculate anticipated voltage drop using a multimeter under load: readings below 0.5V across the entire feed path ensure optimal brightness and longevity.

Test the configuration by toggling the trigger circuit; the relay should emit an audible click, and the auxiliary beam must illuminate without flicker or dimming. If inconsistent operation occurs, probe the relay’s 30-pin for battery voltage and the 87-pin for uninterrupted power transfer. Replace the relay immediately if arcing or excessive heat is detected during sustained operation.

Finalize the installation by concealing wires inside OEM harness channels or along existing body seams, avoiding drivetrain components and suspension travel zones. Label every connection with embossed sleeve identifiers for future diagnostics, and document fuse ratings alongside the relay’s mounting location for quick troubleshooting during post-install inspections or upgrades.
