How to Wire a Light Dimmer Switch Step-by-Step Guide

Begin by identifying the supply wires feeding your fixture: a live conductor (typically black or red) and a neutral (white). Most modern adjustable intensity regulators require a standard 120V AC circuit, but verify the unit’s voltage rating–some support 220V for European or commercial setups. Disconnect power at the breaker panel before handling any connections to prevent accidental shorts or electrocution.

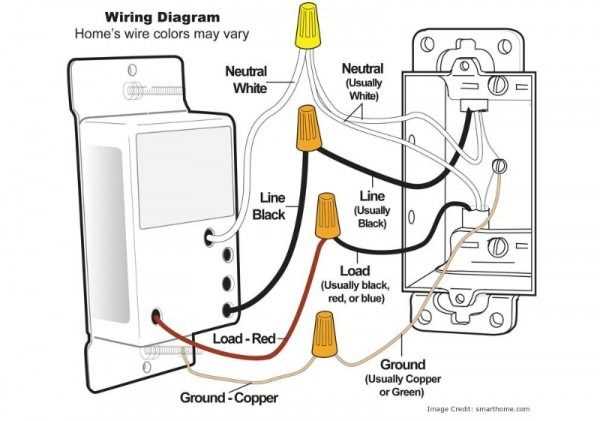

For single-pole installations, attach the incoming power line to the regulator’s common terminal (often labeled “L” or “LINE”). Connect the load wire–leading to the lamp or fixture–to the switched terminal (“LOAD”). If neutrals are bundled in the box, cap them securely with a wire nut; they remain unused unless the device specifies a neutral requirement (rare in basic models).

Three-way configurations demand an extra step. The primary controller connects to the power source as above, while the secondary unit links to the traveler wires (usually red and black) between both points. Match the traveler pairs exactly–reversing them will cause erratic behavior or complete failure. Test continuity with a multimeter if the diagram isn’t clear.

Grounding is non-negotiable. Secure the green or bare copper wire to the metal box’s grounding screw or the regulator’s dedicated ground terminal. Skipping this risks faults tripping breakers or, worse, fire hazards in poorly insulated wiring. For older knob-and-tube or ungrounded circuits, consult local codes–some jurisdictions permit GFCI protection as a substitute.

Final checks: ensure all connections are tight, tuck excess wire into the box, and snap the faceplate securely before restoring power. Flicker or buzzing indicates incompatible bulbs–replace with dimmable LEDs or incandescents. Non-dimmable LEDs will hum, overheat, or fail prematurely. If the unit feels warm, confirm its wattage rating exceeds the fixture’s total load; most residential models handle 150–600W.

How to Wire a Variable Brightness Control Mechanism

Always verify the voltage rating of both the fixture and the regulator before connecting any wires. Most residential systems operate at 120V AC, while some low-voltage setups (e.g., LED strips) may require 12V or 24V DC. Matching these values prevents overheating, flickering, or permanent damage to components.

Identify the hot wire in the circuit–typically black, red, or another color distinct from neutral (white) and ground (bare or green). Use a non-contact voltage tester to confirm the wire is live before handling. Connect this lead to the input terminal on the controller, marked “LINE” or “IN” on most models.

Grounding is non-negotiable. Attach the ground wire (green or bare) to the designated terminal on the controller housing, then to the fixture’s ground connection. Omitting this step risks electrical shock and violates safety codes in most jurisdictions. For metal junction boxes, ensure the ground also bonds to the box itself.

The following table outlines common wire color codes across regions:

Region	Hot Wire	Neutral	Ground
North America	Black / Red	White	Green / Bare
European Union	Brown	Blue	Yellow/Green
United Kingdom	Brown / Red	Black / Blue	Green/Yellow
Australia / New Zealand	Red / Active	Black / Neutral	Green/Yellow

For three-way configurations–where brightness can be adjusted from multiple locations–use a specialized multi-location regulator paired with compatible companion devices. The primary unit connects to the hot wire and the load, while additional controls link via traveler wires (usually red and black). Mismatched components will result in erratic operation or failure.

LED-compatible controls require specific models designed to handle low-wattage loads. Standard rotary or slide types may cause LEDs to flicker or not respond at all. Check the regulator’s packaging for “LED-ready” labeling or a minimum wattage rating below 10W. For incandescent fixtures, ensure the wattage capacity exceeds the total load by at least 20%.

After completing connections, secure all wires with wire nuts or lever connectors, then tuck them neatly into the junction box. Restore power at the circuit breaker and test the adjustment range. If the fixture fails to respond or behaves unpredictably, recheck all connections for loose terminals, reversed polarity, or incorrect wire pairing.

How to Install a Voltage Regulator for Single-Circuit Adjustment

First, confirm the circuit breaker managing the fixture is off. Test the output terminals with a non-contact voltage detector to avoid accidental shocks. Remove the existing control plate by unscrewing the mounting screws, then disconnect the wires by loosening the terminal screws–label the common input (typically black or copper) and the load output (often red or blue) for clarity.

Connect the new regulator’s input wire to the power source terminal using a wire nut, ensuring a tight twist. Attach the output wire to the fixture terminal in the same manner. If grounding is required, join the green or bare copper wire to the box’s ground screw, securing it firmly. Fold wires neatly into the electrical box to prevent pinching.

Key Precautions During Installation

Never exceed the regulator’s wattage rating, listed on its housing–overloading risks overheating. For LED-compatible models, verify compatibility with the bulb manufacturer to avoid flickering or damage. If the fixture uses halogen or incandescent bulbs, ensure ventilation around the device to dissipate heat.

Reattach the control plate, aligning it with the wall box, then restore power at the breaker. Gradually adjust the slider or dial to test functionality–responsiveness should be immediate. If flickering persists, recheck wire connections for looseness or incorrect pairing. For multi-way circuits, consult a separate guide, as this procedure applies only to single-location setups.

Installing a Tri-Point Illumination Regulator for Shared Room Adjustment

Identify the common terminal on the primary adjustment mechanism–it’s typically marked with a darker screw or labeled “COM” on brass-colored hardware. Connect the incoming phase conductor here, ensuring polarity matches the circuit’s existing configuration. Misalignment risks malfunction or tripped breakers during testing.

Attach traveler conductors to the remaining screws–these wires (often red and black) bridge between all adjustment points in the setup. Use wire nuts rated for 600V minimum when splicing in the junction box, twisting clockwise before securing. Verify tightness with a gentle tug; loose connections cause flickering or overheating.

Key Configuration Steps

• Turn off power at the breaker panel; confirm with a non-contact voltage tester.
• Remove the existing plate, noting wire positions on the original device.
• Label travelers at each endpoint with colored tape–match these at secondary locations.
• Cap unused neutrals (white wires) with twist connectors if present.
• Mount the new regulator, ensuring screws align with wall box slots without forcing.

At secondary adjustment points, connect travelers to identical terminals (usually brass screws). The ground wire (green or bare) must attach to the device’s grounding tab or metallic box. For dimmable LED compatibility, use a regulator rated for 150W minimum with electronic low-voltage support.

Restore power gradually after securing all plates. Test each adjustment point individually–brightness changes should sync smoothly across locations. If inconsistent, recheck traveler continuity with a multimeter (readings should show ~0Ω when toggled). Replace any damaged conductors before finalizing installation.

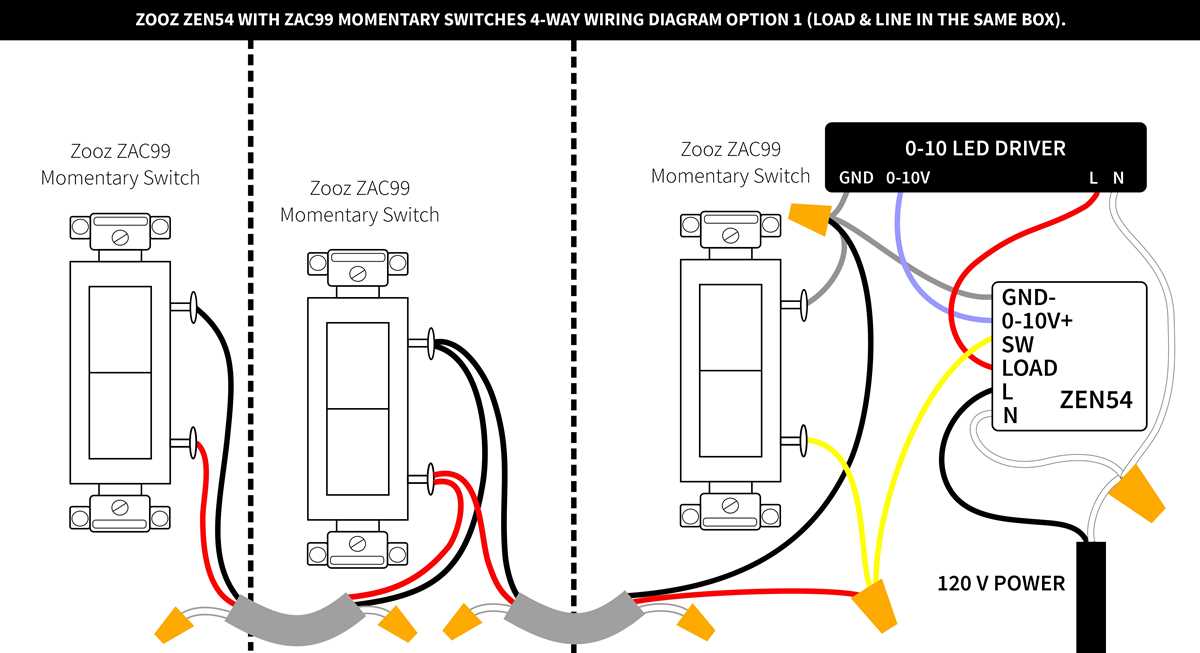

For three-or-more-point setups, add compatible intermediate relays between endpoints. These require additional 12-gauge travelers and grounding; follow the device manufacturer’s pinout diagram precisely. Incorrect relay wiring may create unintended loops, damaging sensitive electronics.

Identifying and Connecting Neutral, Hot, and Ground Conductors Safely

Turn off the circuit at the breaker panel before handling any conductors. Use a non-contact voltage tester to confirm power is disconnected–probing exposed ends or wire nuts without verification risks lethal shock. Neutral (typically white or gray) returns current to the source, while hot (black, red, or another color except green or bare) carries power from it. Ground (green or bare copper) provides a fault path; never use it as a substitute for neutral.

Strip insulation back 5–7 mm using wire strippers calibrated for the gauge (usually 12–14 AWG in residential setups). Avoid nicking the conductor–even minor damage reduces cross-sectional area, increasing resistance and heat buildup. Twist stranded conductors clockwise before inserting into terminals to prevent fraying, which can loosen connections over time.

Match terminal types to conductor preparation:

• Screw terminals: Form a clockwise hook around the screw, tighten until slight resistance is felt, then an additional 1/4 turn. Overtightening strips threads; undertightening causes arcing.
• Push-in connectors (backstab): Insert straight, unstranded ends until a click is heard. Test by tugging firmly–if the conductor pulls out, the terminal is faulty.
• Crimp connectors: Use ratcheting crimpers for ring or spade terminals. Verify crimp integrity by attempting to rotate the terminal around the conductor–movement indicates failure.

Color-coding varies by region:

• North America: Neutral = white/gray; hot = black/red/blue; ground = green/bare.
• Europe/UK: Neutral = blue; hot = brown/black/gray; ground = green-yellow striped.
• Japan/Australia: Neutral = white/light blue; hot = red/brown; ground = green/bare.

Non-standard colors (e.g., orange, pink) often signify switched hots–label them immediately to avoid misidentification later.

Neutral conductors must never carry voltage under normal conditions. Test continuity between neutral and ground at the panel with a multimeter (0V AC indicates proper bonding). If voltage is detected, inspect for:

1. Loose connections at the neutral bus bar.
2. Crossed conductors in junction boxes.
3. Faulty appliances upstream drawing current through ground.

Grounding conductors require a low-resistance path (≤1 Ω) to earth. Verify with a megohmmeter or by checking continuity between ground and a known earth point (e.g., metal water pipe, grounding rod).

Secure all connections with UL-listed wire nuts or lever connectors, then wrap with electrical tape to prevent loosening. Push conductors fully into boxes, leaving 6–8 inches of slack for future adjustments. Fold excess neatly; avoid sharp bends (
