Build a Reliable Lightning Detector DIY Circuit Guide with Schematic

Select an antenna-based sensor with sensitivity tuned to 5–50 kHz for near-field electromagnetic pulses. A ferrite rod (10 cm, μ ≥ 1000) paired with a low-noise JFET amplifier (e.g., 2N4416) reduces false signals from distant interference while capturing local discharges within 30 km. For optimal noise rejection, ground the circuit via a buried copper mesh (minimum 1 m²), not household wiring.

Use a peak detector stage with a germanium diode (1N34A) to handle fast transients–silicon diodes introduce 0.7V forward drop losses, skewing pulse amplitude readings. Follow with a comparator (LM339) set to trigger at 0.5V to distinguish thunderstorm activity from solar RF noise. Adjust hysteresis with a 10 kΩ feedback resistor to prevent repeated triggers from the same event.

Power the system with a linear regulator (LM7805) to avoid switch-mode noise bleeding into the antenna path. Stabilize supply lines with 100 µF electrolytic and 0.1 µF ceramic capacitors at the input and output pins. For remote installations, pair with a rechargeable LiPo cell (3.7V, 1000 mAh) and solar trickle charger (6V/200 mA panel), ensuring the charger’s blocking diode prevents nighttime reverse current.

Calibrate detection range by adjusting the antenna coupling capacitor (47–470 pF) and amplifier gain (10–100x via 1 MΩ potentiometer). Test against known storms: a 1.2V output pulse at 3 km should scale to 0.3V at 20 km. Log results using an ISD1820 voice recorder for audible alerts, or interface with a microcontroller (ATtiny85) for timestamped event storage.

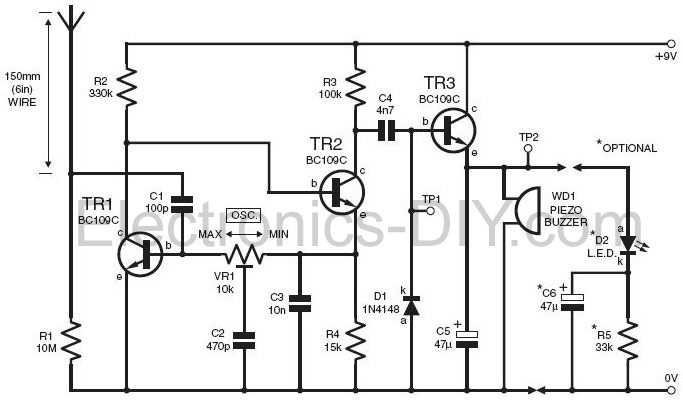

Thunder Strike Sensing Schematic

Construct your sensing setup using an inexpensive AM radio receiver tuned between 500 kHz and 1.6 MHz to capture electromagnetic pulses from distant atmospheric discharges. Match the antenna length–ideally 1.5 meters of insulated copper wire–to the central frequency of 750 kHz for maximum sensitivity without external amplification. Position the coil vertically and at least two meters from any conductive surfaces to reduce interference.

Component	Specifications	Quantity
Tuned AM module	500 kHz–1.6 MHz, 3 V–5 V input	1
Antennа wire	Insulated copper, 18 AWG, 1.5 m length	1
Signal diode	1N34A germanium type, low forward drop	1
Decoupling capacitor	0.1 µF, ceramic, 50 V rating	1

Integrate a germanium diode (1N34A) after the receiver’s IF stage to rectify the burst signal; this component’s 0.3 V forward voltage drop preserves weak transients that silicon diodes would clip. Route the output through a 0.1 µF decoupling capacitor to block DC drift while permitting rapid voltage spikes. A 1 kΩ resistor in parallel with the capacitor discharges residual charge within milliseconds, preventing false triggers.

Avoid placing the system near fluorescent lighting or switched-mode power supplies; both emit broadband noise that overlaps atmospheric signatures below 2 MHz. Test sensitivity by moving a piezo igniter three meters away–legitimate discharges generate a sharp 20 mV–50 mV pulse on an oscilloscope trace lasting under 50 µs, whereas noise registers as continuous low-amplitude hash.

For location estimation, deploy two identical units spaced 100 meters apart. Time-stamp incoming pulses using a microcontroller with ±1 µs resolution. Subtract timestamps, multiply the difference by 3 × 10⁸ m/s (propagation speed), and halve the result to derive range. Accuracy drops if storms lie outside the equidistant zone; confine measurements to within a 45° sector centered on the baseline.

Replace the microcontroller’s analog input with a Schmitt trigger (74HC14) if ambient noise exceeds 10 mV–this ensures clean digital transitions. Calibrate detection thresholds daily against a 1 pF capacitor charged to 5 V via a 1 MΩ resistor; the expected decay constant (tau = 1 ms) confirms circuit integrity before each storm season begins.

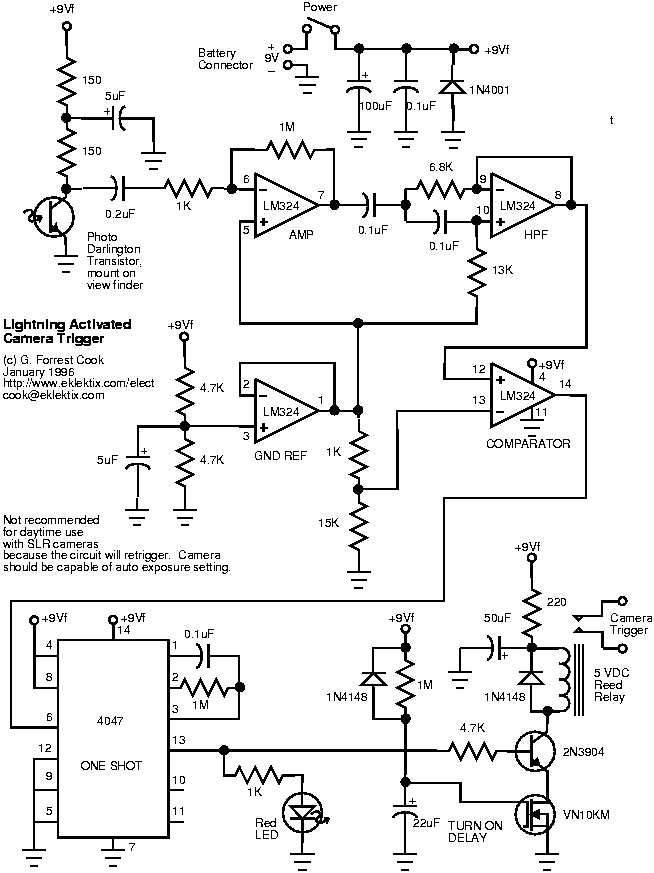

Core Elements for Constructing an Atmospheric Charge Sensing Setup

Begin with a wideband antenna tuned to 5–50 kHz to capture electromagnetic pulses emitted by distant electrostatic discharges. Ferrite rod or air-core coils at 10–20 turns with a diameter of 15 cm yield optimal signal strength without saturation. Shield the coil with a grounded copper mesh spaced at least 5 mm away to minimize ambient noise pickup.

• Op-amp selection dictates sensitivity: OPA2134 or TL072 paired with a high.input impedance JFET stage eliminate signal attenuation.
• Gain should be adjustable via a 10 kΩ potentiometer, setting the threshold between 20–200 mV to distinguish genuine events from interference.
• A bandpass filter centered at 30 kHz with a 10 kHz bandwidth isolates characteristic waveforms while rejecting mains hum and radio stations.

Transient voltage suppression diodes (e.g., P6KE200A) must clamp input voltages exceeding ±180 V across the antenna terminals to prevent damage to downstream components. Position them as close as possible to the coil leads–trace length over 1 cm introduces parasitic inductance that degrades response time.

Signal conditioning demands a two-stage amplification sequence. First, a pre-amp with 10× gain boosts raw antenna output; second, a variable-gain stage refines the signal for comparator input. Capacitive coupling (100 nF polyester film) between stages blocks DC offset while preserving pulse integrity.

For real-time event logging, integrate a microcontroller like STM32F103 with ADC sampling at ≥200 kS/s. Firmware should implement debounce logic to ignore noise spikes shorter than 50 µs, distinguishing genuine electrostatic bursts from random transients.

1. Power supply isolation is critical: use separate linear regulators for analog (LM317) and digital (AMS1117) sections. Ground planes must converge at a single star point to prevent ground loops.
2. Enclosure shielding requires conductive paint or aluminum foil bonded to chassis ground. LED indicators (2 mA draw) for strike confirmation should have separate current-limiting resistors (2.2 kΩ) to avoid interfering with analog signals.
3. Calibration involves exposing the antenna to a controlled electrostatic discharge (e.g., piezo igniter at 1 m distance) and adjusting gain until output pulses match a 5 V peak.

Long-range sensitivity relies on precise tuning of the antenna’s resonant frequency. A variable capacitor (10–100 pF) in parallel with the coil allows fine adjustment; sweep capacitance in 5 pF increments while monitoring output amplitude to identify the peak response frequency.

Audible alerts require a piezoelectric buzzer driven by a dedicated MOSFET (e.g., IRLZ44) triggered by comparator output. Pulse-width modulation (1 kHz, 50% duty cycle) ensures distinct tone without excessive power consumption. For visual feedback, surface-mount LEDs with 3 mm diameter mounted on the front panel offer clear indication without compromising enclosure shielding.

Step-by-Step Assembly of a Basic Storm Monitor

Select a ferrite rod with a length of 10–15 cm and a diameter of 8–10 mm for optimal electromagnetic signal capture. Wind 100–150 turns of enameled copper wire (0.3–0.5 mm gauge) tightly around the rod, leaving 10 cm free at both ends for connections. Secure the coil with heat-shrink tubing or electrical tape to prevent unwinding.

Solder a 1N34A germanium diode directly to one end of the coil. This component rectifies the incoming atmospheric pulses while preserving signal integrity. Attach a 10 kΩ resistor in parallel to the diode to stabilize the output voltage and reduce noise interference.

Connect the free end of the germanium diode to a 2N3904 transistor’s base via a 1 kΩ current-limiting resistor. The transistor amplifies faint atmospheric disturbances, so mount it on a small heatsink if operating in high-humidity environments. Ground the emitter to the circuit’s negative rail to ensure consistent performance.

For signal output, wire a 3.5 mm audio jack or a piezo buzzer between the transistor’s collector and the positive supply. Use a 9V battery as the power source, ensuring the battery’s ground matches the circuit’s negative rail. Test the setup by generating static sparks near the coil–audible clicks or meter deflections confirm functionality.

Critical Adjustments

• Fine-tune sensitivity by adjusting the coil’s turn count: fewer turns reduce range but sharpen response, while more turns increase range but may introduce false triggers.
• Add a 100 nF capacitor between the transistor’s base and ground to filter high-frequency noise from nearby electronics.
• If false triggers persist, replace the 1 kΩ resistor with a 4.7 kΩ potentiometer to manually calibrate the transistor’s bias point.

Enclose the assembly in a non-metallic housing (e.g., ABS plastic) to avoid shielding the coil. Drill a 5 mm hole in the case to allow the rod’s tip to protrude slightly, enhancing signal reception. Secure all components with hot glue to prevent vibration-induced misalignments.

For remote monitoring, attach the output to an LM358 op-amp configured as a comparator. Set a reference voltage at 1.2V using a voltage divider (two 10 kΩ resistors across 5V). Feed the amplified signal into the op-amp’s non-inverting input; the output will swing high when storms approach within a 20–30 km radius. Connect a 5V relay to trigger alarms or data loggers.

Calibrating Sensitivity for Accurate Storm Detection

Set the initial threshold at 1.2V peak-to-peak for a 10km detection range in open terrain. Use a 50Ω antenna paired with a bandpass filter tuned to 3–30kHz to suppress noise from distant industrial sources. Adjust the comparator’s reference voltage in 50mV increments until false triggers drop below 2 per hour during clear weather.

Test the system with controlled pulses from a signal generator mimicking storm discharges at varying amplitudes. Start with 10μs pulses at 5V, then reduce amplitude in 100mV steps until the unit no longer registers. Record the lowest detectable voltage as the minimum sensitivity limit–typically between 300–600mV for urban setups.

Verify performance under real conditions by placing the device 100m from a known discharge source, such as a high-voltage lab arc or controlled spark gap. Compare outputs against a commercial field meter certified to IEC 62793 standards. Mismatches exceeding ±15% indicate antenna misalignment or amplifier drift, requiring recalibration.

Use an oscilloscope with >10MHz bandwidth to inspect the raw input waveform. Storm signals exhibit rapid rise times ( and exponential decay (200–500μs), while noise spikes usually last detection IC (e.g., AS3935) or add a Schmitt trigger for cleaner edge detection.

For rural installations, increase sensitivity by 20–30% but compensate with a software debounce algorithm to ignore isolated spikes. Urban areas require reducing the gain by 40–50% to exclude power line interference at 50/60Hz harmonics. Log all adjustments in a calibration table with timestamped entries for temperature and humidity, as these factors alter antenna impedance by ±5% per 10°C change.

Avoid calibration during active storms–humidity above 80% skews readings by increasing parasitic capacitance in traces. Instead, simulate conditions indoors using a humidity chamber set to 30°C and 75% RH. Measure the output with a precision multimeter and adjust trimpots until the variance stays within ±2% across a 12-hour cycle.

If the system responds to mobile phone transmissions (GSM at 900MHz/1800MHz), add a ferrite bead on the power line and shield the antenna connection with copper tape. For persistent false alarms, swap the low-noise amplifier (LNA) for one with a higher input P1dB compression point (>10dBm) to reject out-of-band signals.

Recheck sensitivity every 3 months or after thunderstorm exposures exceeding kA-range currents, as inductive coupling can permanently shift component values. Replace capacitors with X7R dielectric (not Y5V) to minimize drift. Store calibration data in non-volatile memory; firmware updates should never reset these values unless explicitly reconfirmed via manual testing.
