Step-by-Step Guide to Designing a Line Follower Robot Circuit

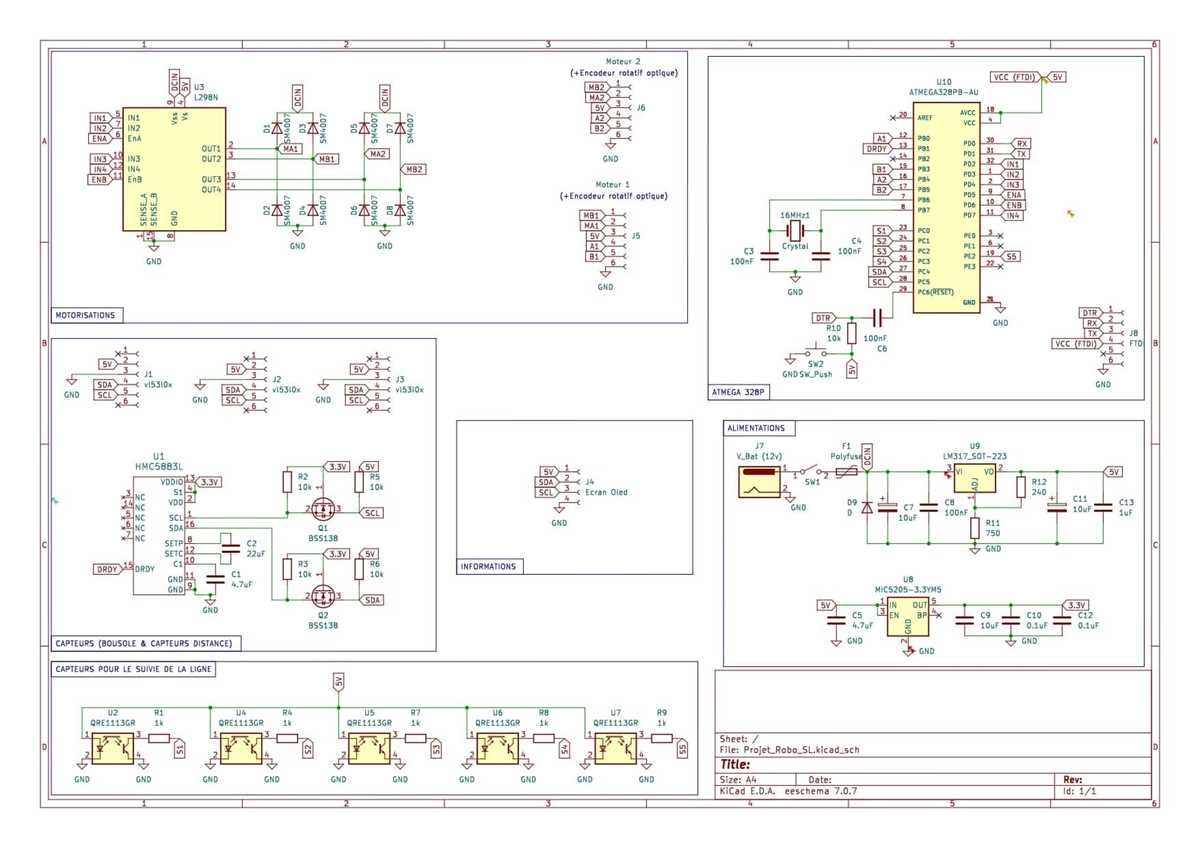

Start with a dual-sensor arrangement spaced 15-20mm apart for optimal path detection on 19-38mm wide guide strips. TCRT5000 reflective infrared pairs work best–position emitters at 20° angles towards the surface and receivers shielded from ambient light by opaque barriers. Power the emitters through a 220Ω current-limiting resistor to prevent LED burnout while maintaining 1-2mW emission. Ground receivers directly to the microcontroller’s analog input pins with 10kΩ pull-down resistors to stabilize readings.

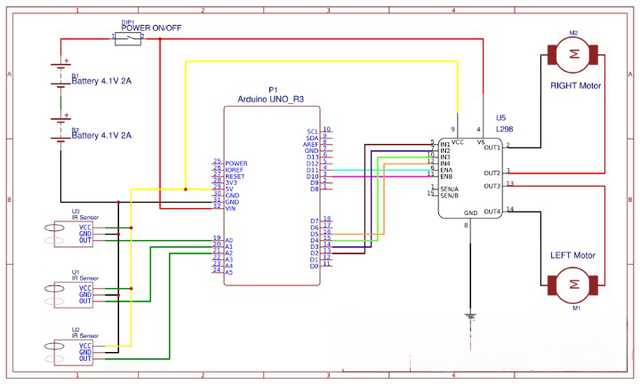

For controller selection, an ATmega328P running at 16MHz provides sufficient speed for closed-loop PID adjustments. Dedicate pins A0-A2 for left/center/right sensor inputs and D5-D6 for motor PWM outputs. Use L298N H-bridges for bidirectional motor control–connect enable pins to 5V via 1kΩ resistors and motor terminals through 0.1µF decoupling capacitors to suppress EMI. Calculate wheel RPM based on gear ratio (typical 30:1) and encoder resolution (360 pulses/rev) to fine-tune PID coefficients (Kp=0.8, Ki=0.05, Kd=0.2 for smooth 0.3m/s operation).

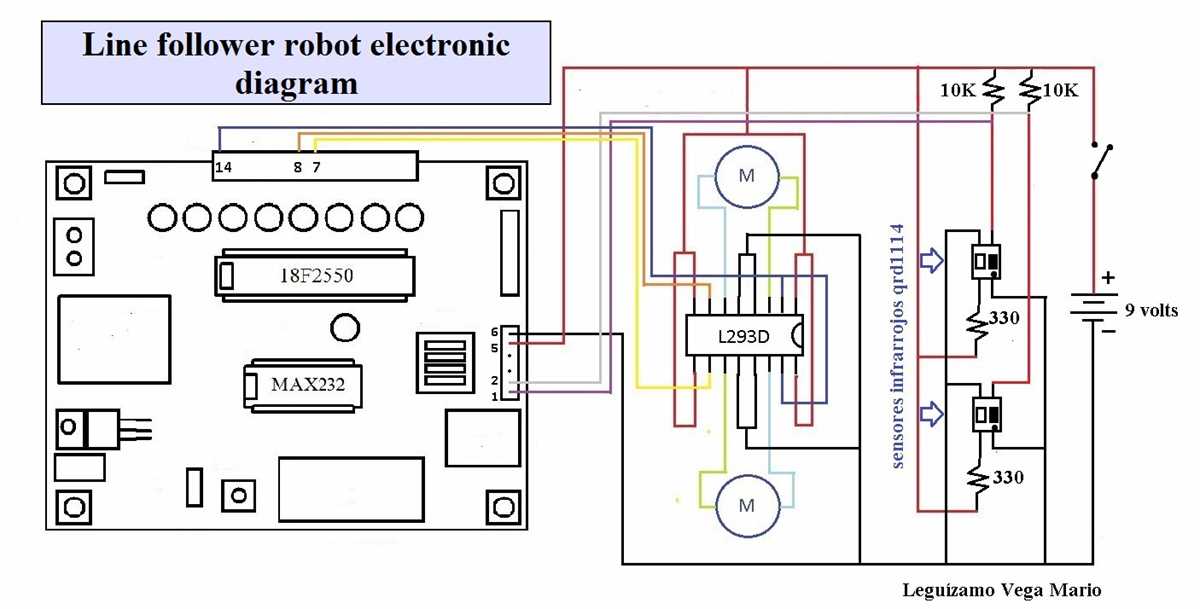

Regulate power with a 7805 linear voltage regulator feeding the logic circuits, while motors draw directly from a 9V NiMH battery through a 1000µF bulk capacitor. Add a 100nF ceramic cap across each motor terminal to reduce brush interference. Route high-current traces (≥1.5mm wide) on the PCB top layer and keep sensor wiring under 10cm to minimize noise. Test on a matte-black track with white adhesive vinyl edges first–reflective surfaces require reduced sensor sensitivity via trimpot adjustments.

Critical debugging steps: verify IR emitter functionality with a smartphone camera showing a faint purple glow, and check motor direction by applying 3V briefly to each terminal. Log sensor values via UART at 9600 baud for calibration–target threshold values between 30-70% of the full ADC range (0-1023). For extended runtime, replace alkaline batteries with 18650 lithium cells (2200mAh) and add an MCP1700 LDO for efficient 5V conversion.

Autonomous Tracker Circuit Blueprint

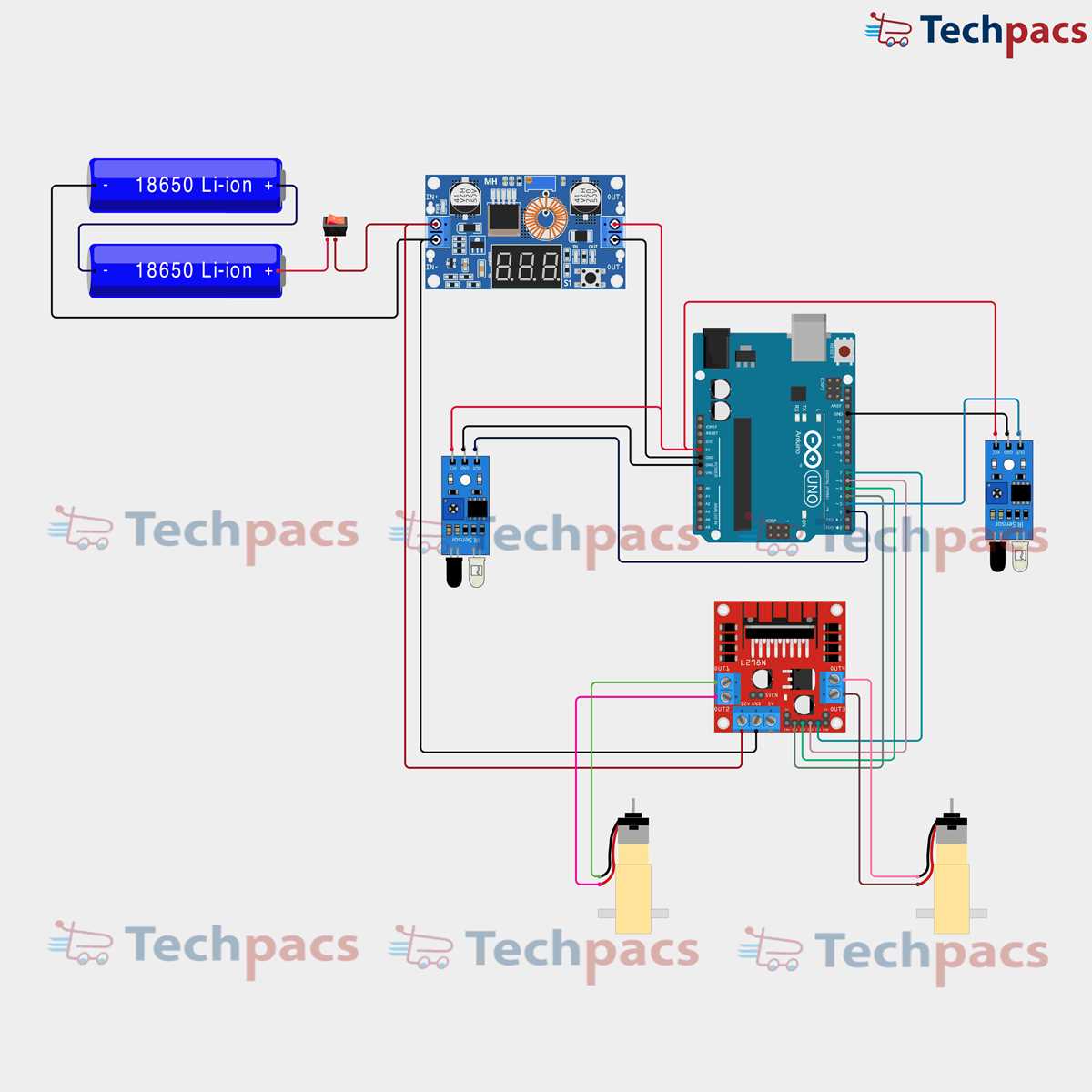

Start with a dual IR sensor array to detect path contrasts–position two TCRT5000 modules 15mm apart, centered over a 20mm-wide guideline. Connect each emitter to 5V via a 150Ω resistor, and tie the phototransistor collectors to analog inputs A0/A1 through 10kΩ pull-downs. This spacing minimizes cross-talk while allowing ±5mm tolerance for minor deviations. For microcontroller selection, prioritize an ATmega328P with 16MHz crystal for sufficient processing headroom–avoid ESP boards due to PWM latency in motor control loops.

Motor drive demands an H-bridge configuration; use a DRV8833 module with 3A continuous current per channel. Wire left/right DC motors (6V, 200RPM) to OUT1/OUT2, with IN1/IN2 controlled via PWM on pins D5/D6 (1kHz frequency). Include flyback diodes (1N5822) across motor terminals to suppress inductive spikes. For power distribution, split a 7.4V LiPo battery through separate 5V (AMS1117) and motor regulators to prevent brownouts during acceleration.

Critical Circuit Optimizations

• Sensor calibration: Implement software-defined thresholds (0–1023 ADC range) dynamically adjusted during a 3-second startup sweep–static thresholds fail on variable surfaces.
• Ground planes: Dedicate a copper pour under sensors and motor traces to reduce noise; stitch voids with 0.1µF capacitors every 50mm.
• Feedback loop: Augment IR data with wheel encoders (TCRT5000 + slotted disc) for closed-loop PID tuning–proportional gain of 0.5, integral of 0.1, derivative of 0.05.
• Fail-safes: Add a physical kill switch (SPDT) and hardware watchdog (NE555) resetting the MCU if no sensor updates occur within 200ms.

For PCB layout, route sensor traces as differential pairs with 45° angles–avoid 90° bends to reduce capacitance. Place decoupling capacitors (10µF + 0.1µF) within 2mm of IC power pins. If using protoboard, ensure continuous ground runs beneath the entire chassis; star grounding at the battery negative terminal prevents ground loops. Test iterations should include a dark/light surface matrix (matte black, glossy white, gray gradients) to validate sensor robustness–adjust emitter current if reflections exceed 80% of the ADC range.

Optimal IR Sensor Configuration for Precision Path Tracking

Mount three to five IR reflectance modules in a staggered array with 15–20 mm spacing between centers. Position the outer sensors at ±12–18 mm from the chassis midline to capture edge deviations before the central module loses contact. Offset alternate sensors by 3–5 mm forward or backward to eliminate blind spots during sharp curves.

Sensor Height and Angle Adjustments

Fix sensors 6–10 mm above the surface; closer risks ambient light interference, farther reduces reflected signal strength. Tilt each emitter-receiver pair 5–10° inward toward the chassis centerline to focus detection under 20 mm wide paths. Verify tilt by measuring reflected intensity at 5 mm increments; peaks should occur between 8 and 12 mm from the module base.

Select TCRT5000 or QRE1113 for 950 nm wavelength; shorter wavelengths scatter more on rough surfaces, longer wavelengths penetrate shallow marks. Match emitter forward current to 15–25 mA; lower risks insufficient reflection on dark segments, higher risks saturating the phototransistor. Calibrate each module independently–record ambient, white, and black floor values to set adaptive thresholds.

Dynamic Calibration and Redundancy

Implement a two-stage calibration routine: static white/black scan at power-on, then continuous rolling averages during operation. Use a moving window of 10 samples per sensor to filter sudden signal drops from debris or uneven junctions. Cross-reference outer sensors against central readings; discrepancies exceeding 12% indicate lateral drift requiring corrective action.

Test configurations on paths with junctions, inclines, and gaps ≤3 mm. Staggered arrays detect transitions 40% faster than linear setups on 90° turns. Log sensor readings at 100 Hz during trials; histogram analysis reveals optimal spacing for your environment. Replace any module whose median reflection varies >8% from the group mean to ensure consistent responsiveness.

Designing a Motor Driver Circuit for Precise Autonomous Vehicle Motion

Select an H-bridge IC with continuous current ratings at least 30% above your motors’ stall current. The DRV8871 (3.6A) or TB6612FNG (1.2A per channel) offer built-in protection against overcurrent, thermal shutdown, and shoot-through–critical for maintaining torque consistency under dynamic loads. Ensure the chosen IC supports PWM frequencies up to 20 kHz to minimize audible noise while allowing fine-grained speed control.

Implement dead-time control between high-side and low-side MOSFET transitions to prevent cross-conduction. For discrete designs, use gate drivers like the IR2104 with 100–200 ns dead-time settings. This prevents momentary shorts that degrade efficiency and generate heat, particularly during direction reversals where back EMF spikes are highest.

Incorporate current sensing using a 0.1Ω shunt resistor in series with each motor lead, paired with an instrumentation amplifier (e.g., INA193) configured for 10x–20x gain. Sample the voltage at >1 kHz to detect sudden load changes–this data enables adaptive PWM adjustments, reducing overshoot during sharp turns or inclines. Calibrate the amplifier’s offset to ±5 mV for accuracy.

Thermal Management and Component Placement

Mount the motor driver IC on a 2 oz copper PCB with thermal vias beneath the pad, extending to a heatsink or chassis ground. The DRV8871’s thermal resistance is 45°C/W; at 2A sustained, expect a 90°C rise without heatsinking. Use a 10mm² exposed pad under the IC and connect it to a dedicated ground plane via four 0.3mm vias. Avoid routing high-current traces (V_motor, GND) near sensitive analog lines.

Add a 100nF X7R ceramic capacitor in parallel with each motor terminal and a 10µF electrolytic capacitor on the driver’s power input. Locate these within 5mm of the IC pins to suppress voltage spikes >10V, which can trigger false overcurrent protection. For brushed motors, reverse-polarity diodes (e.g., 1N5822) should handle peak currents at least 2x the motor’s stall current.

Use separate traces for logic (µC) and power (motor) grounds, joining them only at a single star point near the driver’s ground pin. This prevents ground bounce from corrupting encoder or sensor readings. For dual-motor systems, route traces symmetrically to minimize differential voltage errors. A 1Ω resistor in series with the motor’s positive lead helps isolate electrical noise from the rest of the circuit.

Test the driver under worst-case conditions: full load, maximum PWM duty cycle, and sudden direction changes. Measure voltage ripple on the motor terminals with an oscilloscope (50MHz bandwidth); spikes >0.5V above the supply voltage indicate insufficient decoupling. Log temperature rise over 10 minutes–if exceed 60°C, revisit heatsinking, current limits, or PWM frequency.

Selecting Microcontroller Pin Connections for Sensor and Actuator Control

Assign interrupt-capable pins to reflectance array signals to minimize latency. STM32F103C8T6’s PA0–PA3 and PB6–PB9 support external interrupts–map IR sensors here for edge detection. Prioritize rising/falling edge triggers over polling to reduce CPU overhead. For AVR ATmega328P, use INT0 (PD2) and INT1 (PD3) with PCINT2 for additional sensors if needed.

Dedicate hardware PWM pins to motor drivers for precise speed modulation. ESP32’s MCPWM module supports complementary outputs (e.g., GPIO 25–27) for H-bridge control. Avoid software PWM–use dedicated timer channels (e.g., TIM2 on STM32) with 10–20 kHz frequencies to eliminate audible noise. For 12V motors, ensure MOSFET drivers (e.g., DRV8833) align with 3.3V/5V logic levels of the MCU.

Pin Mapping for Common Configurations

Component	STM32F103 (Pin)	ATmega328P (Pin)	ESP32 (Pin)	Constraints
IR Sensor 1 (Analog)	PA0	PC0 (ADC0)	GPIO 34	12-bit ADC (STM32/ESP32), 8-bit (ATmega)
IR Sensor 2 (Digital)	PB6	PD4	GPIO 16	External interrupt enabled
Motor A PWM	PA8 (TIM1_CH1)	PD5 (OC0B)	GPIO 26 (MCPWM)	16-bit timer (STM32), 8-bit (ATmega)
Motor A Direction	PB0	PD6	GPIO 25	Push-pull output, 20mA drive
I2C (OLED/IMU)	PB10 (SCL), PB11 (SDA)	PC4 (SDA), PC5 (SCL)	GPIO 21, GPIO 22	400 kHz fast mode, pull-ups 4.7kΩ

Reserve ADC pins for voltage monitoring. A battery divider (e.g., 10kΩ/2.2kΩ) connected to STM32’s PA4 (12-bit) or ATmega328P’s ADC6 ensures

Group communication interfaces to minimize pin usage. SPI for high-speed peripherals (e.g., flash memory) uses PA5–PA7 (STM32) or PB3–PB5 (ATmega) with hardware NSS. For UART debugging, TX/RX pins (STM32: PA9/PA10, ESP32: GPIO 1/3) should avoid conflict with USB-to-serial converters. Disable JTAG (STM32: AFIO->MAPR) to free PA13–PA15 if needed.

Grounding and Decoupling

Route analog and digital grounds separately, tying them at a single star point near the MCU. Decouple power pins (VDD/VSS) with 0.1µF ceramics placed
