Step-Up Converter LM2577 Application Circuit Schematics and Design Guide
For reliable 5V to 12V voltage conversion at currents up to 2A, integrate the switching regulator IC alongside a 1N5822 Schottky diode, a 100μH inductor, and a 33μF output capacitor rated for at least 25V. Position the input capacitor (22μF, 50V) within 5mm of the IC’s power pins to suppress noise and ensure stable operation. Ground connections must be short, direct, and routed to a single star point to prevent ground loops.
Select components based on calculated ripple: inductor current ripple peaks at 30% of the output current, so a 2A load requires a 6A-rated inductor. The feedback resistors (10kΩ and 2.2kΩ) set the output voltage but introduce thermal drift–use 1% tolerance or better to maintain accuracy across temperature variations. For transient response, increase the output capacitance to 47μF if load steps exceed 500mA/μs.
Thermal management demands a copper pour of at least 10cm² under the IC when dissipating over 1W. Exceeding 85°C junction temperature reduces efficiency by 5% and shortens lifespan–add a small heatsink or rivet the IC to the PCB’s ground plane if ambient temperatures exceed 60°C. Testing under full load for 10 minutes validates stability before finalizing the PCB layout.
Noise suppression requires a snubber circuit (10Ω resistor + 100pF capacitor) across the diode for switching frequencies above 50kHz. Avoid placing the inductor near sensitive analog traces; shield it with a grounded copper barrier if crosstalk is detected. For low-voltage applications (below 4.5V input), replace the standard diode with a synchronous MOSFET to reduce forward-voltage losses by 30%.
Step-Up Converter Schematic: Hands-On Assembly Guide
Select a 52 μH inductor with saturation current exceeding 2.5 A for reliable operation at 12 V input. Windings should handle 3 A minimum; verify with an LCR meter post-soldering.
Place the boost switcher IC within 1 cm of the input capacitor to suppress high-frequency noise. Use a 22 μF ceramic cap rated for 25 V at the input; X7R dielectric prevents ripple amplification.
Connect the feedback pin to a 1.23 MΩ resistor divider. For 24 V output, pair it with a 91 kΩ resistor to ground. Trim values ±1% to avoid output drift.
Route power traces wider than 2 mm on 1 oz copper PCB. Keep switching node paths under 15 mm; longer leads invite ringing above 20 MHz.
Add a schottky diode rated 40 V/3 A on the output. Position it opposite the inductor to minimize loop area and EMI. Bypass with a 10 μF cap at the cathode.
Thermal Mitigation Techniques
Mount the regulator on a 3×3 cm aluminum pad with thermal via arrays. Drill 0.8 mm holes at 2 mm spacing; fill with solder for heatsinking up to 4 W dissipation.
Monitor output with a 10 kΩ pull-up on the enable pin. Toggle via MCU GPIO; delays beyond 10 ms risk inrush currents tripping over-current protection.
Validate performance with a 50 Ω dummy load. Sweep input from 5–15 V; acceptable ripple

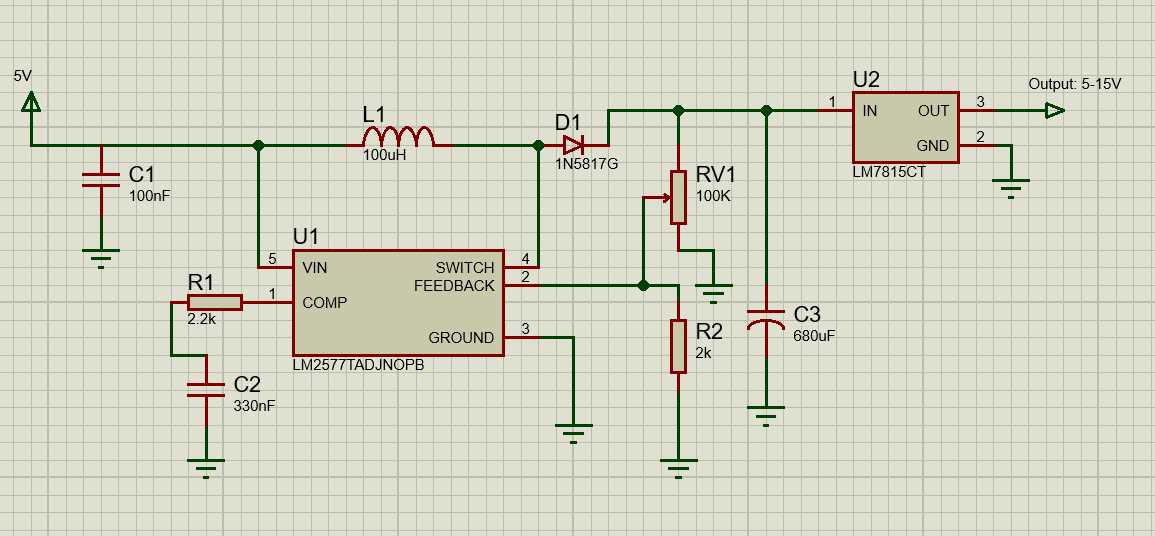

Key Components for an Adjustable Voltage Boost Module
Select an inductor with a saturation current rating at least 1.5 times the maximum expected input current. For most 3-5W applications operating at 125kHz, a 100µH ferrite-core inductor (e.g., Coilcraft MSS1038) prevents core saturation under full load while maintaining efficiency above 85%. Avoid powdered iron cores due to excessive core losses at frequencies above 100kHz, which reduce overall conversion efficiency by 3-7%.
Input and output capacitors must withstand voltages 20-30% above the maximum expected levels. A low-ESR 100µF electrolytic capacitor (e.g., Panasonic EEU-FC1V101) on the input minimizes voltage ripple to under 30mV peak-to-peak. For the output, combine a 47µF low-ESR tantalum or ceramic capacitor with a 1µF MLCC to suppress high-frequency noise. Ensure the dielectric material of ceramic capacitors is X7R or better to avoid capacitance derating at elevated temperatures.
| Component | Recommended Specifications | Purpose |
|---|---|---|
| Inductor | 100µH, 1.2A saturation, ferrite core | Energy storage, prevents core saturation |
| Input Capacitor | 100µF, 35V, low ESR | Stabilizes input voltage, reduces ripple |
| Output Capacitor | 47µF + 1µF, 50V, X7R dielectric | Filters output, suppresses high-frequency noise |
| Diode | Schottky, 1A, 40V reverse voltage | Fast switching, minimizes conduction losses |
Schottky diodes with a forward voltage drop below 0.45V (e.g., ON Semiconductor MBR140P) are critical for minimizing conduction losses. Standard silicon diodes increase power dissipation by 15-20% due to higher forward voltage drops. Ensure the reverse voltage rating exceeds the maximum output voltage by 50% to prevent breakdown during transient conditions. Position the diode as close as possible to the switching element to reduce parasitic inductance.
Feedback resistors should be precision thin-film types with a tolerance of 1% or better to maintain output voltage accuracy within ±2%. Calculate values using the formula R1 = R2 × (Vout/Vref − 1), where Vref is 1.23V. For a 12V output, use a 2.2kΩ resistor for R2 and an 18.7kΩ resistor for R1. Avoid carbon-film resistors as their temperature coefficient can shift output voltage by up to 5% over a 50°C range.
Thermal management requires a copper pour beneath the switching regulator, sized to dissipate at least 0.5W of heat. For through-hole packages, extend the copper area to 2cm² per watt of expected dissipation. PCB traces carrying input and output currents should be at least 2.5mm wide for every ampere to prevent voltage drops. Ground planes should be solid and uninterrupted to minimize noise coupling into sensitive feedback nodes.
Determining Optimal Inductor and Capacitor Values for Reliable Power Conversion
Begin with the manufacturer’s switching frequency specification–typically between 52 kHz and 55 kHz for common boost regulators. Multiply the desired ripple current by 0.4 to establish the minimum inductance. For a 1 A output, an inductor rated 33 µH or higher prevents saturation while maintaining ripple below 300 mA. Verify core material; powdered iron tolerates higher DC bias than ferrite, reducing size without sacrificing stability.
Select input and output capacitors based on equivalent series resistance (ESR) rather than capacitance alone. A 47 µF low-ESR tantalum or ceramic capacitor stabilizes output voltage fluctuations within ±50 mV. For input filtering, pair a 10 µF ceramic with a 100 µF electrolytic to suppress high-frequency transients and extend regulator lifespan. Ensure capacitance tolerances stay below ±10% to prevent overshoot during load transients.
Inductance Calculation Adjustments for Load Variations
Scale inductance inversely with peak current demands. At 2 A output, decrease inductance to 22 µH to avoid core saturation; ripple current should not exceed 20% of load current. Use the formula L = (Vin × (Vout – Vin)) / (ΔIL × f × Vout), where f is the switching frequency. Measured DC resistance (DCR) of the inductor must stay below 0.1 Ω to minimize power losses.
Capacitor selection directly impacts transient response. During sudden load changes–from 0.1 A to 1 A–output capacitors must supply charge until the regulator reacts. A 100 µF low-ESR ceramic capacitor ensures recovery within 100 µs, critical for sensitive analog loads. Combine slow electrolytic capacitors for bulk storage with faster ceramics to dampen high-frequency noise without introducing phase lag.
Thermal and Layout Considerations for Component Placement
Place the inductor and output capacitors within 1 cm of the regulator’s feedback pin to minimize trace inductance. High-frequency current loops generate radiated noise; keep switching nodes compact, avoiding ground planes beneath them. Thermal vias under the regulator’s exposed pad improve heat dissipation, preventing derating at elevated temperatures. Test prototype stability with an oscilloscope, confirming the absence of ringing at turn-on and turn-off transitions.
Wiring the Feedback Resistor Network for Accurate Voltage Regulation
Select resistors with a tolerance of 1% or better to minimize output voltage drift. The divider network’s high-side resistor (R1) and low-side resistor (R2) define the regulated voltage via the equation Vout = Vref × (1 + R1/R2), where Vref is 1.23V. For 5V output, use R1 = 3.3kΩ and R2 = 1kΩ; adjust R1 proportionally for other voltages without exceeding 10kΩ to maintain stability.
Place R1 and R2 as close to the switching controller’s feedback pin as possible–trace length should not exceed 10mm–to prevent noise pickup. Route the feedback trace away from inductors, capacitors, or switching nodes to avoid induced errors. If physical constraints demand longer traces, add a 100pF ceramic capacitor directly between the feedback pin and ground to filter high-frequency disturbances.
Component Selection Criteria
Choose resistors with low temperature coefficients (≤50 ppm/°C) to ensure output consistency across operating temperatures. Thick-film or metal-film resistors offer superior stability over carbon types. For high-current applications, verify resistor power ratings: R1 and R2 typically dissipate ≤50mW, so 0402 or 0603 package sizes suffice unless ambient temperatures exceed 85°C, requiring derating.
If precise regulation is critical, calibrate the network using a precision multimeter. Connect a 10-turn potentiometer in series with R1, adjust until the measured Vout matches the target, then replace with a fixed resistor of equal value. For dynamic loads, a parallel 10nF capacitor on R2 improves transient response by speeding up error amplification, but values above 22nF risk loop instability.
Verify the completed network with an oscilloscope: noise on the feedback node should not exceed 50mVpp. If spikes persist, increase the feedback capacitor to 220pF or add a small ferrite bead (≤10Ω at 100MHz) in series with R1. Avoid large-value caps that slow the regulator’s response–balance speed and filtering empirically for best results.
