Simple LM358 Comparator Circuit Diagram Guide with Practical Examples
Begin with a non-inverting configuration when detecting threshold crossings–this ensures the input impedance remains high, minimizing signal distortion from sensor outputs like thermistors or load cells. Bias the reference voltage at half the supply range for maximum swing; for a 5V rail, set it to 2.5V using a simple resistive divider. Avoid exceeding 30kΩ in total resistance to prevent offset errors from input bias currents.
Use hysteresis to reject noise in switching applications. Add a 100kΩ feedback resistor between the output and non-inverting input for a 5V supply–this creates a 50mV deadband, sufficient for most 8-bit systems. Adjust the ratio for finer resolution if needed, but keep the feedback path short to avoid parasitic capacitance issues.
Power the dual-channel device with decoupling capacitors–0.1µF ceramic placed within 2mm of the power pins and a 10µF tantalum for low-frequency stability. Ground the negative rail directly to the system ground plane, not through vias, to prevent ground loops when comparing signals near the negative reference.
For transient response evaluation, connect a 1kHz square wave to the non-inverting input with a 100nF coupling capacitor. Monitor the output rise time with a 10× oscilloscope probe; typical values range between 0.3µs to 1.5µs depending on load capacitance. If response is sluggish, reduce the load resistance below 1kΩ or increase supply voltage to 12V.
When interfacing with logic gates, clamp the output with a Schottky diode to the positive rail–this prevents overshoot above the logic high threshold. For open-collector outputs, pull up with 4.7kΩ to 3.3V if the downstream circuit requires TTL levels.
Test stability by injecting a 1Vpp sine wave at 10kHz into the inverting input while maintaining a fixed reference–output should mirror the input without phase lag. If oscillations occur, increase the feedback resistor or add a small phase-lead capacitor (10pF–100pF) in parallel to the feedback path.
Building Reliable Signal Assessment Setups: A Hands-On Approach
Start by selecting resistors with a 1% tolerance for consistent threshold behavior. A 10kΩ reference divider paired with a 4.7kΩ feedback resistor ensures hysteresis of approximately 30mV, preventing false toggling near the switching point. Place a 0.1µF decoupling capacitor within 2mm of the chip’s power pins to stabilize transient responses.
Input signals exceeding the supply voltage by more than 0.3V risk damaging internal ESD protection. Clamp inputs with Schottky diodes tied to VCC and ground if driving from sources above 5V. The internal offset typically ranges 1–7mV–calibrate thresholds accordingly or use a trimmer if precision below 5mV is critical.
| Condition | Recommended Capacitor | Placement Rule |
|---|---|---|
| Single-ended input | 470pF–1nF | Across input and ground |
| Differential pairs | 22pF–100pF | Between inputs |
| High-impedance sources | 10nF–100nF | At source output |
Power supplies below 3V degrade output swing–expect high-level outputs to drop 0.5V from rail. For rail-to-rail performance above 5V, bypass both supply pins with 1µF ceramic capacitors. Avoid capacitive loads above 500pF on outputs; buffer with a small-signal BJT or MOSFET if driving cables or LED indicators.
Ground loops distort reference levels–route analog and digital grounds separately and star-connect at the power entry. Keep trace lengths under 5cm for high-speed toggles to minimize inductive pickup. If soldering by hand, use a 30W iron and limit dwell time to 3 seconds to prevent die damage.
Test setups with a 1kHz triangular wave centered at half the supply voltage. Observe output rise/fall edges on a scope–symmetry confirms balanced input stages. Asymmetry >50ns suggests parasitic capacitance or improper decoupling. Inject known DC levels to measure actual trip points; factory 2mV/°C drift may require temperature compensation for long-term stability.

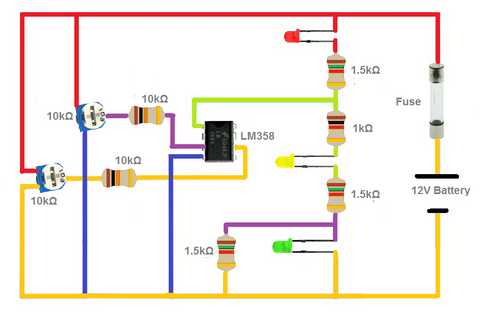

Dual-channel variants enable window detection by wiring one stage as a lower comparator and the other as upper. Tie the common reference to a voltage divider and connect outputs to an AND gate for clean window triggering. Add 10kΩ pull-ups if interfacing with microcontrollers lacking internal pull resistors.
Evaluate noise immunity by injecting 100mVPP 50Hz interference on the input while toggling a 1Hz square wave. The output should remain steady if hysteresis and decoupling are adequate. Failures typically stem from missing feedback resistors or capacitors placed beyond 1cm from the chip.
Assembling a Dual-Op-Amp Signal Threshold Detector on a Prototyping Board
Gather a dual-channel operational amplifier chip, two resistors (10kΩ and 1kΩ), a potentiometer (10kΩ), a light-emitting diode, a 9V battery connector, jumper cables, and a prototyping surface. Position the chip in the center of the board with pin 1 facing the top-left corner–this ensures proper pin alignment for later connections. Connect the inverting input (pin 2) to the wiper of the potentiometer, which will set the reference voltage. The non-inverting input (pin 3) should link to the signal source, such as a thermistor or photoresistor, via another jumper cable. For testing, attach the 1kΩ resistor to the output (pin 1) and then to the LED’s anode; the cathode grounds through a 220Ω resistor.
Adjusting Voltage Levels and Verifying Output
Power the setup with a 9V supply–positive to pin 8, ground to pin 4. Rotate the potentiometer to find the switching point: the LED should toggle when the input voltage crosses the reference threshold. If the LED stays off, swap the input connections at pins 2 and 3–this forces the amplifier to respond to the opposite voltage difference. Use a multimeter to measure the voltage at the wiper; a value between 0V and 4.5V ensures the chip operates within its single-supply limits. For dual-power configurations, replace the 9V battery with ±5V rails, but remember to adjust resistor values to prevent output saturation near the rails.
Troubleshoot flickering LEDs by adding a 0.1µF decoupling capacitor between pin 8 and ground–this stabilizes the supply voltage during rapid transitions. To expand functionality, daisy-chain the second channel: connect its inverting input (pin 6) to a second reference voltage, and link the non-inverting input (pin 5) to another sensor. The output (pin 7) can drive a relay or buzzer, creating a multi-threshold system. Avoid exceeding the chip’s output current limit of 20mA–use a transistor or MOSFET for higher loads.
Key Components and Their Roles in a Dual-Op-Amp Signal Evaluation Setup
Select a precision voltage reference IC like the TL431 to establish a stable threshold. Its 2.5V regulated output eliminates fluctuations from supply variations, ensuring consistent switching behavior in fast-response designs. Pair it with a 0.1μF decoupling capacitor placed within 2mm of the IC’s power pins to filter high-frequency noise, critical for sub-millisecond response times.
Use low-tolerance resistors (1% or better) for the feedback and input networks to maintain accuracy. A 10kΩ input resistor and a 100kΩ feedback resistor create a gain of 10, amplifying minor voltage differences for reliable detection. Avoid carbon-film types–their thermal coefficient can drift thresholds by up to 300ppm/°C under load. For dynamic signals, include a 1nF polyester capacitor across the feedback resistor to dampen ringing without inducing phase lag.
Opt for rail-to-rail output op-amps if your application demands full-scale swings. Even in single-supply 5V systems, components like the MCP6002 can drive outputs within 50mV of ground, eliminating the need for pull-up resistors. For power-sensitive designs, disable unused sections of multi-unit packages by tying their outputs to mid-rail, reducing quiescent current to 1μA without sacrificing speed.
Ground the non-inverting input of unused units to the star ground point to prevent false triggers from floating inputs. When interfacing with digital logic, insert a 1kΩ series resistor to clamp current surges during transitions, protecting both the op-amp and downstream ICs. For differential signals, balance input impedances–mismatches as small as 5% can introduce errors exceeding 20mV when processing microvolt-level inputs.
Step-by-Step Wiring for a Dual-Op-Amp Voltage Threshold Detector
Begin by connecting the power supply: apply a stable 5V DC to the positive rail and ground to the negative rail. Ensure the IC’s power pins–pin 8 (V+) and pin 4 (V-)–are directly tied to these rails without intermediate components. Bypass capacitors (0.1µF ceramic) must be placed as close as possible to these pins to filter noise.
Select the input signal reference: wire a voltage divider using two resistors (e.g., 10kΩ each) between V+ and ground to set a precise midpoint (2.5V). This node will serve as the non-inverting input (pin 3) for the first amplifier stage. The inverting input (pin 2) receives the monitored signal via a 1kΩ current-limiting resistor.
Configure the feedback network for hysteresis: add a 100kΩ resistor between the output (pin 1) and the non-inverting input (pin 3). This prevents output oscillation near the threshold. For cleaner response, include a 10kΩ pull-up resistor from the output to V+ if driving a logic load.

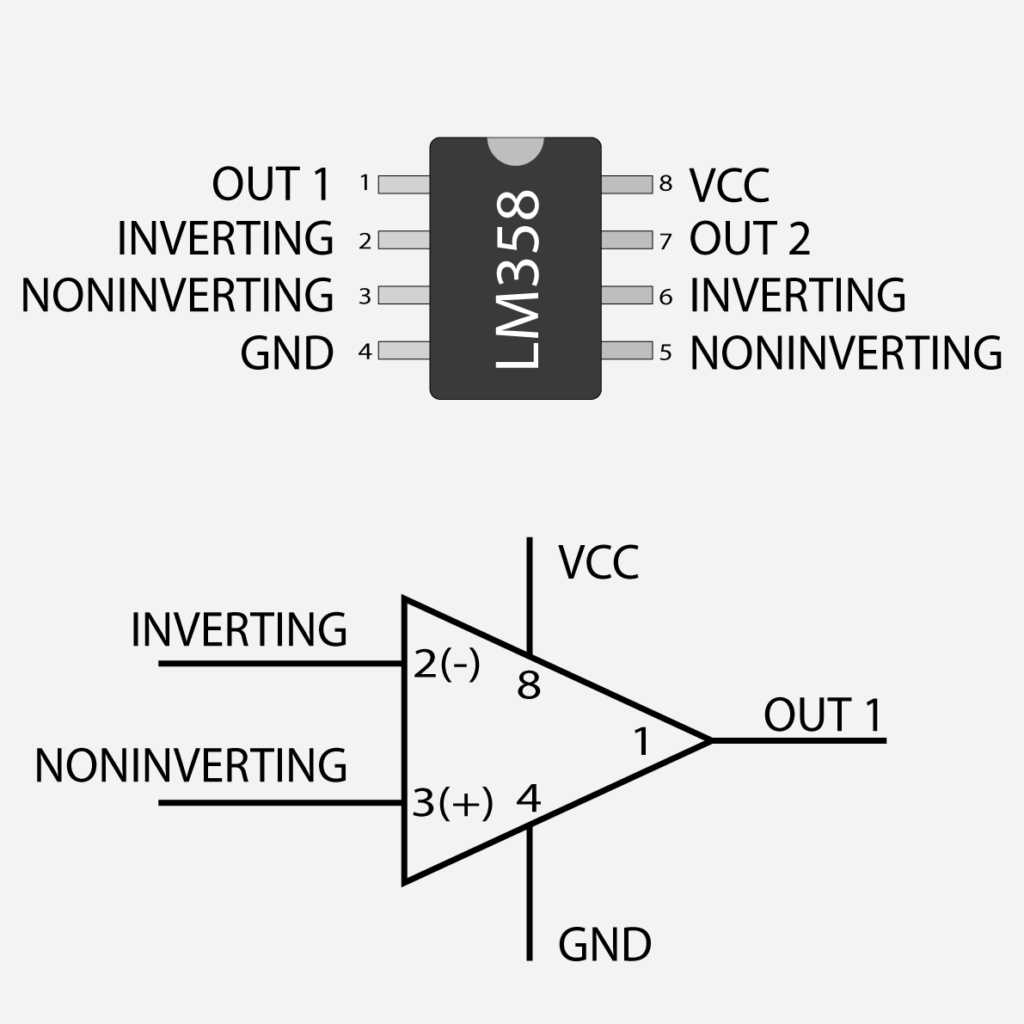

Critical Connections Summary
- Pin 8 → V+ (5V) + 0.1µF bypass capacitor.
- Pin 4 → Ground.
- Pin 3 → Midpoint of voltage divider (reference voltage).
- Pin 2 → Monitored signal through 1kΩ resistor.
- Pin 1 → Output with 100kΩ feedback + optional 10kΩ pull-up.
Test the setup with a multimeter: apply a slowly varying voltage (0V to 5V) to pin 2. The output should transition sharply at the reference voltage (e.g., 2.5V) ± hysteresis margin (~50mV). If oscillation occurs, reduce the feedback resistor value incrementally (down to 47kΩ).
For dual-channel operation, replicate the configuration on pins 5 (non-inverting), 6 (inverting), and 7 (output). Ensure input signals and reference voltages are isolated to avoid crosstalk. Use separate bypass capacitors for each channel if high-frequency signals are involved.
