Complete Guide to Load Cell Circuit Design and Wiring Schematics
Begin with a Wheatstone bridge configuration for accurate strain gauge readings. Select resistors with a tolerance of ±0.1% to minimize zero drift–key for repeatable measurements. Use a 24-bit ADC like the ADS1231 to capture microvolt-level signals without amplification noise. Ground the excitation voltage at 5V ±0.5% to avoid thermal drift; opt for a low-dropout regulator (LDO) if battery stability is critical.
Connect the differential output directly to an instrumentation amplifier with ≥120 dB CMRR, like the INA333, to reject common-mode interference. Keep trace lengths under 5 cm between the gauge and amplifier to prevent signal attenuation. For dynamic applications, add a 100 nF ceramic capacitor across the amplifier’s input pins to filter high-frequency noise without phase shift.
Power the system with a dual ±12V supply if measuring compressive and tensile forces. For single-supply setups, bias the midpoint to VCC/2 using a precision voltage divider. Calibrate with shunt resistors matching the gauge’s nominal impedance–typically 350 Ω–to simulate full-scale output without physical load. Log data at ≥10 SPS to detect transient forces, but increase to 80 SPS for impact testing.
Avoid soldering directly to the gauge; use a 4-wire Kelvin connection to separate excitation and signal paths. Shield cables with braided copper and twist pairs at ≤2 cm pitch to cancel magnetic interference. Test with a 1 kHz square wave to verify response linearity–nonlinearity above 0.05% indicates misalignment or weak adhesion of the gauge to the substrate.
Force Measurement Sensor Wiring Guide
Begin by connecting the strain gauge bridge to a precision instrumentation amplifier like the INA125P, configured for a gain of 100–500 depending on signal strength. Use shielded twisted-pair cables (AWG 24–28) for excitation and output lines to minimize electromagnetic interference from nearby motors or switching regulators. Ground the shield at a single point near the amplifier’s negative terminal to prevent ground loops.
For excitation, a stable 5V–12V DC source is critical–linear regulators (e.g., LM7805) outperform switch-mode supplies in noise-sensitive setups. Add a 10μF tantalum capacitor across the excitation pins at the sensor’s connector to filter high-frequency transients. Below is a reference pinout for common 4-wire configurations:
| Pin | Function | Typical Wire Color |
|---|---|---|
| 1 | Excitation + | Red |
| 2 | Output + | Green |
| 3 | Excitation – | Black |
| 4 | Output – | White |
Signal conditioning should include low-pass filtering (RC cutoff at 10–50Hz) before analog-to-digital conversion. A 24-bit ADC (e.g., ADS1231) provides sufficient resolution for millivolt-level signals without amplification. Calibrate the system using known weights: apply zero and full-scale forces, then use linear regression to map ADC counts to engineering units.
Isolate digital interfaces with optocouplers or digital isolators (e.g., ISO7720) if the sensor shares a ground with high-current electronics. Avoid routing excitation traces near switching power supply traces on a PCB–keep them at least 5mm apart with dedicated ground planes. For battery-powered setups, incorporate a low-power standby mode: use a MOSFET to cut excitation current while monitoring for threshold crossings via a comparator.
Key Elements of a Force Measurement System
Begin by selecting a strain gauge with a resistance between 350Ω and 1000Ω–higher values reduce heat dissipation and improve stability. Pair it with a precision instrumentation amplifier (e.g., INA125 or AD8221) with a gain adjustable via a single resistor, ensuring at least 16-bit resolution for accurate weight sensing.
- Amplifier: Choose a model with low input noise (≤10nV/√Hz) and rail-to-rail output to maximize signal clarity.
- Bridge completion resistors: Use 0.1% tolerance or better to minimize zero-balance errors.
- Excitation source: Stabilize at 5–10V DC with
Ground the system at a single point to avoid ground loops–typically at the amplifier’s reference pin. Route signal traces away from noisy components (e.g., relays, microcontrollers) and use shielded cables for runs exceeding 30cm. For environments with EMI, add a low-pass filter (≤10Hz) post-amplification to reject high-frequency interference.
Ensure the analog-to-digital converter (ADC) has a sampling rate ≥10× your required measurement speed. For dynamic applications (e.g., impact testing), prioritize ADCs with simultaneous sampling or dual channels to capture transient forces accurately. Calibrate each assembly using deadweights traceable to NIST standards–linearity errors below 0.02% FS are achievable with proper setup.
- Check excitation voltage drift: Perform a zero-reading test after 30 minutes of power-on to confirm thermal stability.
- Test noise margins: Tap the sensor lightly; outputs exceeding 0.01% FS indicate inadequate shielding or loose connections.
- Validate with software: Implement 5-point linear regression in code to compensate for sensor nonlinearity without hardware tweaks.
Step-by-Step Wiring for a Single-Point Weight Sensor
Begin by identifying the four colored wires on your strain gauge: excitation (+), excitation (-), signal (+), and signal (-). Most precision transducers use red for excitation (+), black for excitation (-), green for signal (+), and white for signal (-). Verify these colors against the datasheet–deviations exist in some models, particularly those from Asian manufacturers where blue may replace black.
Connect the excitation wires to a stable 5V DC source, ensuring current does not exceed 20mA to prevent overheating. Use a voltage regulator like LM7805 if your power supply fluctuates beyond ±0.1V. Solder the red wire to the positive terminal and the black (or blue) wire to the negative, keeping leads under 30cm to minimize noise pickup from electromagnetic interference.
Attach a 10kΩ resistor in parallel with the signal wires to create a half-bridge configuration, balancing the output voltage around 2.5V for zero-force readings. For higher accuracy, add a 1kΩ trimmer potentiometer between the green and white wires, adjusting until the output voltage matches exactly half your excitation voltage (2.5V for 5V input).

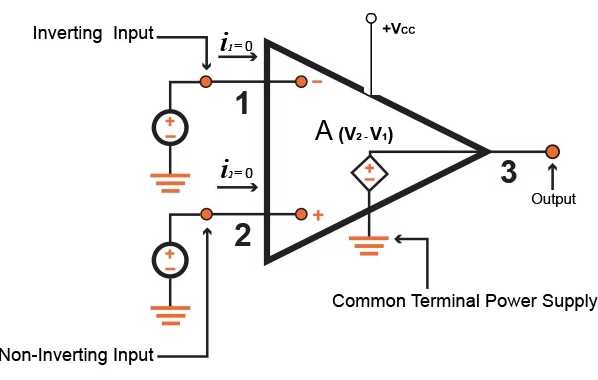

Route the signal wires through a twisted-pair cable with at least 24 AWG gauge to reduce RF interference. Shield the cable with grounded copper braid, connecting the shield to the instrument’s ground but not to the transducer’s housing–this prevents ground loops. For distances over 2 meters, use a differential amplifier with a gain of 1000 near the measurement device to boost the millivolt-level signal before digitization.

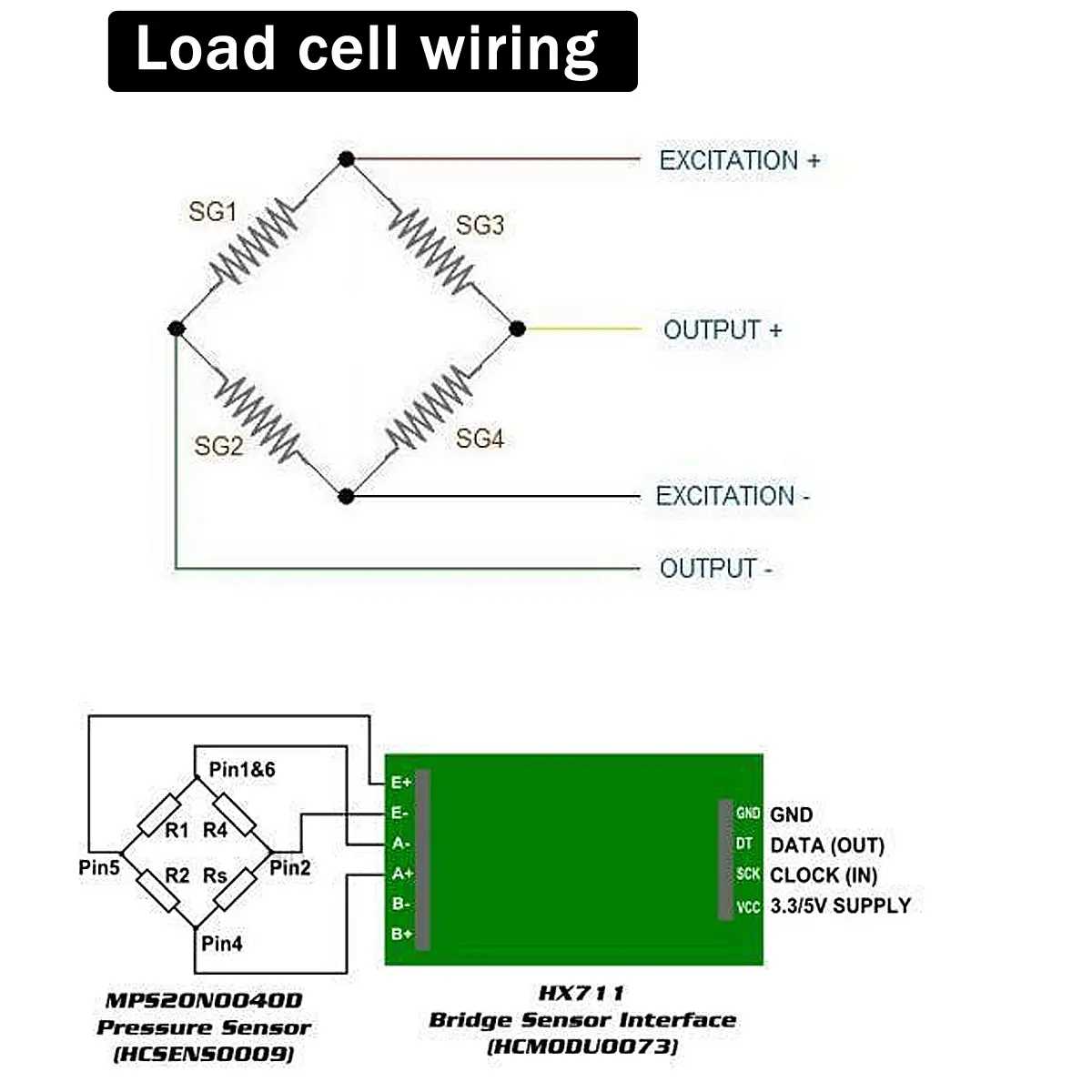

Ground the entire setup at a single point, preferably at the analog-to-digital converter (ADC) ground pin, to avoid potential differences. If using an HX711 amplifier, connect the E+ and E- terminals to the excitation wires, A+ and A- to the signal wires, and B+ and B- to an optional second sensor–leave these unconnected if unused. Calibrate by applying known weights (e.g., 100g, 1kg) and adjusting the digital scale factor until readings stabilize.
Test for stability by reading the output over 30 seconds with no applied force–drift should not exceed ±2 microvolts. If drift occurs, isolate the sensor from thermal gradients or vibration. For dynamic measurements, add a low-pass filter with a cutoff frequency of 10Hz to eliminate high-frequency noise while preserving response time.
How to Combine Several Weighing Sensors in a Single Output Configuration
Use identical transducers with matching electrical characteristics to avoid signal imbalance. Connect all positive excitation wires together and all negative excitation wires together–this maintains consistent voltage across the array. For signal lines, join all positive outputs at one junction and all negative outputs at another. This approach reduces errors caused by differing sensitivities between devices.
Strain-based measurement elements typically require a summing junction to merge outputs. Construct a star configuration where each sensor’s signal wires meet at a central node, then route the combined output to the amplifier. A 1 kΩ resistor on each signal line before the junction helps isolate noise and stabilizes readings. Avoid exceeding the amplifier’s input impedance–consult datasheets to ensure compatibility.
Calibrate the grouped setup by placing a known mass on the platform and adjusting the gain until the readout matches the expected value. Repeat this process at different weight points to verify linearity. Use shielded twisted-pair cables for all connections, grounding the shield at a single point near the amplifier to minimize interference from electromagnetic sources.
For high-precision applications, add a trimming potentiometer (10–50 kΩ) in series with one sensor’s signal line. This allows fine-tuning of individual contributions if minor mismatches persist. Monitor the excitation voltage under load; a drop below 0.5 V from the nominal value may indicate excessive current draw, requiring a higher-capacity power supply.
Test the configuration with dynamic loads–rapid changes should produce smooth transitions on the output. Sudden jumps or oscillations suggest wiring errors or insufficient isolation between channels. Avoid parallel connections with sensors from different manufacturers or batch numbers, as minor variations in temperature drift or creep behavior can degrade long-term accuracy.
Troubleshooting Combined Sensor Arrays
If readings drift unpredictably, check for loose connections at the junctions–oxidation or corrosion on terminals can introduce resistance. Verify excitation voltage stability with a multimeter; fluctuations above 0.1% will propagate directly to the output. Replace any cables longer than 5 meters with lower-gauge wire (22 AWG minimum) to reduce voltage drop over distance.
Critical: Never mix sensors with different nominal capacities in parallel. A 10 kg unit paired with a 100 kg unit will skew readings disproportionately, as the smaller sensor saturates before the larger one contributes meaningfully. For mixed ranges, use separate amplification channels and sum digitally.
