Creating and Understanding Logic Gate Circuit Diagrams Step by Step

Begin by selecting a standardized symbol set before drafting any layout. ANSI/IEEE 91-1984 and IEC 60617-12 provide definitive guidelines for depicting functional blocks–use them as a baseline. Avoid creative variations unless documenting custom IC implementations where deviations are justified. Ensure each symbol’s shape and pin arrangement matches the specified truth table to prevent misinterpretation during prototyping.

For NOT operations, place the inverter symbol (triangle with a small circle) directly after the input node. Maintain a 1:1 ratio between input and output traces, keeping traces perpendicular where possible to reduce noise coupling. Ground reference points should be visibly connected to a common plane, especially in high-speed designs–skip this, and signal integrity degrades at frequencies above 10 MHz.

Combine AND and OR blocks in sequences by chaining outputs to inputs via short, direct paths. When cascading multiple stages, insert a 1 kΩ pull-up resistor on intermediate nodes if open-collector outputs are involved–this stabilizes logic levels during transitions. Label every input and output with both signal name and voltage domain (e.g., “A_in (3.3V_TTL)”) to cross-check compatibility between components.

Dual-rail designs demand clear power supply annotations. Mark V_CC and V_SS with arrows indicating voltage potential relative to ground. Capacitive decoupling is non-negotiable: place a 0.1 µF ceramic capacitor within 2 cm of every IC’s power pin, paired with a 10 µF tantalum capacitor if bulk storage is needed. Ignoring this leads to unpredictable glitches during switching.

Trace routing follows hierarchy: prioritize clock signals first, followed by control lines, then data paths. Keep high-impedance inputs shielded or guarded with grounded tracks on either side–this mitigates crosstalk in mixed-signal environments. For differential pairs, maintain consistent spacing (100 mils for 50 Ω impedance) and avoid 90° bends; use 45° angles or curved traces instead.

Thermal considerations dictate component spacing. Logic families like 74LSXX and CD4000 have different thermal envelopes–consult the datasheet’s θ_JA value and fan-out limitations before positioning ICs. Heatsinks are rarely needed for standard packages (DIP, SOIC), but derate power by 20% if the ambient temperature exceeds 50°C.

Building Binary Circuits: Key Symbols and Connections

Start with standardized symbols for binary operators to ensure clarity. Use the following notations:

• AND operator: A flat-topped rectangle with curved sides
• OR operator: A concave arc on the input side, convex on the output
• NOT operator: A triangle with a small circle at the output tip
• NAND/NOR operators: Combine AND/OR shapes with a circle at the output
• XOR operator: OR shape with an additional curved line on the input side

Place input lines on the left, output lines on the right. Avoid diagonal connections–use orthagonal pathways to prevent misinterpretation.

For complex setups, label each signal path with a unique identifier. Use V_CC for power rails and GND for ground, positioning them vertically aligned on opposite sides of the layout. Keep connection crossings to a minimum; when unavoidable, use a small semicircle to indicate non-contact jumps over another line.

Select component values based on intended voltage levels. For TTL-based operators:

• Use 5V for V_CC with 1kΩ pull-up resistors on inputs
• Limit series resistors to 470Ω when interfacing with LEDs
• Apply 0.1μF decoupling capacitors near each IC power pin

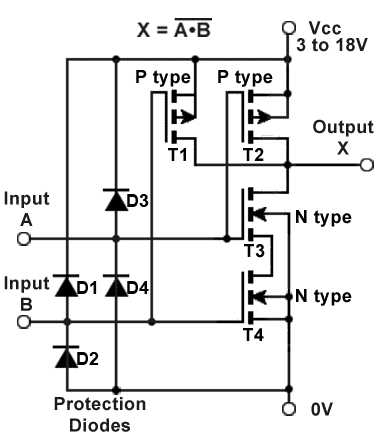

CMOS variants require different handling:

• Operate at 3–18V with direct input connections
• Include 10–100kΩ pull-down resistors if inputs float
• Use 0.01μF bypass capacitors for noise suppression

Group related operators into functional blocks. Encapsulate arithmetic units, memory elements, or multiplexing networks within dashed rectangular outlines. Add a brief descriptive label above each block (e.g., “4-bit adder,” “SR latch”) in bold, 8-point font. Space blocks at least 20mm apart to accommodate annotation and debugging probes.

Verify propagation delays before finalizing connections. For 74HC series at 5V, expect:

• AND/OR: 8–12ns
• NOT: 5–7ns
• NAND/NOR: 7–10ns

Adjust clock speeds accordingly–keep cycle times at least twice the longest delay within any signal path. Document all timing constraints in a separate margin note for troubleshooting.

Implement test points strategically:

• Insert 1mm-diameter circular pads at:

1. All primary inputs/outputs
2. Intermediate nodes critical for signal integrity
3. Clock and reset lines
4. Feedback loops in sequential networks

Align pads vertically for consistent probe access

Label each pad with a sequential reference (TP1, TP2, etc.) in 6-point font beneath

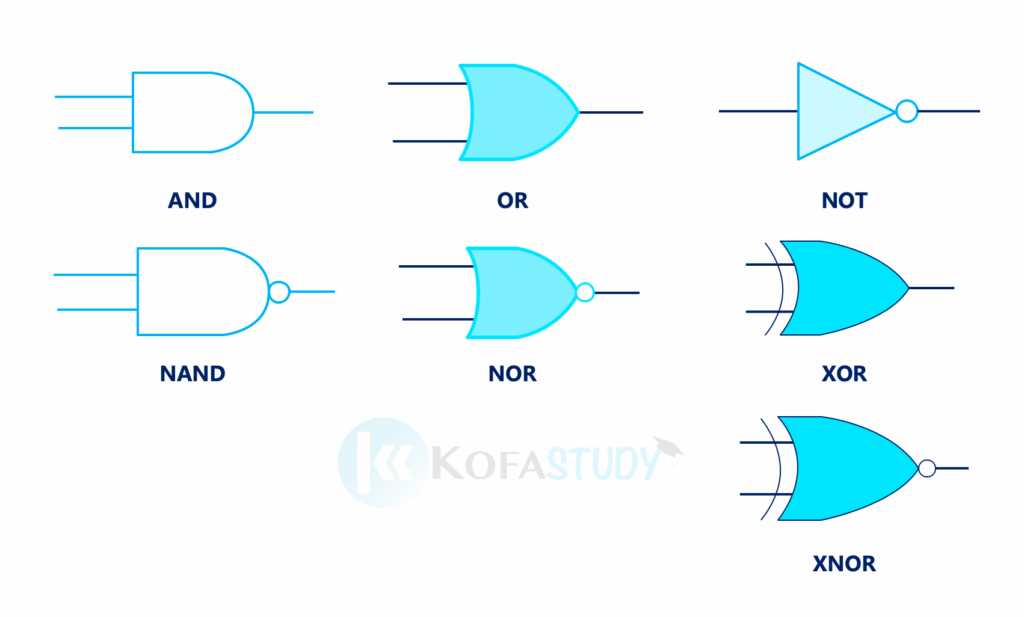

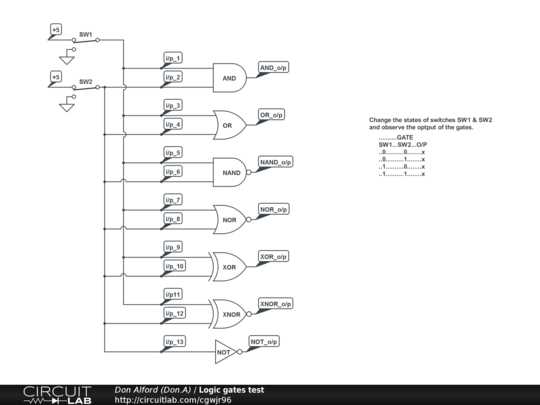

Symbol Representation of Fundamental Binary Operators in Circuit Blueprints

Standardized symbols for primary binary operators follow IEEE Std 91-1984, ensuring consistency across technical documentation globally. The AND operator employs a flat-headed curve with a straight trailing edge, distinguishing it from the OR operator which features a convex curve meeting a sharp trailing edge–critical for rapid visual parsing. For NOT operators, a small circle (bubble) at the output terminal indicates negation, while placement at the input terminal determines NAND or NOR function variants. Always verify symbol orientation: incorrect placement of bubbles or edges can misrepresent functionality, leading to design errors during prototyping.

Dual-input symbols serve as the foundation, but variations for multiple inputs extend these rules predictably. A three-input conjunction maintains the same outer shape with an added vertical line separating additional inputs–no curvature changes occur. In contrast, a three-input disjunction retains its convex front while elongating the trailing edge symmetrically. Exclusive OR (XOR) introduces a unique double-curved front edge, a distinct departure from OR’s single curve; this differentiation prevents misinterpretation in dense layouts. When incorporating symbols into hierarchical designs, ensure uniform scaling to maintain clarity at reduced schematics sizes.

Consistent labeling conventions prevent ambiguity: input terminals should be placed on the left or top, outputs on the right or bottom, with signal flow following conventional left-to-right or top-down progression. Arbitrary deviations–such as inverted signal paths or rotated symbols–require explicit notation. For integrated circuits, pair symbols with corresponding pin numbers directly adjacent to terminals. Avoid creative modifications: non-standard adaptations lead to miscommunication, especially in collaborative or cross-disciplinary projects. Reference ANSI Y32.14 or IEC 60617 for formal symbol specifications when in doubt.

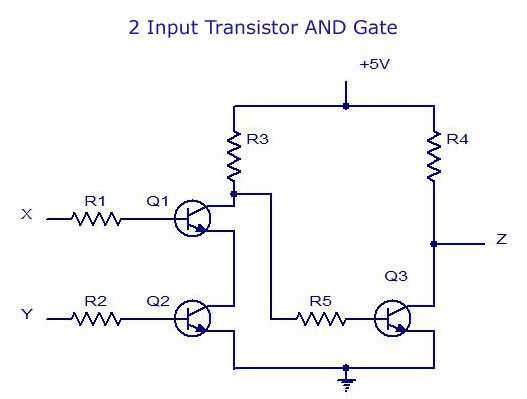

Creating Functional Block Blueprints for AND, OR, and NOT Components

Start by placing a standard IC symbol for the 74LS08 (quad 2-input AND element) on your design software. Pin 1 (input A) connects to a 1 kΩ resistor tied to +5V, while pin 2 (input B) links to a pushbutton with its other terminal grounded. The output (pin 3) routes through a 330 Ω current-limiting resistor to an LED anode, with the cathode returning to ground. Ensure the IC’s power pins receive +5V (pin 14) and GND (pin 7). For validation, press both pushbuttons simultaneously–the LED should illuminate.

Component	IC Model	Input Pins	Output Pin	Pull-up Resistor	Load Resistor
AND	74LS08	1, 2	3	1 kΩ	330 Ω
OR	74LS32	1, 2	3	None	470 Ω
NOT	74LS04	1	2	4.7 kΩ	220 Ω

For the OR configuration, use the 74LS32 IC (quad 2-input OR). Wire pin 1 (input A) directly to a VCC toggle switch; leave pin 2 (input B) unconnected. The output (pin 3) drives an LED through a 470 Ω resistor. Toggle the switch–any input state (A or B high) will activate the LED. For inversion, the 74LS04 (hex inverter) requires a single input (pin 1) via a 4.7 kΩ pull-down resistor, with pin 2 feeding a 220 Ω resistor to an LED. A high input at pin 1 forces the output (pin 2) low, extinguishing the LED.

Building Functional Digital Networks with Basic Switching Elements

Begin every combinational design by identifying the exact boolean output equation required–then decompose it into NAND-only or NOR-only stages to minimize component variety. A NAND-based half-adder reduces to three elements: two NAND switches feeding a third wired as an AND substitute. Wire the inputs directly to the first stage junctions, avoiding pull-up resistors unless interfacing with high-impedance nodes; parasitic capacitance on unbuffered traces will degrade edge transition speeds below 20 ns.

For cascading multiplexers, keep the selector propagation delay under 5 ns by limiting fan-out to four succeeding stages. Distribute V_CC and GND buses adjacent to each switching element row, using 0.2 mm traces for low-current paths (50 mA). Bypass capacitors of 0.1 µF should sit within 2 mm of each supply pin; larger electrolytics are ineffective at frequencies above 1 MHz and only add bulk.

Validate every node with a dual-channel scope, triggering on the slower clock edge to expose metastable conditions in flip-flop-derived networks. Isolate toggle-sensitive paths by splitting shared return rails–ground loops exceeding 0.5 Ω between stages introduce crosstalk that mimics stuck-at faults. When routing multiple XOR chains, stagger input arrival times by at least 3 ns to prevent transient glitches wider than the clock period; these undershoot detectable thresholds in simulation but corrupt downstream registers.

Thermal derating curves dictate junction temperature limits: 85 °C absolute for CMOS variants, 125 °C for bipolar. Calculate power dissipation per element under worst-case input vectors–typically 0.2 mW for 74HC series, 1.5 mW for LS. Mount critical elements on opposite PCB edges, orientation perpendicular to airflow, and ensure copper pour heatsinks of 8 cm² per watt dissipated; exceeding these margins triggers unpredictable threshold voltage shifts.
