Understanding Magnetic Circuit Diagrams Principles and Applications
To analyze electromagnetic systems effectively, sketch flux lines with precise annotation of reluctance values at critical junctions. Use standardized symbols: solid arrows for flux direction, dotted lines for leakage paths, and numerical labels indicating ampere-turns per section. Begin by isolating the core’s geometry–toroidal, E-I, or U-I shapes–then overlay equivalent linear segments. Each segment’s material (silicon steel, ferrite) dictates permeability; cross-reference with manufacturer datasheets for exact BH curves.
Calculate air gaps early–even micrometer-scale errors amplify in high-reluctance designs. Implement the Hopkinson’s analogy: treat flux as current, magnetomotive force as voltage, and reluctance as resistance. Sum reluctances in series for closed loops; parallel paths require inverse summation. Verify with finite element simulations if measured flux density deviates more than 5% from calculated values.
For permanent magnet integration, mark polarization direction with bold arrows and include demagnetization curves. Use neodymium, AlNiCo, or samarium-cobalt based on coercivity requirements–higher coercivity demands thicker magnets to prevent irreversible losses. Label excitation coils with wire gauge, turns count, and DC resistance; derate ampacity by 30% for transient loads. Include thermal sensors near hotspots to prevent saturation drift.
When documenting, adopt block-diagram conventions: rectangles for laminated cores, circles for coils, and zigzag lines for air gaps. Color-code low, medium, and high reluctance zones (e.g., blue for <10³ A/Wb, red for >10⁵ A/Wb). Keep a separate layer for parasitic effects–fringing flux, eddy currents, and hysteretic losses–annotated with correction factors from empirical tables.
Visual Representation of Flux Pathways
Start by sketching a closed loop to trace ferromagnetic material boundaries–this forms the core of your design. Assign thickness values (e.g., 5mm for a transformer core) and label each segment’s cross-sectional area in mm² directly on the outline. Mark gaps wider than 0.1mm with dashed lines; narrower breaks can be ignored unless precision loss exceeds 2%.
Insert flux sources using arrows: solid arrows for permanent sources (specify Tesla values), dotted for coils (list ampere-turns and wind direction). Orient arrows clockwise to match conventional notation. Add color coding–red for saturation-risk zones (>1.8T), blue for safe regions (
Key Adjustments for Accuracy
Introduce parasitic air paths only if reluctance exceeds 10% of the primary path. Measure core windows and subtract 0.5mm from all dimensions to account for insulation thickness; omitting this step inflates inductance by 8-12%. For layered cores, stagger joint angles (typically 45°) and annotate overlap percentages–misalignment drops coupling by 3% per missing percent of overlap.
Validate thermal limits by annotating heat sink placements: position them within 20mm of 1.5T+ regions. Use parentheses to note hysteresis loss estimates (e.g., “(≈4W/kg @ 50Hz)”) next to each high-flux segment. If simulating, export the layout as DXF with polyline attributes for mechanical interference checks–gaps under 0.3mm often trigger warnings in FEA software.
Practical Examples for Implementation
For a 50Hz inductor: Draw a U-I core, mark center leg width (12mm target), side legs at 8mm, and air gap (0.2mm). Add winding notation “(200 turns, 0.8A rms)” and flux density labels “(1.4T center, 0.9T sides)”–the asymmetry confirms even distribution. In motor stators, separate slot areas with dashed rectangles, label tooth flux “(±1.6T)” and yoke flux “(±1.1T)”–mismatches above 0.3T indicate saturation risk requiring material upgrades (e.g., M-19 silicon steel).
Core Elements in Ferromagnetic Path Illustrations
Begin by clearly labeling flux-conducting segments with their permeability values–μr for steel (~4000) differs significantly from cast iron (~600) or air (~1). Use standardized symbols: straight lines for high-permeability cores, dashed lines for low-permeability spacers, and zigzag arrows for intentional gaps. Specify dimensions in millimeters for precision–critical gaps under 0.5 mm demand sub-micron tolerances to avoid saturation.
- Core materials: Silicon steel (0.3% Si) reduces eddy losses by ~30% over pure iron; nickel-iron alloys (78% Ni) offer μr>100,000 but degrade at flux densities above 0.8 T
- Excitation sources: Represent coils with concentric circles; denote turns count (N) and wire gauge (AWG 18–22 for typical 1–10 A applications)
- Flux paths: Use arrows showing direction; mark diverging branches with branching ratios (e.g., 60/40 split for asymmetric paths)
- Leakage paths: Indicate stray flux with wavy lines; annotate with estimated percentages (typically 5–15% of total flux in unshielded designs)
Annotate every component with calculated flux densities (B = Φ/A) and mmf drops (F = H·l). For gaps, apply Fröhlich’s equation: H = (B/μ0) + (B2/k) where k = 500–1000 A/m·T for common materials. Verify total mmf balances Ftotal = Σ(H·l) across all segments; discrepancies >2% indicate modeling errors or overlooked saturation effects.
Calculating Field Strength in Electromagnetic Systems

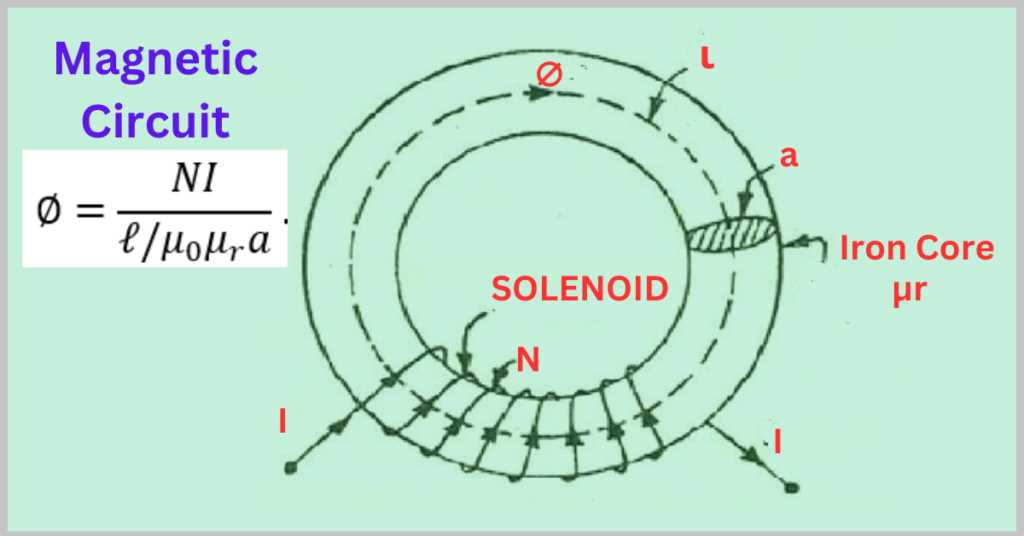

Start by measuring the ampere-turns (NI) in your coil, where N is the number of turns and I is the current in amperes. For a closed loop with uniform properties, divide NI by the effective path length (l) to find the field intensity (H = NI/l). Ensure l is measured in meters for SI units.
Determine the material’s permeability (μ) using manufacturer data or empirical tests. For air, μ₀ is 4π×10⁻⁷ H/m; ferromagnetic cores require specific μᵣ values, often between 1,000 and 10,000. Multiply μ by H to obtain flux density (B = μH), expressed in teslas (T).
Handling Non-Uniform Geometries
For gaps or varying cross-sections, apply Ampère’s law segment-by-segment. Calculate H separately for each region–core, air gap, joints–and sum the products of H×l for total MMF. Adjust B for flux fringing in gaps by expanding the effective area by 5–10% to compensate for flux spreading.

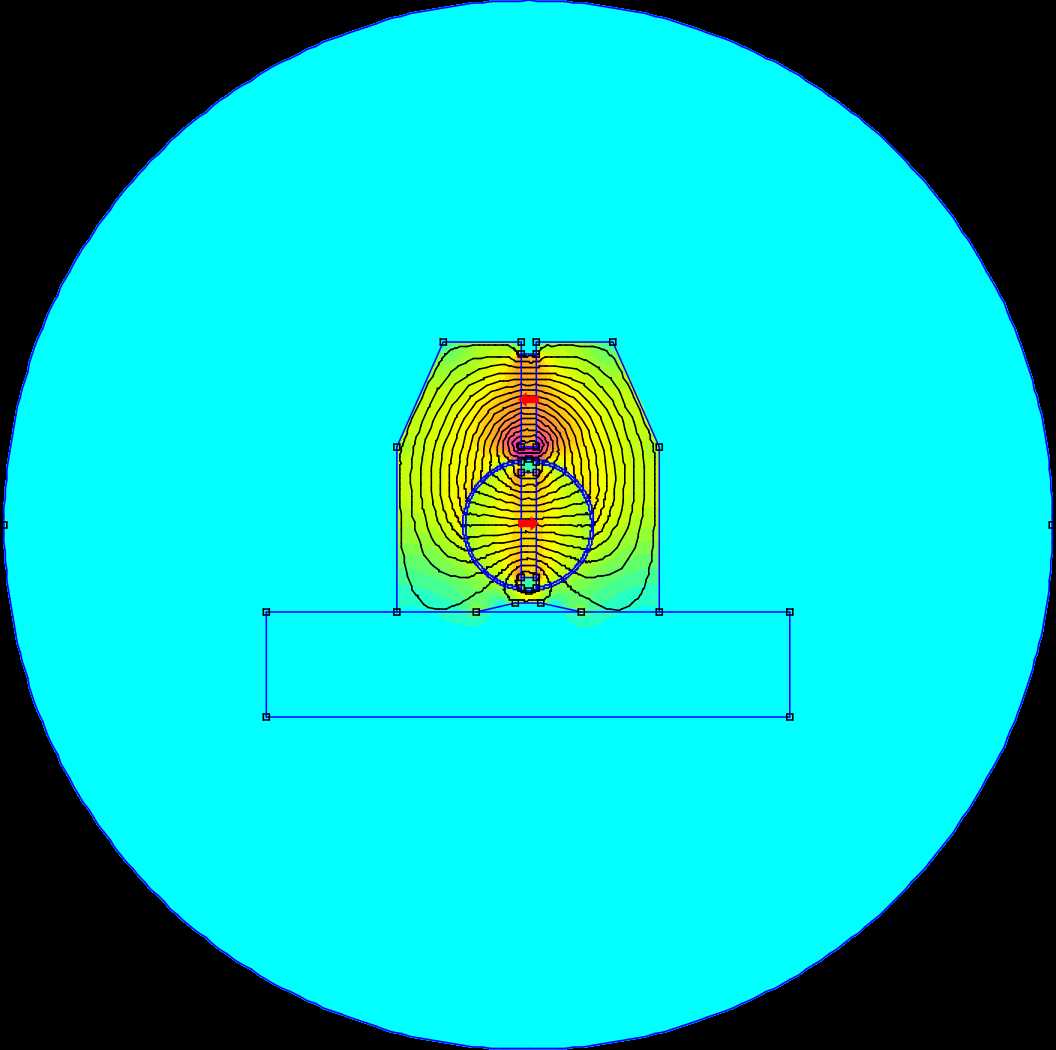

Verify calculations with flux continuity: total flux (Φ = B×A) must remain constant across all sections. For irregular shapes, integrate B over the area using numerical methods or FEM tools if analytical solutions are impractical. Use Φ ≤ 2 mWb for typical transformer cores to avoid saturation.
Account for temperature effects on μ; silicon steel drops by ~30% at 200°C. Empirical correction factors adjust B values dynamically. For transient analysis, include eddy current losses by scaling μ or introducing a complex permeability model.
Cross-check results with known benchmarks–1.2 T is common for electrical steel at 1.6 A/mm H. Deviations suggest errors in H calculation or material assumptions. Use calibrated gaussmeters for validation, ensuring probes are perpendicular to flux lines.
Error Sources and Refinements
Leakage paths reduce effective flux by 2–8% in multi-leg designs; model these with shunt reluctances. Hysteresis loops demand dynamic B-H curves–use vendor-supplied anhysteretic data for precision. For high-frequency applications, substitute μ with frequency-dependent μ(f) from impedance spectroscopy.
How to Sketch an Electromagnetic Path Illustration
First, list all components in the flux loop: cores, gaps, coils, and ferromagnetic segments. Assign each a symbol from this reference table:
| Component | Symbol | Key Traits |
|---|---|---|
| Laminated steel | Thick solid line | Permeability > 2000 H/m |
| Air gap | Two parallel dashed lines | Reluctance 7.5×105 A/Wb per mm |
| Exciting coil | Spiral arrow inside rectangle | Mark turns and ampere rating |
| Permanent piece | Shaded bar with polarity signs | Residual flux density > 1.0 T |
Draw the loop outline starting at the highest permeability node; use a ruler to keep segments straight. Add polarity arrows along the path edges–point north to south–and label each reluctance segment with its length in millimeters. Insert reference nodes where flux splits, tagging them sequentially from N1 upward. Double-check coil windings direction; clockwise spirals denote current entering the page face. Validate flux continuity by summing magnetomotive forces around the loop: total ampere-turns must equal the sum of individual segment drops within a ±2% tolerance.
Frequent Errors in Core Assembly Planning
Overlooking core material saturation limits leads to unintended performance drops. For example, silicon steel saturates at ~1.8 T, while ferrites may handle only 0.3–0.5 T. Designers often assume linear behavior beyond these thresholds, causing distorted output waveforms or excessive heat. Always verify the B-H curve of your chosen alloy or composite before finalizing flux density calculations. Neglecting this step risks irreversible core damage or inefficiency in high-power applications.
Improper gap placement in segmented assemblies creates leakage paths that reduce effective inductance by up to 40%. A 0.1 mm gap misalignment can double stray flux, especially in toroidal or E-core configurations. Use precision spacers and verify alignment with Hall-effect sensors during prototyping. Even minor deviations demand recalibration of winding turns to maintain target inductance values.
Avoid unbalanced winding distribution. Concentrating turns on one flange while leaving the other sparse generates localized hotspots. Distribute windings evenly across the bobbin, ensuring ≤5% discrepancy between sides. Uneven layers increase copper loss by ~15% and exacerbate proximity effects. For multi-phase designs, phase windings should occupy symmetrical slots to prevent phase shift errors.
