Complete Guide to Designing a Reliable Master Switch Circuit

Begin with a single-pole double-throw relay rated for at least 125% of your system’s maximum load. Connect the common terminal to the primary power feed and route the normally open contact to your downstream devices. Use 14 AWG copper wire for currents under 15A; switch to 12 AWG if the load exceeds this threshold. Ensure the relay coil operates at 12V DC or 24V AC, matching your control signal voltage to avoid misfiring.

Integrate a momentary push-button to trigger activation, wired in parallel with a latching mechanism–either a mechanical switch or a solid-state relay with hold functionality. For safety, add a normally closed emergency stop button in series with the control circuit, breaking all power paths instantly. Include a 0.1µF capacitor across the relay coil to suppress voltage spikes and extend component lifespan.

Place a flyback diode (1N4007) reverse-biased across inductive loads like solenoids or motors to prevent back-EMF damage. For systems exceeding 20A, use a contactor instead of a relay, ensuring the auxiliary contacts handle the control voltage separately from the main power lines. Label all wires with heat-shrink tubing or printed sleeves, noting voltage levels and function to simplify troubleshooting.

Test the configuration with a multimeter before energizing: verify zero continuity between the primary feed and disconnected outputs in standby mode. Apply power gradually, monitoring for voltage drops across connections–any reading above 0.2V indicates excessive resistance and demands tightening or re-soldering. For battery-powered setups, incorporate a low-voltage cutoff at 11.5V to prevent deep discharge.

Use terminal blocks rated for the full load current to distribute power; avoid daisy-chaining connections to prevent overheating. If PWM signals control the main unit, isolate them with optocouplers (e.g., PC817) to protect sensitive control logic from noise. Store spare fuses (fast-acting, 20% above nominal current) and a schematic on-site for rapid repairs.

Controlling Central Power Distribution: Key Schematic Insights

Begin by installing a 100A rated primary control unit at the entry point of your power network, positioning it upstream of all branch connections. Use 6 AWG copper wire for links under 5 meters and 4 AWG for longer runs to minimize voltage drop. For systems exceeding 200W, incorporate a thermal fuse rated 20% above peak load–typical values range 80–120°C for automotive applications, while marine setups require 105–130°C variants with moisture-resistant coatings.

A secondary relay bank should mirror the primary controller’s capacity, with individual relays spaced no closer than 3cm to prevent magnetic interference. Select relays with contact ratings matching 125% of the highest current draw in any branch; common automotive relays (30A/12V) suffice for most accessory circuits, while industrial modules need 50A+ variants. Place suppression diodes across coil terminals–1N4007 suffices for 12V systems, but 1N5408 handles 24V configurations.

Load Balancing and Safety Protocols

Distribute loads across three tiers: critical (≤15A per channel), moderate (15–30A), and high-draw (30–60A). Route each tier through a separate busbar, sized per NEC Table 310.16–use 2/0 AWG for 60A+ channels, 4 AWG for ≤30A. Ground each busbar independently to a common star point, ensuring impedance below 0.1Ω between any node and chassis. For vehicles, reference chassis ground; for fixed installations, bond to a dedicated copper rod driven 2.5m into the earth.

Fuse every branch circuit–blade fuses (ATO/ATC) for ≤30A, bolt-down ANL styles for higher currents. Match fuse rating to 120% of nominal load, rounding up to the nearest standard value: 5A→7.5A, 20A→25A. For inductive loads (motors, solenoids), use slow-blow types or replace fuses with circuit breakers featuring magnetic trip mechanisms if nuisance tripping occurs. Label each conduit junction with wire gauge, color, and destination to prevent miswiring.

Verify operation by sequentially energizing each tier, monitoring voltage at the farthest node with a multimeter. Acceptable drop is ≤0.5V for 12V systems, ≤1V for 24V. Re-sequence relays if inrush currents exceed 3× steady-state–common in compressors and pumps–by delaying turn-on via a 1kΩ resistor and 220µF capacitor in parallel to the relay coil. Document all adjustments in a wiring schematic stored near the control panel for future diagnostics.

Primary Elements of a Central Control Wiring Arrangement

Select a heavy-duty relay with a current rating exceeding the combined load of all connected systems by at least 30%. For automotive applications, opt for relays certified to ISO 7637-2, ensuring compatibility with voltage spikes up to 100V. Brands like Tyco Electronics or TE Connectivity offer units with sealed enclosures (IP67) for moisture resistance, critical for marine or agricultural equipment.

Wire gauge selection must prioritize voltage drop calculations–use the following reference for 3-meter runs:

• 10A: 16 AWG (0.3% drop)
• 20A: 14 AWG (0.2% drop)
• 40A: 12 AWG (0.15% drop)

Tinned copper conductors resist corrosion better than bare copper, extending lifespan in high-vibration environments by 40%. Solder splices introduce failure points; instead, use crimp terminals with nylon insulation and heat-shrink tubing for strain relief.

Install fuses within 15cm of the battery positive terminal, matching the wire gauge’s ampacity. For branched circuits, incorporate fusible links rated at 150% of the wire’s capacity. A 50A main fuse protecting 12 AWG wiring is inadequate–upgrade to 20 AWG with a 5A fuse or risk fire hazards under sustained loads.

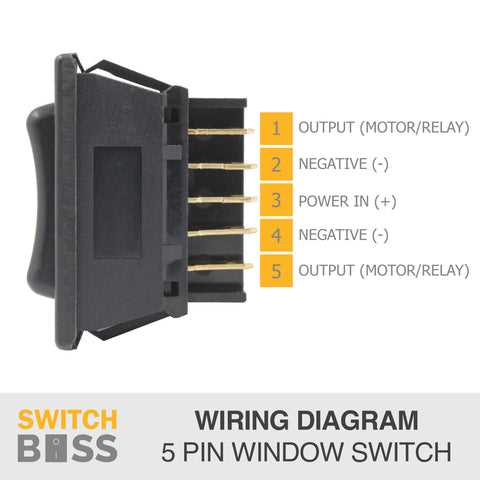

Toggle actuators should feature momentary-on/off-on configurations for fail-safe operation. Illuminated variants with LED backlighting draw 30mA, negligible for most power grids but verify total parasitic draw doesn’t exceed 100mA. Bulkhead mount designs require #8 machine screws torqued to 25 in-lbs to prevent loosening; thread-locking adhesive (Loctite 243) is mandatory for high-shock applications.

Grounding pathways must bypass conventional chassis returns for sensitive electronics. Dedicate a 4 AWG strap from the control hub’s common terminal to the battery negative post, avoiding shared ground points with starter motors or alternators. Corrosion-resistant terminals (gold-plated or stainless steel) prevent oxidation-induced resistance build-up–clean ground surfaces with a wire brush before installation to ensure less than 0.2 ohms contact resistance.

Step-by-Step Guide to Building a Primary Control Unit

Begin by securing a single-pole, double-throw relay with a 12V coil rating and contacts rated for at least 10A at 250VAC. Mount it on a non-conductive base, such as a phenolic or polycarbonate panel, ensuring the terminals face upward for easier access. Connect the coil’s positive terminal to a momentary pushbutton rated for 16A, wired in series with a 1N4007 diode to suppress voltage spikes when the relay de-energizes. Ground the coil’s negative terminal directly to the chassis or a designated negative busbar. Verify coil resistance with a multimeter–values between 70Ω and 120Ω confirm proper function.

Wiring the Load Path

Attach an inline fuse holder near the power source, selecting a fuse with a rating 20% above the maximum expected load. For a 5A load, use a 6.3A slow-blow fuse. Route the input wire (red, 14AWG minimum) from the fuse holder to the relay’s common (COM) contact. From the normally open (NO) contact, run a wire to the device’s positive terminal, ensuring all connections are crimped with insulated ring terminals and secured with M4 brass screws. For additional safety, apply heat-shrink tubing over each terminal to prevent accidental shorts.

Test the setup before finalizing: apply power, press the button, and confirm the relay clicks audibly. Use a continuity tester to verify the NO contact closes and the normally closed (NC) contact opens upon activation. If the relay chatters, check for loose connections or insufficient coil voltage; adjust the power supply to maintain 12V ±5%. For multi-device applications, stack relays in parallel, ensuring each load path has its own fuse and the total current draw does not exceed 80% of the relay’s contact rating.

Diagnosing Faults in Primary Control Electrical Setups

Inspect the fuse immediately if the system fails to respond. Use a multimeter to verify continuity–replace if blown. A common oversight is ignoring the fuse rating; ensure it matches the manufacturer’s specification, typically between 5A and 15A for low-voltage applications.

Loose terminal connections are a frequent culprit. Check every screw terminal, crimp joint, and plug connector for oxidation or corrosion. Apply dielectric grease to prevent future degradation, especially in high-humidity environments. Tighten connections to 8–12 lb-in torque to avoid stripping threads while ensuring sufficient contact.

Voltage Drop Testing

Measure voltage at the source and at the end of the wiring run. A drop exceeding 0.5V under load indicates excessive resistance, often caused by undersized conductors or damaged insulation. For 12V systems, use at least 18 AWG wire for runs under 3 meters; increase to 16 AWG or thicker for longer distances. Replace any wire showing chafing, cracks, or melted insulation.

Intermittent failures often stem from relay issues. Tap the relay housing firmly while monitoring–if operation resumes, replace the relay. Verify coil resistance (typically 50–120 ohms for automotive relays) and contact resistance (under 0.1 ohms). Bypass the relay temporarily with a jumper wire to isolate faults.

Ground paths demand equal attention. Test resistance between the ground point and the negative battery terminal–readings above 0.2 ohms require cleaning or relocation of the ground. Corrosion accelerates under paint or plated surfaces; scrape to bare metal and use star washers to maintain conductivity.

Load-Specific Checks

For high-current devices (e.g., solenoids, motors), verify the wiring gauge is sufficient–refer to NEC tables for ampacity ratings. A 20A load requires at least 12 AWG copper wire, while 10 AWG supports up to 30A. If the device starts but stalls, measure current in-rush; transient spikes may trip fuses or damage contacts. Add a transient voltage suppressor if needed.

Thermal imaging can reveal hotspots in hidden junctions or undersized conductors. Operate the system under full load for 10–15 minutes, then scan for anomalies. Temperatures above 60°C suggest impending failure. Replace components showing discoloration or warping–these often precede complete breakdowns.
