Complete MCCB Circuit Breaker Wiring and Internal Structure Guide

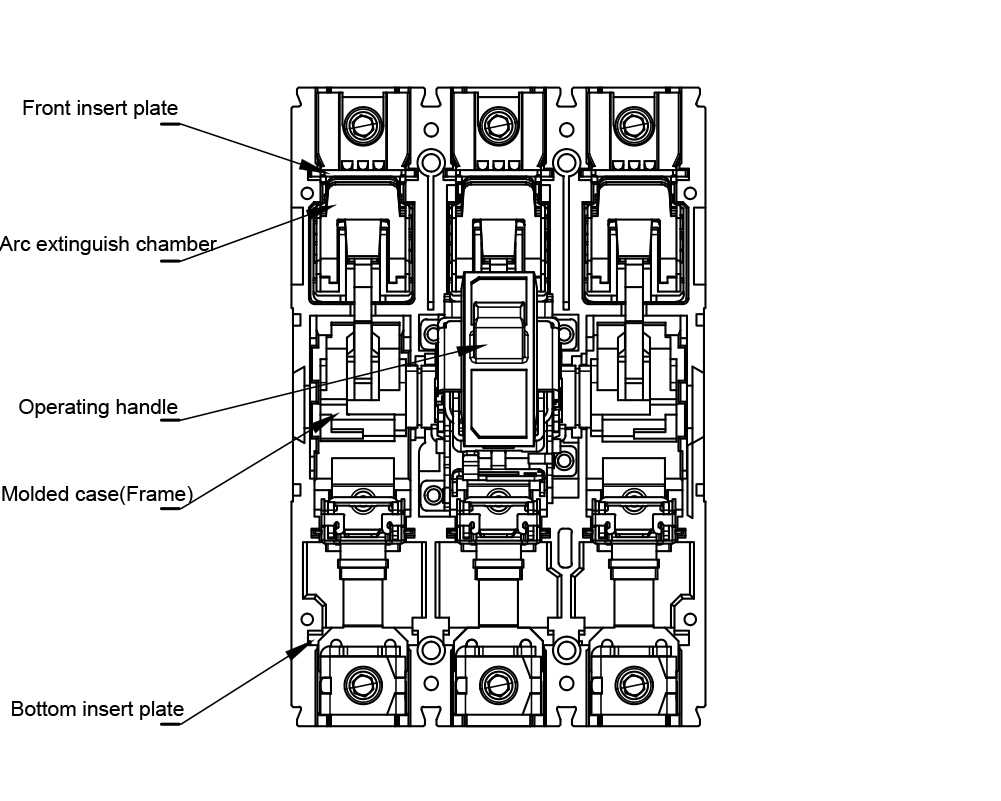

For precise fault isolation in industrial power systems, begin by identifying the main functional blocks in a molded case switching unit: the trip mechanism, current sensor, and arc suppression chamber. The trip unit–typically thermal-magnetic or electronic–should be positioned near the line terminals, with clear separation from load-side components to prevent conductor interference. Always verify that bimetallic strips or microprocessor-based modules are calibrated to manufacturer tolerances before interpreting schematic representations.

In single-line schematics, use standardized symbols for instantaneous trip (⏰), long-time delay (⏳), and short-time pickup (⚡) elements. Critical connections include the neutral link for balanced sensing in three-phase applications and auxiliary contacts for remote monitoring. Label terminals L1, L2, L3 for incoming conductors and T1, T2, T3 for outgoing; reverse polarity risks nuisance tripping or permanent damage to sensing circuitry.

For arc flash mitigation, ensure the diagram isolates the switching mechanism from control circuits. The extinguishing chamber should be drawn adjacent to the contacts, with arrows indicating gas venting direction–typically upward in UL 489-rated devices. Replace generic symbols with manufacturer-specific templates if available; tolerances for trip curves often differ by ±10% between brands, impacting coordination with downstream fuses.

When documenting test procedures, include shunt trip voltage ratings (24V DC/120V AC) and minimum closing coil current. Electronic trip units require external power; verify the schematic shows dedicated phase connections separate from main conductors. For adjustable models, note maximum settings (e.g., 1200A @ 480V) and lockout positions to prevent unintended field modifications.

Cross-reference terminal blocks with panel wiring diagrams to avoid misalignment between schematic ideals and physical layouts. Bolted connections on the enclosure frame should be represented with torque specifications–typically 50-70 lb·ft for copper busbars–to ensure proper heat dissipation. Omit decorative elements; prioritize clarity in conductor paths between protection blocks and external monitoring systems like SCADA or energy meters.

Understanding Industrial Protection Device Schematics

Begin by identifying the trip unit, typically labeled on the left side of the schematic. Verify the rated current (In) and adjustable ranges–common models like Schneider NSX or ABB Tmax support 0.7–1.0×In for long-time delay settings. Cross-reference the thermal-magnetic curves provided in the manufacturer’s manual: Class 10A curves trip within 10×In in under 10 seconds, while Class 20A extends to 20 seconds. For electronic trip units, locate the rotary dip switches or digital display (e.g., Siemens 3VL) to confirm overload (Ir), short-circuit (Isd), and ground fault (Ig) settings.

Follow these steps when interpreting layouts:

• Trace the main contacts (typically marked L1/L2/L3 for input, T1/T2/T3 for output) to confirm wiring polarity–reverse polarity voids UL/CE certifications.
• Locate auxiliary contacts (e.g., 97/98 for NO/NC) and shunt trips–miswiring these can bypass safety interlocks.
• Measure terminal spacing (minimum 8mm for 400V AC, 14mm for 690V AC) to prevent arcing; use insulated ferrules for conductors over 25mm².
• Verify isolation distances per IEC 60947-2: 5mm creepage for pollution degree 2, 8mm for degree 3 environments.

For enclosed units (e.g., Eaton NZM), check ventilation cutouts–blocked airflow reduces interrupting capacity by 20–30%. Use thermal cameras post-installation to detect hotspots (>85°C) at contact points.

Key Components Visible in an Automatic Protection Switch Schematic

Always prioritize identifying the trip unit–the core element distinguishing modern overload safeguards. Seek out two distinct zones: the thermal section (bimetallic strip or electronic sensor) calibrated for gradual overloads, and the magnetic zone (solenoid coil) engineered for instantaneous short-circuit responses. Verify the trip curve classification (B, C, D, or K) matches the application’s inrush current profile–misalignment causes nuisance tripping or inadequate protection. Label each zone with precise current thresholds directly on the schematic; typical ranges span 1.05–1.20×In for thermal and 3–10×In for magnetic, with exact values often etched on the device housing.

Auxiliary and Contact Architecture

Trace the current path from the fixed and movable contacts through the arc chute–critical for interrupting high-energy faults without contact welding. Locate the shunt trip and undervoltage release coils if present; these require separate DC/AC supply entries in wiring layouts. Check for auxiliary switches (NO/NC) wired to alarms or interlocks–standard configurations include alarm, trip, or position indicators, each demanding distinct wire gauges (typically 1.5–2.5mm² for signalling). Ensure the earth fault protection module is depicted if specified; residual current transformers must loop through all phase conductors for accurate imbalance detection.

Step-by-Step Process to Interpret Automatic Switch Terminal Connections

Locate the line-side terminals first–typically marked with L1, L2, L3 on three-phase variants or L, N for single-phase. These connect directly to the power source, ensuring incoming current flows through the protective device’s internal mechanism. Verify wire gauge compatibility (e.g., 14-4 AWG for 20A units) and torque specifications (1.8–2.3 Nm for aluminum, 2.5–3.5 Nm for copper) to prevent loose connections. Cross-reference the device’s datasheet: some models invert terminal orientation, placing load-side contacts above line-side.

Identify load-side terminals–often labeled T1, T2, T3–to distinguish them from input points. Use a multimeter in continuity mode to confirm isolation from live parts before probing; insert probes between L1-T1 pairs to validate proper internal tripping linkage. For multi-pole units, check mechanical interlocking: engaging the manual trip should decouple all poles simultaneously. Attach conductors securely, ensuring no exposed strands extend beyond terminal clamps–excess copper increases arc fault risks. Label each wire with its phase or function (e.g., “Compressor Motor U”) to simplify future troubleshooting.

Common Symbols and Labels in Protective Switchgear Schematics

Always verify that thermal-magnetic trip indicators match the enclosure’s current ratings. A mismatched symbol (e.g., “Ir” vs. “In”) can lead to incorrect calibration, reducing fault detection response times by up to 30%. Use the table below as a reference for standard markings before interpreting any wiring layout:

Symbol	Label	Purpose	Typical Range
Ir	Adjustable Trip Current	Sets long-time overload threshold	0.6–1.0 × In
Isd	Short-Time Pickup	Defines delay before short-circuit trip	1.5–10 × In
Ii	Instantaneous Trip	Triggers immediate cutoff under high fault	3–12 × In
Ig	Ground Fault Setting	Detects earth leakage currents	0.2–1.0 × In
Ue	Rated Operational Voltage	Maximum system voltage compatibility	400V–690V AC

Inspect arc chutes–depicted as zigzag lines within the device outline–for signs of wear; eroded surfaces increase arc duration during interruption by 40%, compromising safety margins. Replace if resistance exceeds 1.5× nominal values.

Terminal labels (e.g., “1/L1,” “3/N,” “5/T1”) must correspond to the manufacturer’s wiring guide. Misalignment causes phase imbalance, risking neutral overload. For three-phase systems, ensure “R,” “S,” and “T” labels align with the installation’s color codes (IEC: brown, black, grey; NEC: black, red, blue).

Auxiliary contact symbols–often a small rectangle with “NO” or “NC”–should be cross-referenced with control schematics. Incorrect interpretation voids interlocking logic, leading to unintended load sequencing. Test continuity with a multimeter before energizing.

Drawings for electronic trip units include a digital interface icon (e.g., screen with “D” or “E”). Confirm firmware version compatibility; outdated units may not support selective coordination, increasing nuisance tripping frequency by 25%. Update settings via manufacturer software only using isolated communication ports.

How to Trace Power Pathways in a Protection Device Schematic

Begin by identifying the main busbar at the top of the single-line layout. This horizontal line represents the primary supply, typically marked with a voltage rating (e.g., 400V or 480V). Follow it left to right until you reach the first vertical drop–this connects to the overcurrent protection unit. Check for labels indicating phases (L1, L2, L3) and neutral (N) to confirm alignment with the system’s wiring.

Locate the trip unit symbols adjacent to the vertical drops. These icons–often rectangular with internal coils or thermal elements–show where current sensing occurs. Trace each phase through these components to the load-side terminals. Note any auxiliary contacts or shunt trips if present; these modify the flow during faults but do not interrupt the main pathway.

Interpreting Interruption Points

Examine the mechanical linkage between the sensing elements and the switching mechanism. In most layouts, a dashed line or arrow indicates this connection–this is where the device opens under overload or short-circuit conditions. Verify the interruption rating matches the downstream equipment’s withstand limits, usually printed near the linkage symbol (e.g., “25 kA @ 415V”).

For thermal-magnetic units, distinguish between the overload zone (left side, near the heating element) and the instantaneous trip zone (right side, adjacent to the electromagnet). Use a multimeter in continuity mode to confirm these pathways if working on an existing installation–place probes on the line and load terminals to validate the disconnect function.

Verifying Coordination with Downstream Devices

Cross-reference the single-line layout with any connected fusible switches or lower-rated protection units downstream. Ensure the time-current curves (TCCs) do not overlap excessively; a gap of at least 10% in trip times prevents nuisance operations. Use manufacturer-provided TCC charts to plot the coordination–overlay the curves on logarithmic paper if manual verification is required.

Check for remote tripping coils if the layout includes a shunt trip accessory. These are typically shown as a separate circuit branching from the main path, often labeled “ST” or “RTC.” Confirm the control voltage matches the coil specification (e.g., 110V AC or 24V DC) and trace this branch back to its power source to avoid miswiring during commissioning.
