How to Wire a Solid State Relay Step-by-Step Connection Guide

Always start by verifying compatibility between your switching module’s current and voltage ratings and the load requirements. Most opto-isolated units handle 3–32 VDC control inputs and 24–480 VAC output, but check the datasheet for exact limits. A mismatch risks thermal runaway or premature failure. Use a snubber circuit–typically a 100 nF capacitor in series with a 100 Ω resistor–parallel to the output terminals if driving inductive loads like motors or solenoids. This suppresses voltage spikes that can exceed the device’s blocking voltage.

Wire the control side to a microcontroller or PLC using twisted, shielded pairs to minimize noise. Keep the cable runs under 3 meters; longer distances require differential signaling or optocoupler isolation at both ends. For AC loads, use a fuse sized 20% above the maximum load current–fast-blow types for resistive loads, slow-blow for inductive. Ground the metal housing of the module to the chassis if mounting on a heat sink; omit grounding for plastic enclosures unless local regulations demand it.

Avoid direct series or parallel connections of these modules without derating. Two units in series split voltage but halve the current capacity; parallel connections demand matched forward voltage drops and carry risk of thermal imbalance. For DC loads, polarity matters–reverse connections can destroy the internal semiconductor junction instantly. Test continuity with a multimeter before powering up to confirm low-resistance paths; initial resistance should read under 0.5 Ω.

For high-frequency applications (above 10 Hz), select modules with zero-crossing circuitry to prevent excessive EMI. Non-zero-crossing types offer faster response but generate RF noise that can disrupt sensitive electronics. Mount the device on an aluminum heat sink with thermal paste; derate current by 50% if ambient temperature exceeds 40°C. Always leave 5 mm clearance around the unit for airflow, and never submerge or expose it to corrosive gases.

Electronic Switch Connection Guide

Connect the control signal directly to the low-voltage terminals–typically marked as “+” and “–” or “IN”–using 18–22 AWG stranded copper wire. Ensure polarity matches the device’s datasheet; reversed voltage may damage the input circuit. For AC variants, verify the supply frequency (50/60 Hz) aligns with the module’s rating to prevent overheating or erratic switching.

Load terminals must pair with a suitable conductor: 10 AWG for currents up to 20 A, 12 AWG for 15 A, scaling inversely with wire gauge. Strip insulation precisely–excess bare wire risks short circuits, insufficient exposure causes high resistance. Crimp terminals or soldered joints should endure vibration; avoid twist-on connectors for long-term reliability.

Avoid paralleling multiple units to share current unless specified by the manufacturer. Each module’s transient voltage capability (typically 600–1200 V) dictates snubber requirements; omit RC networks only if the load is purely resistive. For inductive loads, place a flyback diode or varistor within 5 mm of the load terminals to clamp spikes above the module’s blocking voltage.

Ground the heatsink if the case is metallic–use a star washer between the sink and chassis to ensure low impedance. Thermal paste thickness should not exceed 0.1 mm; thicker layers act as insulators. Monitor temperature during operation; sustained casing temps above 85°C degrade semiconductor lifetime exponentially.

Test with a multimeter in diode mode before powering the load: probe the output terminals–forward voltage drop (~1.2 V DC) confirms proper gating. If leakage exceeds 1 mA at rated voltage, replace the unit. For AC-driven modules, verify zero-crossing behavior by observing load waveform on an oscilloscope; delayed or asymmetrical switching indicates improper triggering.

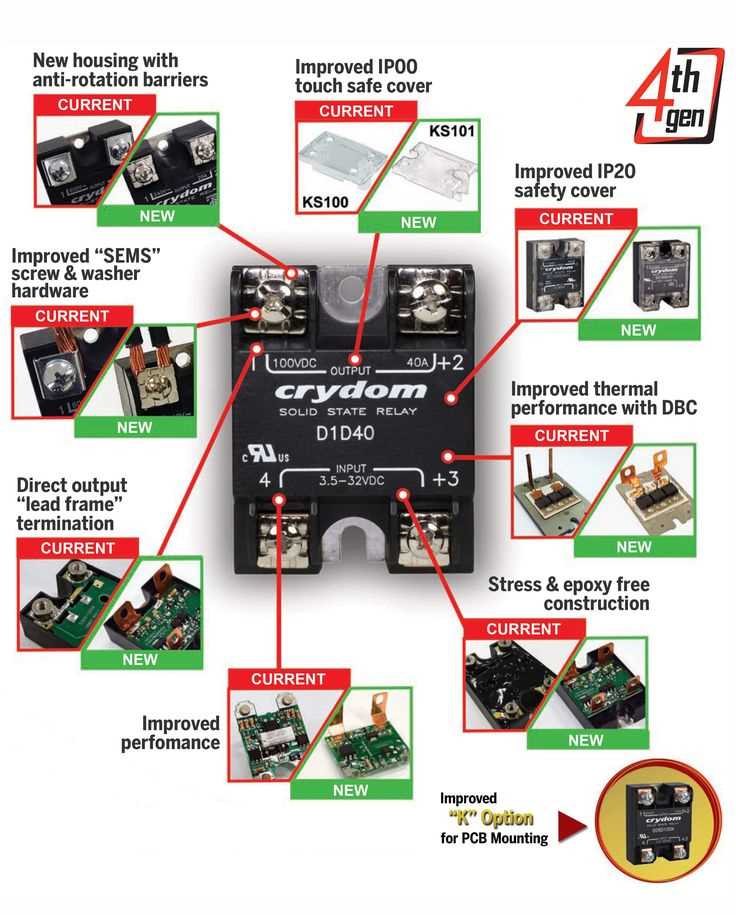

Key Components of an Electronic Switching Module Circuit

Select an opto-isolator with a current transfer ratio (CTR) of at least 50% to ensure reliable control signal isolation. Models like the PC817 or MOC3041 provide minimum 8 mm creepage distance, critical for 240V AC loads. Verify the input forward voltage–typically 1.2V for IR LEDs–to match your microcontroller’s GPIO output.

Load-Side Elements

• Triac or MOSFET: Use a BTA16-600B for resistive loads up to 16A, or an IXYS CPC1966Y for inductive loads; both handle 600V blocking voltage.
• Snubber network: Install a 100Ω resistor in series with a 0.1µF X2-rated capacitor across the switching device to suppress dv/dt transients exceeding 10V/µs.
• Overvoltage protection: Add a bidirectional TVS diode (e.g., SMBJ60A) for transients above 60V, clamping within 1 ns.

Mount a heatsink when continuous current exceeds 5A; aluminum extrusions with thermal resistance below 1°C/W prevent junction temperatures from rising above 125°C. Apply thermal compound (e.g., Arctic MX-6) at 0.1mm thickness for optimal heat transfer.

1. Input resistor: Calculate using R = (V_in – 1.2V) / I_f; for a 5V control signal and 10 mA forward current, R = 380Ω (use 390Ω).
2. Diode for inductive kickback: Place a 1N4007 across coils to absorb back-EMF peaks up to 1000V.
3. Fuse: Install a fast-acting 250V fuse rated at 1.5× the load current; for 8A loads, select a 12A fuse to avoid nuisance trips.

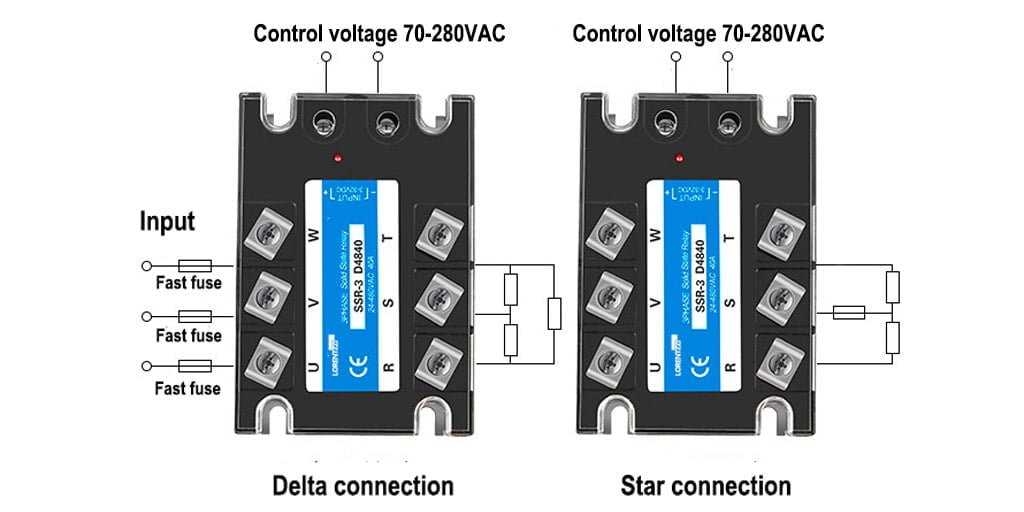

Use twisted-pair wiring for control signals to minimize EMI; keep wires under 30 cm if possible. Ground the metal enclosure to the system’s earth ground to prevent capacitive coupling. For 3-phase applications, synchronize gating signals within 1 ms to avoid phase imbalance.

Testing Procedures

Verify zero-crossing functionality with an oscilloscope: trigger pulses should appear within ±5° of the AC waveform’s zero point. Measure input current with a multimeter; deviations above ±20% indicate faulty isolation. Test load switching at 50%, 75%, and 100% of rated current to confirm linear operation.

Connecting an Electronic Switch for AC Loads: Practical Steps

Select a semiconductor controller rated for at least 120% of the maximum load current. For example, if controlling a 10A heater, choose a 12A or higher module. Verify the input voltage matches your control signal range–typically 3-32VDC for most models. Locate the load terminals on the housing, marked “LOAD” or “AC OUT,” and the control terminals, often labeled “+” and “-“.

Prepare Power and Control Circuits

Disconnect the power source before proceeding. Connect the module’s load terminals in series with the AC power line–one terminal to the line, the other to the load. For inductive loads like motors, add a snubber circuit (e.g., a 100Ω resistor in series with a 0.1µF capacitor) across the load terminals to suppress voltage spikes. Wire the control circuit: the positive input terminal to your signal source (e.g., PLC, microcontroller, or switch), and the negative terminal to ground.

For safety, use 14AWG or thicker wire for the AC load path, ensuring minimal voltage drop. If the controller lacks built-in thermal protection, mount it on a heat sink for loads above 50% of its rated capacity. Aluminum heat sinks with a thermal resistance of 1.5°C/W or lower are sufficient for most applications. Secure all connections with crimp terminals or solder, then insulate with heat-shrink tubing.

Test the setup with a multimeter in continuity mode first to confirm no short circuits. Gradually apply power, starting with a low-duty test signal (e.g., 50% PWM for heaters). Monitor the load’s response and the controller’s case temperature for 10-15 minutes. Adjust the heat sink or snubber components if excessive heat or audible switching noise occurs. Replace the module immediately if it fails to engage the load within 50ms of signal application.

Frequent Errors in Semiconductor Switch Installation

Incorrect polarity on control inputs damages the switching unit permanently. Most opto-isolated models require a specific voltage range, typically 3–32VDC. Reversing the leads burns the LED emitter instantly; marking the (+) terminal prevents mistakes. For AC variants, verify the datasheet–some support bidirectional signals, but most need unidirectional current.

Neglecting load voltage limits risks overheating and catastrophic failure. A 25A model rated for 240VAC cannot handle 480VAC; exceeding the maximum by even 10% reduces lifespan exponentially. Check transient spikes–motors or solenoids generate brief surges exceeding steady-state ratings. Insert varistors or RC snubbers directly across output terminals to clamp 600V peaks.

Improper heat sinking causes thermal runaway within minutes. Aluminum plates must cover the base; even idle units dissipate 1W without load. Mount on a 5°C/W heatsink for 10A models, and use thermal paste–not grease–to fill microscopic gaps. Ambient temperature above 40°C demands forced air cooling; neglecting this voids manufacturer warranties.

Connecting inductive loads without protection triggers false turn-on and erratic behavior. Flyback diodes for DC coils, or MOVs for AC loads, must match the load voltage. A 120V MOV fails on 277V circuits–size components precisely. Wiring long runs without shielding picks up EMI, causing unintended activation; use twisted pairs for control signals.

Ignoring leakage current leads to phantom load voltages. Even “off” semiconductors pass 5–10mA, enough to light LEDs dimly. Test with a high-impedance meter; add bleeder resistors if necessary. Industrial controllers with 4–20mA loops misinterpret leakage as false signals–isolate inputs with optocouplers or buffer amplifiers.

Skipping surge protection during installation invites lightning strikes through AC lines. Standard 1.5kV varistors clip transients but degrade after repeated hits–replace preemptively. Ground the heatsink separately; shared grounds create ground loops. For high-power arrays, fuse each phase and neutral individually–single fusing risks short circuits through neutral paths.
