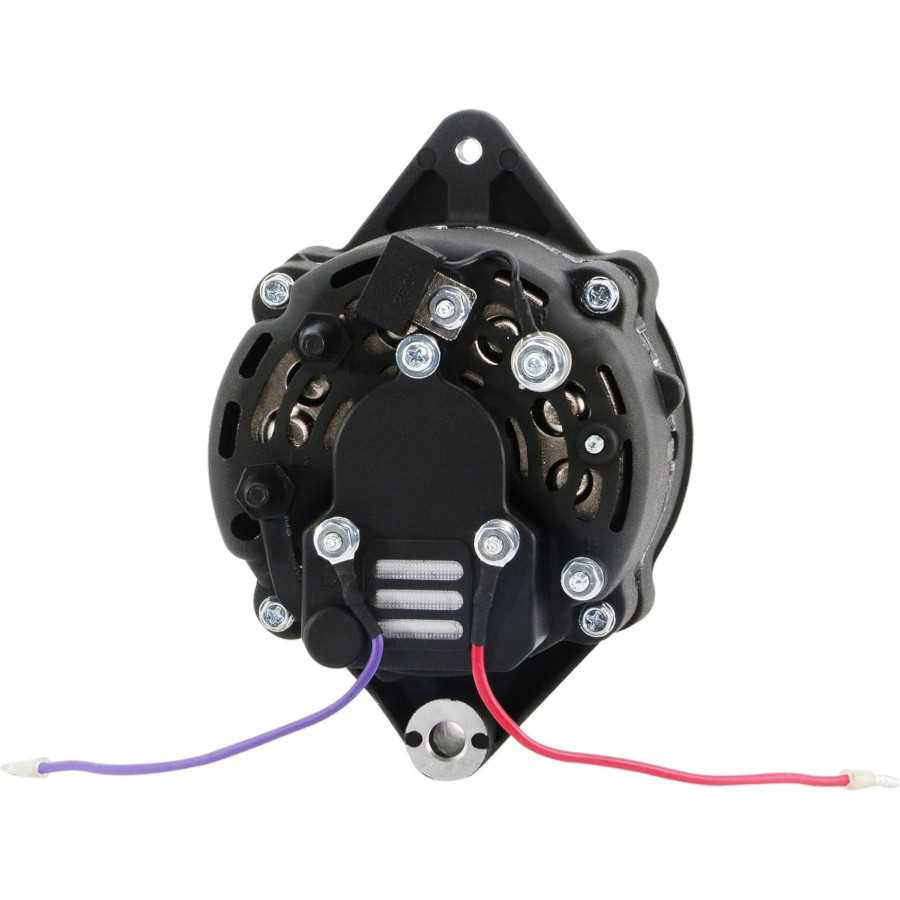

Complete Mercruiser Alternator Wiring Schematic and Connection Guide

Start by locating the voltage regulator–typically a small rectangular box mounted near the engine’s power source or on the firewall. Check the model number imprinted on it (common prefixes include 814178, 8M006790, or 32-868024) to confirm compatibility with your motor’s output rating. Factory-installed units for 3.0L and 4.3L engines handle 60–75 amps; forced-induction variants (e.g., MPT or Bluewater) require 90+ amp regulators to prevent premature failure under sustained high loads.

Trace the thickest gauge wire–8 AWG (minimum) for standard builds, 6 AWG for high-output–orange or yellow insulation–from the charging device’s positive terminal directly to the battery’s positive post. Bypass factory fusible links; replace them with a 100-amp ANL fuse within 7 inches of the battery to eliminate voltage drop and fire risk. Confirm the ground path uses at least 6 AWG stranded copper, terminating at both the mounting bracket and the engine block with stainless steel fasteners torqued to 12 ft-lbs.

Examine the three-wire connector interface. The sense wire (blue, 18 AWG) reports voltage directly to the regulator; route it above exhaust manifolds and secure with heat-resistant loom. The field wire (gray, 16 AWG) carries excitation current–verify it connects to terminal F2 on the ignition switch or to a dedicated 10-amp fused circuit. Avoid splicing into the accessory bus; dedicated power ensures consistent excitation under cranking.

Test under load: Idle the engine at 800 RPM, then activate 200 watts of continuous draw (e.g., freshwater pump + LED spreader lights). Voltage at the battery should stabilize between 13.8–14.4V DC. If reading drops below 13.2V, inspect the rectifier assembly–six diodes are prone to heat fatigue, causing AC leakage detectable with an oscilloscope.

For dual-battery setups, employ an isolated solenoid (Blue Sea 7600-series) controlled by a momentary push-button. Wire the solenoid’s coil to a 15-amp fuse tapped from the main bus, ensuring the system engages only when the engine runs. Never parallel the charging device output to both batteries simultaneously–this overloads the stator windings and voids OEM warranties.

Electrical Hookup for Marine Engine Charging Systems

Begin by locating the terminal block on the engine’s power generator–typically marked with “B+” (battery positive) and “D+” (exciter). Connect a 10-gauge red cable from the B+ post directly to the vessel’s main battery bank, ensuring a fuse rated at 50 amps is installed within 7 inches of the battery terminal to prevent overcurrent. For the D+ terminal, use an 8-gauge blue wire routed to the ignition switch’s accessory post; this triggers the regulator when the engine starts, activating the charging cycle.

The ground path matters as much as the positive. Attach a 6-gauge black cable from the generator’s grounding stud to the engine block, avoiding paint or corrosion at the connection point. Verify the resistance between this stud and the battery negative terminal does not exceed 0.1 ohms–higher readings indicate poor conductivity, which leads to voltage drop and diminished output. If the system includes a tachometer, split the blue D+ wire and route a branch to the gauge’s sender terminal, ensuring a 1.5K ohm resistor is spliced in to prevent signal interference.

Voltage Sensing and Isolation

Install a 4-gauge purple wire from the generator’s sense terminal (marked “S”) to the positive busbar, bypassing all switches and fuses. This wire monitors true battery voltage, allowing the regulator to compensate for cable losses. If the vessel uses multiple batteries, integrate a battery isolator or combiner to prevent cross-charging; ensure the isolator’s diodes are rated for at least 125% of the generator’s maximum amperage output (e.g., for a 70-amp unit, use 90-amp diodes).

Test the installation under load before finalizing connections. Start the engine and measure voltage at the battery terminals–expect 13.8 to 14.4 volts at 1,500 RPM with no accessories engaged. If readings fluctuate beyond ±0.2 volts, inspect the D+ circuit for loose connections or the regulator for faults. For corrosion-prone environments, apply dielectric grease to all terminals and consider heat-shrink tubing over splices to seal against moisture.

Key Components of Marine Charging System Connectors

Start by examining the voltage regulator–its casing typically bears a manufacturer’s stamp (e.g., Motorola, Hitachi) and part number. Match this with the engine model year: pre-2000 units use a single-field terminal (F), while 2001+ models integrate a dual-field (F and P) setup. Unmarked regulators often pair with the 3.0L/5.0L engines; verify via resistance testing–F to ground should read 4–10 ohms.

Terminal Identification and Compatibility

Trace the positive output stud: marine-grade tinned copper lugs (AWG 6 or 4) must connect here, secured with a lock washer and nylock nut. The smaller excitation post–often labeled “IGN” or “BAT”–requires a 16–18 AWG fuse-protected lead from the ignition circuit. Stray wires (common in aftermarket harnesses) should terminate at the battery sensing terminal, not the main output, to prevent voltage feedback loops. Use dielectric grease on all connections to inhibit corrosion in saltwater environments.

Step-by-Step Guide to Tracing Marine Charging System Circuit Connections

Begin by isolating the power generation unit’s output terminal–typically marked with a “+” symbol or a designated bolt. Use a multimeter set to DC voltage (20V range) to verify the presence of charge flow before proceeding; a reading below 12.6V indicates an inactive or faulty circuit. Disconnect the battery’s negative lead first to prevent accidental shorts, then trace the heavy-gauge cable from the unit’s positive terminal to its first junction or fuse block. Label each connection point with heat-shrink tubing or waterproof markers to avoid confusion during reassembly–include voltage (e.g., “14.2V at engine-run”) and wire gauge (e.g., “6 AWG”) if known.

Identify and Verify Secondary Circuit Paths

1. Locate the stator’s exciter wire (usually a thinner, 10–16 AWG lead) exiting near the rear housing–this carries the initial field current. Probe it with the multimeter while cranking the engine; a reading between 0.5–3V confirms excitation signal integrity. If absent, inspect the voltage regulator or ignition feed circuit for faults.
2. Follow the main power feed to the rectifier assembly (if equipped), checking for corrosion at stud connectors–clean with a wire brush and dielectric grease before tightening to 15–20 in-lbs torque. Note bypass diodes or capacitors; failure here causes erratic voltage spikes, detectable with an oscilloscope if available.
3. Trace the accessory wiring loom (e.g., navigation lights, bilge pumps) to ensure no parasitic draws exceed 0.5A at idle–document deviations for targeted troubleshooting. Replace any splices with marine-grade crimp connectors or solder-and-heat-shrink joints to meet ABYC E-11 standards.

• Use a wiring schematic specific to your model year (e.g., pre-1995 vs. OEM smart-charging systems) to cross-reference color codes–Pink/Green for ignition-switched feeds, Yellow/Red for alternator sensing circuits.
• Test continuity between the engine block and battery negative terminal; resistance above 0.5 ohms warrants inspection of bonding straps or grounding bolts.

Diagnosing Faults in Marine Engine Power Supply Circuits

Check voltage drop across primary leads before assuming regulator failure. Use a multimeter set to 20V DC between the output stud and battery positive terminal with the engine running at 1500 RPM. Readings below 13.8V indicate excessive resistance; values above 14.5V suggest regulator bypass. Trace the red cable from the charging unit to the starter solenoid–corrosion at cable lugs often causes intermittent charging loss, especially in engines with five years or more of service.

Identifying Stator and Rotor Deficiencies

Inspect rotor slip rings for pitting or discoloration under 10x magnification. Blackened surfaces correlate with worn brushes, while uneven wear patterns point to bearing misalignment. Replace brushes if length falls below 5mm; factory spec requires 8mm minimum. Measure stator windings with a 1Ω range; readings between 0.3–0.6Ω confirm continuity, while open circuits or shorts exceeding 1.0Ω necessitate stator replacement. Always disconnect the negative battery cable before probing windings to prevent false readings from parasitic loads.

Flickering voltmeter needles during load tests signal loose rotor shaft nuts. Remove the charging unit pulley with a 15mm socket and torque the nut to 45 Nm–under-tightened nuts allow rotor axial play, damaging diode plates. Verify diode trio functionality by back-probing each diode while cranking the engine; a healthy trio should block reverse current in one direction and allow forward flow (0.5–0.7V drop) in the other. Failure in any diode reduces output by 30–40%.

Examine fusible links in the harness junction box adjacent to the engine block. A single 20-amp link protects the entire circuit; corrosion inside the heat-shrink tubing frequently mimics wire breaks. Scrape oxidation from both ends of the link with a razor blade, then confirm continuity with a test light. Replace links showing resistance greater than 0.2Ω–factory links melt at 160°C, cutting power before wire insulation ignites.

Sulfation on battery terminals mimics faulty charging units. Clean terminals with a wire brush until bare metal is exposed, then apply dielectric grease. Test battery specific gravity with a hydrometer; values below 1.225 in any cell indicate insufficient amperage return. Aftermarket isolators with voltage drops exceeding 0.5V across terminals degrade system efficiency–swap for models rated at 175 amps minimum to prevent inverter fluctuations during simultaneous starter/accessory loads.
