Understanding the Role of Ammeters and Voltmeters in Electrical Schematics

Place analog measuring instruments directly in series with the load for accurate current readings–shunt resistors alone introduce errors if not paired with a precision amplifier. For voltage sensing, parallel connection across the target component remains the most reliable method, but ensure the internal resistance of the device exceeds 10 MΩ to avoid loading effects. Modern multirate devices often combine both approaches, though their switching mechanisms can distort signals above 100 kHz; opt for dedicated probes in such cases.

Digital panel indicators require careful scaling–map raw ADC values to engineering units using a linear transformation: V_out = (ADC_reading × V_ref / 1023) × gain. For microcontroller-based designs, isolate measurement paths from power rails to prevent ground loops, which introduce offset voltages as low as 50 mV but can corrupt readings below 1 V. Use ferrite beads or optocouplers when galvanic isolation is mandatory.

In high-frequency schematics, avoid placing probes near switch-mode power supplies–their harmonic noise, typically 50–300 kHz, leaks into measurements. Instead, route sensing lines through separate vias with a ground pour on adjacent layers, reducing parasitic capacitance to <2 pF. For transient analysis, logarithmic scaling on oscilloscope inputs prevents clipping during surge events.

Thermocouple interfaces demand cold-junction compensation; integrate a precision temperature sensor like the TMP236 with ±0.5°C accuracy. For strain gauges, bridge configurations halve sensitivity drift over time–choose a 350 Ω gauge for stability. Always decouple measurement ICs with 0.1 µF ceramic capacitors within 2 mm of their power pins.

When etching PCBs, designate narrow traces (0.2 mm width) for signal paths to minimize IR drop errors. For differential measurements, maintain symmetry in trace lengths–mismatches above 5 mm introduce phase shifts in signals >1 MHz. Verify probe compensation at the test point; uncalibrated scopes distort square waves by 10% at 1 kHz.

Measuring Instruments in Schematic Representations

Place measurement devices like ammeters, voltmeters, and ohmmeters adjacent to the component under test to minimize trace length and reduce parasitic resistance or inductance. For high-frequency setups, series resistance of long wires can skew readings by several milliohms per centimeter–use Kelvin (4-wire) connections instead.

Differentiate between series and parallel meter placement in renderings: series instruments (e.g., current sensors) interrupt the signal path, while parallel devices (e.g., voltage probes) tap into existing nodes. Annotate impedance on the illustration–10 MΩ for typical digital multimeter inputs–to preempt loading calculations during troubleshooting.

Color-code leads in schematics: red for positive probes, black for negative, and yellow for auxiliary or sense wires. Label each test point with expected nominal values–e.g., 3.3 V at node TP5 or 20 mA through shunt R7. Include tolerance bands (±5 % for resistors, ±1 °C for thermocouples) to flag anomalies without probing.

Avoid cramming instruments into dense sections; break complex networks into sub-assemblies if the illustration exceeds 15 components per square inch. Use a grid reference system (e.g., A3, C7) to cross-link test points on the drawing with a separate measurement table, reducing visual clutter while maintaining traceability.

Specify resolution requirements directly beneath instrument icons–12-bit ADC for voltage sweeps or 0.1 μA precision for leakage tests–to guide component selection. Highlight isolation zones for high-voltage probes with dashed red borders; ensure clearance exceeds 10 mm per 1 kV anticipated on the layout to prevent arcing.

Integrate calibration markers: add a diamond symbol next to adjustable trims (e.g., gain pots) and note factory-set ranges–e.g., VR1: 4.7 kΩ, preset @ 2.3 kΩ. Document zero-offsets (typically ±50 μV for op-amps) and temperature coefficients (10 ppm/°C drift) so technicians can normalize readings across ambient swings.

Selecting Proper Measurement Device Icons for Precise Electrical Schematics

Start by matching the instrument’s purpose to its standard IEC or ANSI representation. Ammeters (current-sensitive devices) use a circle with an “A” inside, while voltmeters show a “V” enclosed by the same shape. Avoid generic variants–opt for symbols defined in IEC 60617 or ANSI Y32.2 for compliance and clarity. For AC-specific readings, append a tilde (~) above the identifier; DC versions omit this modifier.

For multimeters depicted in layouts, stack the relevant letters vertically (e.g., “V/A” or “Ω/A”) within a bold-lined circle. This distinguishes multifunction tools from single-purpose gauges. Resist the urge to alter proportions–maintain a 1.5:1 height-to-width ratio for circular icons to prevent misinterpretation. Micro-ampere detectors require a smaller “µA” label inside a slight elliptical shape, ensuring sub-milliamp ranges stand out.

Specialized sensors demand distinct visual cues:

• Power analyzers: hexagon enclosing “W” or “kW”.
• Frequency counters: round rectangle with “Hz” or “kHz”.
• Phase meters: triangle atop a circle, inscribed with “ϕ”.
• Oscilloscopes: trapezoid with internal waveform.

Never substitute rectangles or squares unless representing digital interfaces or smart probes.

Polarity-sensitive devices (e.g., DC voltmeters) must include “+” and “–” terminals adjacent to the symbol. Position these consistently–positive above or left of the circle–to avoid directional ambiguity. For shunt-type current detectors, draw a parallel resistor symbol immediately beside the measurement icon. This linkage reinforces intended behavior in split-core or hall-effect configurations.

In switched networks, attach a toggle or rotary switch symbol upstream of the instrument icon to denote selectable ranges. Label ranges numerically (e.g., “10A/1A”) near the switch, not the gauge. Isolated measurement points require an additional dashed box around the symbol–critical for high-voltage or floating-ground systems where galvanic isolation is enforced.

When documenting proprietary or custom sensors, cross-reference the manufacturer’s datasheet. Append a reference designator (e.g., “M1,” “VS2”) beneath the icon, linking it to a bill of materials. For CAD integration, save symbols as .DXF or .SVG with 0.25mm minimum line weight to ensure legibility at 1:1 print scale. Avoid color reliance–monochrome representations ensure reproducibility across technical publications.

Step-by-Step Placement of Ammeters in Series Configurations

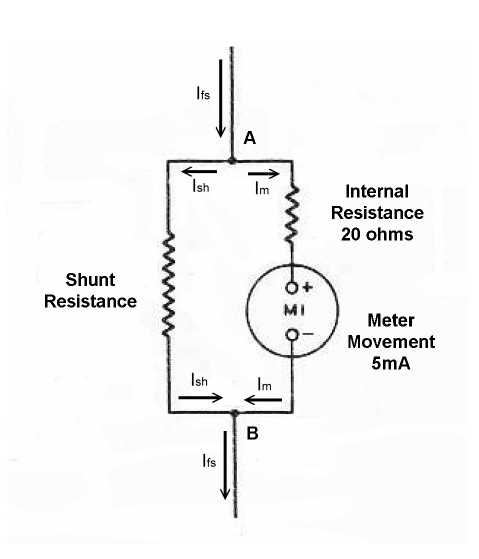

Identify the current path and break it at the precise point where measurement is required–ammeters demand direct insertion into the conductor, interrupting the flow. Select a shunt resistor value low enough to avoid voltage drop (typically <0.1Ω) but high enough to protect the instrument (≤1% of full-scale deflection). For 0-10A ranges, use a 0.01Ω shunt; for 0-1A, 0.1Ω is standard. Ensure the device’s internal resistance is negligible compared to the load–most modern analog ammeters present <0.5Ω impedance, digital variants <0.1Ω. Cut the wire cleanly, strip 5mm of insulation, and twist the bare ends into the ammeter’s terminals before tightening screws to 0.5 Nm torque to prevent loosening.

Verification and Error Minimization

After installation, power the arrangement at 10% of nominal current and validate readings against a calibrated reference. If deviation exceeds ±0.5%, recheck connections for oxidation or loose strands–tin the wire ends for high-current paths (>5A). For circuits with inductive loads, add a flyback diode (1N4007) across the ammeter to suppress voltage spikes. In pulsed-current applications, use a Hall-effect sensor instead of direct insertion to avoid saturation. Record baseline current before introducing loads to detect drifts caused by thermal emf (keep junctions at uniform temperature).

Voltmeters in Parallel: Correct Connection Points and Polarity

Always connect a voltmeter across the component under test–never in series. The instrument’s high internal resistance (typically 1 MΩ or higher) ensures minimal current draw, preserving the original potential difference. Attach the positive probe to the higher-voltage node and the negative probe to the lower-voltage reference; reversing polarity risks damaging analog needle mechanisms or inverting digital readouts.

For AC measurements, polarity guidelines relax since the waveform’s RMS value remains unchanged by probe reversal. However, phase-sensitive applications (e.g., power factor correction) demand strict adherence: swap probes, and reactive power readings invert sign. Use the table below to verify probe placement for common scenarios:

Application	Positive Probe	Negative Probe
Battery terminals	Cathode (+)	Anode (–)
Transistor VCE	Collector	Emitter
Zener diode test	Anode	Cathode
Capacitor leakage	Positive terminal	Negative terminal

Ground reference selection critically impacts accuracy in floating systems. Choose the negative probe’s connection point based on the measurement goal: for load voltage, clip to the load’s return side; for source drop, connect directly to the supply’s negative output. Mixed grounds (e.g., chassis vs. signal return) introduce common-mode errors–isolate them with a differential probe if available.

Low-impedance environments (e.g., vehicle alternator outputs) require specialized high-voltage probes (1000:1 attenuation ratio) to prevent instrument overload. Verify the probe’s voltage rating exceeds the expected peak value, including transient spikes which may reach 2× nominal DC levels. Active probes with FET inputs offer superior bandwidth for fast-switching nodes, but passive 10× probes suffice for most DC and low-frequency AC checks.

Troubleshooting Misreadings

Erratic or zero displays typically stem from four issues: loose probe contact, incorrect mode selection (e.g., AC instead of DC), blown fuse in the measurement tool, or reversed polarity on non-isolated channels. Test probe continuity first. Replace the instrument’s fuse if DC measurements read zero while AC registers noise. For differential measurements across isolated barriers (e.g., solar panel strings), use two channels recorded simultaneously, never a single-channel probe spanning isolated grounds.
