How to Read and Apply Metra Wiring Harness Connector Diagrams
Start by identifying the power harness pins for the vehicle’s OEM audio system. Locate the constant 12V (typically yellow), ignition-switched 12V (red), ground (black), and speaker wires (gray, purple, green, white) in the adapter kit. Cross-reference these with the factory harness colors–most Asian vehicles use solid colors for positive and striped wires for negatives, while domestic brands follow a different standard.
Use a multimeter to verify wire functions before making connections. Set it to DC voltage and probe the harness while turning the ignition on/off to confirm live wires. Never rely on color codes alone–factory documentation errors or aftermarket inconsistencies can lead to incorrect pairings. A 5-amp fuse on the constant power line prevents overload damage if short circuits occur.
Twist corresponding wires together firmly, then secure with solder before covering with heat-shrink tubing. Avoid electrical tape–it degrades over time, exposing connections. For vehicles with data buses (CAN, MOST), use a bypass module if the adapter lacks integrated noise filtering. Failure to isolate these lines causes static, false error codes, or system shutdowns.
Test each speaker channel individually after installation. A 1kHz sine wave tone generator helps detect phase issues–reversed polarity causes weak bass and imaging problems. If distortion persists, check ground connections; poor grounding introduces hum and interferes with signal fidelity, especially in vehicles with complex electronics.
For systems requiring amplifier turn-on signals, connect the remote wire (blue/white in most kits) to the head unit’s trigger output. If no dedicated trigger exists, tap the ignition wire through a 100-ohm resistor to prevent voltage spikes. Verify the connection by measuring 12V on the remote line when the ignition is active–no voltage indicates a wiring error.
When integrating steering wheel controls, use an interface module compatible with the vehicle’s protocol (iR, resistive, PWM). Hardwiring without this adapter risks short circuits in the control module. Follow the module’s pinout precisely–incorrect connections damage the OEM control system irreparably. Test all buttons after installation to ensure correct function mapping.
Integrating Aftermarket Audio Adapters: Circuit Layout Guide
Connect the adapter’s power input (typically a red wire) directly to the vehicle’s fused ignition circuit–avoid tapping into accessory lines, as this can cause drain during engine-off modes. A 10A fuse should be placed within 15cm of the battery connection to prevent overload.
Ground the adapter’s black wire to a bare metal chassis point, preferably near the mounting location. Sand the paint off the contact surface and use a star washer to ensure conductivity; corrosion at this junction is the most common failure point.
Identify the speaker outputs on the adapter–these are often color-coded in pairs (e.g., white/gray, green/violet). Match them to the vehicle’s factory harness using a multimeter to confirm polarity before splicing. Reversed polarity will distort audio, especially bass frequencies.
For vehicles with amplified systems (common in 2010+ models), verify if the adapter requires a turn-on lead. This wire (usually blue/white) triggers the amplifier’s remote function. Failure to connect it will result in no sound from the new unit, despite power being present.
Below is a typical pin assignment reference for common harness configurations:
| Wire Color | Function | Vehicle Side Connection |
|---|---|---|
| Red | Switched Power (+12V) | Fused Ignition Circuit |
| Black | Ground | Chassis Metal |
| Yellow | Constant Power | Battery (+) (Fused) |
| Blue/White | Amplifier Remote | Factory AMP Turn-On |
| White/White-Black | Front Left Speaker (+/-) | Factory Front Left (+/-) |
| Gray/Gray-Black | Front Right Speaker (+/-) | Factory Front Right (+/-) |
For systems with factory steering wheel controls, use an interface module compatible with the adapter’s data protocol (e.g., CAN bus, resistive). Resistive wiring is straightforward to test with a multimeter; CAN bus requires manufacturer-specific troubleshooting.
Secure all splices with solder and heat-shrink tubing, or use crimp connectors rated for automotive environments. Electrical tape degrades under heat and vibration–avoid it for permanent installations. Route wires away from sharp edges and moving parts to prevent chafing.
After installation, test the system with the vehicle off, then with the ignition on. Check for erratic behavior like volume fluctuations or unexpected mute events, which indicate incorrect wiring or a faulty ground. If audio cuts out during engine start, the power source is insufficient or improperly fused.
Locating Power and Ground Hookups in Aftermarket Integration Harnesses
Start by tracing the thickest cables in your adapter bundle–these typically carry 12V constant and switched feeds. A multimeter set to DC voltage will confirm active lines: constant power reads ~13.2V with the ignition off, while switched drops to ~0V unless the key is in the ACC or ON position. Label each terminal immediately after testing to avoid cross-connections during final assembly.
Ground leads are usually bundled with a ring terminal or crimped directly to bare chassis metal. Use a bare bolt on the vehicle’s firewall or a factory grounding point–never rely on painted surfaces. Clean the contact area with sandpaper to remove oxidation, then secure with a star washer for optimal conductivity. Resistance should measure below 0.2 ohms when tested from the harness terminal to the battery’s negative post.
For OEM-specific interfaces, consult the vehicle’s service manual to identify pre-existing power taps–avoid splicing into high-current circuits like the starter or alternator. Instead, locate accessory outputs behind the fuse block or near the under-dash kick panel. Use a fuse tap rated 20% above the accessory’s max draw and connect in-line with the harness’s fused lead.
Verify all connections under load: play audio at 80% volume for 30 seconds while monitoring voltage sag. If readings dip below 11.8V, upgrade to heavier-gauge wire (minimum 16 AWG for short runs) or relocate to a higher-capacity power source–failure to do so risks intermittent functionality or thermal damage to inline modules.

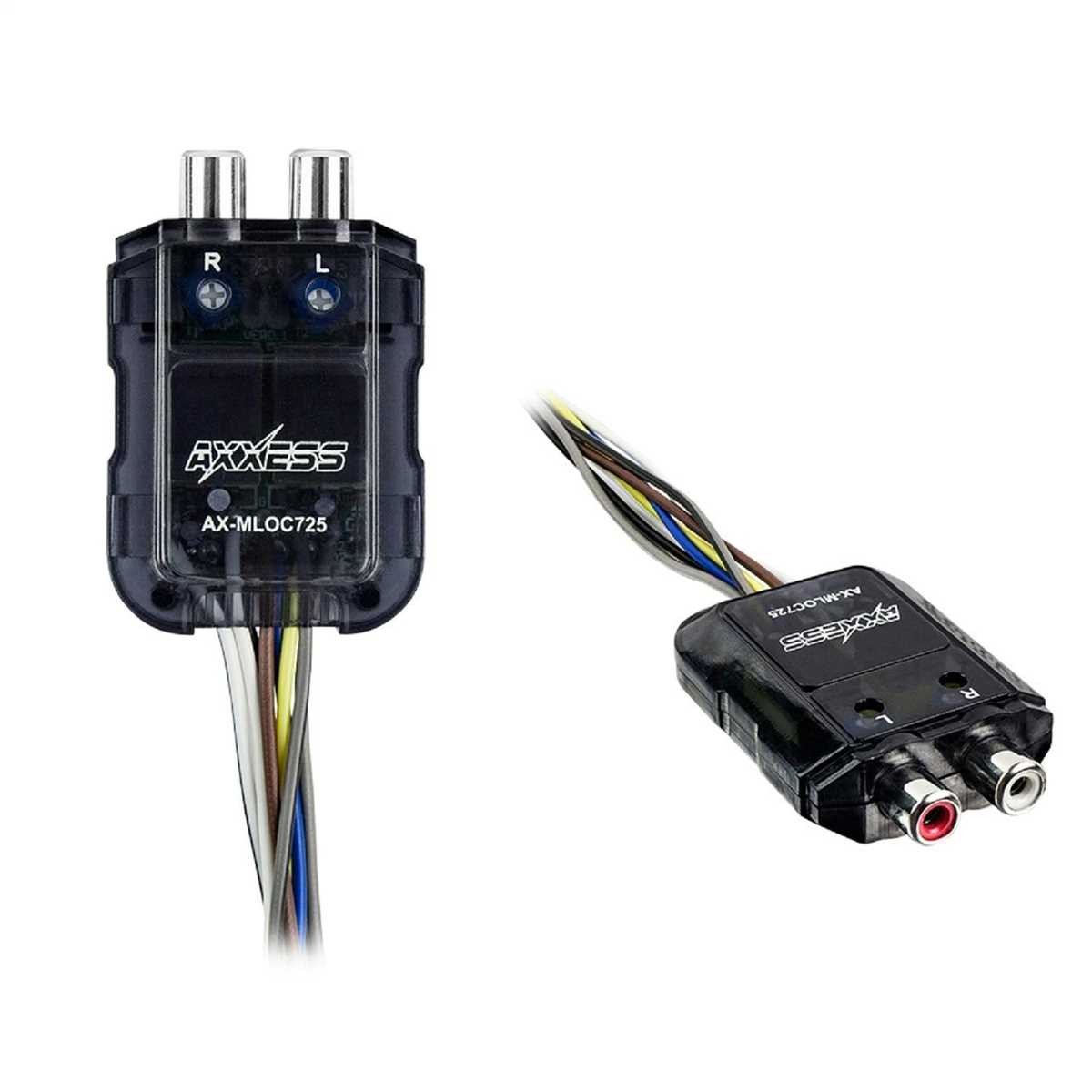

How to Properly Attach Audio Leads to Your Signal Adjuster
Start by identifying the output terminals on your interface box–these are typically labeled with “+” and “-” markings for each channel. Use a screwdriver to loosen the terminal screws just enough to fit the stripped end of your cable, no wider than 3mm of exposed copper.
Strip 6-8mm of insulation from each speaker lead using wire strippers, ensuring no stray strands remain. Twist the copper strands gently to prevent fraying before inserting them into the terminals. Avoid overtightening screws, as this can damage the conductor.
Match the polarity strictly: the positive (“+”) terminal on the adapter must connect to the positive lead from the speaker, and the same applies to the negative (“-“) side. Cross-wiring will cause phase cancellation, reducing sound quality.
For aftermarket stereo systems, locate the harness behind the head unit. If the vehicle’s original setup lacks RCA outputs, identify the speaker-level outputs–these are often color-coded (e.g., gray for front right, white for front left). Use a multimeter set to DC voltage to confirm signal presence before attaching leads.
Securing Connections
- Wrap each terminal connection with electrical tape to prevent shorts.
- Route cables away from moving parts, heat sources, and sharp edges.
- Bundle excess wiring with zip ties every 15-20cm to avoid rattling.
- Test each channel individually using a low-volume audio signal before finalizing the setup.
If the signal adjuster includes gain controls, set them to mid-range during initial testing. Excessive gain can introduce distortion, while insufficient levels may result in weak output. Fine-tune based on the amplifier’s input sensitivity specifications, typically between 200mV–1V for line-level inputs.
Final Checks
- Verify all connections visually and with a multimeter for continuity.
- Power on the system and check for balanced audio across all channels.
- Listen for pops, buzzes, or uneven volume–these indicate loose connections or incorrect polarity.
- Adjust fade and balance controls to confirm independent channel operation.
For vehicles with factory amplified systems, ensure the signal adjuster’s output matches the amplifier’s input requirements. Mismatched impedance can damage components; most aftermarket units expect 4–8 ohms. Consult the product manual for impedance specifications if modifying a premium sound system.
Critical Installation Errors and Solutions for Aftermarket Harness Integration
Connecting power leads directly to the battery’s positive terminal–without an inline fuse–creates a fire hazard. Use a 15-amp fuse within 18 inches of the battery, matching the harness’s gauge rating. Ignoring this risks melting insulation, short circuits, or catastrophic failure. Verify fuse compatibility with the system’s current draw; too high defeats protection, too low causes nuisance blows. Measure with a multimeter before finalizing.
Reversing speaker polarity during hookup cancels audio output, leaving channels silent or distorted. Confirm +/- markings on both the harness and speaker wires using a 9V battery test: a momentary pop confirms correct phase. Avoid assuming wire colors; factory schematics vary, especially in vehicles with premium audio systems. Cross-reference with a pinout guide specific to the make/model/year. Twist paired wires tightly to prevent signal interference.
Overlooking ground connections triggers engine noise, whine, or erratic system behavior. Secure grounds to bare metal, sanded free of paint or corrosion, within 18 inches of the amplifier or head unit. Use star washers to ensure solid contact. Test for continuity with an ohmmeter; readings above 0.5Ω indicate poor conductivity. Separate high-current grounds (amplifiers) from low-current ones (head units) to isolate interference paths.
