Understanding Mobile Phone PCB Schematics A Practical Guide for Repair and Design

To analyze a handheld electronic device’s internal layout, begin by sourcing official service manuals from the manufacturer–these often include full block-level designs, component placement maps, and signal flow paths. If unavailable, reverse-engineering tools like multimeters, logic analyzers, or thermal cameras can help trace power rails, ground planes, and critical IC connections. Prioritize identifying primary subsystems: power management (PMIC), radio frequency (RF) modules, baseband processors, memory clusters, and user interface circuits. Label each section in your notes to avoid misinterpreting cross-connections.

Focus on high-power lines first, typically marked by thicker traces or solid copper pours–these deliver current from the battery to the PMIC and onto secondary regulators. Use a continuity tester to confirm ground links, as improper isolation between analog and digital grounds is a common failure point in compact assemblies. For RF sections, note antenna matching networks and shielding cages; even minor trace deviations can degrade signal integrity. Document resistor-capacitor (RC) filter networks near connectors, as these often control charge rates, reset signals, or ESD protection.

When examining integrated circuits, cross-reference pinouts with datasheets–critical pins for clock signals, data buses, and enable lines are usually decoupled with 0.1µF or 1µF capacitors. For multilayer boards, use X-ray imaging or a backlight source to reveal inner-layer vias and buried traces. Trace the reset and boot sequences by locating the primary bootloader flash memory and its communication lines (e.g., SPI, I2C, or eMMC). Failures in these paths often manifest as boot loops or unresponsive touch interfaces.

For troubleshooting, isolate faults by injecting test signals with a function generator at key nodes (e.g., oscillator outputs, sensor inputs) while monitoring responses with an oscilloscope. Compare measured voltages against reference values from known-good units–deviations exceeding 5% often indicate damaged components or corroded solder joints. Replace components incrementally, starting with discrete passives (capacitors, resistors), before attempting BGA rework on critical ICs. Always verify thermal relief patterns for high-current components; improper heat dissipation can cause intermittent failures under load.

Understanding Handheld Device Circuit Board Blueprints

Begin by identifying the power management section–its location dictates the entire board’s stability. Look for a dedicated PMIC (Power Management Integrated Circuit) near the battery connector. This chip regulates voltage for components like the processor, flash storage, and display. Confirm its model number using datasheets; common variants include Qualcomm PM8xxx, MediaTek MT635x, or Apple/Hisilicon in-house designs. Cross-reference these with reference designs from the manufacturer, as deviations often cause overheating or shutdowns.

Examine the processor’s footprint and surrounding passives. High-performance cores (e.g., Snapdragon 8 Gen 2, A16 Bionic) require precise decoupling capacitors–typically 0402 or 0201 1µF/100nF–positioned within 2mm of each power pin. Missing or improperly placed capacitors lead to transient voltage spikes, causing random reboots. Use a thermal camera during testing to spot hotspots; expect temperatures below 85°C under load for premium chips.

• RF section: Isolate the antenna matching network (π-network or L-C) from digital noise. Keep traces short () and impedance-controlled (50Ω). Mismatches degrade LTE/5G signal strength by 15-30dB.
• Memory interface: DDR traces must be length-matched (±2mm) and routed on the same layer to prevent data corruption. Use via stitching around the perimeter of the DDR area to shield against EMI.
• Display connector: Verify flex cable pinout (MIPI DSI or eDP) and confirm backlight driver (TPS61165 or similar) is placed near the connector. Incorrect grounding here causes flickering or color distortion.

Trace the boot sequence from the eMMC/UFS flash storage to the processor’s boot pins (boot_config, EMMC_RSTn). Incorrect pull-up/down resistors on these pins force the device into an unrecoverable bootloop. For MediaTek SoCs, check DA/Download Agent connections; missing these prevents firmware flashing. Measure resistance between VCC-CORE and GND–values below 100Ω indicate a short, often caused by solder bridges on BGA packages.

Inspect the charging circuit. A modern USB-C PD controller (e.g., FUSB302, WT6632F) must communicate with the PMIC over I²C. Confirm the CC1/CC2 pins have 5.1kΩ pull-down resistors; missing these prevents negotiated charging over 500mA. For wireless charging, check the Qi receiver coil’s alignment–misalignment reduces efficiency by 40% or causes overheating.

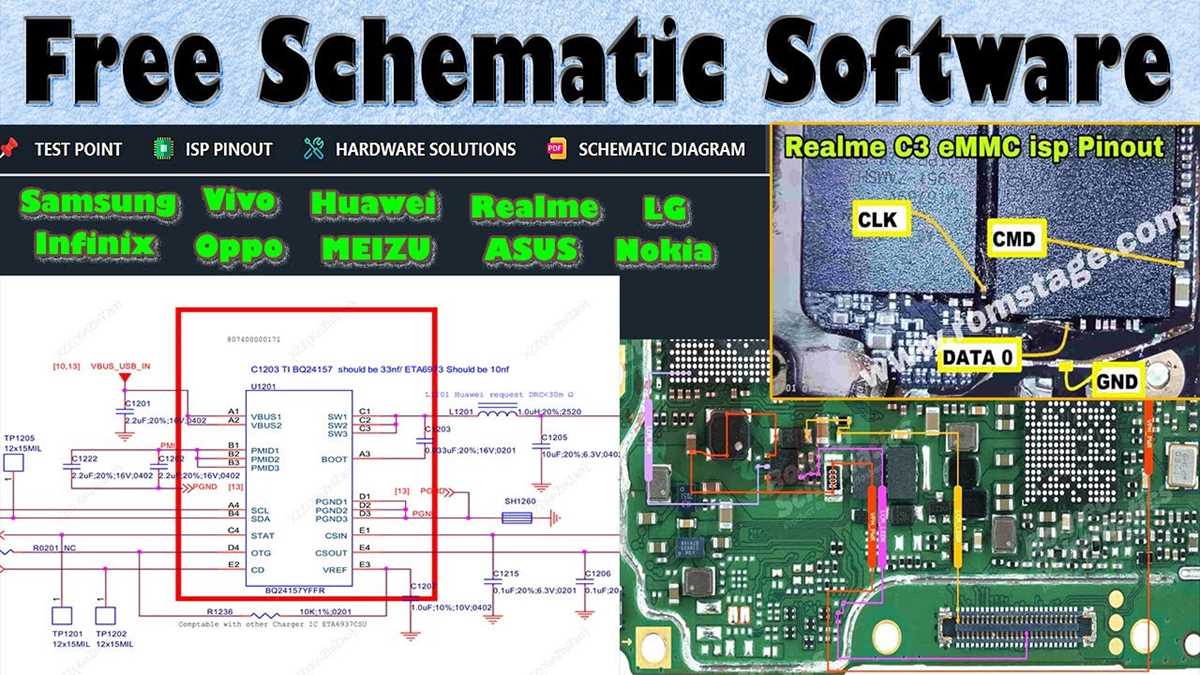

Debug ports are critical for repairs. Locate the JTAG/SWD header near the processor–usually 10-pin 0.5mm pitch. If absent, check for test points labeled BOOT_SEL, CLK, DAT0 (e.g., on Qualcomm devices). Connect these to a J-Link or ST-Link programmer to extract or flash firmware. For Apple devices, the Tristar/AOP chip controls USB communication; faults here brick the device during iTunes restores.

EMI (electromagnetic interference) shielding affects performance. Each shielded can (RF, processor, power amplifiers) must have a solid solder connection to the ground plane. Measure continuity between the can’s edge and GND–resistance should be . Missing shields cause GPS desensitization (-10dBm degradation) or touchscreen interference. Lower-cost boards use conductive epoxy instead of solder; rework requires a hot air station at 280°C.

1. Export Gerber files from your CAD tool (Altium, KiCad, Cadence Allegro) to verify layer stackup. Confirm signal layers use 1 oz copper, power planes use 2 oz to handle current loads (3-5A for charging circuits).
2. Generate a BOM (Bill of Materials) with exact part numbers–substitutes (e.g., Murata vs. Samsung capacitors) affect performance. Critical components include:
   • LDOs (e.g., AP2127 for 1.8V rail)
   • ESD protection (IP4251 near USB port)
   • Oscillators (26MHz TCXO for RF stability)
3. Run SPICE simulations for power delivery networks (PDN). Tools like Cadence Sigrity identify voltage drop areas–target under peak load (5A).

Key Components Identification in a Smartphone Circuit Board Layout

Start by locating the application processor–typically the largest chip on the board, often positioned near the center with multiple power management ICs clustered around it. This central hub integrates CPU, GPU, and baseband functions, demanding high-resolution thermal imaging to verify heat dissipation patterns. Mark its position early, as adjacent components rely on its pinout for proper signal routing.

Trace power delivery networks next. The PMIC (power management integrated circuit) usually sits adjacent to the main chip, identifiable by bulky capacitors (10µF–100µF) and inductors (1µH–10µH) positioned in a star topology. Use a multimeter in continuity mode to confirm connections between the PMIC’s output pins and corresponding load switches or buck converters. Failure here causes boot loops or random reboots–test under load with a bench PSU set to 3.8V.

Signal Integrity Verification

Examine RF modules: look for shielded cans labeled WTR (wireless transceiver) or SDR (software-defined radio), often paired with SAW/BAW filters and crystal oscillators (26MHz, 38.4MHz). These components must maintain a clearance of at least 5mm from digital traces to prevent crosstalk. Probe clock signals with an oscilloscope–ideal waveforms should have rise/fall times under 5ns and jitter below 20ps RMS.

Identify memory stacks–LPDDR and NAND flash chips are usually stacked or placed side by side, distinguished by fine-pitch BGA packages (0.4mm–0.5mm ball pitch). Decoupling capacitors (0.1µF–1µF) must be placed within 2mm of each power pin. For troubleshooting, use a thermal camera: overheating here indicates insufficient decoupling or a bad solder joint, requiring reflow with a hot air station at 350°C for 30 seconds.

Check connectors last: flex cables for displays, cameras, and batteries often have fragile pads prone to corrosion. Apply a thin layer of isopropyl alcohol (>90%) and scrub with a fiberglass pen to restore conductivity. For charging ports, verify the presence of transient voltage suppression diodes (TVS) directly on the input line–absence leads to fried circuits during voltage spikes. Always cross-reference component labels with the original OEM datasheet for exact pin assignments.

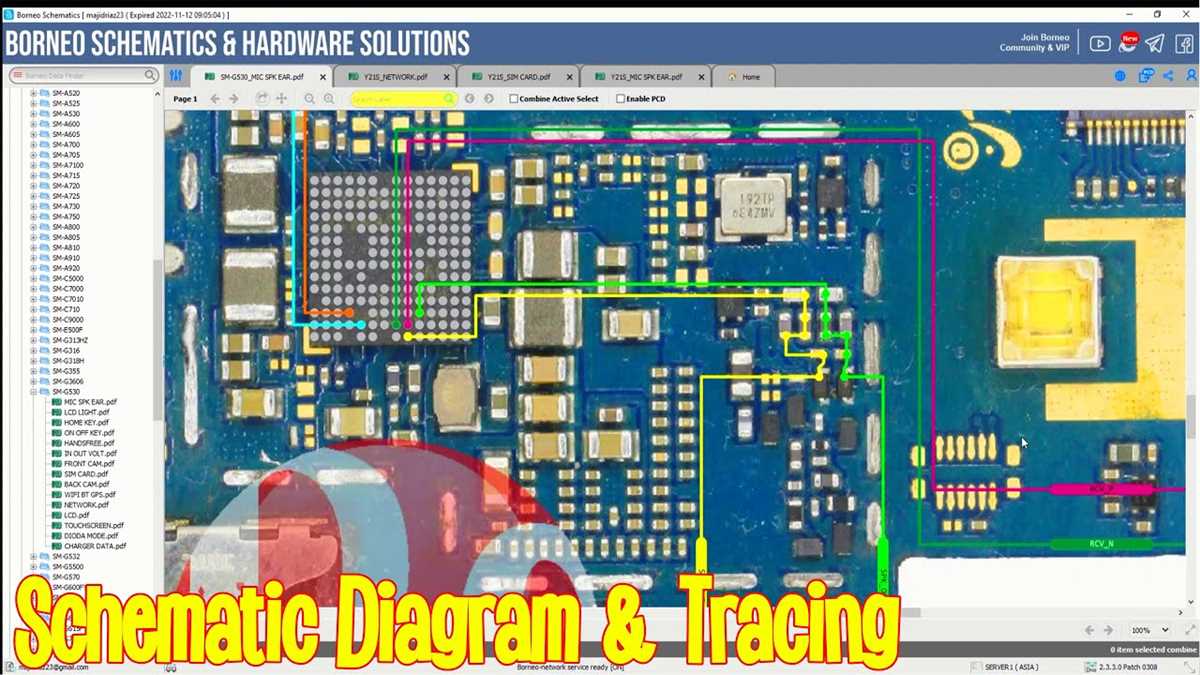

How to Decode Handheld Device Circuit Blueprints

Locate the power management section first–it’s typically near the battery connector or charging IC. Identify key components like voltage regulators (marked with prefixes like “U” or “PM”), capacitors, and inductors. Trace the main power line from the battery terminal to the central processor, noting any branching paths to secondary chips. Use a multimeter in continuity mode to verify connections if the silkscreen is unclear. Common labels for input power include “VBAT,” “VCC,” or “B+,” while regulated outputs often show “VCORE,” “VMEM,” or “VOUT.”

Interpret signal flow next. Start at the primary chipset (usually the largest IC) and follow data lines marked with “CLK,” “DATA,” “I2C,” or “SPI.” High-speed interfaces like DDR memory will have dozens of parallel traces; look for differential pairs (two adjacent lines with mirrored routing) for critical signals. Reset and control lines are often labeled “RESET#,” “ON/OFF,” or “PWRKEY,” with a pull-up or pull-down resistor nearby. For RF sections, antenna connections start with “ANT” followed by frequency bands (e.g., “ANT_LTE_700”).

Study the ground planes early–these appear as large copper fills with multiple vias. Separate analog and digital grounds (“AGND” vs “DGND”) to avoid noise interference; crossing these planes can cause malfunctions. Test points (small circular pads labeled “TP” plus a number) mark critical voltages or signals for troubleshooting. Resistors in series with data lines often denote current-limiting or pull-up/down components, while capacitors between power rails and ground stabilize voltage. Ferrite beads on power lines serve as noise filters; their value isn’t always silkscreened, but they’re physically distinct (small, cylinder-shaped).

Trace peripheral connectors methodically. Display interfaces like MIPI or HDMI start with “DISP_*” or “MIPI_*” prefixes. The SIM card slot will show lines labeled “SIM_DATA,” “SIM_CLK,” and “SIM_RST,” routed directly to the baseband processor. Front/rear camera modules connect via flex cables with signals labeled “CAM1_DATA,” “CAM1_CLK,” and “CAM_PWR.” Audio circuits include speaker/mic lines marked “SPK+,” “SPK-,” “MIC+,” and “MIC-,” often guarded by ESD diodes or filters. Use an oscilloscope to verify signal integrity if repairing; distorted waveforms here indicate damaged ICs or shorted traces.

Cross-reference component values with datasheets when symbols are ambiguous. Transistors appear as “Q” followed by a number (e.g., “Q5”), with their function inferred from surrounding circuits–switching power, signal amplification, or ESD protection. Crystals (labeled “Y” or “X” with a frequency) require load capacitors (typically 5–33pF) to oscillate properly. Fuses or polyfuses protect battery lines; check their resistance (should be near 0Ω) if power fails to reach key components. Always compare the blueprint with a known-working unit when diagnosing; even minor revisions between hardware variants can render schematics misleading.
