Complete Guide to Designing and Building MOSFET Circuits with Diagrams

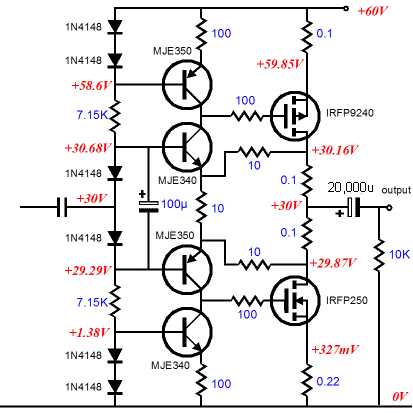

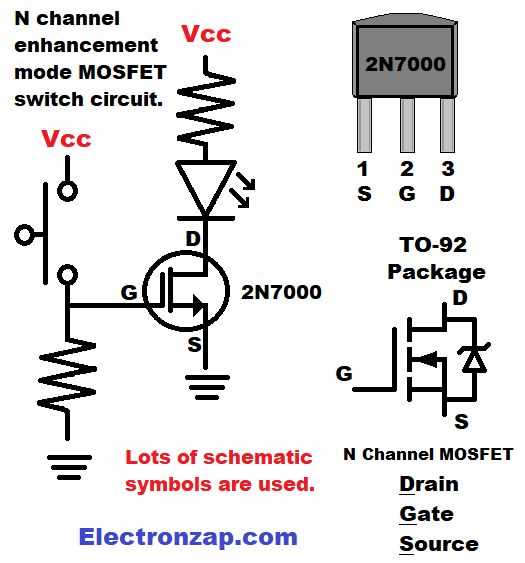

Begin with a logic-level transistor if driving directly from a microcontroller–this eliminates the need for intermediary components while ensuring fast switching. Use a 2N7000 for small currents (up to 200 mA) or an IRLZ44N for higher loads (up to 47 A at 55 V), as they handle gate voltages down to 5 V without performance drops. Always verify the threshold voltage (V_GS(th)); values above 3 V may require a dedicated gate driver for reliable operation.

Place a 10 kΩ pull-down resistor between the gate and source to prevent floating input states, which can cause unwanted activation. For inductive loads (motors, relays), include a flyback diode (e.g., 1N4007) across the load to absorb voltage spikes–reverse polarity here will destroy the component within milliseconds. Keep traces short between the driver and transistor; parasitic inductance in longer paths induces oscillations (ringing) at switching edges.

Add a 10–100 nF decoupling capacitor near the power supply pins of the driver IC if one is used. This stabilizes voltage during transient current surges, which can exceed 1 A during high-speed transitions. For PWM applications above 10 kHz, opt for a low-ESR capacitor (ceramic X7R) to minimize ripple–film capacitors here introduce phase delays unacceptable for precise control.

Calculate power dissipation using P = I² × R_DS(on). For an IRLZ44N with R_DS(on) of 22 mΩ at 10 V, a 10 A load yields 2.2 W–ensure the package (TO-220) can sink this heat. Mount it on a 20–40 cm² copper pad or a heatsink if ambient exceeds 50 °C. Avoid relying on the PCB alone for cooling at currents above 5 A.

Test switching times with an oscilloscope; rise/fall times should not exceed 1 µs for most applications. Slower transitions increase switching losses, which manifest as heat buildup. If delays are observed, reduce gate resistor values (typically 10–100 Ω) but balance this against potential gate ringing–lower values improve speed but risk oscillations.

Building High-Performance Semiconductor Switching Layouts: A Hands-On Approach

Begin by selecting a gate driver with a propagation delay under 50 ns to prevent shoot-through in half-bridge configurations. Pair N-channel power transistors like the IRF540N with a bootstrap capacitor rated at 1 μF for 20 V gate drive–values below 0.47 μF risk unreliable turn-on at 100 kHz PWM. Ground the driver’s source pin directly to the transistor’s source pad, not the PCB ground plane, to eliminate parasitic inductance; traces longer than 3 mm introduce 5–10 ns of ringing at 1 A/ns slew rates.

Calculate load current using I_D = P_out / (V_DS(on) × efficiency), where V_DS(on) for modern trench devices drops to 20 mV at 10 A. For 12 V to 5 V buck conversion, a 10 A inductor with 15 μH and 20% ripple current ensures continuous conduction mode below 300 kHz; beyond this, switch losses dominate, reducing efficiency by 2–3% per 100 kHz increment. Mount input capacitors (X7R ceramic) within 2 mm of the drain pad–ESR under 2 mΩ prevents voltage spikes exceeding the transistor’s 30 V V_DS rating.

Critical Trace Width and Heat Dissipation

• For 5 A continuous current, use 2 oz copper traces with 3 mm width per ampere (85°C ambient); derate by 30% for inner layers.
• Thermal vias under the transistor’s pad should be 0.5 mm diameter, spaced 1.5 mm apart–10 vias reduce θ_JA from 45°C/W to 18°C/W.
• Aluminum heatsinks require a 0.05 mm layer of thermal paste (conductivity >2 W/m·K) to prevent air gaps; mounting torque must not exceed 0.8 Nm.

Snubber networks demand precise component matching: 4.7 Ω resistor in series with 1 nF capacitor (NPO dielectric) placed across drain-source kills oscillations above 5 MHz, but values deviating ±20% worsen EMI by 6 dB. For soft-switching applications, add a 100 nH series inductor between the transistor and load to slow dv/dt to 5 V/ns–this trades 1.5% efficiency for 40% lower conducted noise. Validate designs with a differential probe (20 MHz bandwidth) measuring gate-source voltage; spikes exceeding 2 V indicate insufficient gate resistance (target 5–10 Ω for 100 ns rise times).

Core Elements of a Fundamental Transistor Switching Setup

Select a power semiconductor rated for at least 1.5× the anticipated drain current to prevent thermal overload. For low-voltage applications (under 30V), logic-level FETs with low gate threshold (1–2V) simplify driving–avoid standard types requiring 10V+ gate signals unless using a driver stage. Verify the device’s R_DS(on) at your target gate voltage; typical figures range from 5–50 mΩ for modern devices at full enhancement.

Gate resistors between 10–100Ω balance turn-on speed and ringing prevention–lower values accelerate switching but risk overshoot, while higher values slow transient response. Place the resistor directly at the gate pin to minimize parasitic inductance. For inductive loads, add a flyback diode (Schottky for low forward drop) across the load terminals to clamp voltage spikes exceeding the transistor’s breakdown rating.

Decouple the supply rail with a 0.1µF ceramic capacitor within 5mm of the switching element’s drain and source, paired with a bulk electrolytic capacitor (10–100µF) for energy storage. For PWM frequencies above 10 kHz, include a small-valued (10–100 pF) capacitor from gate to source to stabilize the control input against high-frequency noise induced by rapid transitions.

Thermal management demands a heatsink when steady-state power exceeds 1W–calculate junction temperature rise using the device’s thermal resistance (typical θ_JC of 1–5°C/W) and ambient conditions. Active cooling (fan or liquid) becomes necessary at dissipation levels above 10W unless using high-efficiency devices with ultra-low R_DS(on).

For isolated control signals, opt for a dedicated gate driver IC with built-in dead-time generation and bootstrap circuitry. Ensure the driver’s output impedance matches the gate capacitance (common values 500–3000 pF) to achieve rise/fall times under 50 ns–faster switching reduces conduction losses but increases EMI, so tailor edges to application requirements.

How to Calculate Gate Resistor Values for Rapid Switching

Begin with the driver’s current capability. A typical CMOS driver delivers 200–500 mA peak current; adjust resistor values to ensure this peak is reached within 10–20 ns for clean edges. For a 12V gate swing, R = (12 V) / (0.5 A) = 24 Ω minimum, but add 10 Ω margin to prevent overshoot.

Turn-On Speed

Gate capacitance (C_iss) dominates delay. A 3000 pF device needs 30 ns to charge at 1 A: t = C × V / I = (3 × 10^-9 × 12) / 1 = 36 ns. Halve the resistor (R = 12 Ω) to double current and approach 20 ns. Measure rise time with a 100 MHz scope probe–10–90% edge should span ≤15 ns to avoid Miller plateau distortion.

Turn-off demands matching discharge paths. Keep resistor equal or slightly lower than turn-on; a 20 Ω driver-side resistor pairs with a 15 Ω gate-side for symmetric 18 ns fall times. Use Schottky diodes across resistors to shunt avalanche energy, preventing false triggering.

Verify with load conditions. A 10 A inductive load tolerates 50 ns switching; resistive loads shorten acceptable delay to 25 ns. Recalculate R_g iteratively: start at 15 Ω, reduce by 5 Ω, test ringing amplitude–aim for g(on) = 12 Ω, R_g(off) = 10 Ω, diode D_g = BAT54.

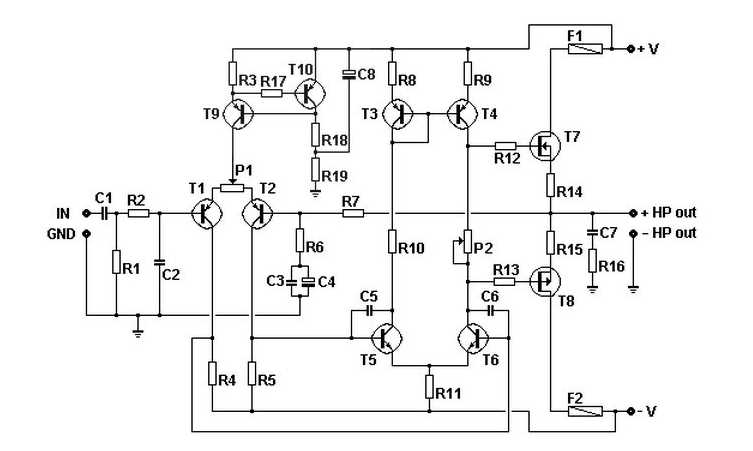

Common Driver Configurations: Low-Side vs High-Side Switching Elements

Choose a low-side configuration when grounding the load simplifies power delivery. This setup connects the transistor’s drain to the load and its source to ground, enabling direct microcontroller control with minimal voltage drops. Ideal for DC motors, relays, or LEDs, it avoids complex gate drive requirements, as the reference remains stable. However, ensure the load’s common ground doesn’t introduce noise–isolate sensitive analog signals if necessary. For 12V systems, a logic-level component (e.g., IRLZ44N) suffices, while higher voltages demand galvanic isolation for the driver stage.

High-side arrangements excel when the load must float above ground, such as in automotive applications or industrial actuators. Here, the semiconductor sits between the supply and the load, requiring a gate voltage higher than the input rail–typically resolved with a charge pump or bootstrap circuit. Key trade-offs:

• Voltage overhead: Gate voltage must exceed the supply by 5–10V (e.g., 24V system needs 30–35V gate drive).
• Quiescent current: Dedicated ICs (e.g., TPS51218) consume 1–5mA; discrete solutions add complexity.
• Fault protection: High-side drivers inherently isolate short circuits but mandate a robust overcurrent shutdown.

For 48V battery management, pair an isolated gate driver (e.g., UCC21520) with a 15V bootstrap capacitor to manage transient loads. Avoid totem-pole outputs for high-side–opt for dedicated drivers to prevent shoot-through.

Gate Drive Voltage Margins

Low-side switches tolerate narrower margins (±2V from threshold) but high-side counterparts demand precision. For 5V logic systems using a high-side switch:

1. Select a device with V_GS(th) ≤2V (e.g., SiRA24DP).
2. Use a 12V gate drive (e.g., MIC4420) to ensure R_DS(on) stays below 10mΩ at 8A.
3. Add a 10kΩ pull-down resistor to prevent spurious turn-on during power-up.

For 3.3V microcontrollers, low-side configurations eliminate the need for level shifting–connect the gate directly via a current-limiting resistor (47Ω–1kΩ). High-side setups, however, require a complementary emitter follower or isolated driver to bridge the gap between logic and power rails.

Thermal and Layout Considerations

Low-side layouts prioritize short ground return paths to minimize inductance. Place the switching element within 20mm of the load, using a solid ground plane (separate analog and power grounds–connect them at a single point near the power source to prevent ground loops. For both configurations:

• Mount the semiconductor on a thermal pad (e.g., 1oz copper with 4x4mm exposed pad) for loads >3A.
• Use a 1μF ceramic bypass capacitor (X7R dielectric)
• For switching frequencies >100kHz, add a snubber network (e.g., 100nF + 10Ω) across the drain-source to dampen oscillations.

High-side drivers in bridge topologies benefit from dead-time insertion (20–50ns) to prevent cross-conduction–programmable drivers like DRV8305 include this feature, whereas discrete designs require RC networks.

Avoid sharing a common high-side transistor for conflicting voltage domains (e.g., 12V and 5V). Instead, employ dual isolated drivers or a single driver with separate bootstrap circuits. For synchronous rectification, merge low- and high-side setups in an H-bridge, but ensure the driver IC supports non-overlapping gate signals to prevent short circuits. Test transient response with a load-step test (0→100% duty cycle at 1kHz) to verify stability under dynamic conditions.
