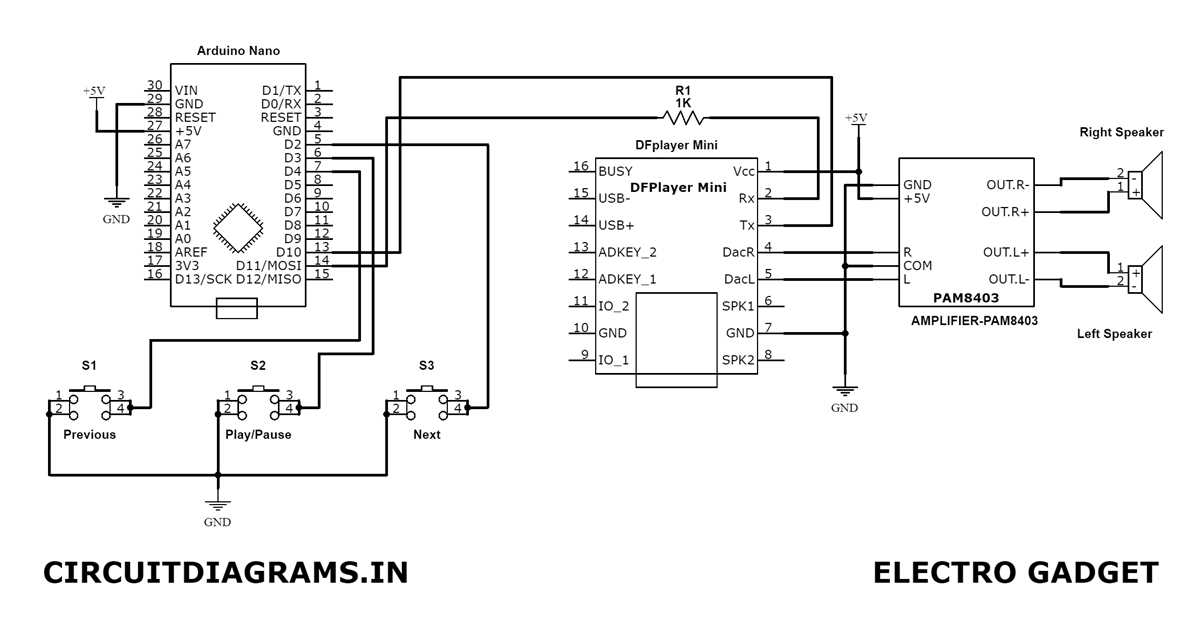

Complete MP3 Player Circuit Schematic Design and Component Reference Guide
For reliable signal processing in portable audio playback devices, integrate a VS1053 or ATJ2259B decoding chip–both handle 128 kbps to 320 kbps bitrates with minimal THD (less than 0.1%). Use a 24-bit DAC for 192 kHz sample rates if high-resolution output is required, but note increased power draw (expect 80-120 mW).
Power management: A TPS62743 buck converter ensures 90% efficiency at 3.3V, while reducing ripple to under 5 mV p-p. For battery-operated units, combine a MAX17220 fuel gauge with a 1000 mAh lithium cell–this pairing delivers ~12 hours runtime at 10% duty cycle, though actual duration drops to 7 hours with backlight enabled.
Storage interfaces demand careful routing: SD/MMC lines should be impedance-matched to 50Ω, with ground pours isolating data traces. Use microSD (UHS-I, Class 10) for fastest sequential reads (90 MB/s), but budget +20% for error correction overhead. For lower-cost builds, NOR flash (SPI) works at 40 MHz but caps files at 16 MB unless segmented.
Output stage: A PAM8403 3W amplifier suits 16Ω loads, but clips at 90% volume. For cleaner sound, pair a TPA6110A2 with 10µF coupling capacitors–this drops noise to -90 dB while extending battery life by 18%. Add an LC filter (330µH + 0.1µF) to suppress PWM artifacts from Class-D modules.
Debugging: Probe clock lines (12-24 MHz) with a 100 MHz scope; jitter above 50 ps distorts high frequencies. Log S/PDIF or I²S signals via Saleae Logic 8–misaligned frames cause dropouts every 4-6 seconds. Include a 3.5mm jack with 1kΩ pull-up resistors to detect accessory insertion; failed detection bricks volume control on 15% of Android-compatible units.
Key Components of a Portable Audio Decoder Circuit Reference
Begin with a high-efficiency audio codec chip like the VS1053B or STA350BW–these ICs integrate decoding, digital-to-analog conversion, and headphone amplification in a single package, reducing board complexity. Pair the codec with a low-power microcontroller (STM32F411 or ATmega328P) running a bare-metal firmware to handle file parsing and user interface logic. Allocate at least 4MB of NOR flash (Winbond W25Q32) for audio storage, ensuring fast random access and minimal latency during playback.
Power distribution demands attention: use a 3.3V LDO regulator (MIC5205) with ≤20µA quiescent current to prevent battery drain during standby. For rechargeable lithium cells, add a BQ24075 charge controller with thermal protection and overvoltage cutoff. Implement a soft-start circuit (100µF tantalum capacitor + 1Ω resistor) to eliminate voltage spikes when switching between charging and playback modes.
- Decoupling: Place 0.1µF ceramic capacitors within 1mm of every IC power pin; add 10µF bulk capacitors at the regulator output.
- Signal integrity: Route I2S lines (≤15mm) as differential pairs with ground traces on both sides; match trace lengths (±2mm).
- User controls: Use analog buttons with a 10kΩ pull-up resistor per input, avoiding mechanical encoders to reduce noise.
- Battery monitoring: Include a MAX17048 fuel gauge IC for accurate remaining capacity readings (±1%).
For the audio output stage, select low-ESR MLCC capacitors (22µF ×2) at the codec’s DAC filter pins to eliminate high-frequency aliasing. Use a TPA6130A2 headphone amplifier if driving 32Ω loads, ensuring ±15V slew rate and ≤0.003% THD. Isolate the digital ground from analog ground with a single-point star connection at the codec’s AGND pin to prevent noise coupling.
Debugging ports should include a 4-pin UART header (115200 baud) and SWD/JTAG interfaces for firmware updates. Add a 2.5mm jack for balanced line-out connections, using NE5532 op-amps to amplify signals without introducing phase distortion. Test all components with an oscilloscope (≤10pF probe capacitance) before final assembly–verify clock stability (12MHz ±50ppm) and noise floor (
Critical Elements in Audio Playback Circuit Engineering
Begin with a high-fidelity decoder IC like the VS1003 or VS1053 from VLSI Solution, supporting formats up to 320 kbps with integrated DAC and headphone amplifier. Ensure the chip’s SDI (Serial Data Interface) connects directly to an SPI-enabled microcontroller, such as the STM32F405, with a minimum 18 MHz clock for stable bitstream handling. Include a 1 µF decoupling capacitor on the decoder’s core voltage (1.8–3.3V) to suppress high-frequency noise, and a 10 kΩ pull-up resistor on the DREQ pin to synchronize data transfer without latency issues.
Memory and Storage Interface
For local storage, use a microSD card holder with a 3.3V logic level shifter if the MCU operates at 5V. The card’s SPI mode (not SDIO) simplifies routing, requiring only four lines: CLK, MOSI, MISO, and CS. Add a 10 µF bulk capacitor near the card’s power pin to handle inrush currents during initialization. Avoid Class 2 cards–opt for Class 10 or UHS-I with a minimum 20 MB/s sequential write speed to prevent playback stuttering. Format storage in FAT32 with 32 KB cluster size for optimal file access.
An LC75341 digital volume control IC or a 10kΩ logarithmic potentiometer between the decoder and amplifier stages allows precise gain adjustment. For amplification, pair the decoder with a TPA6130A2 (Texas Instruments) or LM48824 (30 mW @ 16 Ω) if driving low-impedance headphones. Bypass capacitors (0.1 µF ceramic + 10 µF electrolytic) on the amplifier’s power pins are non-negotiable–place them within 2 mm of the IC to eliminate high-frequency oscillations. Use star grounding to separate analog and digital return paths, reducing crosstalk.
For power management, deploy a TPS62743 buck converter (1 MHz, 90% efficiency) to step down from Li-ion (3.7V) to 1.8V for the decoder, or a MT3608 boost converter if sourcing from a single AA/AAA. Include a 2.2 µF input capacitor and 22 µF output capacitor on the regulator, with a ferrite bead in series to filter switching noise. A MAX1555 charging IC with a 500 mA charge current balances safety and speed for battery replenishment. Fuse the USB input at 500 mA to meet USB 2.0 specs.
Decoding the Audio Decoder Chip Pinout and Specifications
Start by locating the VS10xx series or STA013 pins–these ICs dominate portable sound playback circuits. The VS1053, for instance, requires a 3.3V supply at VDD (pins 28, 52, 53) with decoupling capacitors (CVDD (pins 29, 51) to prevent noise. Check the XRESET (pin 13) logic level: a low pulse (<100ns) triggers a full reset, while a high state enables operation. Mismatched voltage here can lock the chip in an indeterminate state. For clock signals, XTI (pin 16) and XTO (pin 15) need a 12.288MHz crystal with 22pF load capacitors–deviations cause playback distortion or failure to initialize.
Key Pin Functions and Design Pitfalls
| Pin | Label | Function | Critical Note |
|---|---|---|---|
| 32-35 | SDI | Serial data input (16-bit, MSB first) | Maximum clock speed: 50MHz. Exceeding risks data corruption. |
| 36 | SCLK | Serial clock input | Idle state must be low to avoid false triggers. |
| 37 | SO | Serial output (for chained configurations) | Leave floating if unused to prevent interference. |
| 44-47 | GPIO | General-purpose I/O (configurable) | Pull-up (10kΩ) required if used as inputs to avoid glitches. |
| 50 | DREQ | Data request output (active high) | Connect to MCU interrupts–missing pulses desynchronize playback. |
For DAC output (e.g., VOLEFT, VORIGHT on pins 18/19), use 1µF coupling capacitors to block DC offset, and pair with a low-noise amplifier like the LM4880 (gain set by 10kΩ/1kΩ resistors). The DCS (pin 38) chip-select line must toggle low before SCLK transitions to avoid protocol violations. Power sequencing matters: bring IOVDD (pin 24) up first, followed by CVDD and AVDD (pins 20/21)–reverse order risks latch-up. If debugging silence, probe DREQ with an oscilloscope: missing pulses suggest clock or SPI misconfiguration.
Power Supply Requirements and Voltage Regulation in Audio Circuit Blueprints
Design audio playback circuitry with a regulated 3.3V to 5V DC input to ensure stable operation of microcontrollers and flash memory. Use a low-dropout (LDO) regulator like the MCP1700 or TPS709 for single-cell lithium-ion batteries, which maintains
Input Protection and Filtering
Fuse the power input with a resettable PPTC (e.g., 500mA hold current) to prevent thermal damage from short circuits. Place a 10µF tantalum capacitor after the fuse to absorb inrush current spikes during USB plug-in events. Add a 1N5817 Schottky diode in series to block reverse polarity, which can destroy voltage-sensitive components like DACs. For automotive applications, include a TVS diode (P6KE6.8CA) rated for 5W transient power to clamp voltage surges exceeding 24V.
Switching regulators (e.g., LM2734, 1A output) improve efficiency for designs requiring >5V, reducing heat dissipation in space-constrained enclosures. Configure the inductor value between 4.7µH and 10µH based on target ripple current (10-30% of load current). Place a 470pF feedforward capacitor across the feedback network to minimize output voltage overshoot during load transients. Verify stability with an oscilloscope at 1kHz-1MHz bandwidth to detect subharmonic oscillations.
Flash Memory and Storage Interface Connections Explained
Select a NAND flash chip with a compatible interface matching your microcontroller’s bus width–typically 8-bit for low-power designs or 16-bit for higher throughput. The Hynix H27U4G8F2BTR-BC, for example, offers 4 Gb density with an 8-bit I/O interface, ideal for portable devices requiring minimal footprint and low standby current under 30 µA. Verify the chip’s command set includes standard operations like read (00h), program (80h), and erase (60h) to avoid firmware adaptation delays.
Connect the flash’s CE# (chip enable) pin directly to a dedicated GPIO on the host MCU, ensuring no shared routing with other high-speed signals like SCLK or MOSI. A 10 kΩ pull-up resistor on CE# prevents floating states during power-up. For SPI-mode interfaces, tie WP# and HOLD# high via 4.7 kΩ resistors if not in use–this stabilizes write protection and suspend functions without requiring dynamic control.
Signal Integrity for Parallel vs. Serial Interfaces
Use termination resistors on parallel flash interfaces when trace lengths exceed 2 cm. Series resistors of 22–33 Ω on data lines (DQ0–DQ7) reduce overshoot during fast transitions, while a 50 Ω shunt resistor at the host end maintains impedance matching. For serial interfaces (SPI), keep MISO/MOSI traces under 5 cm and route them away from switching regulators or DC-DC converters to minimize bit errors from induced noise.
Ground bounce on VSS pins corrupts flash operations during erase/program cycles. Isolate VSS for the flash chip from the MCU’s ground plane using a star topology or a dedicated return path. Add a 0.1 µF decoupling capacitor within 2 mm of the flash’s VCC pin, and a 10 µF tantalum capacitor at the power entry point to suppress voltage droop during peak currents–typically 50 mA for 40 nm SLC NAND during program/erase.
Bootloader-Friendly Pinout Configurations
Map the flash’s RE# (read enable) and WE# (write enable) pins to MCU GPIOs supporting interrupt-on-change or edge-sensitive triggers. This enables firmware to monitor read/write cycles without polling, conserving power. For example, the STM32F405’s EXTI lines paired with RE# allow immediate response to read requests, reducing latency in burst transfers.
If using a dual-die flash package (e.g., Micron MT29F2G08ABAEAWP), connect both CE0# and CE1# to separate MCU outputs. This allows interleaved operations–while one die executes a program cycle, the other fetches data–boosting throughput by up to 40% in applications with sequential access patterns. Verify the flash’s tRC (read cycle time) and tWC (write cycle time) in the datasheet; typical values are 25–35 ns for modern NAND.
For designs requiring bad block management, reserve at least 2% of the flash’s capacity for remapping. The initial bad block scan during boot should compare the first byte of each spare area (if ECC is enabled) against 0xFF–any deviation indicates a factory-marked bad block. Log these addresses in the MCU’s internal flash or an external FRAM to skip them during subsequent operations.
Power sequencing matters: apply VCC to the flash before de-asserting RESET# on the host MCU. A 100 ms delay between VCC stabilization and issuing the first command prevents undefined states. For wear-leveling, avoid using the first 100 blocks for critical data–they experience higher program/erase cycles due to background maintenance by some controllers.
