Connect the control module’s tach reference wire (typically violet) to the ignition coil’s negative terminal or the engine’s rev signal source. Verify polarity using a multimeter–this wire carries critical RPM data for precise timing adjustments. Ground the module’s black wire directly to the engine block, avoiding painted or coated surfaces to prevent signal interference. Use 14-gauge or thicker wire for all power connections to handle the system’s current load, which can exceed 10 amps under peak conditions.
For dual-coil setups, route the primary lead (red) from the module to each coil’s positive terminal with separate 12-gauge cables. Install a 30-amp fuse within 18 inches of the battery connection to protect the circuit. If integrating with an aftermarket tachometer, splice the violet/white wire into the tach’s signal input–confirm compatibility by checking voltage output (should remain under 12V during operation).
Bypass switches installed in these systems must use a momentary-on configuration. Wire the switch’s common terminal to the module’s green bypass control lead, then connect the normally open terminal to a 12V source (ignition-switched). Test bypass function at idle–RPM fluctuations beyond 150 RPM indicate grounding issues or improper signal routing. For engines with over 500 horsepower, add a relay between the battery and module power input to reduce voltage drop during high-demand scenarios.
Use heat-shrink tubing over all splices, especially near exhaust components. route wires at least 3 inches away from spark plug wires to prevent inductive interference. Label each connection with its corresponding pin number from the manufacturer’s pinout sheet; even minor miswiring can cause timing advance errors up to 10 degrees. For forced-induction applications, verify the module’s maximum rpm capability against your engine’s redline–exceeding this threshold risks component damage.
Connecting Your Ignition Control: Step-by-Step Installation
Locate the red power cable and route it directly to the battery’s positive terminal, ensuring a minimum 12-gauge wire thickness to handle current loads without overheating. Avoid splicing into existing circuits–dedicated power prevents voltage drops that degrade performance. Install an inline fuse no farther than 6 inches from the battery cap to protect against short-circuit fires. Confirm the ground connection terminates at a clean, bare metal point on the engine block or chassis, scraping away paint for a solid contact.
Attach the purple tach signal wire to the negative coil terminal or ignition control module output–never to the distributor’s tach output. Double-check polarity; reversing it will disable spark advance and trigger misfires. For vehicles with distributed ignition, use a male bullet connector to join the white magnetic pickup wire from the unit to the distributor’s trigger coil, securing the connection with heat-shrink tubing to prevent corrosion.
Test all connections with a multimeter before starting the engine: 12 volts at the red wire, continuity on ground, and 0.5-3 volt pulses on the tach signal verify proper setup. If the engine stalls at high RPM, re-examine the purple wire routing–inductive interference from alternator or accessory wiring can disrupt signals. For dual-point distributors, add a 1µF capacitor between the ignition control’s green and violet wires to smooth erratic trigger spikes.
How to Pinpoint Critical Parts in the Ignition Control Schematic
Locate the power input terminal first. This is typically marked as “12V” or “BAT” on the controller layout, often near the top edge. Verify it connects directly to the battery positive lead via a fused circuit–check for a 10-20 amp fuse in-line. Without this verified path, the entire system remains inactive, regardless of other connections.
Identify the ignition activation wire, usually color-coded red or purple with a thin gauge. This lead bridges the control unit to the ignition switch’s “run” position. Trace it back to confirm it carries 12V only when the ignition is engaged; a multimeter should show no continuity to ground. Misrouting here causes intermittent operation or complete failure.
Ground and Signal Connections
Find the primary ground reference, commonly a black or brown wire terminating at a dedicated chassis point. Secure connections demand a clean, unpainted metal surface–sand or scrape if corrosion is visible. For dual-ground setups, cross-check both paths with an ohmmeter to ensure resistance below 0.5 ohms. High resistance here mimics weak spark or timing drift.
- Two small-gauge wires (gray/blue and white) handle RPM and timing signals. The gray/blue lead interfaces with the distributor’s magnetic pickup, while the white wire delivers modified timing pulses. Probe these with an oscilloscope to confirm pulsed DC signals–any flatline or erratic waveform flags issues upstream (distributor, pickup coil, or rotor alignment).
- Check the green trigger wire on capacitor-discharge models. It must connect to a clean breaker point or electronic switch–the lack of a clean transition here prevents energy discharge.
Output and Auxiliary Circuits
Inspect the coil output terminal (“TACH” or “COIL NEG”), usually a thick orange or yellow wire. It should link to the coil’s negative terminal, replacing any original distributor-based wiring. For multi-spark setups, verify this wire carries sustained pulses at low RPM–use a dwell meter to confirm 25-35 degrees of dwell across the operating range.
Review any auxiliary ports, such as rev-limiter inputs or boost-retard modules (often purple/orange). These wires should route to relevant sensors (MAP, pressure, or temperature) and show consistent voltage changes under load. If unused, cap them with heat-shrink tubing to prevent shorts–exposed leads can introduce noise into the ignition trigger line, causing misfires.
- Verify all connectors use crimped terminals, not twisted wires. Corrosion-prone junctions (like near headers) benefit from dielectric grease or soldered seals.
- Confirm bypass switches (if equipped) interrupt the ignition signal cleanly–test by toggling and watching the coil output for immediate cutoff.
- Label every wire before disconnection. Mismatched leads (e.g., swapping fuel pump relay input with RPM signal) can destroy components.

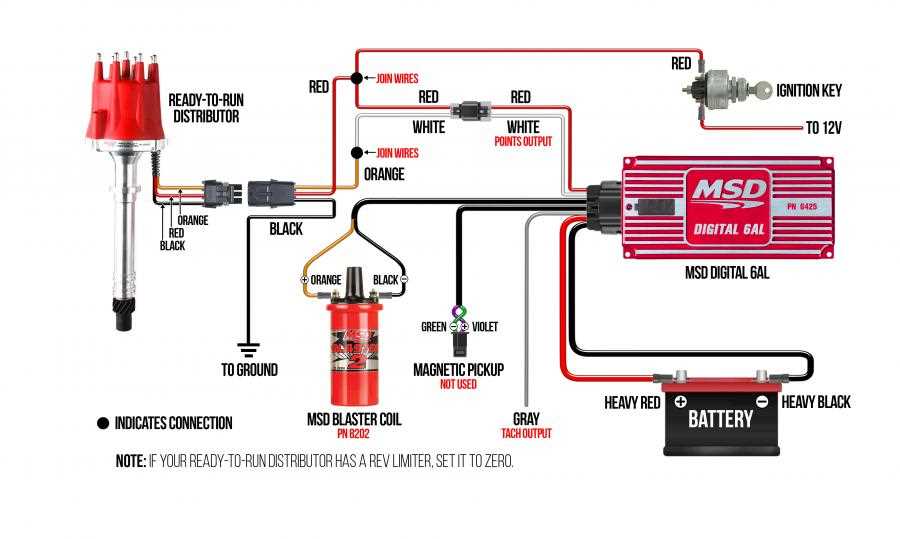

Step-by-Step Connection Guide for 6AL Ignition Control
Begin by disconnecting the battery negative terminal to prevent accidental shorts. Mount the ignition box within 18 inches of the coil using the supplied hardware, ensuring it’s securely fastened to a clean, vibration-free surface away from excessive heat or moisture. Route the red primary power lead directly to the battery positive terminal via an inline fuse rated at 30 amps, using 10-gauge wire for runs exceeding 3 feet. Avoid splicing into existing circuits–dedicated power minimizes voltage drops under high RPM loads.
Coil and Trigger Input Setup
Identify the factory ignition trigger source: for points or electronic distributors, use the white (-) lead; for magnetic sensors, connect the violet (+) and green (-) leads. Attach the coil’s positive (+) terminal to the orange output lead, and the negative (-) terminal to the grey tach output lead, ensuring proper polarity to prevent arcing. Verify coil resistance with a multimeter–values should fall between 0.5 and 1.5 ohms for standard applications. Higher resistance coils may require adjustments to the built-in rev limiter settings via the rotary dial on the control unit.
| Wire Color | Function | Connection Point | Gauge Requirement |
|---|---|---|---|
| Red | Primary Power (+) | Battery Positive (via 30A fuse) | 10 AWG |
| Black | Ground (-) | Chassis or Engine Block | 10 AWG |
| Orange | Coil Output (+) | Coil Positive Terminal | 14 AWG |
| White | Negative Trigger Input | Distributor Negative (Points/EI) | 18 AWG |
| Violet | Positive Magnetic Trigger | Distributor Magnetic Pickup (+) | 18 AWG |
| Grey | Tachometer Output | Coil Negative Terminal | 14 AWG |
After securing all connections, reconnect the battery and test for spark using a dedicated ignition tester or spark plug grounded to the engine block. Crank the engine while monitoring the control box’s LED status–steady blinking indicates proper operation; erratic flashing suggests trigger signal issues. If misfires occur, recheck the violet/green pickup wires for reversed polarity or worn distributor components. For forced-induction applications, set the rev limiter 500 RPM below the engine’s mechanical redline to protect valvetrain components.
Critical Errors to Sidestep When Hooking Up Ignition Control Systems
Reversing the ground and power connections on the digital ignition module will instantly fry its internal circuits. The manual’s color-coding–typically red for 12V and black for chassis–must match the harness pins exactly; a single swapped lead destroys the control unit before the engine cranks. Verify polarity with a multimeter before finalizing any crimp or solder joint.
Ignoring the trigger signal polarity invites inconsistent spark timing and misfires. Hall-effect pickups and magnetic sensors demand opposing wiring schemes; the former needs positive output to the box’s trigger terminal, while magnetic coils require a pull-down resistor bridge. Skipping this step forces the internal processor to guess pulse edges, wrecking timing accuracy at higher RPM ranges.
Overlooking the tachometer output impedance causes erratic gauge readings or kills the instrument cluster entirely. Most factory tach inputs expect a 1k-ohm pull-up to 5V or 12V; feeding raw ignition pulses without this buffer creates voltage spikes that fry the gauge’s microcontroller. Always insert a current-limiting resistor between the module’s tach terminal and the dash gauge, sized per the vehicle’s exact tach wiring spec.
Permitting any exposed conductor near rotating engine parts guarantees electrical shorts during operation. Route all harness segments through protective loom tubing, securing it with nylon ties at least 4 inches away from pulleys, belts, and manifold heat shields. A single chafed wire can drop spark voltage under 8kV, causing instant misfire codes and drivability failures.
