Complete MSI Motherboard Circuit Layout and Wiring Guide for Repair and Analysis

For precise troubleshooting or hardware modification, refer directly to the official reference designs provided by the manufacturer. These documents typically include detailed layer-by-layer breakdowns, component footprints, and signal routing paths critical for reverse-engineering or repairs. Start by locating the model-specific technical manual–most vendors supply these as downloadable PDFs from their support portals.

Identify power delivery networks first. Examine the voltage regulator module (VRM) schematics to trace power phases, MOSFET placements, and feedback loops. Look for labels like VCC_CORE, VCC_SRAM, or VCC_DDR, as these denote critical rails with distinct current ratings. Cross-reference with a multimeter to verify rail integrity if substituting components or diagnosing failures.

Signal integrity analysis requires attention to differential pairs, impedance-controlled traces, and termination schemes. High-speed interfaces (PCIe, SATA, USB 3.0+) often include series resistors, pull-ups/downs, or AC coupling capacitors–these are explicitly marked in reference materials. Use an oscilloscope to validate signal quality if traces appear corrupt or devices fail to enumerate.

For firmware-level adjustments or BIOS reflashing, note the flash memory chip location and its interface (typically SPI). The reference design will specify pinouts for clock, data, and power lines, alongside programming voltage requirements. Avoid direct trace cuts unless absolutely necessary–direct EEPROM access via a programmer like CH341A is safer for recovery.

When repairing or upgrading, prioritize thermal management zones. Heat sink mounting points, fan headers, and sensor placements (THRM or TMP labels) are consistently annotated. Verify PWM controller connections if adding aftermarket coolers–the layout ensures proper tachometer feedback.

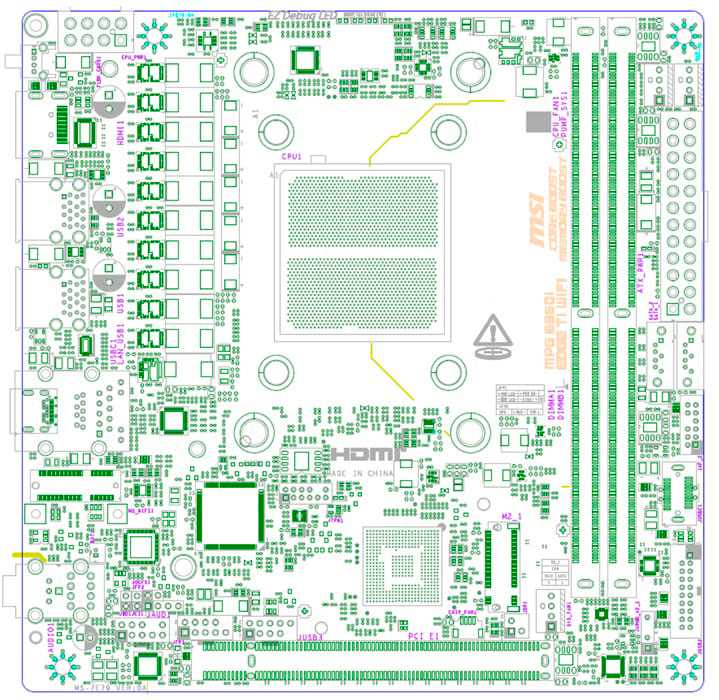

Understanding PCB Blueprints for MSI Hardware: Hands-On Advice

Start by locating the power delivery section near the CPU socket–this area often uses thick traces (1-2 oz copper) and multiple parallel MOSFETs. Trace these lines back to the VRM controller chip, typically a 16-pin IC marked with numbers like “RT8894” or “ISL63xx.” Verify continuity between the MOSFET drain pins and inductor pads using a multimeter in diode mode–readings should show low resistance (~0.3-0.7V). If values exceed 1V, suspect cold solder joints or corroded vias.

Examine the memory slot pathways next. Each DDR4 lane carries differential pairs: CMD/CLK signals follow impedance-controlled routes (typically 40-50Ω) with serpentine patterns to ensure timing synchronization. Check for via stitching near these traces–missing stitching increases crosstalk risk. Use an oscilloscope to confirm signal integrity at 3000MHz+ speeds; jitter above 50ps requires rework or updated BIOS microcode.

For PCIe lanes, focus on the retimer ICs bridging the processor and slots–common chips include “PI7C9X2G4” or “ASM1184e.” Probe the REFCLK pins (usually AC-coupled) with a differential probe; noisy waveforms indicate failed capacitors or improper termination resistors. Remember that PCIe Gen4 requires 85Ω ±10% impedance–use a TDR tool if link training fails consistently.

The Super I/O chip handles legacy functions like PS/2 and serial ports. Find its 48-pin package near the rear I/O panel–common models are Nuvoton NCT6797D or ITE IT8686E. Test the 3.3V standby rail feeding this chip; voltage drops below 3.1V cause intermittent keyboard failures. Replace any 0.1μF decoupling capacitors if ESR exceeds 0.5Ω.

Debug USB ports by tracing VCCTX/VCCRX lines from the PCH to connectors. Look for series ferrite beads (e.g., “BLM18PG331SN1”) in the paths–missing beads allow EMI to corrupt 2.0/3.2 signals. Measure voltage droop under load; drops below 4.7V on the 5V line suggest undersized traces or failing LDO regulators. For Type-C ports, verify CC pin pull-down resistors (5.1kΩ); incorrect values prevent PD negotiation.

Analyze fan headers by tracing PWM lines back to the embedded controller or PCH. Confirm the tachometer circuit uses a 10kΩ pull-up resistor–some revisions cheap out with 4.7kΩ, causing false RPM readings. Test PWM control with a bench supply: 25kHz signals should generate linear fan curves. If fans run at full speed regardless, check the EC firmware version–updates often fix stuck PWM states.

Resolve POST code errors by referencing the BIOS flash IC–usually a 16MB Winbond W25Q128JVSIQ. Desolder and read its contents with a CH341A programmer to verify checksums. For brick recovery, force BIOS recovery mode by shorting the PCH’s SPI flash pins (check pinout diagrams for “SPI_SI/SO/SCK/HOLD”). Keep spares of the exact chip model–even minor revisions (e.g., W25Q128JW) require specific programming tools.

Legal Ways to Access and Obtain PCB Layout Files for Branded Hardware

Request official service documentation directly from the manufacturer’s support portal by submitting a verified account linked to a purchase receipt or warranty registration. Major vendors like MSI maintain authorized repair centers and provide restricted downloads for certified technicians under nondisclosure agreements–locate the “Authorized Service Provider” section on the vendor’s website, complete the application, and attach proof of professional credentials (e.g., business license for PC repair services) to gain access.

Explore public resources that distribute partial circuit blueprints without violating copyright laws. BoardView files–compact, vector-based representations of component placement–are frequently shared on forums like BadCaps, EEVBlog, or GitHub repos dedicated to hardware repair. Use file extensions such as .BRD, .FZ, or .ASC in targeted searches with board model number combinations (e.g., “MSI B550 TOMAHAWK BRD download”). Filter results by source credibility; hardware engineers often upload sanitized versions scrubbed of proprietary annotations.

Check university libraries or technical colleges with electronics engineering programs–some institutions maintain partnerships with hardware vendors granting limited access to archived PCB layouts for educational use. Contact the department head with a formal request referencing coursework or research; schools occasionally supply PDF renderings of legacy boards after signing a nondisclosure agreement restricting redistribution.

Key Components and Signal Flow in PCB Reference Layouts

Start by locating the voltage regulation module (VRM) near the CPU socket–critical for stable power delivery. Examine the PWM controller (typically an ISL63xx or RT88xx series IC) and its associated MOSFETs (e.g., NCP302150 or ON Semiconductor NTMFS5C462NL). Check trace widths: 1 oz copper for ground planes, 2 oz for high-current rails (12V, 5V, 3.3V). Signal paths from the VRM to the processor must adhere to impedance-controlled routing (typically 50Ω for single-ended signals) to prevent noise coupling. Use 0402 or 0603 ceramic capacitors (X5R/X7R dielectric) for decoupling–place them within 10mm of the CPU power pins to minimize inductance.

Critical Data Paths and Interface Analysis

Trace the DDR4/DDR5 lanes from the memory slots to the chipset. Each lane requires matched lengths (±2mm) and serpentine routing for timing synchronization. Verify termination resistors (typically 20–40Ω) near the memory controller to prevent reflection. For PCIe x16 slots, confirm AC coupling capacitors (100nF, 0402 size) on every TX/RX differential pair–omitting these causes link training failures. Check the BIOS flash IC (e.g., Winbond W25Q256JV) connections: SPI lines (CLK, MOSI, MISO, CS) must have pull-up resistors (10kΩ) to 3.3V to avoid floating states during boot.

• PCH (Platform Controller Hub): Routes SATA, USB, and LAN signals. Ensure LDO outputs (e.g., 1.05V for PCH core) have thermal vias (minimum 4 vias per pad, 0.3mm diameter) for heat dissipation.
• Clock Distribution: The 14.318MHz crystal feeds the clock generator (e.g., IDT6V41633). Verify load capacitors (18–22pF) and series resistor (0–22Ω) values–incorrect values skew jitter, causing USB 3.2 or NVMe instability.
• Super I/O Chip (e.g., IT8686E): Handles PS/2, LPC, and fan headers. Confirm pull-ups on SMBus lines (2.2kΩ to 3.3V) to prevent sleep-state errors.
• RGB Headers: Check WS2812B signal lines for series resistors (330Ω) to limit current–missing resistors damage LEDs.

For troubleshooting, probe the enable pins (EN) on DC-DC converters (e.g., APW7313 for USB PD). A floating EN pin defaults to off, cutting power to downstream circuits. Measure ripple on 12V rails–exceeding 50mVpp indicates insufficient bulk capacitance (add 470µF electrolytic near the ATX connector). When routing high-speed traces (e.g., HDMI 2.1 TMDS lanes), use 45° bends instead of 90° to reduce impedance discontinuities. Isolate analog ground (AGND) from digital ground (DGND) with a single-point star connection at the VRM to prevent ground loops.

Interpreting Voltage Regulator Module Pathways on PCB Blueprints

Locate the PWM controller IC near the CPU socket–marked as U1 or similar–then trace its output pins to MOSFET pairs (high-side/low-side). Verify pairing via silkscreen labels: high-side transistors often carry *H* suffix (e.g., Q3H), low-side *L* (Q3L). Cross-check gate signals against datasheet pinouts; mismatches here indicate layout errors. Measure trace widths: 1-1.5 oz copper for >20A rails, 2 oz for 30A+.

Component	Typical Part Numbers	Gate Voltage Range
High-side MOSFET	AOZ5276, NCP81250	4.5–5.5V
Low-side MOSFET	PSMN7R0-30YLD, CSD87350	VGS(th) ≤ 1.2V
Driver IC	ISL6612, TPS51634	3.3–12V

Scan inductor footprints adjacent to MOSFETs–identify phasing dots to avoid reverse polarity. For multi-phase designs, count phases via series resistors (e.g., 1mΩ shunt per phase). Probe transient response at 100% load step: acceptable droop ≤ 5% of Vcore. Replace blown fuses in input circuits only after confirming absence of shorts on VIN/GND planes using 1kHz resistance checks.
