MT3608 Boost Converter Circuit Schematic Breakdown and DIY Guide

Begin with a 2A inductor rated for at least 40μH–critical for minimizing ripple current below 30%. The input capacitor should be a 22μF ceramic (X7R) with a 25V rating, while the output requires 10μF or higher for stable regulation. Place both capacitors directly adjacent to the module’s Vin and Vout pins, reducing trace lengths to under 5mm. Feedthrough vias near these components improve transient response by cutting loop inductance.

Use a Schottky diode (e.g., SS14 or equivalent) for synchronous rectification, avoiding generic 1N4007 types due to forward voltage losses. The feedback resistors (100kΩ and 10kΩ) set an output voltage of ~12V from 5V input–adjust ratios carefully, as tolerances tighter than 1% prevent overshoot. Add a 0.1μF cap across the feedback resistor divider to filter noise, eliminating erratic switching behavior.

Avoid PWM-driven LED indicators near analog feedback traces; they induce switching noise visible on oscilloscopes. For testing, probe the input/output waveforms with ×10 attenuation settings, logging undershoot and overshoot–expect

Thermal pads under the IC must connect to a copper pour ≥2 oz/ft², extending at least 10mm beyond the package. Confirm saturation current limits: 2A input handles 1A output at 85% efficiency. Beyond 1.5A input, thermal throttling occurs–add forced air or reduce load. For mobile setups, cap input current at 1.2A using a PTC fuse or MOSFET soft-start circuit.

Step-Up Converter Schematic: Hands-On Implementation

Start by connecting the input capacitor directly across the power source terminals, using a 22μF ceramic capacitor rated for at least 25V. This placement minimizes voltage ripple before signal amplification. Avoid electrolytic types here–their slower response degrades performance under rapid load changes.

Route the inductor between the switch node pin and the output. Choose a coil with 22μH inductance, saturation current of 2A minimum, and low DCR (under 0.1Ω). Smaller inductors save board space but risk magnetic saturation; larger values increase efficiency by reducing peak currents.

Place the Schottky diode immediately after the inductor, cathode facing the output. A 1N5819 diode handles 1A continuous current but climbs to 3A in repetitive surge; for higher loads, switch to a MBRS340T for 3A steady-state operation. Reverse recovery time under 10ns prevents switching losses that heat the component unnecessarily.

Layout Precautions

• Keep the ground path uninterrupted; route traces directly back to the input capacitor’s negative terminal, avoiding loops that induce noise.
• Minimize trace lengths between the feedback resistors and the output pad; parasitic capacitance here creates instability, manifesting as output voltage oscillation.
• Use a star ground topology to segregate high-current paths (input/output capacitors and inductor) from low-level analog paths (feedback resistors and compensation network).

For compensation, solder a 10kΩ resistor in series with a 100nF capacitor between the output and the feedback pin. Adjust this network iteratively: increase the resistor to dampen overshoot, decrease the capacitor if response feels sluggish. Measure open-loop gain with an oscilloscope rather than relying on simulations–real-world parasitics rarely align.

Test output stability under varying loads. Begin with a 10Ω dummy load; monitor both voltage sag and recovery time. If the amplified voltage dips more than 5% or rings beyond 100mV, revisit inductor saturation current or increase the output capacitor to 100μF. Polymer capacitors excel here due to low ESR, cutting core losses that plague tantalum types.

Fine-Tuning Workflow

1. Set the feedback divider: start with 120kΩ between output and feedback pin, 20kΩ from feedback pin to ground. This targets 1.2V reference; tweak resistor values to scale output.
2. Engage the enable pin via a 0Ω jumper–floating it risks sporadic shutdowns.
3. Validate thermal performance: under full load, ensure junction temperature stays below 125°C. Switch to DFN package with exposed pad soldered to a heatsink plane if temperatures exceed guidelines.
4. Log efficiency across load range. Expect 85%–92% peak, dropping below 80% at loads under 200mA due to quiescent current.

Document every component tweak in a revision-controlled schematic file. Minor resistor adjustments often yield substantial efficiency shifts–consistent note-taking prevents repeating failed configurations.

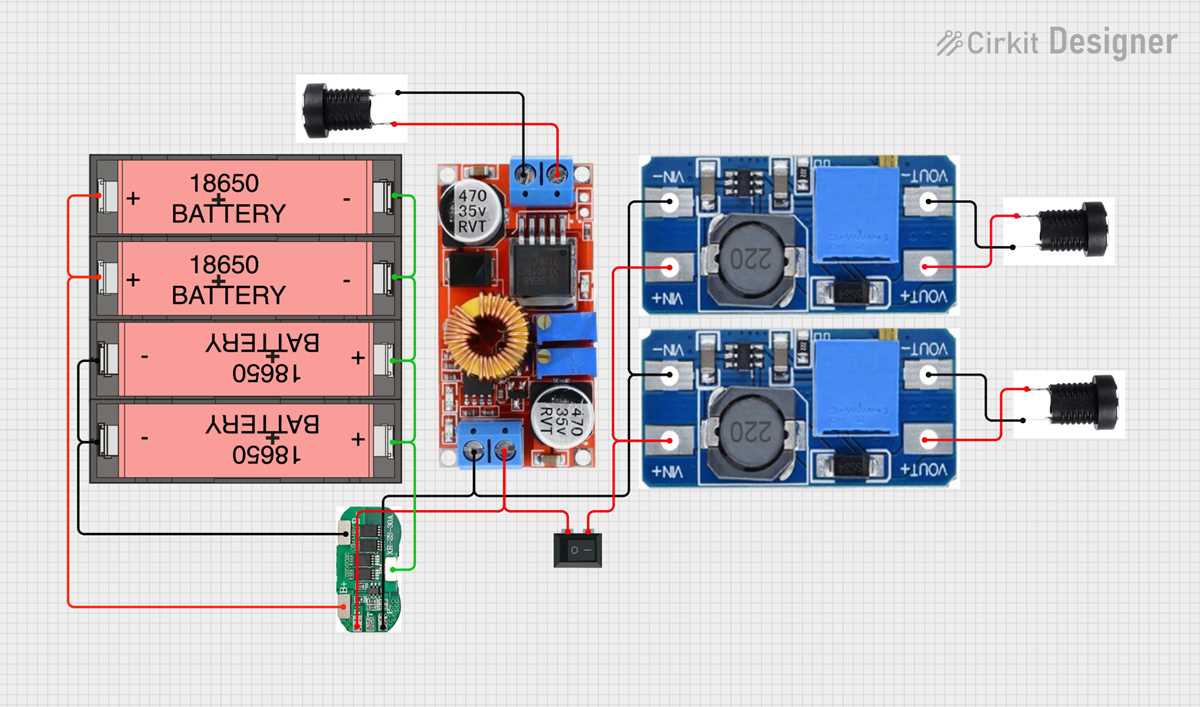

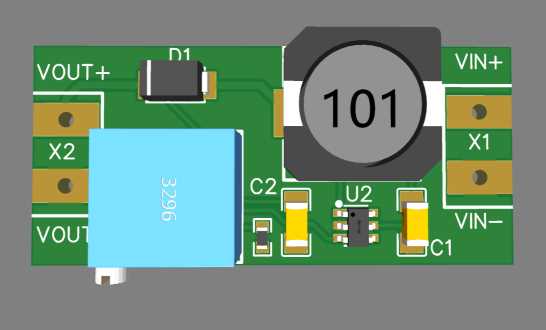

Step-by-Step Wiring of a Mini Boost Module for Breadboard Prototypes

Begin by inserting the mini voltage step-up module into the breadboard, ensuring its input and output pins span two separate rows. This prevents accidental shorts and simplifies later connections. Verify the module’s orientation by locating the small “+” marker near the input terminals–this denotes polarity for the power source.

Connect a 1.5V–4.5V DC power supply to the module’s input terminals. Use the breadboard’s rails for the negative lead (GND) and a jumper wire for the positive lead, routing it directly to the marked “+” pad. For testing, a single AA battery or a 3.7V LiPo cell works reliably. Avoid exceeding the module’s 2A input current limit to prevent overheating.

Essential Component Placement

• Inductor: No manual connection is needed–the module integrates it internally, optimizing space for breadboard layouts.
• Diode: Like the inductor, this is pre-soldered, eliminating reverse-current risks during prototyping.
• Output Capacitor: While the module includes one, adding a 10µF–100µF ceramic capacitor between the output pads improves stability, especially with dynamic loads. Place it within 2cm of the output terminals for best results.

Route the output to your load using thicker jumper wires (22 AWG or lower) if drawing currents above 500mA. For higher outputs (e.g., powering a 12V fan), parallel multiple wires to reduce resistance losses. Adjust the onboard potentiometer clockwise to increase voltage–turn slowly, monitoring with a multimeter to avoid overshooting your target.

For noise-sensitive applications (e.g., microcontrollers or radio modules), add a 0.1µF decoupling capacitor across the load’s power pins. If the module exhibits instability during load changes, increase the output capacitance incrementally by 10µF steps until transients smooth out. Avoid exceeding 22µF unless the load is purely resistive.

Troubleshooting Checklist

1. No output voltage? Confirm input polarity and check for shorted breadboard contacts.
2. Output fluctuates? Add a 10µF capacitor on the input side to stabilize the power source.
3. Module overheats? Reduce load current or add a small heatsink (e.g., a clipped resistor lead) to the IC.
4. Potentiometer unresponsive? Measure resistance across its terminals–a value above 10kΩ indicates failure; replace the module.

Once verified, secure the breadboard connections with hot glue for portable prototypes, but keep the potentiometer and input/output pads accessible for adjustments. Store unused modules in anti-static bags to prevent ESD damage to the onboard IC.

Key Component Values and Their Impact on Boost Converter Output Voltage

Set the feedback resistors (R1 and R2) in a 1:10 ratio for stable 5V output–R1 at 10kΩ and R2 at 100kΩ yield precise regulation without excessive quiescent current. Deviations beyond ±5% from these values introduce voltage drift, particularly under load variations greater than 500mA. For 12V output, adjust to 13kΩ and 130kΩ respectively, ensuring the total resistance stays below 1MΩ to avoid noise susceptibility.

Inductor Selection Directly Dictates Efficiency

Use a 4.7µH inductor with a saturation current rating of at least 2A for 3.7V-to-5V conversion. Lower inductance values (e.g., 2.2µH) accelerate transient response but increase ripple current, reducing efficiency by up to 8% at full load. Ferrite-core inductors minimize core losses, while air-core types introduce EMI risks above 1MHz switching frequencies. Specify a DCR below 0.1Ω to prevent thermal runaway in compact designs.

Diode choice critically impacts peak currents: a Schottky diode with 30V reverse voltage and 1A average forward current (e.g., 1N5819) ensures minimal forward drop (~0.3V), improving efficiency by 2-3% over standard silicon diodes. Avoid slower recovery diodes (trr > 50ns), as they cause voltage spikes exceeding 30% of the output, degrading regulation accuracy. For higher outputs (>12V), select diodes with higher reverse voltage margins to prevent avalanche breakdown.

Input and Output Capacitor Tradeoffs

Place a 10µF ceramic capacitor (X7R dielectric) at the input within 5mm of the IC to suppress voltage dips under dynamic loads. Smaller values (e.g., 4.7µF) risk input ripple exceeding 200mVpp, triggering overcurrent protection. At the output, pair a 22µF low-ESR capacitor with a 1µF ceramic capacitor to handle transient loads–omitting this results in voltage undershoot up to 1V during load steps of 500mA/µs.

Feedback capacitor (Cfb) values between 10pF and 47pF stabilize loop response without compromising bandwidth. Values below 10pF cause oscillation at frequencies above 500kHz, while values above 47pF introduce phase lag, slowing load regulation to >50µs. For applications requiring fast transient recovery, keep Cfb at 22pF and verify stability with a 10-90% load step test. Avoid polarized capacitors in feedback paths due to leakage current risks.

Switching frequency resistors (Rset) scale inversely with frequency: 200kΩ yields 500kHz, while 100kΩ pushes it to 1MHz. Higher frequencies reduce inductor size but increase switching losses by 15% per 20% frequency increase. For battery-powered devices, limit Rset to 150kΩ to balance efficiency and EMI compliance. Always measure actual frequency–tolerances of ±10% in Rset propagate as output voltage errors up to 0.5V in worst-case scenarios.
