Practical Guide to Wiring Multiple Lights in a Circuit Step by Step
Begin by identifying the power source and the number of fittings you need to integrate. For a standard 120V residential setup, daisy-chaining no more than four 60W units ensures the circuit doesn’t exceed 80% of its 15A breaker capacity (12A max). Calculate total wattage by summing each device’s load–ignoring this leads to tripped breakers or wire overheating.
Use 14-gauge copper conductors for circuits under 15A and 12-gauge for 20A. Never mix wire gauges; voltage drop over 3% causes flickering in longer runs. For spans over 50 feet, upsize the feed wire by one AWG size to compensate. Label each terminal connection at the junction box–hot (black), neutral (white), ground (bare/green)–to prevent miswiring.
Install a three-way switch if controlling the same group from two locations. Connect common terminals with a 14-gauge traveler wire (red), and terminate the second switch’s common to the load-side fixture. For four-way configurations, add switches between the travelers but maintain consistent wire colors–deviations risk shorts or open circuits.
Test continuity before energizing. Use a multimeter to verify 0 ohms between hot-neutral and open circuit between hot-ground. A continuity tester confirms uninterrupted paths; skip this step, and faults may damage fixtures. Secure all wire nuts with electrical tape–vibrations loosen unsecured connections over time.
Avoid splices outside junction boxes. Exposed connections corrode or arc, creating fire hazards. For outdoor installations, use weatherproof boxes and silicone-filled wire nuts. Keep conductors 6 inches apart inside boxes to meet NEC code, preventing accidental shorts from loose wires.
For dimming systems, pair LED-compatible dimmers with appropriate drivers. Mismatched pairings cause buzzing or failure. Check manufacturer specs–minimum loads often require 10W total, while some LEDs need specialized low-load dimmers. Connect all grounds first, then neutrals, and finally hots to minimize shock risk during testing.
How to Connect Several Fixtures in a Single Circuit
Begin by mapping out the path of cables from the power source to each outlet or switch. Use a 12-gauge wire for 20-amp circuits and 14-gauge for 15-amp setups. Shorter runs can handle 14-gauge, but prioritize consistency for easier troubleshooting.
Install a junction box at the first switch or fixture if branching is needed. Secure cables with NM-clamp connectors, tightening the clamp screws to prevent strain on terminals. Label each wire–black for live, white for neutral, green or bare for ground–to avoid confusion during final connections.
- For parallel connections (recommended), run a separate neutral wire to each fixture. Avoid daisy-chaining neutrals, as this can cause voltage drops and uneven brightness.
- For series connections (less ideal), link fixtures one after another, but know this risks dimmer output with each added bulb and complicates troubleshooting.
- Use wire nuts rated for the gauge you’re working with–yellow for 12-10 AWG, red for 14-12 AWG. Twist wires clockwise before applying the nut, then tug gently to ensure a solid hold.
Test continuity before closing junction boxes. A multimeter set to ohms should read near zero between neutral and ground at the last fixture. If resistance exceeds 1 ohm, recheck connections for loose strands or improperly twisted wires.
For dimmer-compatible setups, replace standard switches with a compatible model and verify the maximum wattage rating. Exceeding this will overheat the switch. Most residential dimmers handle 600W incandescent or 150W LED–check the manufacturer’s specs for exact limits.
- Turn off power at the breaker panel; test with a non-contact voltage tester before touching any wires.
- Strip 3/8″ of insulation from each wire end using lineman’s pliers or a dedicated stripper.
- Bend hooks into wire ends with needle-nose pliers for secure screw-terminal attachment.
- Wrap wires clockwise around terminal screws–never counterclockwise–to match the screw’s tightening direction.
- Fold excess wire into the box neatly, avoiding sharp bends that could damage insulation.
For outdoor or damp locations, use UF cable and waterproof wire nuts. Seal all entry points into junction boxes with silicone caulk to prevent moisture ingress. Use weatherproof covers for switches and gasketed enclosures for fixtures.
If fixtures are farther than 50 feet from the breaker, upsize the wire gauge by one size (e.g., 12 AWG to 10 AWG) to compensate for voltage drop. For 120V circuits, aim for no more than 3% drop; for 240V, up to 5% is acceptable. Use a voltage drop calculator for precise adjustments.
Selecting Proper Conductor Size for Parallel Illumination Setups
For 12V systems powering parallel LED arrays, use 18 AWG copper wire for runs under 10 feet when current draw stays below 5A. Increase to 14 AWG if exceeding this distance or load, as voltage drop becomes noticeable beyond 15 feet with thinner conductors. Always verify ampacity against manufacturer specifications – some compact LEDs tolerate only 80% of rated capacity before thermal throttling occurs.
| Circuit Length | Max Current (A) | Recommended AWG | Expected Voltage Drop (%) |
|---|---|---|---|
| 3 ft | 3 | 20 | 1.2 |
| 8 ft | 7 | 16 | 2.5 |
| 20 ft | 12 | 12 | 3.8 |
For 120V AC installations, 14 AWG suffices for 15A circuits running up to 50 feet, but switch to 12 AWG immediately for longer runs or higher loads to prevent insulation breakdown. Aluminum conductors require one size larger than copper for equivalent performance due to higher resistivity – factor this when retrofitting older junction boxes rated solely for copper.
Always perform on-site voltage measurements under full load before finalizing conductor selection. Test both source voltage and endpoint values with a multimeter while operating all connected elements simultaneously. If measured drop exceeds 3%, upgrade wire size immediately or reduce run length through strategic relay placement near load centers.

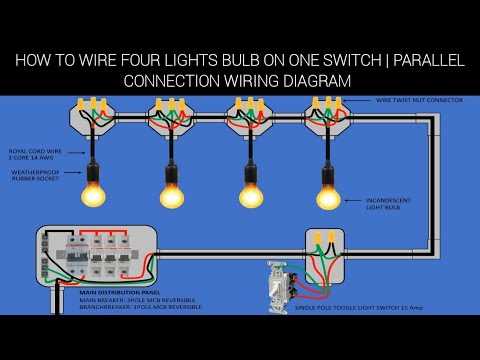

How to Connect Several Fixtures to One Control Point
Start with a 14-gauge Romex cable for circuits protected by a 15-amp breaker or 12-gauge for 20-amp circuits; verify the sheath indicates CU or AL compatibility based on your terminal material.
Trim each conductor to expose ⅝-inch copper–shorter leads risk loose connections, longer ones invite shorts–then twist clockwise with needle-nose pliers before bending the hook toward the screw’s tightening direction.
Attach the hot (black or red) conductor to the brass screw, neutral (white) to the silver screw, and ground (bare or green) to the green screw; torque each to 12–15 inch-pounds using an insulated screwdriver–over-tightening cracks delicate terminals.
Run a continuous loop from the switch box to each fixture box: feed power into the first unit’s receptacle, then extend hot, neutral, and ground to the next unit without splicing neutrals across different circuits–code forbids shared neutrals on separate breakers.
At each junction, secure conductors inside a listed 20-cu-in plastic or metal box; derate ampacity for more than three current-carrying conductors (NEC Table 310.15(B)(7)).
Finish by testing polarity with a non-contact tester before energizing: verify the switch toggles all fixtures simultaneously, brightness remains consistent, and no buzzing emanates from connectors–audible noise signals arcing that demands immediate disconnection.
Connecting Several Fixtures via a Central Hub
Turn off the circuit breaker before handling any conductors. Strip 0.5 inches of insulation from each wire end using strippers calibrated for the gauge (typically 12 or 14 AWG for residential setups). Twist same-color ends–black to black, white to white, ground to bare copper–clockwise with pliers to form secure joints. Cap each twisted pair immediately with a wire nut rated for the wire size (e.g., red for 12 AWG, yellow for 14 AWG) and tug firmly to confirm grip. Avoid leaving any exposed metal.
Map power source entry (live, neutral, ground) to the junction hub’s input terminals. Route a single feed from the hub to each fixture location–calculate total amperage draw (sum bulb wattages ÷ voltage) to prevent overloading the circuit. Use 12 AWG for runs exceeding 30 feet or loads above 10 amps; otherwise, 14 AWG suffices. Label all cables at both ends with tags (e.g., “South Wall sconce 1”) before securing them inside the hub’s enclosure with strain relief clamps to prevent tension on connections.
Hub Configuration Steps
Mount the hub vertically in an accessible but dry location (attics, basements, or interior walls). Align knockout openings with conduit or cable entries to minimize sharp edges. Feed all conductors through one knockout cluster to maintain organization. Group neutrals and grounds separately–neutrals connect to the bus bar or designated terminal, grounds attach to the metal enclosure or a dedicated ground screw. Test continuity with a multimeter before energizing: probe between live and neutral should read ~120V, live to ground ~0V.
Seal unused knockouts with insulating putty or blank covers. Secure the hub’s cover plate tightly to prevent dust or moisture ingress. After restoring power, verify each fixture activates independently by toggling switches–flickering or dim outputs indicate loose joints or undersized conductors. Repeat all checks annually; replace wire nuts if corrosion appears (greenish residue) or joints loosen.
