Step-by-Step Nest Thermostat Wiring Guide for Correct Installation

Start by identifying the existing low-voltage connections on your HVAC system. Most 24V systems include terminals labeled R, W, Y, G, C and sometimes O/B. Cross-reference these with the device’s installation manual–common manufacturers like Honeywell or Ecobee use identical labels. If your setup includes a heat pump, verify whether the reversing valve activates on cooling (O) or heating (B). Mislabeling this will force the unit to run in reverse, wasting energy and reducing efficiency.

For single-stage heating and cooling systems, connect R to Rc or Rh (power), W to W1 (heat), Y to Y1 (cool), and G to G (fan). If your furnace lacks a C-wire, use an external power adapter or repurpose the G-wire during installation. Never splice multiple wires into a single terminal–this causes voltage drops and premature system failure.

Multi-stage systems require additional attention: W2 for auxiliary heat, Y2 for secondary cooling, and E for emergency heat (common in heat pumps). If your system includes humidification or dehumidification, locate the HUM or DEHUM terminals–these often draw power from the same transformer but must not exceed 1.5A total load. Test all connections with a multimeter before powering on: resistance should read infinite ohms when probes touch exposed wires, confirming no shorts.

For hydronic heating or radiant floor systems, check for TT (thermostat terminals) or TACO labels–these require a separate relay or zone controller. High-voltage systems (120V/240V baseboard heaters) need an isolation relay to prevent damage to low-voltage components. Label every wire at both ends with heat-shrink tubing or color-coded flags: red for power, white for heat, yellow for cool, green for fan, and blue/black for common. Store the original wiring configuration in a photo–this saves hours during troubleshooting.

After securing connections, restart the HVAC system and monitor for error codes. If the display shows E24 or E73, check C-wire continuity or transformer voltage (should read 24-30V AC). For Wi-Fi issues, ensure the router’s DHCP lease time is set to at least 24 hours–frequent IP changes disrupt device registration. If the screen flickers or reboots, measure voltage fluctuations at the breaker: anything above ±5% indicates a power quality issue requiring a UPS or dedicated circuit.

Connecting Your Smart Climate Controller: A Practical Guide

Before handling any low-voltage connections, shut off the power at the breaker panel–failure to do so risks damaging the control unit or creating a short circuit. Use a multimeter to verify the circuit is dead; test between the R (or Rh/Rc) terminal and each other terminal.

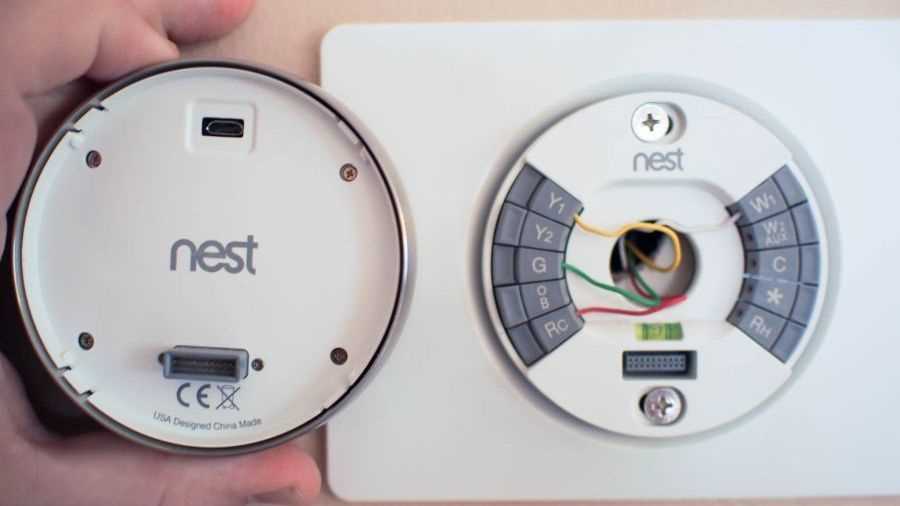

Identify the existing control system’s terminals by matching the labels on the base plate. Older two-wire systems typically show R and W connectors–these handle basic heating. Modern setups may include:

• C (common): Provides continuous power for Wi-Fi and display functionality
• Y/Y1: Activates cooling when engaged
• W/W1: Engages single-stage heat
• G: Operates the fan independently
• O/B: Reverses valve operation for heat pumps

Label each wire with masking tape before disconnecting–this prevents mix-ups during reattachment.

Heat pump installations require attention to the O/B terminal. A 24V signal sent here switches the refrigerant flow direction. Check manufacturer specs: some models expect O to energize in cooling mode, others in heating mode. Incorrect polarity can prevent proper operation or damage the compressor.

For systems with auxiliary heating (W2/E), wire color conventions often follow this pattern:

1. Red: R/Rh/Rc (power)
2. White: W/W1 (primary heat)
3. Orange: O/B (heat pump valve)
4. Yellow: Y/Y1 (cool)
5. Green: G (fan)
6. Blue or black: C (common)
7. Brown or other colors: auxiliary heat or secondary functions

Always adhere to the original equipment’s color code–deviation risks improper signal interpretation.

Troubleshooting Unexpected Behavior

If the screen fails to light up after installation:

• Confirm the C wire is securely attached–this is the most common oversight during retrofits
• Check for voltage at R and C terminals; readings should be ~24V AC
• Inspect for loose wire strands causing partial connections inside terminal screws
• Verify the breaker wasn’t accidentally toggled during work

Unexpected heating cycles during cooling mode typically indicate crossed O/B and Y terminals. Double-check connections against the heat pump manufacturer’s documentation–some devices reverse the expected signal polarity. For variable-speed fans, ensure the G wire connects to the correct terminal; improper attachment may trigger continuous low-speed operation.

Advanced Configurations and Safety

When integrating with humidifiers or dehumidifiers, locate the HUM or DEHUM terminals. These usually require a 24V signal to activate external equipment. Common configurations include:

• Humidifier: wired to W/W1 with a sail switch or current sensing relay
• Dehumidifier: wired to Y/Y1 or dedicated transformer
• ERV/HRV: typically controlled via G terminal with additional relays

Always install protective diodes across any inductive loads (like relays) to prevent voltage spikes from damaging the control board. For systems exceeding 20A of load, consider isolating the control unit’s power source with a dedicated transformer.

How to Determine Your Climate Control System’s Fit with Smart Climate Devices

Check your current control panel’s labeling first–most modern heating and cooling setups use a standardized terminal format (R, C, W, Y, G, O/B). If your setup deviates, note any custom markings before proceeding. Older systems may require an adapter or alternative installation methods.

Systems with heat pumps demand extra attention–identify if your unit uses an O or B terminal, as reversing valves operate differently. Misidentifying this can lead to incorrect operation or damage. Confirm compatibility by locating your outdoor unit’s model number and cross-referencing it with manufacturer documentation.

Two-transformer systems, common in larger zones, need both R and Rc terminals connected separately. Verify if your control device supports dual-power sources before installation. If missing a C-wire, explore options like power extenders, though some HVAC setups may need professional rewiring.

• Conventional furnaces: Typically use R-W-C for heating, compatible with most smart devices.
• Boilers: May lack a C-wire; check for alternative voltage sources or add a 24V transformer.
• Radiant heating: Often uses proprietary controls–confirm voltage and signal requirements.
• Electric baseboard: Requires relays; ensure your unit supports line-voltage switching (not all do).

Low-voltage systems (24V) are universally compatible, but millivolt setups (common in gas fireplaces) require specific relays. Check your control device’s specifications–some lack support for millivolt circuits entirely.

High-voltage systems (120V/240V) mandate additional safety precautions. Most smart climate gadgets aren’t designed for direct connection–use a relay or compatible interface to bridge the voltage gap. Failure to do so risks electrical hazards or device failure.

Consult your HVAC equipment’s manual for exact voltage and amperage ratings. Overloading circuits is a common mistake–ensure your chosen device matches your system’s electrical demands. If unsure, engage a licensed technician to evaluate compatibility before installation.

Connecting a Smart Climate Controller: Exact Procedures for Popular HVAC Setups

Verify voltage before handling any connections. Standard low-voltage setups operate at 24V AC, while line-voltage systems (120V or 240V) require professional intervention. Use a multimeter to confirm; if readings exceed 30V, stop immediately. Low-voltage circuits typically power gas furnaces, heat pumps, and most central AC units–these are safe for DIY installation. High-voltage configurations (baseboard heaters, electric furnaces) demand licensed electrician oversight.

For forced-air systems (furnace + AC), identify the control board terminals. Standard labels include:

R (24V power – red wire)

C (common – blue or black wire, *mandatory for powering smart devices*)

W (heat relay – white wire)

Y (cooling relay – yellow wire)

G (fan relay – green wire)

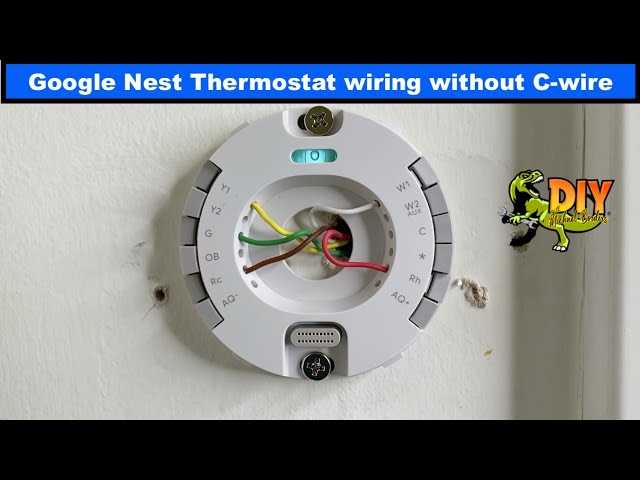

Disconnect power at the breaker, then detach the existing control panel’s wires. Match colors exactly–*never assume*–cross-verification prevents damage. If the C-wire is missing, use an add-a-wire kit or repurpose the G-wire temporarily (note: this disables independent fan control).

Heat pumps introduce O/B terminals (orange for cooling, dark blue for heating). These reverse refrigerant flow:

O = cooling mode (energized during AC)

B = heating mode (energized during heat pump operation)

Configure the device’s settings to O/B selection *before* connecting wires. Dual-fuel systems (heat pump + furnace) require E (emergency heat – brown wire) and W2/AUX (secondary heat – white/red stripe). Jumper Rc to Rh if a single transformer powers both heating and cooling; separate transformers demand isolated Rc (cooling) and Rh (heating) inputs.

Radiant floor heat (low-voltage) and boilers follow unique rules. Boilers often lack a C-wire; solve this via:

1. Installing a power extender kit (included with most smart controllers)

2. Tapping into an unused zone valve terminal (consult HVAC schematics)

3. Using a 24V transformer wired to the R and C terminals

For hydronic systems, the T/T1 terminals (zone thermostat) and T/T2 (secondary zone) must align with the controller’s W and W2 outputs. Line-voltage baseboard heaters (208V/240V) *cannot* be connected directly–use a relay (e.g., Aube RC840T) to interface safely.

Final checks:

• Tug-test all connections (wire nuts or screw terminals)
• Restore power and observe system behavior for 5 minutes–fan only, no heating/cooling indicates miswired relays
• Cycle through heat, cool, and fan modes using manual controls
• If error codes appear (E73 = missing C-wire, E74 = open circuit), reevaluate terminals before contacting support

Migration to smart controls introduces energy-saving algorithms, but only precise wiring ensures reliability. *Never splice high-voltage wires to low-voltage circuits*–catastrophic failure risk.
