Build a Safe Non-Contact AC Voltage Tester Step-by-Step Guide
Start with a BC547 transistor as the primary signal amplifier. Pair it with a 470kΩ resistor connected to the base to limit current while ensuring sensitivity. The emitter should ground through a 1kΩ resistor to stabilize output, while the collector connects to a 2N3904 transistor acting as a second-stage amplifier. This dual-transistor setup boosts faint electromagnetic fields from live wires into detectable signals without physical probes.
Add a 1MΩ resistor between the antenna (a thin copper wire or PCB trace) and the transistor base to filter noise. For visualization, integrate a bright LED through a 1kΩ current-limiting resistor tied to the final amplifier stage. Test detection range by gradually increasing distance from a 220VAC wire–optimal performance should reach 2–5cm, depending on wire insulation thickness and ambient interference.
For battery-powered use, a 9V supply works, but lower voltages (5V) reduce sensitivity. To improve accuracy in high-noise environments, shield the antenna with a thin insulated layer and keep the board compact to minimize false triggers. Calibrate by adjusting the resistor values: lower resistance increases sensitivity but raises false positives.

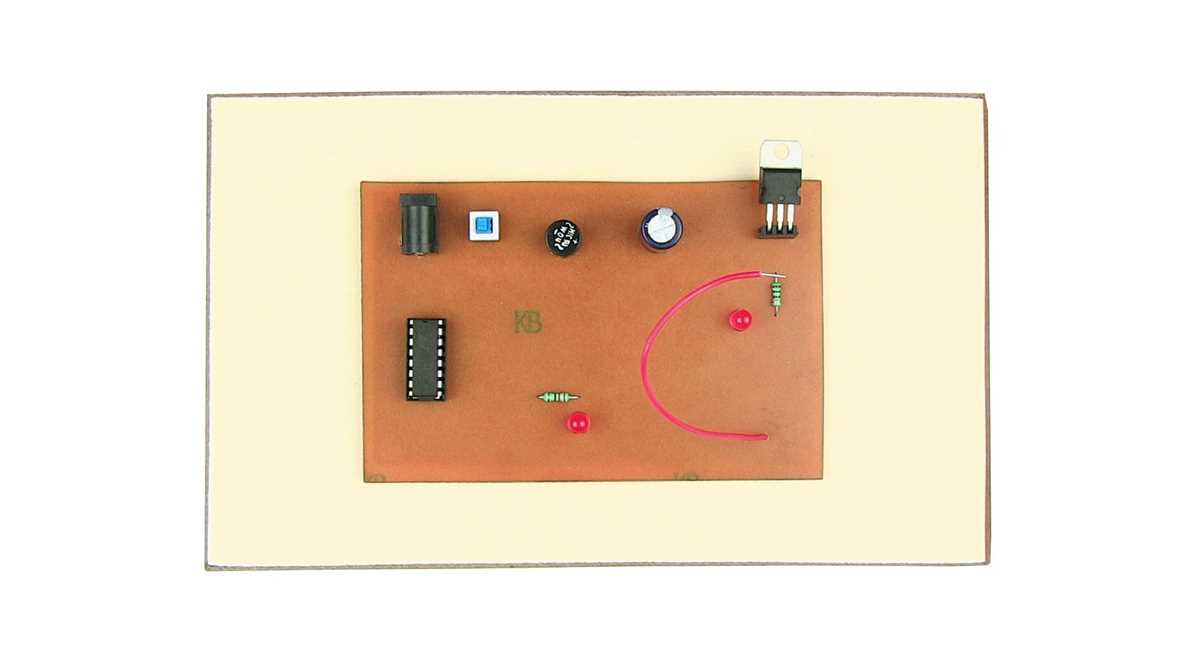

Assemble on a perforated board or etching-free copper-clad protoboard. Position the antenna away from ground planes to avoid signal attenuation. Verify functionality by simulating live wires with a lamp cord–if the LED glows near the wire but not the plug, the design is effective. Avoid conductive enclosures, as they will block RF signals.
Troubleshoot weak detection by checking transistor pinouts (BC547/2N3904 are sensitive to miswiring). If the LED flickers erratically, add a 0.1µF ceramic capacitor between the amplifier output and ground to smooth signal fluctuations. For portable use, replace the LED with a piezo buzzer and a 220Ω series resistor for audible feedback.
How to Build a Proximity Electric Field Tester: Schematics and Key Insights
Begin with an antenna made of a 5–10 cm insulated wire coiled into a 1.5 cm diameter loop–this captures stray electromagnetic waves without physical connection. Connect the loop directly to the gate of a 2N3819 JFET for immediate signal amplification. Avoid resistor dividers at this stage; they attenuate weak fields before detection.
The JFET’s drain should feed into a 2N2222 bipolar transistor arranged in common-emitter mode. Bias the base with a 470 kΩ resistor to ground, ensuring the transistor stays just below cutoff–this creates a sensitive threshold for oscillation. Skip capacitors over 1 nF; they introduce latency, dulling response to fleeting 50/60 Hz hum.
Add an LED between the collector and a 4.5 V source through a 470 Ω current-limiting resistor. Position the LED’s cathode toward the transistor; reversed polarity wastes power when the device is idle. Calibrate sensitivity by moving the antenna near a known live 120 V wire–adjust the 470 kΩ resistor until the LED glows faintly at 1 cm distance, then dims completely beyond 5 cm.
Use a ceramic 0.1 µF capacitor across the battery terminals to quench false triggers from RF interference. Avoid electrolytic caps here–their leakage current destabilizes the JFET’s gate voltage. If testing near variable-speed drives, insert a 100 pF capacitor in parallel with the 470 kΩ resistor to filter out PWM spikes.
- Power the device from a single AAA battery; lithium cells provide longer consistency.
- Enclose the antenna in heat-shrink tubing to shield it from moisture–condensation alters capacitance.
- Etch a small ground plane on the PCB beneath the JFET to reduce hand-proximity effects.
- Solder all joints with 63/37 eutectic alloy–indium-based solders creep under thermal cycling.
For dual-threshold operation (useful in industrial environments), replace the LED with a TL431 programmable shunt regulator. Connect the TL431’s cathode to a red LED and anode to a green LED; the regulator’s 2.5 V reference creates a sharp transition at 50 VAC and 150 VAC levels. Add a 10 kΩ trimpot between the TL431’s reference pin and ground to fine-tune the breakpoint.
Test the completed unit against a hot-ground reversed outlet: the red LED should remain off until the antenna approaches within 2 cm of the hot wire, while the green LED stays lit near the neutral wire. If both LEDs flicker, increase the 0.1 µF decoupling capacitor to 0.47 µF to dampen transients from fluorescent lighting.
Carry spare AAA batteries–voltage below 1.2 V collapses the JFET’s gate bias, silencing the detector without warning. Store the device in a mu-metal box if near MRI machines or induction cooktops; these emit harmonics that can trick a tuned loop antenna.
Parts Required for Assembling a Proximity Electrical Tester
Begin with an operational amplifier like the TL072 or LM358–these ICs excel at detecting weak electromagnetic fields. Select a model with low input bias current (below 100 pA) and high input impedance (above 1 MΩ) to ensure sensitivity. Pair it with a bipolar junction transistor (BC547 or 2N3904) to amplify the signal; verify its gain (hFE) is at least 100 for reliable performance.
A 9V alkaline battery powers the device efficiently, though lithium coin cells (CR2032) work for compact designs. Include a low-dropout regulator (LM2940) if stability under varying loads matters. For passive components, use a 10 MΩ resistor as a feedback element and a 10 kΩ potentiometer to fine-tune detection range–values deviating over ±20% may require recalibration. Ceramic capacitors (100 nF) across IC power pins suppress noise, critical for consistent readings near 50-60 Hz interference.
Sensing Elements and Indicators
A copper-clad PCB trace or a 1-2 cm piece of insulated wire serves as the antenna–position it at least 3 mm from other conductive paths to avoid false triggers. Ferrite rods (4-6 mm diameter, 20 mm length) concentrate magnetic fields but demand precise alignment; test positioning with a live wire before finalizing the layout. For visual feedback, a bright LED (3 mm, 20 mA) or a piezoelectric buzzer (3 kHz resonant frequency) works; match the current-limiting resistor to the LED’s forward voltage (typically 1.8-3.3V).
Avoid generic resistors–carbon film types drift under humidity; metal film variants (1% tolerance) maintain accuracy. If including a self-test function, add a momentary pushbutton (6×6 mm) to simulate field detection by briefly connecting the antenna to the sensing input. Shield sensitive components with grounded copper tape or a small Faraday cage if operating in high-noise environments like industrial settings.
For enclosure materials, ABS plastic (2-3 mm thick) offers durability without signal attenuation, while metal casings require non-conductive spacers (e.g., nylon screws) to isolate the circuit. Label input/output terminals clearly; miswiring risks damaging ICs. Calibrate the device by adjusting the potentiometer near a known powered cable (e.g., a phone charger) until the indicator activates at a 1-3 cm distance–tolerance should not exceed ±5% from this baseline.
Step-by-Step Assembly for a Live Wire Sensing Device
Begin by securing the LM393 comparator IC on a breadboard, ensuring pin 1 aligns with the first row. Connect the 10kΩ resistor between the IC’s inverting input (pin 2) and ground, while the 1MΩ resistor bridges the non-inverting input (pin 3) to the antenna terminal–a stripped 5 cm copper wire. Verify power delivery: a 9V battery with a snap connector feeds the IC’s V+ (pin 8) via a 220Ω current-limiting resistor, while ground (pin 4) routes directly to the battery’s negative terminal. Add a 100nF ceramic capacitor across the power rails to suppress noise.
Component Placement and Wire Routing
| Component | From | To | Notes |
|---|---|---|---|
| 3mm LED | LM393 output (pin 1) | Ground via 470Ω resistor | Anode to pin 1, cathode to resistor |
| Antenna | Non-inverting input (pin 3) | – | Solder joint for mechanical stability |
| Buzzer (optional) | LM393 output (pin 1) | Ground | Active buzzer only; add 1kΩ resistor in series |
Test each joint by powering the setup and holding the antenna near a powered cable–no closer than 3 cm to avoid false triggers. If the LED fails to illuminate, swap the 1MΩ resistor for a 470kΩ variant to adjust sensitivity. For permanent soldering, use a perfboard with traces cut between high-impedance nodes to minimize interference. Encase the assembly in a non-conductive housing with only the antenna and LED visible; avoid metal enclosures as they shield electromagnetic fields.
How to Select the Right Antenna for Signal Detection
Begin with frequency range matching. If your target operates at 50-500 MHz, a dipole or loop antenna will outperform broadband alternatives like a discone. Verify the antenna’s specified bandwidth–narrower ranges (e.g., 144-148 MHz for VHF) minimize interference but require precise tuning. Avoid generic “wideband” antennas for weak signals; they dilute sensitivity.
Prioritize gain and directivity. A Yagi-Uda antenna with 7-12 dBi gain focuses energy directionally, ideal for point-to-point applications, while an omni-directional whip (0-2 dBi) suits mobile or broad-area scanning. Balance gain with beamwidth: higher gain narrows the reception angle, demanding accurate alignment.
Evaluate polarization. Vertical polarization (e.g., rubber duck antennas) suits ground-based transmissions, while horizontal works for overhead sources like satellites. Cross-polarization mismatch can attenuate signals by 20-30 dB, so match the antenna to the source’s orientation.
Consider size and portability. For handheld devices, a shortened quarter-wave whip with a loading coil sacrifices efficiency (typically -3 dB gain) but retains usability. Fixed installations can use full-size elements (e.g., half-wave dipoles) for optimal performance. Avoid miniaturized antennas below 0.1λ–they introduce severe impedance mismatches.
Assess impedance matching. Most antennas target 50Ω; ensure your receiver’s input impedance aligns within ±10Ω to prevent signal loss. Use an SWR meter to measure reflections–VSWR > 2:1 indicates poor coupling. For non-standard impedances (e.g., 75Ω), deploy a balun or matching network.
Factor in environmental durability. Outdoor antennas need weatherproofing (e.g., UV-resistant enclosures, corrosion-proof connectors). Temperatures below -20°C degrade coaxial cable performance–use low-loss variants like LMR-400. Urban settings demand RF shielding to suppress EMI.
Calculate power handling. If transmitting, ensure the antenna supports the power level (e.g., 100W for HF, 10W for UHF). Exceeding ratings causes arcing or thermal damage. Passive schemes (e.g., spectrum analyzers) avoid this constraint.
Validate with real-world testing. Simulations (e.g., EZNEC, CST) provide baseline data, but empirical measurements reveal anomalies like multipath fading or ground reflections. Rotate directional antennas in 15° increments to map reception contours, noting nulls and peaks for optimal placement.
