Step-by-Step Guide to Building a DIY Running Lights Circuit

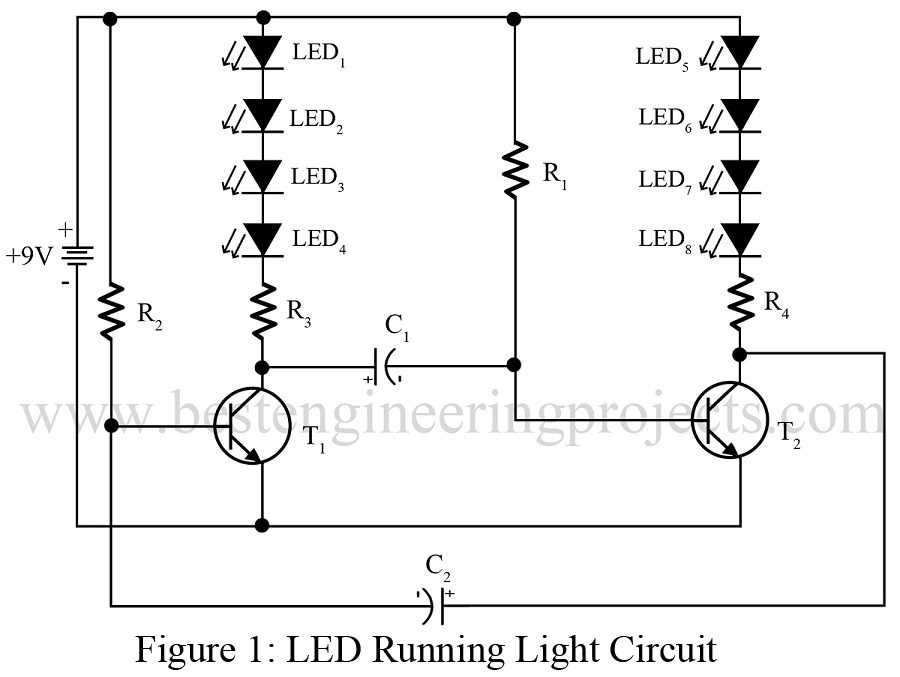

For reliable animation effects, a 555 timer IC in astable mode generates pulses at 2–10 Hz. Connect the output (pin 3) to a CD4017 decade counter clock input (pin 14). Each rising edge shifts the high state to the next output pin (Q0–Q9), cycling through ten LEDs sequentially. Use current-limiting resistors between LED anodes and counter outputs–220Ω for 5V logic, 1kΩ for 12V–to prevent excess current draw.
Power stability is critical: decouple the 555 timer and CD4017 with a 10μF electrolytic capacitor across Vcc and ground. For longer sequences, cascade additional CD4017 chips by connecting the carry-out pin (12) of the first to the clock input of the second. Solder all ground connections to a common plane to minimize noise interference, especially in vehicle or outdoor installations.
Verify timing calculations using the formula T = 0.693 × (R1 + 2R2) × C, where R1 (1kΩ), R2 (10kΩ potentiometer), and C (10μF) adjust blink rate. Test with a multimeter: measure pin 3 of the 555 timer–voltage should toggle between 0V and supply voltage at the calculated frequency. For standalone use, add a flyback diode (1N4007) across inductive loads like relays to protect the circuit from voltage spikes.
Automated Sequence Illumination Circuit Guide
Select a microcontroller with at least 8 GPIO pins and PWM support for precise timing control. The ATtiny85 or PIC12F675 works well for compact setups, while the Arduino Nano suits projects requiring additional sensor inputs. Ensure the unit operates at 5V to match standard LED forward voltage.
Use NPN transistors (2N2222 or BC547) as switching elements for each channel, paired with 1kΩ base resistors to limit current. For higher power outputs, replace transistors with logic-level MOSFETs (IRLZ44N), which handle up to 5A per channel without heatsinks. Calculate load requirements: LEDs typically draw 20mA, but high-brightness variants may need 50-100mA.
Implement a current-limiting resistor for each LED string. Formula: (Supply Voltage - LED Forward Voltage) / Desired Current. Example: For a 12V supply and 3x 3.2V LEDs (9.6V total) at 20mA, use (12V - 9.6V) / 0.02A = 120Ω. Round up to the nearest standard value (120Ω or 150Ω).
Power Distribution Checklist
- Measure trace widths on PCB: minimum 1mm/A for copper thickness 1oz/ft².
- Avoid daisy-chaining high-current loads; use individual returns to the power source.
- Add a 1000µF electrolytic capacitor across the power input to stabilize voltage during transitions.
- Use Schottky diodes (1N5817) for reverse polarity protection if external power is connected.
For timing sequences, program delays between 50ms and 500ms to create smooth transitions. Shorter intervals (50-100ms) work for emergency strobing, while longer delays (300-500ms) suit decorative patterns. Store patterns in EEPROM if the microcontroller lacks sufficient flash memory, using I²C interfaces with 24LC256 chips for extended storage.
Fault Detection & Redundancy
- Install 10kΩ pull-down resistors on all transistor bases to prevent floating inputs.
- Add LED status indicators (separate from main outputs) to show sequence progression.
- Include thermal fuses rated 10% above expected current for each channel.
- Test continuity after assembly with a multimeter; verify transistor saturation at ~0.2V collector-emitter voltage.
Optimize layout by grouping components by function. Keep high-current paths (MOSFETs, LEDs) separate from low-current logic (microcontroller, resistors). For multi-layer PCBs, use GND pours on internal layers to reduce noise. When prototyping on perfboard, minimize jumper wires–each additional connection increases failure risk by ~0.5% per joint.
Core Elements for Building a Sequential Illumination System
Select an 8-pin microcontroller like the ATtiny85 for compact designs or a 555 timer IC if simplicity is critical. The ATtiny85 handles up to 6 outputs directly, while the 555 timer requires additional components for sequencing but lowers costs. For precision timing, use a 16 MHz crystal oscillator with the microcontroller; omit this if approximate delays suffice.
Use N-channel MOSFETs (e.g., 2N7000 or IRLZ44N) to control current flow to LEDs. The IRLZ44N supports up to 47A, ideal for high-brightness arrays, while the 2N7000 maxes at 200mA–suitable for standard diodes. Pair each MOSFET with a 10kΩ pull-down resistor to prevent floating gates. For reverse polarity protection, add a 1N4007 diode in series with the power input.
Opt for super-bright LEDs (20-50 mcd) in 5mm or 3mm packages, depending on visibility requirements. Calculate current-limiting resistors using R = (Vsource – VLED) / ILED. For a 12V supply, 3mm red LEDs (2V forward voltage, 20mA) need 470Ω resistors. Group LEDs in series strings of 3-4 units to minimize resistor count. Avoid exceeding 80% of the MOSFET’s current rating.
Solder a 100nF ceramic capacitor near the microcontroller’s power pins to stabilize voltage and reduce noise. For the 555 timer, include a 10µF electrolytic capacitor for timing accuracy. Power the circuit with a regulated 12V DC source–avoid unregulated adapters, as voltage spikes can damage components. If battery-operated, use a 9V alkaline or 3xAA battery holder with a 7809 voltage regulator for consistency.
Wire the sequencing logic to match the desired pattern. For the ATtiny85, program a simple loop with delays between pin toggles (e.g., 200ms interval). With the 555 timer, combine it with a 4017 decade counter to cyclically enable outputs. Test timing by measuring pulse widths with an oscilloscope; fine-tune by adjusting resistor-capacitor pairs. Prioritize a 5-10Hz flash rate to avoid epileptic triggers.
Isolate high-current paths from logic-level traces on breadboards or PCBs. Use 1mm traces for LED strings drawing over 100mA and solder jumper wires for reliability. Secure all connections with heat-shrink tubing or electrical tape to prevent short circuits. For outdoor installations, enclose the circuit in a waterproof ABS box and seal entry points with silicone.
Incorporate a manual override switch–a SPDT toggle or momentary push-button–wired to reset the microcontroller or bypass the timing circuit. Label all inputs/outputs on the enclosure for easier troubleshooting. For modularity, add 2.54mm male headers to the microcontroller pins, allowing quick reprogramming or expansion with shift registers (e.g., 74HC595) for additional channels.
Component Selection Checklist
Verify specifications against the intended load. For 10W LEDs, upgrade to a logic-level gate MOSFET like the IRLB8743 (100A, 55V). Replace ceramic capacitors with tantalum types (1µF) in high-noise environments. Use Schottky diodes (1N5817) for faster switching if PWM dimming is needed. Record all values during assembly for future reference.
Step-by-Step Assembly of Sequential LED Patterns on a Prototyping Board
Begin by placing the microcontroller on the upper section of the breadboard, ensuring the IC spans the central divider to isolate its pins. The ATtiny85 is ideal for compact builds, but verify its pinout matches the 8-pin DIP configuration. Connect pin 8 (VCC) to the power rail and pin 4 (GND) to ground–omit decoupling capacitors at your own risk, as noise may disrupt timing.
Component Placement and Wiring
Use the table below to map LED connections to the microcontroller, referencing pin functions rather than vague designators:
| LED Color | Breadboard Row | Microcontroller Pin | Resistor Value (Ω) |
|---|---|---|---|
| Red | 10 | PB0 (Pin 5) | 220 |
| Green | 15 | PB1 (Pin 6) | 220 |
| Blue | 20 | PB2 (Pin 7) | 220 |
| Yellow | 25 | PB3 (Pin 2) | 330 |
Insert each LED’s anode into its assigned row, with the cathode routed through the specified resistor to ground. Avoid daisy-chaining resistors; arrange each component in parallel for consistent current distribution. Double-check polarity–reversing a single LED will render the entire sequence dim or nonfunctional.
Firmware Configuration
Flash the microcontroller with pre-written code using an ISP programmer or USBasp. For the ATtiny85, use this base configuration:
#define F_CPU 1000000UL
#include <avr/io.h>
#include <util/delay.h>
int main(void) {
DDRB = 0b00001111; // PB0-PB3 as outputs
while(1) {
PORTB = 0b00000001; // Light first LED
_delay_ms(200);
PORTB = 0b00000010; // Shift to next
_delay_ms(200);
// Repeat for remaining bits
}
}
Adjust the delay value in milliseconds to alter transition speed. Resist the urge to compile without fuse settings–enable the internal 1MHz clock via avrdude or equivalent tools to prevent unintended behavior. Omitting the F_CPU definition will result in unpredictable timing.
Power the circuit via a regulated 5V supply. Linear regulators like the 7805 require an input of at least 7V, while buck converters demand precise inductor selection (e.g., 33µH for 500mA loads). Observe current draw: exceeding 20mA per LED risks thermal damage–add a current-limiting resistor for every device, even if the datasheet claims “low drop.” Test each segment individually before proceeding; a single misplaced jumper can create a short, masking systemic issues.
Validate operation by observing the sequential illumination. If LEDs flicker or skip, re-examine solderless connections–breadboard contacts oxidize over time, increasing resistance. Replace any suspect wires or relocate components to unused rows. For persistent failures, probe each node with a multimeter in continuity mode. Voltage drop across a resistor should match Vf for the LED color (e.g., 2.1V for red) minus supply voltage divided by resistance–deviations indicate incorrect component values.
