Complete Guide to Wiring Your Old Nutone Doorbell Step by Step

For a retired chime unit from the mid-20th century, identify the transformer secondary voltage first–most models use 16V AC, though some heavy-duty variants may supply 24V. Verify this with a multimeter across the low-voltage terminals before connecting any components. Failure to confirm voltage risks damaging solenoids or the button mechanism.

Trace the incoming power feed from the circuit breaker to the transformer–interrupting this feed will disable the entire system. Look for a dedicated 15- or 20-amp breaker, often unlabeled, feeding a 120V input. If the breaker trips frequently, suspect loose wire nuts at the transformer or corroded contacts at the pushbutton housing.

Modern pushbuttons use normally open contacts; vintage models often include a shunt wire bridging the screws to maintain continuity. Replace this with a standard 18-gauge solid copper wire if corrosion is visible. Avoid stranded wire–it frays and creates heat under repeated compression cycles.

The solenoid assembly inside the chime housing has two coil terminals–front door and rear door. Mark these with tape before disassembly to prevent miswiring. If the plunger sticks, clean with isopropyl alcohol, not WD-40; residual lubricant attracts dust and impedes travel.

For installations with multiple chimes, use a spade connector at every junction to accommodate future testing. Twist-and-tape splices degrade over decades; crimp-on spades maintain conductivity even under thermal cycling. If replacing the transformer, choose one with Class 2 insulation–these tolerate brief short circuits without overheating.

Measure resistance across each solenoid–12-16 ohms is typical. Values below 8 ohms indicate excessive current draw and impending failure. If only one tone sounds, inspect the striker arm clearance; 2-3mm spacing is critical for proper chime resonance.

Retro Chime System Connection Walkthrough

Locate the transformer first–it’s typically near the main electrical panel or tucked behind the existing chime box. Check the voltage rating: most vintage models output 10–16V AC, while newer transformers may push 18–24V. Confirm compatibility by testing with a multimeter; mismatched voltage risks overheating or weak signal strength. If unsure, replace the transformer with a 16V 10VA model–standard for legacy setups.

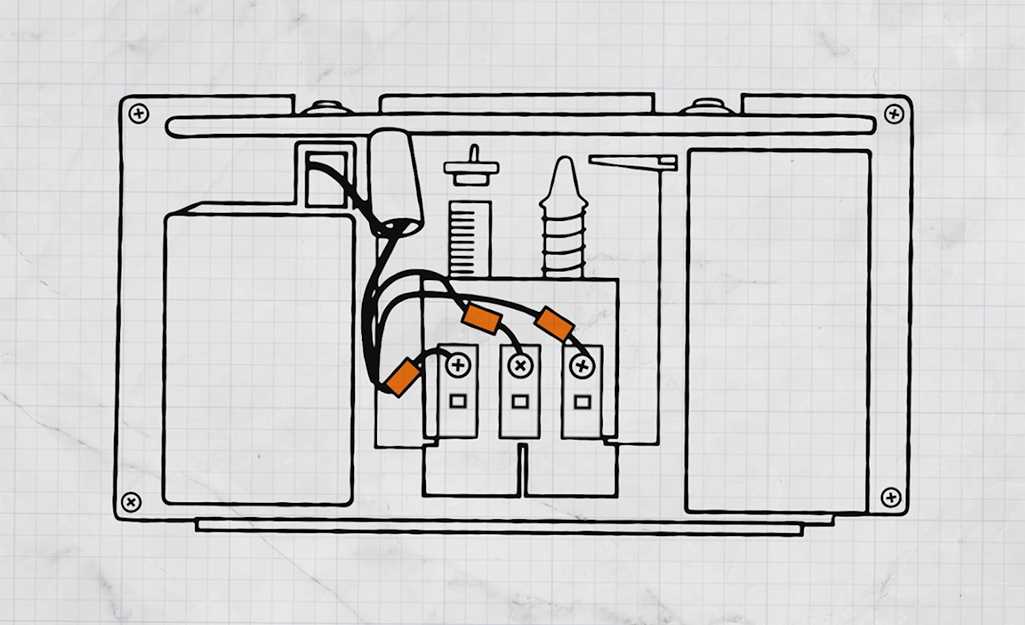

Identify the three terminal screws inside the chime unit: “Front” (usually marked F), “Rear” (R), and “Trans” (T). Attach:

• The F wire from the push button to the Front terminal
• The R wire (if dual-tone chime) to the Rear terminal
• The transformer’s secondary wires to the Trans and remaining terminal (polarity doesn’t matter in AC systems)

Cap unused terminals with wire nuts to avoid short circuits. For mechanical chimes with solenoids, ensure the plunger moves freely–lubricate with silicone spray if sluggish.

Troubleshooting Common Issues

No sound:

1. Verify transformer output–should match the label rating (e.g., 16V)
2. Check push button continuity with a multimeter; clean corroded contacts with isopropyl alcohol
3. Inspect doorbell cable for breaks, especially at entry points–use 18–20 AWG solid wire for replacements

Weak chime? Swap the transformer for a higher VA model (e.g., 30VA) if the existing one struggles with multiple chimes or long wire runs. Avoid daisy-chaining–it dilutes voltage.

Upgrading Without Rewiring

Integrate a smart relay (e.g., Ring or SkyBell) by splicing it between the push button and chime. Connect:

• Relay’s input wires to the existing button circuit
• Relay’s output to the chime’s Front terminal
• Power the relay via a USB adapter plugged into a nearby outlet–use a 5V 2A supply

Test the setup by pressing the physical button first; if the chime fails, check relay firmware settings for “mechanical chime” mode. For battery-powered relays, replace AA cells every 6–12 months.

Recognizing Classic Chime Power Supply Wire Shades

Begin by locating the low-voltage power adapter–typically a small, rectangular housing mounted near the main electrical panel or inside a basement, crawlspace, or utility closet. Most legacy units feature two secondary terminals, each marked with distinct color codes to denote output poles.

The standard hues for the transformer’s secondary leads are:

• Bright white – corresponds to the neutral (common) terminal.
• Vibrant red or occasionally black – indicates the hot (energized) terminal.

On some models, particularly those manufactured between 1980 and 2005, you may encounter a brown sleeve covering one or both wires–this serves no functional purpose other than insulation and can be disregarded during tracing.

Use a multimeter to verify voltage levels: set the device to AC mode and expect a reading of 16–24 volts between the two terminals. If the measurement deviates significantly (below 10V or above 30V), the power adapter may require replacement or an underlying circuit issue exists.

When connecting to the chime mechanism, match the terminal designations precisely:

1. Attach the white (neutral) lead to the terminal labeled “C” (common), “TRANS,” or “N.”
2. Connect the red/black (hot) lead to either “FRONT,” “REAR,” or “PUSH,” depending on the zone being serviced.

If the existing color scheme varies–such as blue, yellow, or green substitutes–document the terminal positions before disconnecting any wires to prevent confusion during reassembly. Discrepancies often arise from aftermarket modifications or regional supply differences.

For models with a third (ground) terminal, typically bare copper or green, ensure this connects to the chime’s metal housing or a dedicated grounding screw. Neglecting this step may result in intermittent failures or buzzing during operation.

Installing a New Chime Push Mechanism: A Precise Guide

Disconnect power at the circuit breaker to eliminate voltage risks before handling any connections. Label each wire with tape to track their positions–common terminals include transformer, front activator, and rear activator, if applicable.

Remove the existing switch plate by unscrewing the mounting hardware. Pull the fixture away gently to expose attached leads; avoid tugging to prevent detaching loose connectors.

Detach the wires from the old mechanism by loosening terminal screws. Note colors: typically, a bell push uses two cables–one from the transformer (often red or brown) and one returning to the chime (usually white or yellow). Verify with a multimeter if uncertain.

Align the replacement button with the existing mounting bracket. Thread the prepared wires through the base, ensuring no insulation is stripped beyond 6mm to prevent short circuits when securing under screws.

Attach the leads to the new device: the transformer feed connects to the common terminal, while the return line goes to the normally open contact. Tighten screws firmly but avoid over-torquing to prevent damaging threads.

Test continuity with a multimeter before re-energizing the circuit. Set the device to continuity mode and probe both terminals–pressing the activator should produce a beep, confirming correct contact.

Reinstall the faceplate, ensuring alignment with the wall bracket. Secure it without pinching any wires; misaligned plates often cause intermittent failures.

Restore power at the breaker and press the activator to verify sound activation. If silent, revisit connections–common issues include reversed wires or loose terminals.

Silent Chime Unit Troubleshooting Steps

Check the transformer voltage with a multimeter at the terminals. Legacy systems typically require 10–24V AC. If readings fall below 8V, replace the power supply–corroded contacts or degraded insulation often reduce output.

Remove the cover plate and inspect the solenoid coil. Tap the plunger lightly with a screwdriver handle; if no click is heard, the coil may be burned out. Resistance should measure 50–150 ohms–values outside this range indicate failure.

Examine the chime bars for oxidation or debris buildup. Clean contact points with fine-grit sandpaper, then apply dielectric grease to prevent future corrosion. Ensure the striker arm aligns precisely with the bar; misalignment of 1mm can mute sound.

Trace the low-voltage circuit path from the button to the mechanism. Test continuity across the switch–press the actuator and verify resistance drops to near zero. If resistance remains high, clean or replace the switch; pitted contacts are a common failure point.

Mechanical Obstruction Diagnosis

Lubricate pivot points with light machine oil. Avoid WD-40–its residue attracts dust. Work the plunger manually ten times to distribute lubricant evenly. Stiff movement after this step suggests internal wear requiring unit replacement.

Verify the chime housing is securely mounted. Loose fasteners dampen resonance; retighten screws to spec (typically 8–12 in-lbs torque). Add rubber washers between the housing and mounting surface to isolate vibrations.

Listen for faint hissing or intermittent clicking during operation. These symptoms often indicate partial plunger disengagement or worn spring tension. Adjust the spring tension incrementally with pliers; each ¼-turn change alters strike force noticeably.

If all components check out, test with a known-good power source. Connect the transformer directly to the unit terminals bypassing all wiring. Absence of chime confirms internal failure–legacy models lack modular repair options, necessitating whole-unit replacement.
